Canon SX540 HS vs Sony TX9 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Introduced January 2016
(Full Review)
- 12MP - 1/2.3" Sensor
- 3.5" Fixed Display
- ISO 125 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 25-100mm (F3.5-4.6) lens
- 149g - 98 x 60 x 18mm
- Released July 2010
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon SX540 HS vs Sony TX9 Overview
On this page, we are matching up the Canon SX540 HS versus Sony TX9, former being a Small Sensor Superzoom while the other is a Ultracompact by competitors Canon and Sony. There exists a considerable gap among the resolutions of the SX540 HS (20MP) and TX9 (12MP) but both cameras offer the same sensor size (1/2.3").
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneThe SX540 HS was released 5 years later than the TX9 and that is a fairly large difference as far as camera technology is concerned. Both of the cameras have different body design with the Canon SX540 HS being a SLR-like (bridge) camera and the Sony TX9 being a Ultracompact camera.
Before going straight to a full comparison, here is a quick highlight of how the SX540 HS grades vs the TX9 in regards to portability, imaging, features and an overall grade.
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Canon SX540 HS vs Sony TX9 Gallery
Below is a sample of the gallery pics for Canon PowerShot SX540 HS & Sony Cyber-shot DSC-TX9. The complete galleries are provided at Canon SX540 HS Gallery & Sony TX9 Gallery.
Reasons to pick Canon SX540 HS over the Sony TX9
| SX540 HS | TX9 | |||
|---|---|---|---|---|
| Released | January 2016 |  | July 2010 | More recent by 67 months |
Reasons to pick Sony TX9 over the Canon SX540 HS
| TX9 | SX540 HS | |||
|---|---|---|---|---|
| Display dimensions | 3.5" |  | 3" | Larger display (+0.5") |
| Display resolution | 922k |  | 461k | Crisper display (+461k dot) |
| Touch display |  | Easily navigate |
Common features in the Canon SX540 HS and Sony TX9
| SX540 HS | TX9 | |||
|---|---|---|---|---|
| Manually focus |  | Very precise focusing | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Selfie screen |  | Neither includes selfie screen |
Canon SX540 HS vs Sony TX9 Physical Comparison
For those who are planning to lug around your camera regularly, you will have to factor its weight and dimensions. The Canon SX540 HS features external measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") and a weight of 442 grams (0.97 lbs) and the Sony TX9 has dimensions of 98mm x 60mm x 18mm (3.9" x 2.4" x 0.7") with a weight of 149 grams (0.33 lbs).
Check out the Canon SX540 HS versus Sony TX9 in our brand new Camera & Lens Size Comparison Tool.

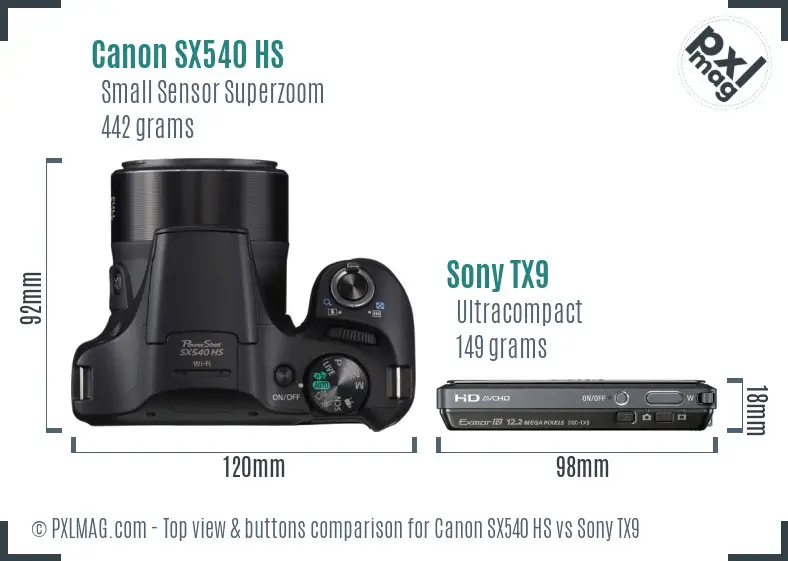

Always remember, the weight of an ILC will differ dependant on the lens you select during that time. Following is a front view dimensions comparison of the SX540 HS vs the TX9.
Looking at dimensions and weight, the portability score of the SX540 HS and TX9 is 69 and 95 respectively.
Canon SX540 HS vs Sony TX9 Sensor Comparison

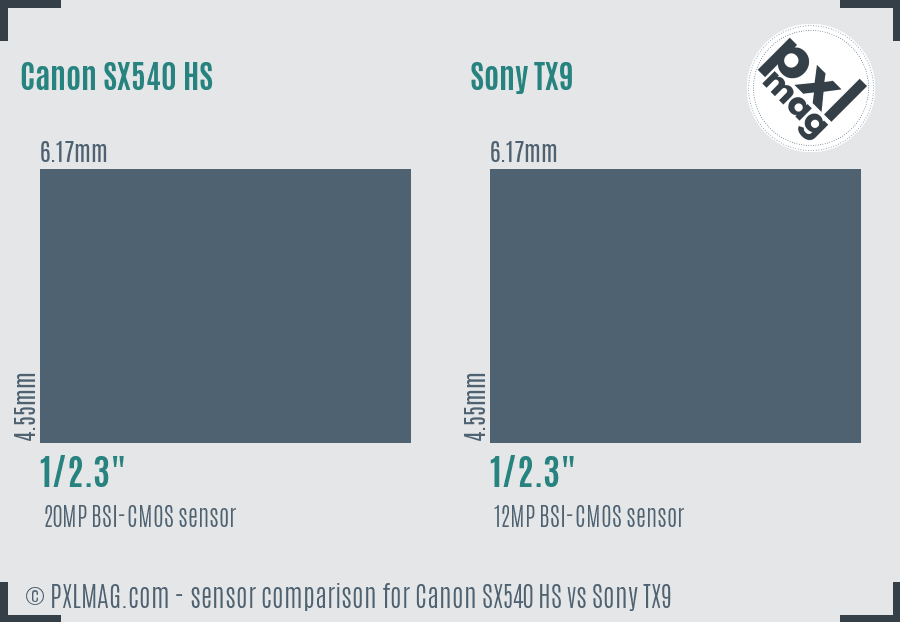

Typically, it's hard to imagine the gap in sensor measurements only by seeing technical specs. The visual here might offer you a clearer sense of the sensor measurements in the SX540 HS and TX9.
As you have seen, both cameras have the same sensor dimensions but different megapixels. You can expect to see the Canon SX540 HS to produce extra detail as a result of its extra 8 Megapixels. Greater resolution will allow you to crop images a bit more aggressively. The newer SX540 HS should have an edge in sensor innovation.
Canon SX540 HS vs Sony TX9 Screen and ViewFinder
President Biden pushes bill mandating TikTok sale or ban Photography Type Scores
Portrait Comparison
Sora from OpenAI releases its first ever music videoStreet Comparison
Photography GlossarySports Comparison
Snapchat Adds Watermarks to AI-Created ImagesTravel Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthLandscape Comparison
Photobucket discusses licensing 13 billion images with AI firmsVlogging Comparison
Samsung Releases Faster Versions of EVO MicroSD Cards
Canon SX540 HS vs Sony TX9 Specifications
| Canon PowerShot SX540 HS | Sony Cyber-shot DSC-TX9 | |
|---|---|---|
| General Information | ||
| Company | Canon | Sony |
| Model | Canon PowerShot SX540 HS | Sony Cyber-shot DSC-TX9 |
| Class | Small Sensor Superzoom | Ultracompact |
| Introduced | 2016-01-05 | 2010-07-08 |
| Physical type | SLR-like (bridge) | Ultracompact |
| Sensor Information | ||
| Powered by | DIGIC 6 | Bionz |
| Sensor type | BSI-CMOS | BSI-CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor area | 28.1mm² | 28.1mm² |
| Sensor resolution | 20 megapixel | 12 megapixel |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
| Maximum resolution | 5184 x 3888 | 4000 x 3000 |
| Maximum native ISO | 3200 | 3200 |
| Minimum native ISO | 80 | 125 |
| RAW photos | ||
| Autofocusing | ||
| Manual focus | ||
| AF touch | ||
| Continuous AF | ||
| AF single | ||
| AF tracking | ||
| Selective AF | ||
| AF center weighted | ||
| AF multi area | ||
| AF live view | ||
| Face detect AF | ||
| Contract detect AF | ||
| Phase detect AF | ||
| Number of focus points | - | 9 |
| Lens | ||
| Lens mount | fixed lens | fixed lens |
| Lens focal range | 24-1200mm (50.0x) | 25-100mm (4.0x) |
| Maximum aperture | f/3.4-6.5 | f/3.5-4.6 |
| Macro focus range | 0cm | 1cm |
| Focal length multiplier | 5.8 | 5.8 |
| Screen | ||
| Display type | Fixed Type | Fixed Type |
| Display size | 3 inch | 3.5 inch |
| Resolution of display | 461k dots | 922k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch display | ||
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Slowest shutter speed | 15 secs | 2 secs |
| Maximum shutter speed | 1/2000 secs | 1/1600 secs |
| Continuous shooting rate | 5.9 frames/s | 10.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | - |
| Custom WB | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 5.50 m (at Auto ISO) | 3.80 m |
| Flash settings | Auto, on, off, slow synchro | Auto, On, Off, Slow syncro |
| Hot shoe | ||
| Auto exposure bracketing | ||
| White balance bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1920 x 1080 (50 fps), 1440 x 1080 (50, 25fps), 1280 x 720 (25 fps), 640 x 480 (25 fps) |
| Maximum video resolution | 1920x1080 | 1920x1080 |
| Video data format | MPEG-4, H.264 | AVCHD |
| Mic support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Built-In | Eye-Fi Connected |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 442 grams (0.97 lbs) | 149 grams (0.33 lbs) |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 98 x 60 x 18mm (3.9" x 2.4" x 0.7") |
| DXO scores | ||
| DXO All around score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 205 images | - |
| Style of battery | Battery Pack | - |
| Battery model | NB-6LH | NP-BN1 |
| Self timer | Yes (2 or 10 secs, custom) | Yes (2 sec or 10 sec, portrait1/ portrait2) |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC | SD/ SDHC/ SDXC, Memory Stick Duo/Pro Duo, Internal |
| Card slots | Single | Single |
| Price at launch | $399 | $799 |
