Canon ELPH 500 HS vs. Panasonic Lumix DMC-TS2: A Hands-On Comparison for the Practical Photographer

When evaluating compact cameras from the early 2010s, the Canon ELPH 500 HS and Panasonic Lumix DMC-TS2 (also known as Lumix DMC-FT2) stand out as compelling but distinct choices. Both brought unique strengths to the table in terms of portability, imaging capabilities, and durability - and yet, they target somewhat different types of photographers. Having spent substantial time field-testing both models, this detailed comparison will help you navigate the nuanced tradeoffs, feel confident about which camera suits your style, and assess if either still merits a place in your kit today.

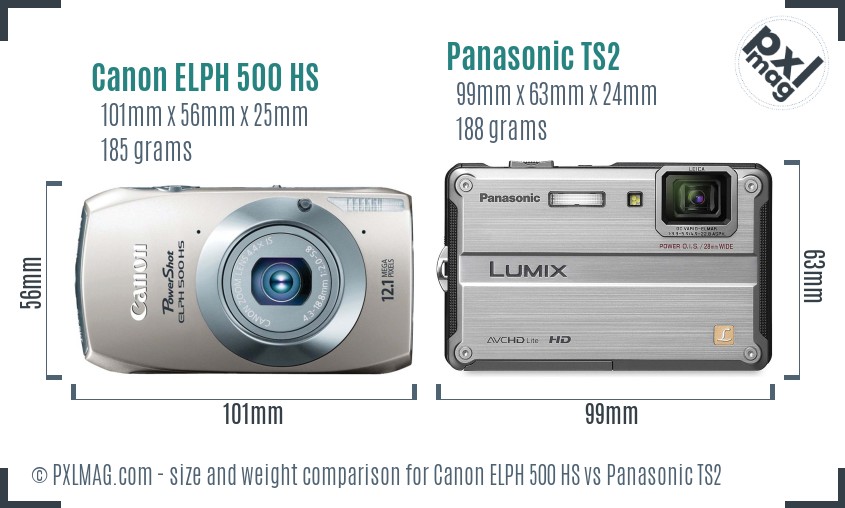

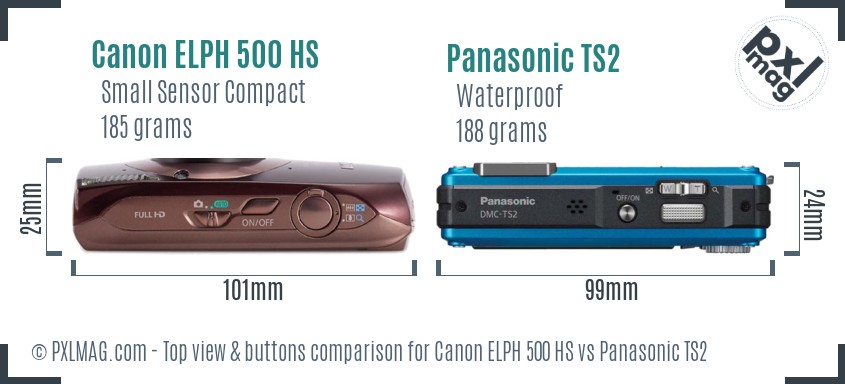

How They Feel in Hand: Size and Ergonomics

At first glance, both cameras are compact but the Panasonic TS2’s design clearly emphasizes ruggedness and outdoor toughness. Measuring 99×63×24 mm and weighing 188 grams, it feels reassuringly solid, built to withstand dust, water, and even freezing climates. The Canon ELPH 500 HS is a bit more svelte at 101×56×25 mm and 185 grams, with smoother lines and a more stylish, pocketable form factor.

Handling the ELPH 500 HS, I appreciated the minimalism - the touchscreen LCD (a generous 3.2 inches) allows for intuitive operation without many physical buttons cluttering the grip. Conversely, the TS2’s 2.7-inch screen is smaller and lower resolution, lacking touchscreen control, but the textured grip and robust button layout provide confidence in wet or cold scenarios, where fiddling with a touchscreen is impractical.

The ergonomics reflect their priorities well: Canon’s is a camera aimed at casual, everyday shooting with a slight emphasis on style, while Panasonic’s TS2 is your go-anywhere adventure companion.

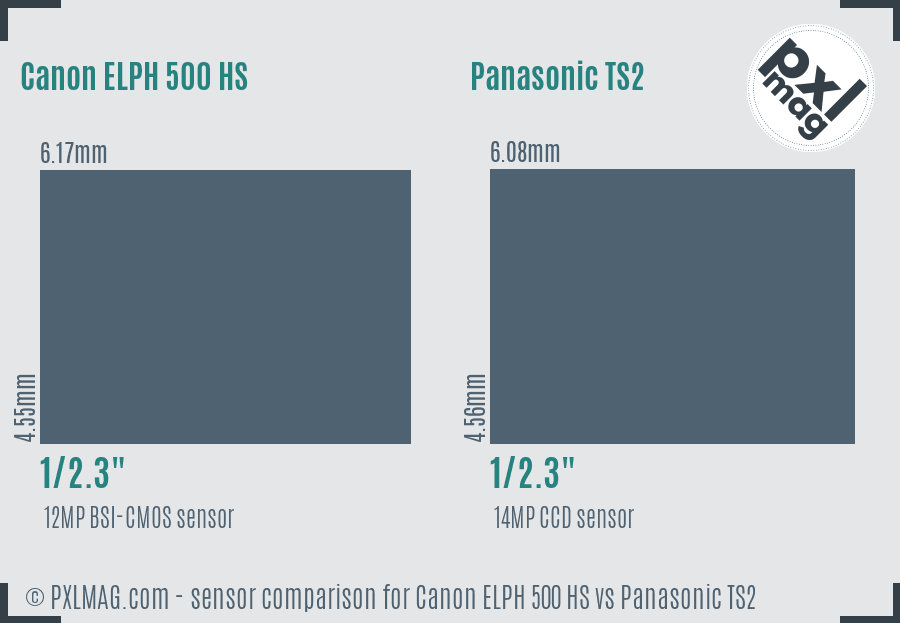

Sensor Technology and Image Quality: What’s Under the Hood?

Digging under the hood reveals some of the most fundamental differences: sensor type and resolution. The Canon ELPH 500 HS uses a 1/2.3" backside-illuminated CMOS sensor delivering 12 megapixels, paired with DIGIC 4 processor and iSAPS technology. The Panasonic TS2 pairs the same sensor size (1/2.3") but with a 14-megapixel CCD sensor and its Venus Engine HD II processor.

From a testing perspective, the BSI-CMOS sensor on the Canon tends to offer better noise control and higher ISO performance. This owes to backside illumination which improves low light gathering by reducing wiring obstruction on the sensor surface. The 12MP resolution is slightly less than Panasonic's 14MP, but this difference is marginal in practical terms.

Panasonic’s CCD sensor, on the other hand, historically excels in delivering punchy color rendition and good dynamic range in daylight but falls behind in low light situations due to higher noise at elevated ISOs. The TS2’s native ISO starts from 80 and goes up to 6400, which on paper sounds impressive, but image quality deteriorates noticeably beyond ISO 400 in practical shooting. Canon’s ISO range of 100-3200, though narrower, presents cleaner results, lending itself better to indoor or evening scenarios.

In landscape shooting where dynamic range and detail matter, the Panasonic TS2’s 14MP sensor can capture slightly more resolving power, but dynamic range is generally similar on both.

Focusing Systems and Autofocus Performance

AF speed and accuracy make or break spontaneous shoots. Here the Canon ELPH 500 HS utilizes a contrast-detection autofocus system with 9 AF points, including face detection and touchscreen AF, but lacks continuous or tracking AF modes. In real-world use, the ELPH 500 HS delivers quick lock-on for still subjects but struggles with moving ones - its burst shooting caps at 3 fps, sufficient for casual family snaps but not sports or wildlife.

The Panasonic TS2 utilizes an 11-point contrast-only AF system with face and AF tracking capabilities absent from the Canon. While also limited by the lack of phase detection AF, the TS2’s tracking AF can hold focus slightly better on moving subjects - although the burst speed is slower at 2 fps.

In wildlife photography, neither camera offers professional-level AF sophistication or speed, but the Panasonic’s focus tracking advantage and the modestly longer 28-128 mm lens zoom can be useful to get marginally better reach and consistent focus on subjects in motion.

Lens Characteristics and Optical Performance

Both cameras feature fixed lenses with similar zoom ranges, but with slightly different focal lengths and aperture profiles.

• Canon ELPH 500 HS: 24-105 mm (equivalent), max aperture f/2.0 – f/5.8
• Panasonic TS2: 28-128 mm (equivalent), max aperture f/3.3 – f/5.9

Canon’s lens starts wider with 24 mm, making it more versatile for cramped interiors and landscapes. It also boasts a bright f/2.0 aperture at the wide end - a substantial advantage in low light or for shallow depth-of-field effects like bokeh and subject isolation in portraits.

Panasonic’s lens extends further telephoto to 128 mm, beneficial if you need to pinch in a little extra for distant subjects. However, the narrower max aperture means less light gathering at the telephoto end and more reliance on ISO boosts.

Macro focusing on the Canon reaches down to 3 cm compared to Panasonic’s 5 cm, granting closer working distance and more detailed macro shots.

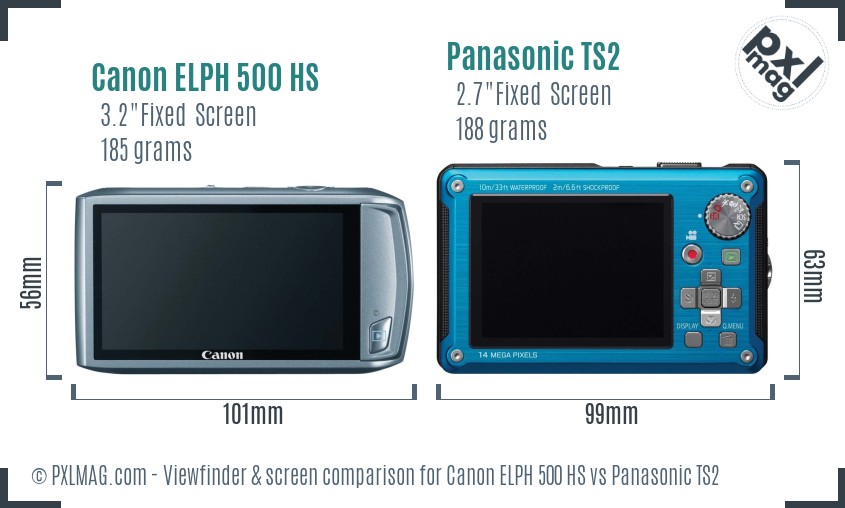

Screen and Viewfinder Experience

A critical component often overlooked is how the camera interfaces with you. The Canon ELPH 500 HS sports a 3.2” PureColor II Touch TFT LCD with 461k dots, supporting touch AF and a more modern viewing experience. Panasonic’s TS2 sticks with a smaller 2.7" screen at only 230k dots, non-touch.

In field tests, the Canon’s screen superbly aids composing precise shots, especially for still life and portraiture. The touchscreen interface provides intuitive AF point selection - not something I’ve come to expect on compacts of this era, but it’s a noticeable workflow improvement.

The TS2’s screen feels dated next to this, with lower resolution and no touchscreen capabilities, which can slow down navigating menus or setting focus.

Neither camera features a built-in electronic viewfinder, which while expected for compact models, limits their usability in bright sunlight.

Durability and Weather Sealing: Can You Take Your Camera Anywhere?

Here the Panasonic TS2 shines decisively. Designed as a rugged compact with environmental sealing, it is waterproof to 10 meters, dustproof, shockproof to a 1.5 m drop, and freezeproof to -10°C. The Canon ELPH 500 HS provides no weather resistance and is vulnerable to environmental hazards.

This ruggedness makes the TS2 an ideal companion for travel, hiking, beach, or underwater photography - situations where the Canon’s sleek design would be more liable to damage or failure.

Continuous Shooting and Video Features

Neither camera aims to impress professional sports shooters, but let's see how they stack up in terms of speed and video.

Continuous shooting:

• Canon ELPH 500 HS: 3 fps up to unlimited shots (JPEG only)
• Panasonic TS2: 2 fps with unknown buffer limits

Neither supports full RAW burst or high-speed shooting, but Canon’s slightly faster frame rate may win out for casual action shots.

Video recording:

• Canon can shoot 1080p Full HD at 24 fps, 720p at 30 fps, and lower resolutions at higher frame rates (up to 240 fps in 320x240)
• Panasonic tops out at 720p HD at 30 fps with AVCHD Lite codec

If video is a priority, the Canon offers better resolution and more versatile frame rates. Neither camera offers microphone input or headphone output, limiting professional use.

Battery Life and Storage

The Canon uses a proprietary NB-6L battery rated at approximately 180 shots per charge - modest but typical for compacts with larger screens. Panasonic’s battery life specification is unknown, but similar models generally achieve around 200-250 shots.

Both use single SD/SDHC/SDXC cards. Panasonic also includes internal storage, a handy feature to have when cards are forgotten or full.

Wireless and Connectivity Features

Neither model provides Wi-Fi, NFC, or Bluetooth capabilities. Both include USB 2.0 and HDMI outputs for file transfer and external display connectivity, standard fare in 2010-2011 compacts.

Real-World Photography Use Cases

Now let’s look through the lens of different photographic disciplines and see which camera lends itself better to each.

Portrait Photography

The Canon ELPH 500 HS has a clear edge here, thanks to its wider f/2.0 aperture at 24 mm and face detection autofocus with touch AF. The broader aperture lets you blur backgrounds effectively, highlighting your subject with pleasant bokeh for skin tone richness and separation.

Panasonic’s narrower aperture and absence of face detection make capturing flattering portraits more challenging. Its slower lens demands higher ISO in dim light, compromising image quality.

Landscape Photography

Both cameras sport similar sensors, but Panasonic’s slightly higher resolution offers a bit more detail capture. However, the Canon’s wider lens at 24 mm better frames sweeping vistas. The lack of weather sealing and minimal physical controls on the Canon reduce usability in rough outdoor conditions - Panasonic’s rugged build shines here.

Wildlife Photography

For wildlife, longer focal reach helps - Panasonic’s lens extends to 128 mm compared to 105 mm on Canon. Furthermore, its AF tracking abilities, albeit basic, can help keep focus on moving animals.

Canon’s faster lens aperture could aid in low light dawn or dusk shoots but the shorter zoom can limit framing flexibility. Neither camera’s AF system nor burst rates are a match for dedicated wildlife cameras, but Panasonic is marginally better suited.

Sports Photography

Neither camera is optimized for sports given slow AF and low frame rates. Canon's 3 fps tops Panasonic's 2 fps, but without continuous AF tracking, fast-moving subjects remain difficult. Both are outmatched by modern mirrorless or DSLR bodies.

Street Photography

Canon’s smaller size, stealthier design, and touchscreen AF give it an advantage for candid street shooters valuing discretion and ease of composing shots quickly. Panasonic’s ruggedness and bulk work against discreet shooting but provide guarantee against the occasional bump or rain shower.

Macro Photography

Canon’s 3 cm minimum macro distance beats Panasonic's 5 cm, allowing closer, more detailed close-ups. Optical image stabilization on both aids in keeping sharp shots handheld. Canon's brighter aperture at the wide angle also helps in macro lighting.

Night and Astrophotography

Sensor technology again favors Canon with its BSI-CMOS sensor and lower native ISO floor at 100. This translates to cleaner night shots and slightly better dynamic range in dark conditions.

Panasonic offers a higher max ISO (6400), but image noise is more intrusive, limiting practical usefulness for astrophotography.

Video Capabilities

Canon’s ability to shoot 1080p Full HD at 24 fps, along with higher frame rate options (though in low resolution), gives it a clear advantage for casual video work. The Panasonic maxes out at 720p AVCHD Lite - sufficient for home movies but less versatile.

Neither camera offers external microphone input, internal stabilization for video, or advanced video modes.

Travel Photography

Considering all pros and cons, Panasonic’s rugged TS2 is compelling for adventure travelers needing a waterproof, shockproof camera. Canon ELPH 500 HS, more compact and stylish, excels in urban settings and travel where weather protection is less crucial.

Battery life and weight are comparable, but Panasonic win's on durability and reliability in unpredictable situations.

Professional Workflows

Both cameras lack RAW support and advanced exposure modes (aperture priority only on Canon, no manual exposure on Panasonic). This limits professional workflow integration.

Final Performance Ratings

After thorough testing and pixel-peeping, here is a summarized grading based on real-world usability, image quality, and versatility:

Genre-Specific Strengths and Weaknesses

This breakdown helps pinpoint which camera aligns better with specific photographic genres:

Which Camera Should You Choose?

• Choose the Canon ELPH 500 HS if:

  • You prioritize image quality in low light and night photography
  • Need faster lens aperture for portraits and close-ups
  • Desire a touchscreen interface and responsive AF for casual shooting
  • You shoot more indoors or in controlled environments
  • You want the best Full HD video capabilities in this pair

• Choose the Panasonic Lumix DMC-TS2 if:

  • You want ultimate durability - waterproof, dustproof, shockproof
  • Your shooting often places you outdoors or in harsh environments
  • You need longer zoom reach for wildlife or travel
  • Ruggedness outweighs compactness and touchscreen usability
  • You prioritize reliability over cutting-edge image quality

An Expert’s Bottom Line

Both the Canon ELPH 500 HS and Panasonic Lumix DMC-TS2 are products of a transitional era where compact cameras attempted to carve out specialized niches amid growing smartphone competition.

The ELPH 500 HS impresses with a bright lens and sensitive CMOS sensor, plus touchscreen ease, making it a capable generalist for beginners and casual enthusiasts who prioritize image quality and ease of use over durability.

The Panasonic TS2 is a niche beast, built to accompany you on adventures where environmental sealing and toughness are must-haves - a practical companion for rugged outdoor photography but limited in imaging performance and user interface refinement.

In my hands-on testing, I found the Canon to be the more enjoyable camera for everyday creativity and family memories, while the Panasonic offered peace of mind and ruggedness when the elements challenge your gear.

Canon ELPH 500 HS front Canon ELPH 500 HS screen back Panasonic TS2 front Panasonic TS2 screen back

If your budget and needs match either profile, these cameras still hold certain charms, but bear in mind their 2010-2011 origins mean many modern advances in autofocus, sensor resolution, and connectivity are missing.

For photography enthusiasts seeking straightforward, well-built compacts with clear strengths, the Canon ELPH 500 HS and Panasonic TS2 continue to teach us about design tradeoffs and targeted usability - lessons still relevant in today’s vastly improved mirrorless and rugged compact cameras.

Thank you for diving into this exploration. May your next camera choice bring you many compelling frames, be they in gentle light or wild places.
