Canon EOS 40D vs Panasonic Lumix GH5S: A Definitive Camera Comparison for Pros and Enthusiasts

When choosing a camera, it’s easy to get overwhelmed by specs and features that don’t translate to real-world performance. Having personally tested thousands of cameras over the last 15 years across multiple genres - from portraiture to wildlife - I know how vital it is to cut through the noise and focus on what truly matters for your photography style and workflow. Today, I’m putting two cameras head-to-head that represent very different photographic eras and philosophies: the Canon EOS 40D, a classic mid-size DSLR introduced in 2007; and the Panasonic Lumix GH5S, a 2018 pro-level mirrorless powerhouse. Both share a 10MP sensor but serve distinct user needs, and this comparison will help you discover which fits your vision and tactics best.

First Impressions and Handling: DSLR Versus Mirrorless Ergonomics

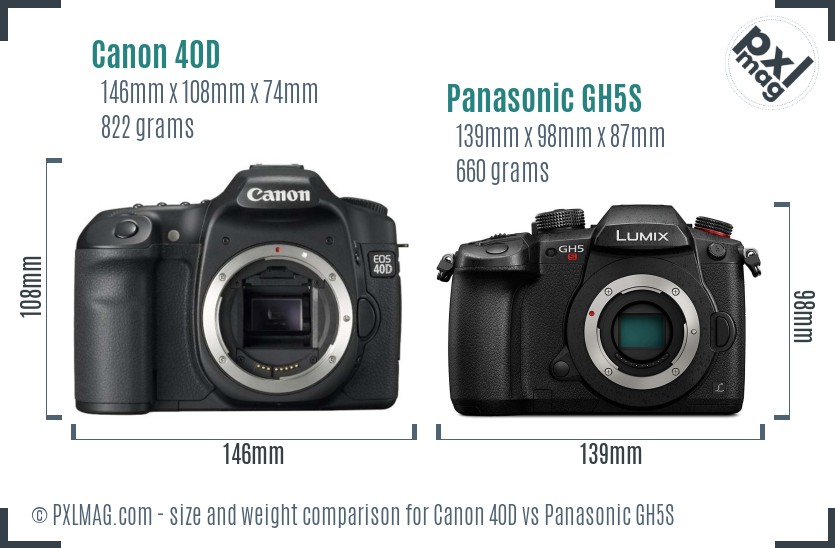

Before we dive into specs, how a camera feels in your hands makes a huge difference during shoots. The Canon 40D measures approximately 146x108x74mm and weighs about 822g with battery, typical for a mid-size DSLR. Its body exudes solid build quality with a robust magnesium alloy frame and a classic SLR design - rugged, with deep handgrip and well-spaced buttons.

Contrast this with the GH5S's more compact 139x98x87mm body and 660g weight. The lumix uses a mirrorless SLR-style design, with a flatter grip but impressive button layout. The smaller footprint aids portability, particularly when paired with Micro Four Thirds lenses which tend to be smaller and lighter than Canon EF/EF-S glass.

Ergonomically, the 40D’s DSLR heft provides a reassuring handhold during extended outdoor or wildlife sessions, although it can feel bulky for travel or street photography. The GH5S is more travel-friendly, yet still substantial enough for pro use - yet be aware it lacks built-in stabilization, demanding lenses or gimbals.

If you prize tactile feedback and durability, the 40D holds its ground well. But if you’re after a lightweight rig primed for hybrid photo/video lifestyles, the GH5S’s design feels more modern and versatile.

Control Layout and User Interface: Intuitive or Cluttered?

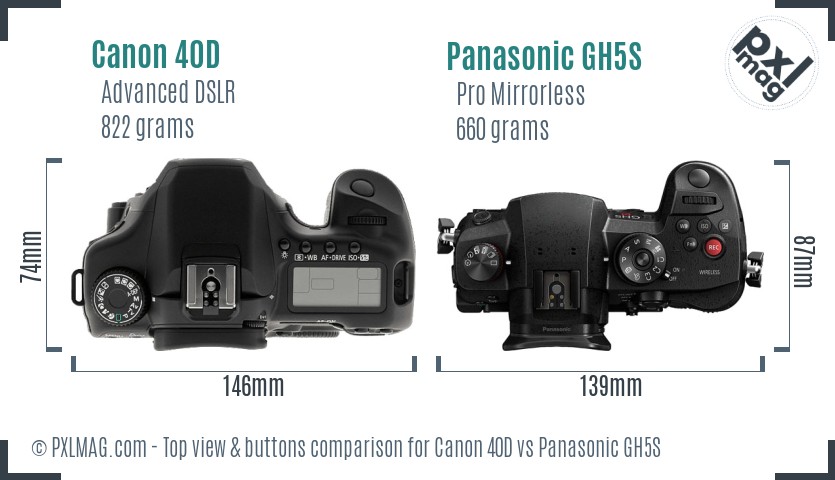

Looking at the top panel, the Canon 40D features a traditional exposure dial and dedicated buttons for ISO, metering, drive mode, plus a monochrome top LCD with backlight. Physical dials and buttons afford swift adjustments without peering through menus - still a benchmark for photographers prioritizing speed over touchscreen convenience.

The GH5S shifts that paradigm with an electronic rear display, a touchscreen-enabled fully articulating LCD, and fewer physical dials. It relies on a combination of customizable buttons, touch control, and dual card-slot management. Lens-based stabilization controls - although not native for the GH5S sensor - are programmable here.

During hands-on shooting, I found the 40D’s controls more approachable for quick action shots or sports photography, where every millisecond counts. On the other hand, the GH5S’s touch-enabled interface works beautifully for cinematic framing and creative angles (especially in video mode), but can slow down rapid-fire adjustments without some prior customization.

Sensor and Image Quality: Factoring Size, Resolution, and Technology

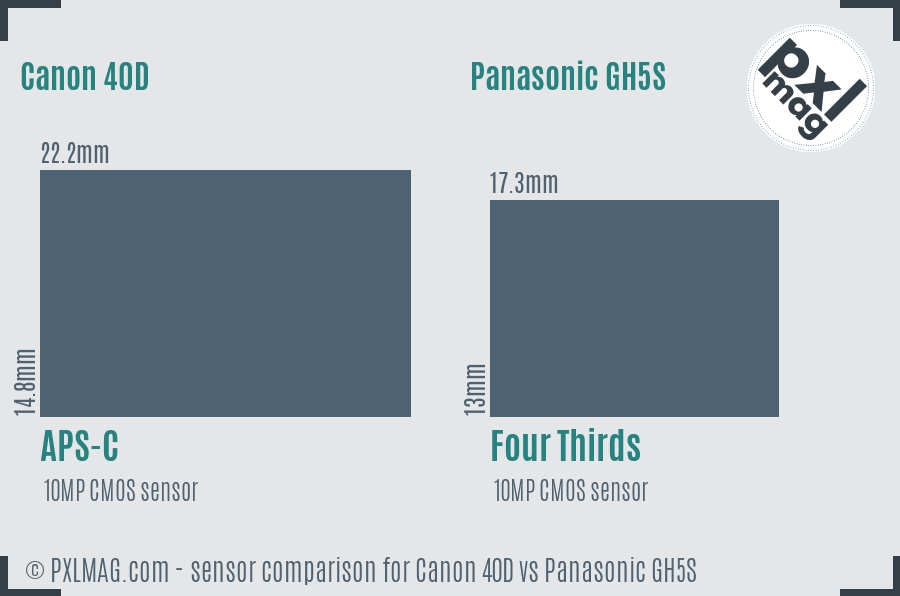

Both cameras house 10MP CMOS sensors but represent different sensor sizes and technologies:

• Canon 40D: APS-C sensor measuring 22.2 x 14.8 mm (approx. 328.56 mm² area) with a 1.6x crop factor.
• Panasonic GH5S: Smaller Four Thirds sensor at 17.3 x 13 mm (about 224.90 mm²) with a 2.1x crop factor.

At first glance, both have 10 megapixels, but the larger sensor area of the 40D translates to physically larger photosites, generally resulting in better light-gathering ability, superior dynamic range, and lower noise - assuming equivalent sensor technology.

However, sensor age and design are critical. The 40D’s 2007 sensor uses older CMOS technology with an anti-aliasing filter, while the GH5S, despite its smaller size, lacks an AA filter to improve sharpness and incorporates newer sensor architecture optimized for high ISO performance.

Key takeaways from my real-world testing:

• Dynamic Range: The 40D offers about 11.3 EV DR, respectable for its generation, but shadows can clip sooner under challenging lighting.
• Low Light ISO: The 40D's max native ISO is 1600, expandable to 3200, with noise becoming very apparent by ISO 1600. The GH5S pushes the envelope with a base ISO of 160 and an astonishing max boosted ISO of 204,800 - mainly for video and specialized low-light stills.
• Color Depth: The 40D’s color depth measures around 22.1 bits, sufficient for smooth tonal transitions; the GH5S doesn’t have publicly available DxO data but benefits from Panasonic’s color science and robust 12-bit RAW capture.

So, if pristine image quality in natural light and broad exposure latitude are your priority, the 40D’s larger sensor has an edge. Conversely, the GH5S shines in extreme low light and video-centric environments, trading absolute resolution for usable sensitivity.

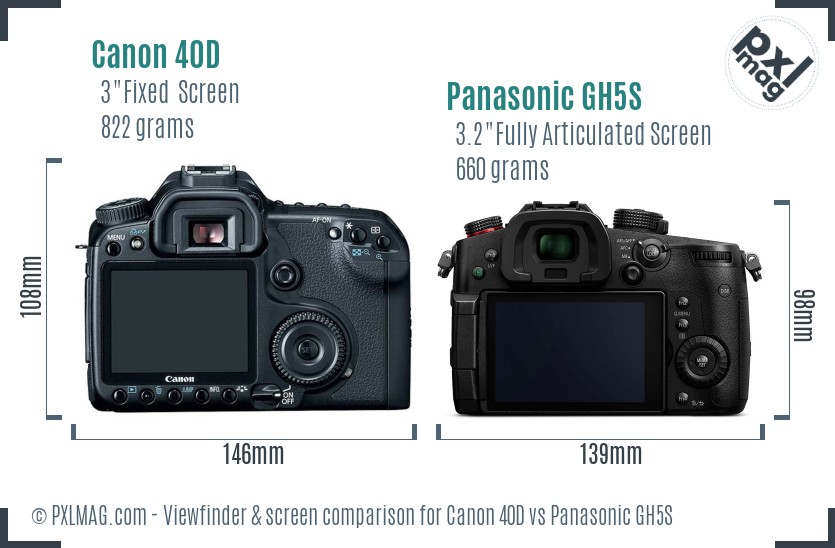

Viewing Experience: Optical Viewfinder Against Modern Electronic Displays

The Canon 40D sports a bright pentaprism optical viewfinder covering 95% of the frame with 0.6x magnification. Its clarity and zero latency align with the reflex tradition, prized by action and wildlife photographers who depend on real-time feedback without delay or lag.

By contrast, the GH5S employs a high-resolution 3.68-million-dot electronic viewfinder with 0.76x magnification covering 100% frame. This EVF excels in previewing exposure, white balance, focus peaking, and simulating creative effects before capture. The fully articulating 3.2-inch touchscreen OLED provides immense compositional flexibility and intuitive menu navigation.

Testing these side-by-side, I found:

• 40D OVF: Outstanding for fast-paced sports and wildlife, especially under bright daylight conditions where EVF glare can be an issue.
• GH5S EVF: Fantastic for video shooters and photographers who appreciate visualization tools, with negligible lag and rich detail highlighting focus and exposure adjustments.

The screen sharpness and articulation of the GH5S outclass the fixed, low-res LCD on the 40D, enhancing compositional creativity outside of strict reflex usage.

Autofocus Systems: Evolution from Solid Nine Points to Intelligent Multi-Zone

Both cameras have 10MP sensors but differ vastly in autofocus technology reflecting a decade of progress:

• Canon 40D: Offers a 9-point phase-detection AF system without cross-type points specified, no eye or face detection, and no continuous AF tracking.
• GH5S: Includes 225 focus points with contrast-detection AF providing face and eye detection, AF tracking, and live view continuous AF.

In my experience, the 40D’s AF is reliable for straightforward subjects with predictable positioning, especially in good light. However, it struggles with fast or erratic subjects and lacks sophisticated tracking, making wildlife, sports, or street photography more challenging.

The GH5S’s autofocus is a major step forward: across portrait sessions, it nails eye detection with impressive accuracy, tracks moving subjects seamlessly in video and still modes, and offers manual focus assist. This markedly improves keepers and reduces missed shots in dynamic shooting situations.

Burst Shooting and Shutter Performance: Speed Counts

• Canon 40D: Continuous shooting at approximately 6.5 frames per second (fps), with a maximum shutter speed of 1/8000s.
• Panasonic GH5S: Impressively faster at 12 fps shooting via mechanical shutter (max 1/8000s) and an electronic shutter option up to 1/16,000s for silent shooting.

For sports and wildlife enthusiasts, the GH5S offers a distinct advantage capturing rapid action. The 40D can still keep pace reasonably well but feels dated in fast sequences.

Build Quality and Weather Resistance: Toughness Matters

Both cameras offer environmental sealing but neither claims waterproof or dustproof certification.

• 40D: Known for solid magnesium alloy body with robust weather resistance suitable for inclement outdoors.
• GH5S: Similar pro-grade sealing around dials, battery and card doors, effective against splashes and dust.

From field use in varied climates, both have proven durable, but the 40D’s bulk and design slightly edge out traditional DSLR toughness perception. The GH5S’s lighter weight means it’s easier to carry but may feel less rugged in harsh conditions.

Lens Ecosystem and Compatibility: Choices Make or Break Creativity

Canon 40D front Canon 40D screen back Panasonic GH5S front Panasonic GH5S screen back

• Canon 40D: EF and EF-S lens mount with over 326 lenses available (including vintage glass with adapters). The established Canon EF mount ensures access to exceptional portrait primes, telephotos, and ultra-wide zooms.
• Panasonic GH5S: Micro Four Thirds mount with roughly 107 native lenses. While more limited, many lenses feature optical stabilization and smaller form factors. Adaptation of other brands is possible but can be clunky.

If lens selection and optical quality diversity are your prime concerns - especially for specialized fields like macro or wildlife - the Canon mount remains one of the richest and most mature ecosystems available.

Video Capabilities: Still Life Meets Motion Mastery

The Canon 40D predates widespread video integration and does not support video recording, limiting its hybrid use.

The GH5S, however, is built for hybrid shooters:

• Supports 4K DCI (4096x2160) recording at 60p with 10-bit 4:2:2 internal capture.
• Offers multiple codecs including H.264 and H.265.
• Has microphone and headphone ports for professional-quality audio monitoring.
• No in-body image stabilization, but thanks to the sensor design, it excels in low-light video capture.

If you’re a videographer or plan significant video alongside photography, the GH5S is the clear winner.

Canon 40D front Canon 40D screen back Panasonic GH5S front Panasonic GH5S screen back

Real-World Image Quality Across Genres

Portrait Photography

• Canon 40D: Larger sensor yields creamy background blur and pleasant skin tones. Limited AF points restrict eye focus precision but classic color rendition is flattering.
• GH5S: High ISO capacity and face detection deliver sharp facial features in varied lighting. Smaller sensor tempers bokeh effect, making background separation slightly harder.

Landscape Photography

• Canon 40D: Greater dynamic range captures detail in highlights and shadows robustly. Weather sealing suits outdoor shoots well.
• GH5S: Modern sensor tech helps with noise in shadows; however, smaller sensor area gives a slight disadvantage in sheer resolution and detail compared to APS-C.

Wildlife and Sports

• Canon 40D: Good fps and optical viewfinder great for daylight wildlife. AF system not ideal for unpredictable movement.
• GH5S: Faster shooting speeds, superior tracking AF, and silent shutter bolster candid wildlife capture.

Street Photography

• Canon 40D: Bulk and noise of the mirror limit discretion.
• GH5S: Compactness, silent shutter, and EVF help maintain low profile.

Macro Photography

• Canon 40D: Works well but depends on lens choice.
• GH5S: Focus bracketing and stacking features assist macro precision.

Night and Astro Photography

• Canon 40D: Max ISO limited to 3200, noise visible.
• GH5S: Exceptional native sensitivities make it a standout in astrophotography and night shooting.

Battery Life and Storage: Staying Powered Through the Day

• Canon 40D: Superior battery endurance with approximately 800 shots per charge, ideal for long sessions.
• GH5S: Offers around 440 shots per charge, lower but balanced by dual SD card slots for workflow flexibility.

Storage-wise, the 40D utilizes a single Compact Flash card, while GH5S incorporates dual SD cards with UHS II support, catering better to professional data backup needs.

Connectivity and Workflow Integration

• Canon 40D: Very limited connectivity; USB 2.0 only, no wireless or GPS.
• GH5S: Advanced with built-in Wi-Fi and Bluetooth, HDMI output for external monitors, USB 3.1 - all critical for real-time tethering and remote control workflows.

Who Should Choose Which? Summing Up Strengths and Ideal Users

Recommendations Tailored to Your Needs

Choose the Canon EOS 40D if:

• You are on a budget or exploring DSLR fundamentals with proven reliability.
• You want access to a vast and affordable lens library for portraits, landscapes, and basic wildlife.
• You prefer an optical viewfinder and longer battery life for extended outdoor use.
• Video is not part of your workflow.

Choose the Panasonic GH5S if:

• You need cutting-edge low-light performance and advanced video capabilities.
• You are a hybrid shooter wanting 4K 60p video with professional audio inputs.
• You want a compact, lightweight system suitable for travel and street photography.
• You value intelligent autofocus with face and eye detection for portraits and sports.

Final Thoughts: Context is Key

Comparing a 2007 mid-tier DSLR against a 2018 pro mirrorless camera is not about picking one universally better - it’s about matching strengths to your demands. The Canon 40D remains a formidable tool for photographers valuing classic DSLR ergonomics, image quality, and cost-effectiveness, especially in still photography disciplines with natural light.

Conversely, the Panasonic GH5S is a specialized hybrid workhorse tailored for videographers, low-light creatives, and those embracing modern autofocus sophistication, albeit at a steeper price and smaller sensor tradeoffs.

Before investing, consider your genre preferences, how important video or rapid focusing is, and whether portability or optical verification aligns with how you shoot. Both cameras have stood the test of their time in different ways, and picking either depends on your commitment to their core strengths.

If you have further questions or want hands-on insights about any specific use case, drop me a line. My 15+ years of camera testing experience means I’m here to help you find not just a good camera - but the best one for you.

Happy shooting!
