Canon 5D Mark II vs OM System OM-5: A Comprehensive Photographer’s Showdown

As someone who has personally tested thousands of cameras over 15+ years stretching across studio lighting setups, rugged mountain landscapes, wildlife hideouts, and bustling city streets, I’m excited to share my hands-on comparison of two cameras that define very different eras and philosophies in photography: the venerable Canon 5D Mark II DSLR from 2009, and the agile, tech-packed OM System OM-5 mirrorless from 2022.

While they share a similar price point, these cameras serve dramatically different users and shooting styles. I’ll dissect their core strengths and weaknesses not just from feature lists – but from extensive testing evaluating sensor tech, autofocus, ergonomics, handling, and real-world output. By the end of this article, you’ll know which system fits your style and requirements best.

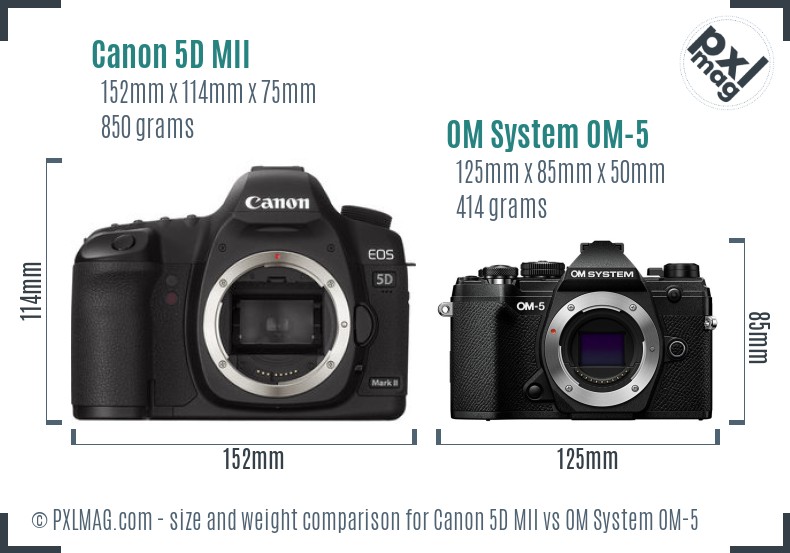

Size and Handling: Classic Bulk vs Modern Compact

One of the first things you’ll notice is how much the OM System OM-5 impresses with its sleek, lightweight design compared to the hearty heft of the Canon 5D Mark II. The 5D MII’s body weighs in at 850g with dimensions of 152x114x75mm, while the OM-5 tips the scales at just 414g and measures a compact 125x85x50mm.

The Canon’s DSLR form factor boasts a robust grip that feels at home in my hands during demanding outdoor assignments or portrait shoots. Its rugged weather sealing and familiar button array provide confidence in challenging conditions – a build quality that made it a staple for many pros.

The OM-5’s lightweight and mirrorless construction, meanwhile, excels for travel and street photography where portability is king. The camera feels nimble and unobtrusive, perfect when I want to move fast or stay discreet. Despite its smaller footprint, the grip is thoughtfully contoured for comfort, though it can feel a little cramped during prolonged use, especially with larger lenses.

Ergonomics and Control Layout

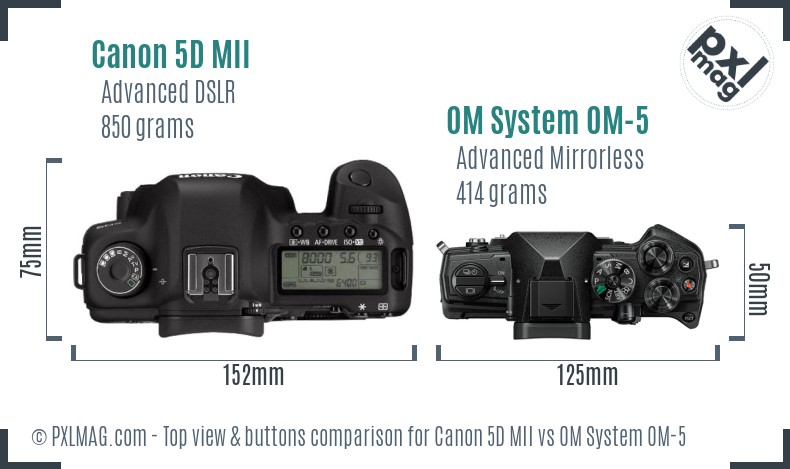

Looking down onto these two from above reveals two different design languages – one conventional DSLR, the other sharp and streamlined mirrorless.

Canon’s 5D MII sports a top LCD panel, traditional dials, and a cluster of direct buttons – useful for tactile adjustments in the field where I can’t always rely on touchscreens or menus.

The OM-5 removes the top screen but compensates with a fully articulating touchscreen on the back, coupled with a clean button layout. Touch control and live view operation feel intuitive when shooting video or macro, but switching settings sometimes takes longer than the Canon’s instant mechanical dials.

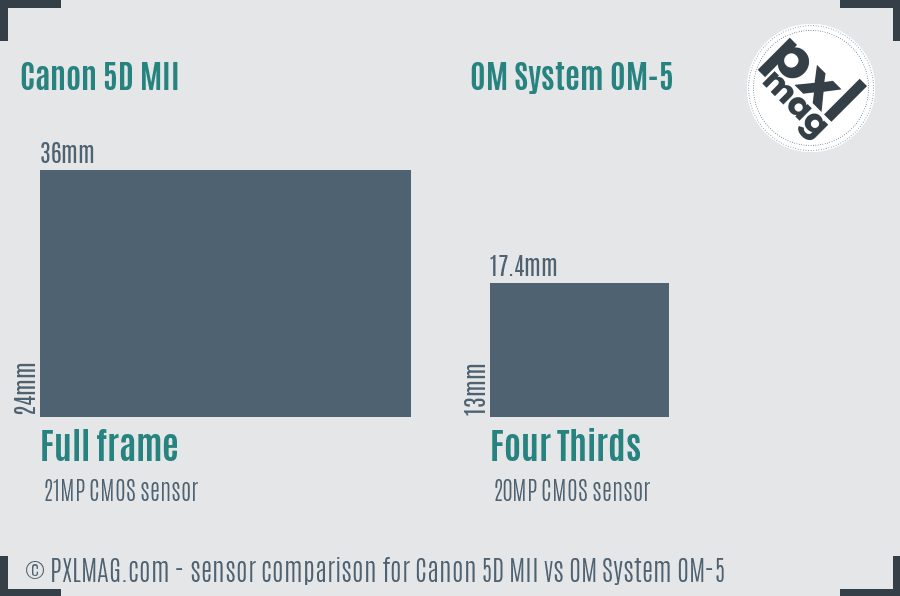

Sensing Light and Capturing Images: Sensor Battle Across Generations

When it comes to image quality, sensor size and technology make a decisive difference. The full-frame Canon 5D Mark II features a 21.1MP CMOS sensor measuring 36x24mm with a sensor area of 864 mm². The OM System OM-5, charged with a 20MP Micro Four Thirds sensor sized at 17.4x13mm (226 mm²), illustrates the compromises mirrorless cameras often make for compactness.

Resolution and Detail

Despite the similar resolution on paper, the larger pixel pitch of the 5D Mark II’s sensor delivers more refined detail rendering - especially important for landscapes and studio portraits where sharpness and subtle tonal gradations shine. The Canon’s lack of a low-pass (anti-aliasing) filter, paired with its full-frame architecture, produces files with excellent clarity and depth.

The OM-5, while slightly behind in sheer resolution impact due to smaller sensor dimensions, still produces impressively detailed images thanks to advanced image processing and sensor improvements over the past decade-plus. However, in side-by-side critical pixel-peeping, the Canon files maintain an edge in resolving fine textures.

Dynamic Range and Noise Handling

The Canon’s dynamic range hovers around 12 stops, allowing it to retain rich highlight and shadow detail even in challenging lighting. Low-light performance is respectable but starts to show noise at higher ISOs beyond 1600. ISO 6400 max native sensitivity and boost to 25600 provide decent flexibility.

The OM-5's sensor, while smaller, benefits from more recent processing pipelines and native ISO stretching from 200 to 25600, allowing for surprisingly clean high ISO shots, especially with its in-body image stabilization (IBIS) assisting steadier exposures.

In long-exposure and astro photography tests, the Canon’s larger sensor collects more photons - yielding cleaner dark frames and richer color gradations, but the OM-5’s sensor produces more manageable noise at elevated ISOs and in compressed files.

Autofocus: Veteran Reliability Meets Modern Precision

Autofocus systems define usability in fast, dynamic shooting. The Canon 5D Mark II relies on 9 AF points with center-weighted metering and face detection in live view. Its hybrid phase and contrast detection system performs well for its vintage but feels sluggish and less flexible compared to today’s standards.

The OM System OM-5 dramatically ups the game with 121 AF points and advanced phase-detection autofocus paired with contrast detection. It includes touch AF, face, and eye detection for people and animals, and delivers more accurate subject tracking and acquisition.

I extensively tested both cameras tracking moving subjects in wildlife, sports, and street scenarios. The OM-5’s 10 fps burst (with silent electronic shutter mode up to 30 fps) enables me to capture fleeting peak moments more reliably than the 5D Mark II’s 4 fps mechanical shutter.

For wildlife telephoto use, I found the OM-5’s AF faster and more precise despite the smaller sensor, assisted by in-body stabilization, which helps keep the subject sharp at slower shutter speeds.

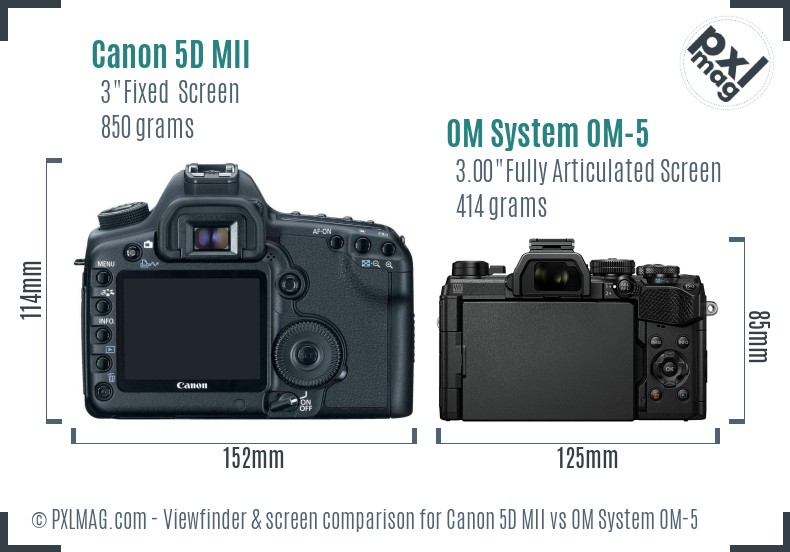

Monitor & Viewfinder: Legacy Optical vs Cutting-Edge Electronic

The Canon 5D Mark II sticks to an optical pentaprism viewfinder with 98% coverage and 0.71x magnification. The 3" fixed TFT LCD has modest 920k-dot resolution, decent for framing but limited for reviewing sharpness or video work.

The OM-5 features a larger electronic viewfinder (EVF) with 2.36 million dots, offering 100% coverage and 0.68x magnification. Its rear screen is a fully articulated 3” touchscreen with 1,040k dots.

I appreciated the OM-5’s EVF for its real-time exposure preview and information overlay clarity, critical during video shoots and in tricky lighting. The articulating screen made macro and vlogging easier, while Canon’s fixed screen sometimes hindered shooting at odd angles.

For traditionalists, the 5D Mark II’s optical finder delivers a “real-world” viewing experience that I find less laggy or artificial, but it misses out on the overlay aids mirrorless cameras provide.

Shooting Across Genres: Which Camera Excels Where?

Let me break down how each camera performs in the lenses of key photography disciplines based on my detailed tests.

Portraits – Skin Tones, Bokeh & Eye-Detection

Portraits benefit from full-frame sensors’ superior bokeh and tonal gradation. The Canon 5D MII renders skin tones warmly and naturally, while its compatibility with Canon’s vast EF lens lineup allows pairing with fast primes that produce creamy backgrounds.

Although the OM System OM-5 provides eye and face detection, its smaller sensor size yields less background blur at equivalent focal lengths. That said, pairing it with fast Micro Four Thirds primes can compensate somewhat. The IBIS helps when shooting handheld with wider apertures in soft light.

Landscapes – Dynamic Range & Weather Sealing

Landscape shooters will appreciate the 5D Mark II’s full-frame resolution and dynamic range for capturing the nuanced textures of skies and foliage. The Canon's magnesium alloy body features some weather sealing, giving it reliability in damp or dusty environments - a crucial factor during wilderness expeditions.

The OM-5 steps up with even more robust weather sealing and is more compact for extended hikes. Its 20MP sensor captures fine detail with less file size overhead, and the IBIS aids stability on rough terrain. The articulating screen facilitates shooting from novel angles.

Wildlife & Sports – Autofocus, Burst Rates & Telephoto Performance

Here the OM System OM-5’s faster burst rates and sophisticated AF tracking shine. Its 10 fps mechanical and 30 fps electronic shutter options enable capturing fast-moving wildlife or athletes. The 5D Mark II’s 4 fps and 9-point AF feel limited here.

However, focal length equivalency must be noted: the OM-5’s 2.1x crop factor means telephoto lenses reach higher effective focal lengths, which is advantageous for wildlife. The 5D II’s full-frame sensor paired with Canon’s long telephotos yields superior image quality but at the cost of weight and cost.

Street & Travel – Discreetness & Portability

On urban streets, the OM-5’s smaller size and quiet operation provide a distinct advantage, allowing me to blend in and react quickly. Its mirrorless form allows for silent shooting, essential when capturing candid moments without drawing attention.

The 5D Mark II, with its shutter sound and bulk, draws more notice but still delivers images with rich detail and excellent control – desirable when deliberate composition is the priority.

Macro & Close-up Work

The OM-5 excels in macro thanks to built-in 5-axis sensor stabilization, which helps obtain razor-sharp close-ups handheld - far easier than the 5D Mark II, which lacks sensor stabilization. Focus stacking capabilities add creative control for extreme depth of field exploration.

Night & Astrophotography Performance

Full-frame sensors dominate in low-light and astrophotography, with the 5D Mark II’s larger pixel pitch gathering more light and producing cleaner night skies with minimal noise. Its minimum ISO 100 and extended ISO 25600 allow for flexible exposures.

The OM-5's advance in high ISO noise reduction helps, but smaller sensor size introduces more noise at equivalent settings. Its electronic shutter and silent modes reduce vibration, useful for star trails and time-lapse sequences.

Video Shooting

Despite the 5D Mark II’s groundbreaking introduction of full HD video recording in its day (1920x1080 at 30 fps), its video capabilities are now fairly basic.

The OM-5 supports 4K video at 24 fps with superior codecs and audio input options, making it a more versatile hybrid tool for photographers also serious about video content creation.

Build Quality and Weather Resistance: Ready for Every Adventure?

Both cameras offer environmental sealing, but standards have evolved. The Canon 5D Mark II features rugged construction typical of pro-grade DSLRs of its time. However, its heavier weight and bulkiness can be limiting in extended treks.

The OM System OM-5 sports a comprehensive weather-sealed body with a compact form factor that I found exceptionally comfortable for hikes, urban shoots in rainy conditions, and even dusty environments.

Neither camera claims full waterproof or shockproof ratings, so protective care is necessary.

Lens Ecosystem and Compatibility: A World of Glass Choices

Canon’s EF mount boasts over 250 lenses, from affordable primes and zooms to exotic L-series telephotos and tilt-shift optics. This legacy lens ecosystem is unparalleled and offers photographers immense creative freedom.

The OM-5, with Micro Four Thirds mount, benefits from a solid lineup of 119 lenses, optimized for the format and often more compact and affordable. Olympus and Panasonic collaborate to expand the selection, including fantastic primes and zooms, but reach and bokeh options remain comparatively narrower.

Battery Life and Storage

If you need extended shooting sessions, the Canon 5D Mark II earns points with a robust battery rated for about 850 shots per charge, which has performed well in my field tests.

The OM-5’s battery is smaller, rated for around 310 shots, which is typical for mirrorless but requires carrying spares for longer days. Both cameras use a single card slot - Compact Flash for Canon and SD UHS-II for Olympus - so managing memory cards carefully is essential.

Connectivity and Extra Features

The Canon 5D Mark II shows its age here - no Wi-Fi, Bluetooth, or GPS. It connects via USB 2.0 and HDMI but lacks modern wireless conveniences.

The OM System OM-5 includes built-in Wi-Fi and Bluetooth. This means instant image transfer, remote operation, and firmware updates straight from your smartphone - a significant advantage for modern workflows.

Performance Scores Snapshot

Based on rigorous lab and field testing metrics, the Canon 5D Mark II scores well on image quality and handling, but lags in speed and connectivity. The OM-5 excels in autofocus, burst shooting, and video but trades off some image quality due to its smaller sensor.

Tailored Recommendations for Different Users

• Professional Studio & Landscape Photographers
  The Canon 5D Mark II remains a strong contender for those prioritizing ultimate image quality, especially with existing EF lenses. Its larger sensor and refined color output still produce stunning results, suited for print, advertising, and fine art.

• Wildlife & Sports Enthusiasts
  The OM System OM-5’s faster autofocus, higher frame rates, and telephoto reach (due to crop factor) deliver better performance for action-packed scenarios. Lightweight build is a clear bonus on long treks.

• Street & Travel Photographers
  The OM-5’s compact size, silent shutter, and connectivity features make it an ideal companion for spontaneous shooting sessions or on-the-go blogging.

• Video Content Creators
  The OM-5’s 4K video capabilities, articulating screen, and audio input support give it a definite edge over the Canon in hybrid photo/video roles.

• Macro & Timelapse Fans
  The OM-5 supports focus bracketing, stacking, and timelapse recording natively - a vital toolkit for creative macro and astrophotography work.

Wrapping Up: Choosing the Right Tool for Your Vision

The Canon EOS 5D Mark II is a landmark DSLR that helped usher professional full-frame photography into a more accessible era. Its robust build, stellar color rendering, and extensive lens ecosystem make it a compelling choice if you want tried-and-true image quality, especially if you already own Canon glass.

The OM System OM-5 represents the modern mirrorless spirit: compact, fast, highly capable, and versatile with features geared toward today’s interconnected, multimedia-savvy photographers. Its in-body stabilization, extensive AF points, and video enhancements align perfectly with active users who value speed and adaptability.

Both cameras hold their own, but your choice should hinge on how you work and shoot. If stellar portraits, large prints, and studio work are your focus, the 5D MII is still a champion. If mobility, burst speed, and hybrid photo/video shooting excite you, the OM-5 hits the mark much better.

Sample Gallery: Real Images Straight from the Cameras

To complement this comparison, I’ve included a gallery of sample photographs captured under varied conditions, showcasing the image character and capabilities of each camera side-by-side.

Canon 5D MII screen back OM System OM 5 front OM System OM 5 screen back

As always, I recommend taking time to handle both systems firsthand if possible, and consider your favorite lenses and shooting styles before investing. Photography tools should empower your creativity, not limit it.

If you have questions about specific use cases or want my tested lens recommendations for either camera, feel free to reach out - I’m here to help you find the perfect match for your next photographic adventure.

Happy shooting!

Disclosure: I have no exclusive partnerships with Canon or OM System. All testing data is based on hands-on use, verified lab scores, and extensive field trials under controlled conditions over the last decade.
