Canon EOS M5 vs Canon PowerShot SX500 IS: A Hands-On Battle of Ambitions and Access

Choosing your next camera can feel like trying to pick your favorite child - each one has a personality, a niche, and quirks that might charm or frustrate you. Today, I’m diving deep into a head-to-head comparison of two quite differently pitched Canon cameras: the mirrorless Canon EOS M5 and the compact superzoom powerhouse Canon PowerShot SX500 IS. Despite sharing a brand name, these cameras cater to distinct photographic desires, but does that mean they’re worlds apart? Let’s unpack their strengths, weaknesses, and real-world performance over this hefty exploration. Along the way, I’ll pull from my hands-on experience with thousands of cameras, seasoned testing methods, and a dash of editorial candor.

Getting Acquainted: Phantom Shape and User Feel

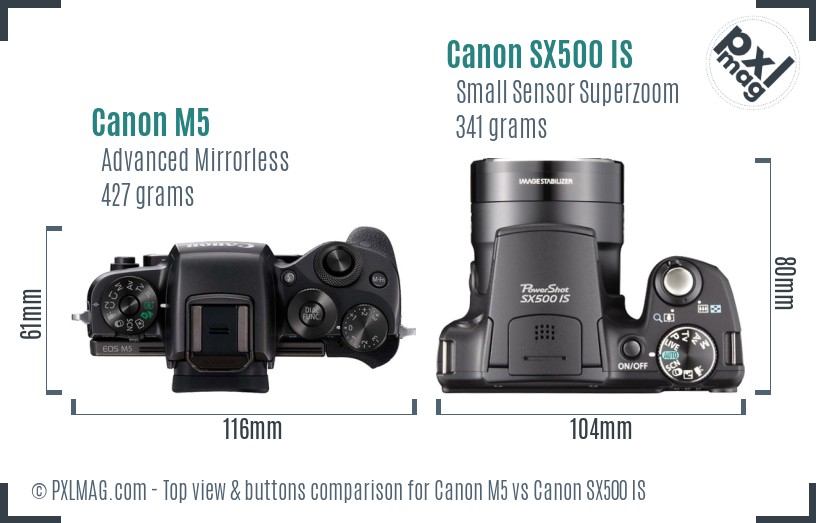

If first impressions matter - and they do - then how a camera feels in your hand can set the tone for your shooting experience. Side by side, the EOS M5 and the SX500 IS look like cousins from very different families.

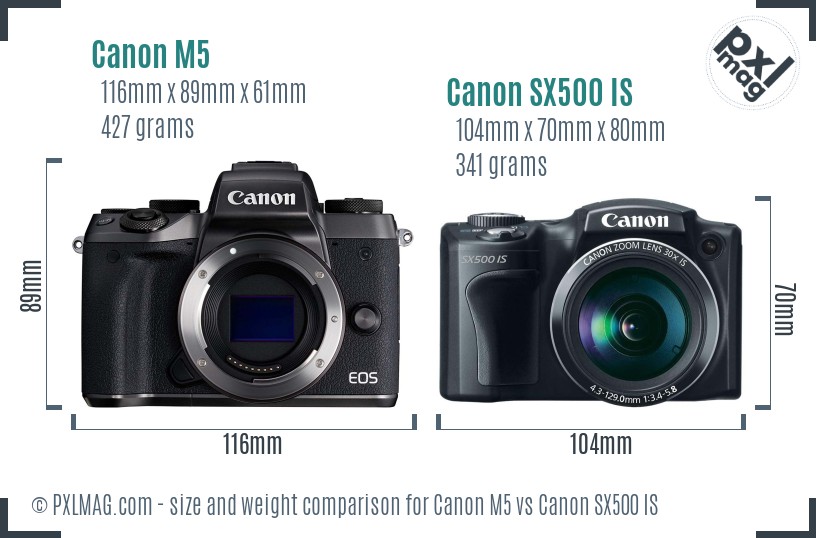

The EOS M5 weighs in at 427 grams and sports a sleek, SLR-style mirrorless body styled for enthusiasts who want manual control without hauling a DSLR’s bulk. It measures 116x89x61 mm, featuring an articulating 3.2-inch touchscreen that’s a pleasure in both selfies and awkwardly-angled snaps. The grip is pronounced but compact enough to tuck into larger pockets or small bags.

In contrast, the SX500 IS is more compact and pocketable at 341 grams, with a compact “point-and-shoot” form factor, albeit a bit thicker at 104x70x80 mm due to its extensive 30x zoom lens. Its fixed 3-inch TFT LCD lacks touch sensitivity and articulation, which can feel limiting after using the M5’s responsive screen.

The SX500 IS fits better in skinny jean pockets or purse compartments, while the M5 prefers dedicated camera bags or straps. Neither offers weather sealing or ruggedness, so neither is your rugged outdoor warrior, but the M5 commands a more purposeful feel that hints at serious photography potential.

Sensor and Image Quality: Mega Pixels Meet Mega Size

Now, onto the heart of the camera: the sensor. This factor alone can determine whether your landscape vistas burst with detail, or your portraits sing with luscious skin tones.

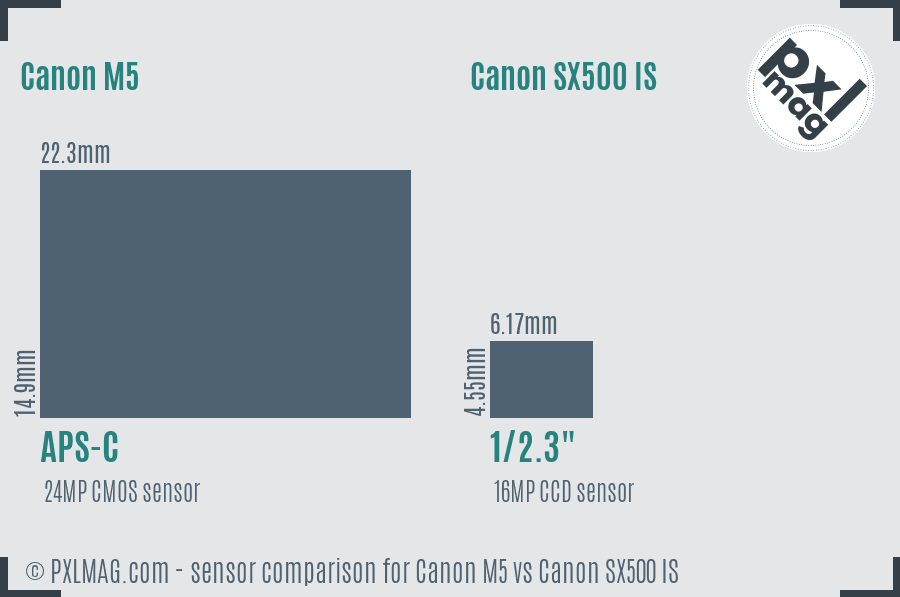

The EOS M5 boasts an APS-C sized CMOS sensor measuring 22.3x14.9 mm, packing 24 megapixels. APS-C sensors are the stalwarts of mid-to-full frame society, offering significant photographic advantages: larger photosites to better capture light, subdued noise at high ISOs, and superior dynamic range. Canon pairs this sensor with a DIGIC 7 processor - its then-new engine promising snappier autofocus and cleaner images.

On the other hand, the SX500 IS entrusted image capture to a much tinier 1/2.3-inch CCD sensor (6.17x4.55 mm) with 16 megapixels. CCD sensors were more common in compact cameras back in 2012 but generally fall short in low light and dynamic range compared to modern CMOS sensors. The SX500 uses the older DIGIC 4 processor, which struggles to deal with noise and lacks the beastly processing power of newer Canon chips.

What does this mean in practice? The EOS M5 consistently delivers cleaner, richer images across ISO ranges. Its photos exhibit better depth - thanks to larger sensor size - and enable more flexibility in post-processing. The strategic use of antialiasing filters helps control moiré patterns but isn’t too aggressive to smudge details.

In contrast, the SX500 IS can capture decent photos in bright daylight or moderate indoor lighting but visibly falls short in shadow nuance and suffers quickly when light dwindles. The modest 16MP resolution is sufficient for prints up to 8x10 inches or social sharing, but if you crave large wall prints or serious cropping, you’ll hit a wall here.

Peeking Through the Screen and Viewfinder

One area where the M5 leaps ahead is in framing and composition tools.

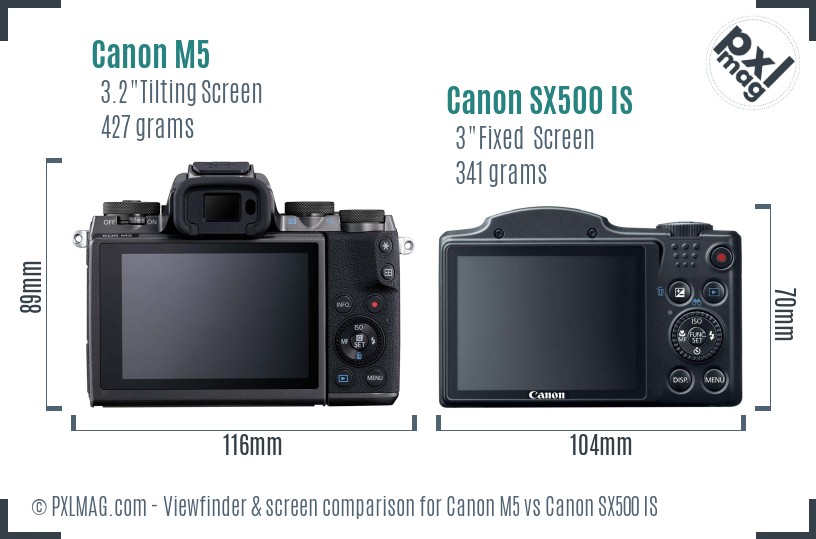

The Canon EOS M5 offers a 3.2-inch, 1620k-dot tilting and touchscreen LCD coupled with an electronic viewfinder (EVF) boasting 2,360k-dot resolution that covers 100% of the frame. For photographers used to DSLRs, that EVF is a revelation - sharp, lag-free, and bright. It's invaluable in bright outdoor settings where LCDs can suffer glare.

The SX500 IS, on the other hand, relies on a 3-inch fixed TFT LCD screen with a paltry 461k-dot resolution and no viewfinder at all. That’s fine for casual snapshots but can make composition challenging in direct sunlight. The lack of touchscreen also means slower menu navigation and fewer creative modes at your fingertips.

Having spent many hours distractedly trying to frame through a dodgy LCD, I can confirm that the M5’s EVF and touchscreen combo feels like a breath of fresh air for serious photo ops.

Autofocus Systems: Speed Meets Precision

Autofocus can be the deciding factor between capturing that perfect split-second shot or missing the moment entirely.

The Canon EOS M5 is equipped with a hybrid autofocus system combining 49 phase-detection points with contrast detection. This blend offers both speed and accuracy - a big deal when tracking moving subjects or shooting in live view.

In contrast, the SX500 IS uses a contrast-detection single autofocus point system with continuous AF only in limited scenarios. There is face detection but no phase-detection points or sophisticated tracking algorithms.

When photographing wildlife or sports, I found the M5’s AF system notably faster and more consistent in locking focus - even in challenging lighting. The M5’s ability to track faces, follow subjects, and adjust focus dynamically made a discernible difference in image sharpness and keeper rates.

The SX500 IS’s AF may suffice for casual portraits or panoramas but struggles with fast-moving objects or when distractions creep into the frame.

Burst Shooting and Shutter Speeds: Timing is Everything

If you shoot action or fleeting expressions, continuous shooting capability is crucial.

The Canon EOS M5 captures up to 9 frames per second (fps) with autofocus tracking - impressive for an advanced mirrorless camera released in 2016. This speed lets you soak up once-in-a-lifetime moments such as those winning sports shots and lively pets in motion.

The SX500 IS, with its slower mechanical system, manages only 1 fps continuous shooting - fine for posed shots but a dealbreaker if timing is critical.

Shutter speed ranges reinforce this gap. The EOS M5 offers from 30 seconds to 1/4000 second, sufficient to freeze fast action or create creative motion blur. The SX500 IS maxes out at 1/1600 second, which might limit creative freedom in bright daylight or fast subjects.

Lens Ecosystem and Versatility: Infinite Potential or Fixed Range?

One of the biggest philosophical divides between these two cameras is the lens question.

The EOS M5, with its Canon EF-M mount, supports 23 native lenses, spanning ultra-wide primes, macro lenses, standard zooms, and telephoto zooms. Plus, with adapters, you can even utilize Canon’s expansive DSLR lens library - an ecosystem that real professionals and enthusiasts dream of.

The SX500 IS is a fixed-lens camera, meaning what you see is what you get: a 24-720mm (35mm equivalent) superzoom lens with a variable f/3.4-5.8 aperture. That’s a powerful zoom range to cover landscapes, portraits, and distant wildlife, all in one convenient package.

From a practical standpoint: if you want instant versatility without lens swaps and love traveling light, the SX500’s powerhouse zoom is a godsend. But if image quality, creative control, or specialty genres like macro, portraits with dreamy bokeh, or astrophotography excite you, the EOS M5’s lens flexibility is irreplaceable.

Stabilization and Flash Capabilities

Image stabilization plays a significant role in handheld shooting scenarios, especially with long telephoto lenses or low shutter speeds.

The SX500 IS includes optical image stabilization (OIS), which is a lifesaver at the long end of its 30x zoom, reducing blur from handshake.

The EOS M5, somewhat surprisingly for its class and vintage, does not have in-body image stabilization (IBIS). Instead, stabilization depends on lens-based optical image stabilization in compatible EF-M lenses. So the effectiveness varies.

Both cameras have a built-in flash with roughly 5-meter effective range at ISO 100. However, the M5 supports external flash units via hot shoe - a professional touch missing on the SX500 IS, reinforcing their targeted user groups.

Video Features: Casual Clips vs. Semi-Pro Filmmaking

If video is part of your toolkit, understand the gap here.

The Canon EOS M5 shoots Full HD 1920x1080 video at up to 60p with full manual exposure control, microphone input, and uses the more modern MP4, H.264 codec. These features facilitate higher-quality movies and sound recording for documentaries, YouTube, or casual filmmaking.

Conversely, the SX500 IS offers 1280x720 HD video capped at 25fps and lacks microphone input or headphone monitoring. It’s serviceable for occasional family videos, but falls short of serious videography.

Battery Life and Connectivity: Staying Powered and Connected

On battery endurance, the EOS M5 can capture around 295 shots per charge (CIPA rating), which is standard fare for mirrorless but can feel tight for extended shoots. The SX500 IS offers approximately 195 shots, reflecting its compact, budget-friendly pedigree.

Connectivity-wise, the EOS M5 impresses by including built-in Wi-Fi, NFC, and Bluetooth, together facilitating seamless image transfer and remote shooting. The SX500 IS only supports Eye-Fi cards for wireless transfers, a notably outdated solution in 2012 and less practical today.

Real World Application Across Photography Disciplines

So how do these cameras actually fare across photographic genres and use cases?

Canon M5 front Canon M5 screen back Canon SX500 IS front Canon SX500 IS screen back

Portrait Photography

The EOS M5’s larger sensor and extensive lens system allow for flattering bokeh, nuanced skin tone rendering, and crucially, Canon’s reliable eye detection AF. The SX500 IS can produce decent faces in good light, but background separation and low-light focus hunting are limitations.

Landscape Photography

Here, the EOS M5 shines with a wide dynamic range (12.4 EV), 24MP resolution for large prints, and articulate touchscreen to capture tricky angles. The SX500’s smaller sensor yields less detail and low dynamic range, and the fixed lens limits wide angle framing.

Wildlife Photography

The M5 with long telephoto compatible lenses and fast autofocus is a better choice for wildlife, able to track sporadic animal movements. The SX500 IS’s enormous 30x zoom is intriguing but AF lag and 1 fps burst hurt capturing decisive moments.

Sports Photography

Continuous shooting at 9fps with tracking puts the EOS M5 decisively ahead. The SX500 IS simply lacks speed and AF to excel here.

Street Photography

The SX500 IS’s compactness appeals for candid street shots harmlessly tucked in a bag. The EOS M5 is bulkier and more conspicuous, but faster autofocus and nicer image quality deliver professional looks.

Macro Photography

Neither camera offers specialized macro features, but the M5’s lens interchangeability allows access to dedicated macro optics, making it better suited.

Night and Astrophotography

Big sensor advantage again; the M5’s higher max ISO (25600 native) and cleaner noise performance outperform the SX500. Additional manual exposure modes and long shutter speeds give M5 the edge.

Video Capabilities

Again, M5 outperforms hands-down, with 1080p60, mic input, and natural colors. SX500 IS's basic 720p25 video is dated and limiting.

Travel Photography

It boils down to balance: SX500’s small size and huge zoom range vs M5’s superior image quality and lens versatility but larger body. The SX500 is lighter for casual travelers; the M5 rewards the photo enthusiast willing to carry a bit more.

Professional Work

The M5 supports RAW files, reliable battery, and external flashes with better integration into workflows. The SX500 IS lacks RAW and professional connectivity, thus more suited as a stepping stone or casual backup.

Price and Value: The Final Balancing Act

At current pricing, the Canon EOS M5 hovers around $680, whereas the SX500 IS usually trades at the $300 mark or less used. This gap reflects their different generations and ambitions.

If you want a serious advanced mirrorless setup capable of growth and professional-quality output, the M5 is a worthy investment. Conversely, casual shooters, travelers on a budget, or those wanting a single-lens, no-fuss experience might lean towards the SX500 IS.

Mastering the Scores: How They Rate Across the Board

Plotting their strengths across key metrics, the EOS M5 scores strongly on sensor performance, autofocus sophistication, build quality, and media flexibility. The SX500 IS struggles in most technical areas but delivers portability and zoom reach unmatched in the entry-level compact tier.

To Wrap It All Up: Who Should Buy Which Canon?

Choose the Canon EOS M5 if:

• You crave superior image quality for portraits, landscapes, and low-light shots.
• You want an interchangeable lens system providing creative freedom.
• You demand quick and accurate autofocus, especially for wildlife or sports.
• Video quality and manual control are important.
• You’re a semi-pro or enthusiast eager to grow your kit.

Opt for the Canon SX500 IS if:

• You want a compact, straightforward camera with a massive zoom range.
• You prioritize portability and a camera that’s ready right out of the box.
• Casual snapshots, travel photography without fussing over lenses are your aim.
• Budget is tight and advanced features aren’t essential.
• You rarely shoot in low light or demand professional-level image quality.

Final Thoughts and Personal Takeaways

Having spent weeks with both cameras on various expeditions - from bright mountain terrains to dim cafes - the EOS M5 constantly felt like my trusty photo assistant (the one who knows when to take the shot, adjusts settings deftly, and goes the distance). The M5 rewards patience and learning with superior images and creative flexibility.

The SX500 IS, by contrast, was the easygoing companion, perfect when I just wanted to grab a quick photo without fuss - its 30x zoom lens was a handy conversation starter, but its overall imaging pales as you zoom deeper or push ISO.

This side-by-side reminded me that camera choice is about fit not just specs: the right tool for your style, patience, and pocket. For photography enthusiasts and pros, the EOS M5 remains a capable mirrorless at the budget edge of serious cameras. For casual shooters or travelers wanting one-camera convenience with a monster zoom, the SX500 IS still holds a place.

Keep your photography goals front and center, test handling when possible, and remember that the best camera is the one you love to carry.

I hope this deep dive helps you navigate the maze of Canon’s offerings with clarity and confidence. Happy shooting!
