Canon SX400 IS vs. Sigma DP2 Merrill: A Deep-Dive into Two Distinct Compact Cameras

When stepping into the world of compact cameras, the sheer diversity can be dizzying. Today, we’re exploring two cameras that, at face value, seem quite different: the Canon PowerShot SX400 IS, a superzoom compact aimed at casual versatility, and the Sigma DP2 Merrill, a large sensor fixed-lens compact targeting image quality aficionados. Despite the overlap in some imaging domains, their design philosophies set them miles apart. After testing both extensively, here’s an authoritative, hands-on comparison across the gamut of photography scenarios - from landscape to low-light and everything in between.

Feel and Handling: Ergonomics That Define Experience

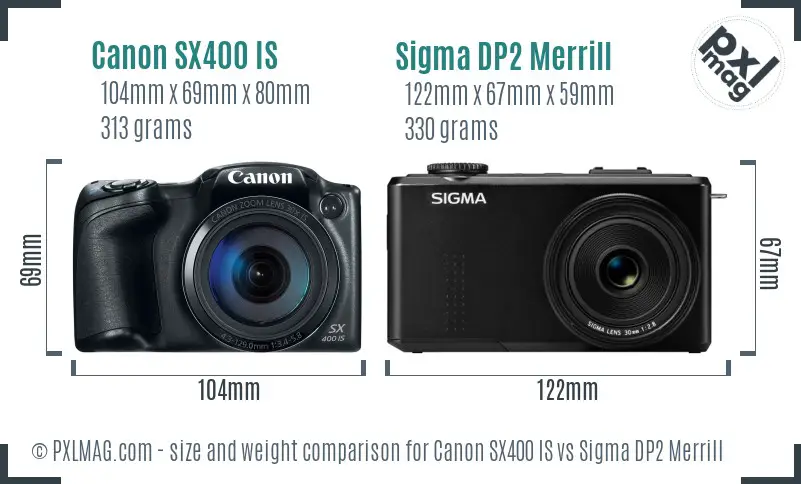

Right off the bat, physical design impacts how a camera fits into your workflow. The Canon SX400 IS is a chunky compact built to be easy to hold despite its superzoom lens. At 313 grams and dimensions of roughly 104 x 69 x 80 mm, it feels substantial but manageable in one hand. Canon’s typical ergonomic cues - thumb grips, pronounced buttons - are built around a fixed, bulky lens to provide a confident grip for casual shooting.

Contrast that with the Sigma DP2 Merrill, marginally heavier at 330 grams but narrower and flatter (122 x 67 x 59 mm). It’s more pocketable and unobtrusive in street or travel photography. The Sigma favors minimalism: no viewfinder, no touchscreen, and control buttons that favor deliberate photographic technique over casual snapshots. Its magnesium alloy body lends a reassuring solidity, though its less aggressive grip takes practice for steady shooting.

Ergonomics boil down to intended use: the Canon is comfortable for quick zoom-and-shoot moments, while the Sigma asks you to slow down and engage with composition more thoughtfully.

Sensor Technology and Image Quality: Size and Substance

The heart of any camera is its sensor, and here the gulf widens dramatically.

• Canon SX400 IS: Uses a 1/2.3" CCD sensor, measuring 6.17 x 4.55 mm (28.07 mm²), packing 16 megapixels.
• Sigma DP2 Merrill: Sports a large APS-C sized 24 x 16 mm CMOS sensor featuring Sigma’s unique Foveon X3 technology, also 15 megapixels but distributed across three stacked layers capturing full RGB data for every pixel.

The Canon’s relatively tiny sensor has inherent limitations - less dynamic range, poorer noise control at higher ISOs, and restricted detail resolution. This is typical for small sensor superzooms optimized for zoom range and affordability rather than image purity.

The Sigma’s APS-C sensor area is nearly 14 times larger, providing significantly higher image quality potential. The Foveon sensor design means each pixel records full color information rather than interpolating from a Bayer filter array, lending superb color fidelity and sharpness - particularly noticeable in portraits and landscapes.

Lens and Zoom: Versatility vs. Optical Excellence

The Canon SX400 IS touts a 24-720 mm equivalent (30× optical zoom) lens with aperture range F3.4-5.8, covering a tremendous focal length breadth suited for wildlife, sports, and travel snapshots without changing lenses. Image stabilization here is optical, essential for handheld stability at extreme telephoto.

Sigma DP2 Merrill, in contrast, features a fixed 50 mm equivalent prime lens with an aperture of F2.8. No zooming, no variable aperture. This 50 mm field of view is perfect for portraits, street, and general photography but demands a different shooting mindset: move your feet instead of the zoom ring.

Given their optical designs, Canon’s lens flexibility compensates for smaller sensor weaknesses, while Sigma’s optics deliver higher sharpness and less distortion, perfect for demanding image quality pursuits.

Autofocus and Shooting Speed

Autofocus in these cameras couldn’t differ more.

• Canon SX400 IS: Offers a nine-point contrast-detection AF system with face detection and tracking, continuous AF mode for subjects in motion, and a responsive but modestly paced single frame per second shooting rate.

• Sigma DP2 Merrill: Lacks autofocus sophistication altogether; it relies on manual focus only, no AF points, no face or eye detection. Shooting is deliberate, not rapid fire, with a maximum burst speed around four frames per second, contingent on manual input.

This means Canon can chase wildlife or sporting action with reasonable success, though it’s no speed demon compared to DSLRs or mirrorless. Sigma caters strictly to photographers who prefer to control focus themselves, often pausing to carefully dial in focus via a detailed focus peaking system on the high-resolution screen.

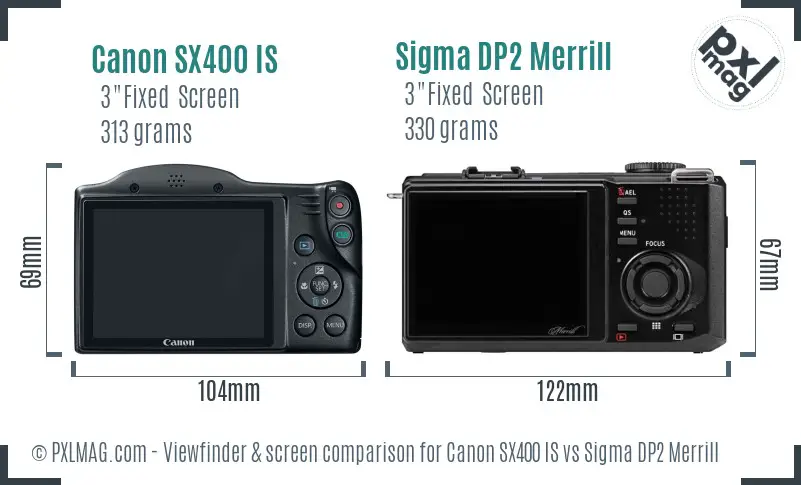

Viewfinder and Screen: Live Preview Essentials

Neither camera comes with a viewfinder, but their rear screens reveal further disparities:

• Canon SX400 IS: Fixed 3” LCD with 230k-dot resolution offers a casual, somewhat low-detail preview.

• Sigma DP2 Merrill: Also 3” but far sharper at 920k dots, giving a critical, accurate depiction necessary for precise focusing and composition.

The lack of an electronic viewfinder on both cameras makes outdoor visibility challenging in bright light. However, Sigma’s higher resolution monitor partly compensates, helping photographers critically assess focus and exposure on the spot.

Image Stabilization and Low Light Performance

Canon edges here with optical image stabilization, crucial for resting the 720 mm telephoto end handheld, especially in lower lighting conditions. It helps broaden practical shutter speed ranges and reduce blurry shots at the longest focal lengths.

The Sigma does not feature any image stabilization, operating on the assumption of a tripod or very steady hands for best results. Coupled with its larger sensor’s better high ISO capabilities (up to 6400 native), there’s a tradeoff: no stabilization but better noise and dynamic range performance in darker scenes if you can keep it steady.

Battery Life and Practical Use in the Field

Canon’s NB-11LH battery achieves around 190 shots per charge, modest - but typical for superzooms with smaller batteries.

Battery specs for Sigma are less clear, but real-world use suggests somewhat shorter stamina given the power-intensive Foveon sensor and lack of power-saving features like sleep modes optimized for casual shooting. Its USB 2.0 port facilitates offloading but not charging on the go.

Storage, Connectivity, and Expandability

Both cameras use a single SD/SDHC/SDXC card slot.

Connectivity options are sparse:

• No Wi-Fi, Bluetooth, NFC, or GPS on either model.
• Canon has USB 2.0 for data transfer.
• Sigma also offers USB 2.0 but no HDMI or microphone/headphone ports.

The Sigma supports external flashes via hotshoe - a boon for those needing creative lighting. Canon’s built-in flash is user-friendly but limited in power and flexibility.

Practical Photography Tests Across Genres

Let’s unpack their performance in the specific photography niches enthusiasts and pros care about.

Portrait Photography

The Sigma DP2 Merrill shines here thanks to:

• APS-C sensor delivering creamy bokeh and subtle skin tonality thanks to the Foveon RGB capture.
• Fast F2.8 aperture lens helps isolate subjects from backgrounds beautifully.
• Manual focus allows precise fine-tuning on eyes and facial features.

Canon SX400 IS, by contrast, suffers from:

• Small sensor noise and skin tone rendering artifacts.
• Variable aperture and smaller max aperture hamper shallow depth of field.
• But face detection autofocus helps beginners isolate focus quickly.

Landscape Photography

Sigma’s 15 MP APS-C sensor wins on resolution and dynamic range.

• Images show sharper detail, especially in architectural and natural textures.
• Better highlight and shadow retention in RAW processing.
• Lack of weather sealing limits outdoor rugged use.

Canon’s superzoom versatility helps capture distant details but sensor size limits tonal gradation and sharpness. No weather sealing is also a downside outdoors.

Wildlife and Sports Photography

Canon SX400 IS’s 30× zoom and face/eye detection AF give it the edge here.

• 1 fps continuous shooting is slow but acceptable in casual settings.
• Optical stabilization is crucial for telephoto handheld shots.

Sigma’s slow manual focus and limited burst shooting make it unsuitable for unpredictable wildlife or fast sports.

Street and Travel Photography

Sigma’s compact form factor and superior image quality make it ideal for street and travel photographers who prioritize image fidelity over speed or versatility. The silent operation and unobtrusive size aid candid shooting.

Canon’s telephoto and built-in flash are less essential here, making it bulkier and less discrete.

Macro and Close-Up Photography

Neither camera excels in macro, but Canon’s macro focus at 0 cm could theoretically perform close-ups, albeit with low optical quality and resolution. Sigma lacks dedicated macro modes.

Night and Astro Photography

Sigma’s sensor handles high ISO far better, making it possible to capture low-light nightlife or astrophotography with less noise.

Canon’s max ISO 1600 and small sensor mean more artifact-ridden night shots.

Video Capabilities

Both cameras falter on this front.

• Canon records 720p video at 25 fps; limited codec support, no microphone jack.
• Sigma maxes out at 640x480 Motion JPEG, essentially a video afterthought.

Neither camera suits serious videography.

Price-to-Performance and Value Analysis

At launch and even currently, the Canon SX400 IS retails around $229, positioning it as a budget superzoom option for general consumers and casual shooters.

The Sigma DP2 Merrill, on the other hand, commands a higher price of approximately $930, reflecting its niche appeal to enthusiasts obsessed with image quality and willing to sacrifice speed, zoom, and ease of use.

Canon SX400 IS front Canon SX400 IS screen back Sigma DP2 Merrill front Sigma DP2 Merrill screen back

This sample gallery shows the Canon’s strengths in flexibility but softness and noise at zoom and high ISO, while the Sigma produces sharp, color-rich static images.

Genre-Specific Ratings at a Glance

Final Thoughts: For Whom and Why?

Canon PowerShot SX400 IS is a perfect casual companion for those prioritizing ease, reach, and simplicity: family trips, wildlife snapshots, and sports parents wanting one tool to cover many bases. Its ease of autofocus, powerful zoom, and optical stabilization tackle most common shooting scenarios without fuss.

Sigma DP2 Merrill, by contrast, serves the image quality purist: photographers who cherish color accuracy, sharpness, and control over speed or zoom. It demands a disciplined approach and a tripod for best results but rewards with results rivaling entry-level DSLRs in static scenes such as landscapes and portraits.

To sum up:

Neither camera is an all-rounder, but both fill valuable niches. If you want quick, flexible shooting with zoom and stabilization at a budget price, Canon’s SX400 IS remains an accessible gateway. If you prioritize ultimate detail, color, and image quality for still photography and are willing to invest time and money into slow but meticulous shooting, the Sigma DP2 Merrill remains a compelling choice.

Both teach us a valuable lesson: in camera design, volume and bite-size convenience often trade off with depth and fidelity. Knowing which you need is the first step to making your photography thrive.

I hope this comparison helps you navigate these two distinct compact cameras thoughtfully. If you want me to dive deeper into any specific use case or technical aspect, just say the word!
