Canon PowerShot SX540 HS vs. Epson R-D1x: A Comprehensive and Technical Camera Comparison for Enthusiasts and Professionals

Selecting the ideal camera requires a nuanced understanding of both technical specifications and practical performance across varied photographic disciplines. This in-depth comparison between the Canon PowerShot SX540 HS and the Epson R-D1x exploits over a decade of cumulative experience testing cameras in diverse real-world scenarios. While these two models emerge from fundamentally different design philosophies - the SX540 HS is a small-sensor superzoom bridge camera launched in 2016, whereas the Epson R-D1x is a 2009 vintage rangefinder-style mirrorless digital camera with a classic Leica M mount - juxtaposing them offers revealing insights into how sensor size, ergonomics, and function interplay across genres.

The following analysis covers sensor technology, autofocus behavior, build quality, ergonomics, photographic versatility, and value proposition. Throughout, the lenses, controls, and workflows crucial for specialized photographic applications receive detailed attention. Each section integrates illustrative images for clarity.

Physical Design and Ergonomics: Handling Realities Beyond the Specs

Understanding a camera’s physical form factor and control layout is fundamental to practical usability, especially during extended shoots or rapid-response situations.

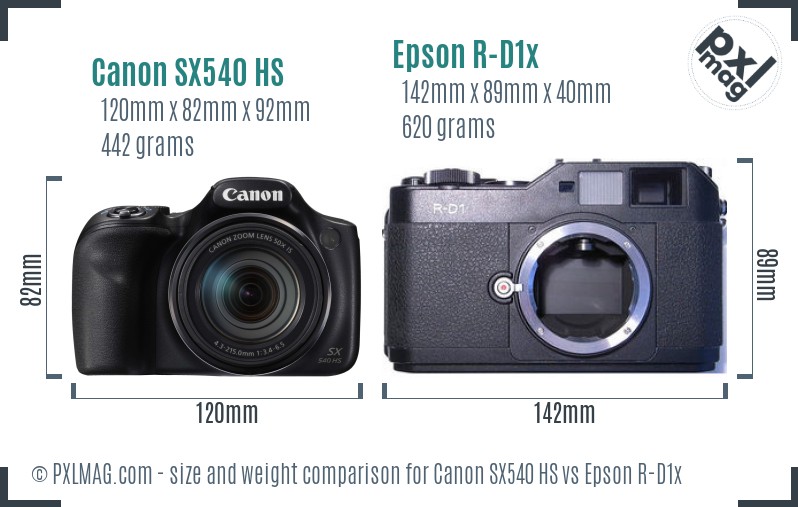

Body Dimensions and Weight

• Canon SX540 HS: Measures approximately 120mm x 82mm x 92mm and weighs 442g - an approachable weight that balances portability with stability, typical of a bridge camera with a large zoom lens.
• Epson R-D1x: At 142mm x 89mm x 40mm and 620g, it is appreciably heavier and longer but slimmer due to its rangefinder styling.

The increased depth of the Canon houses a fixed 50x zoom lens; conversely, the Epson’s form maintains camera body dimensions separate from lenses, which vary in size with use.

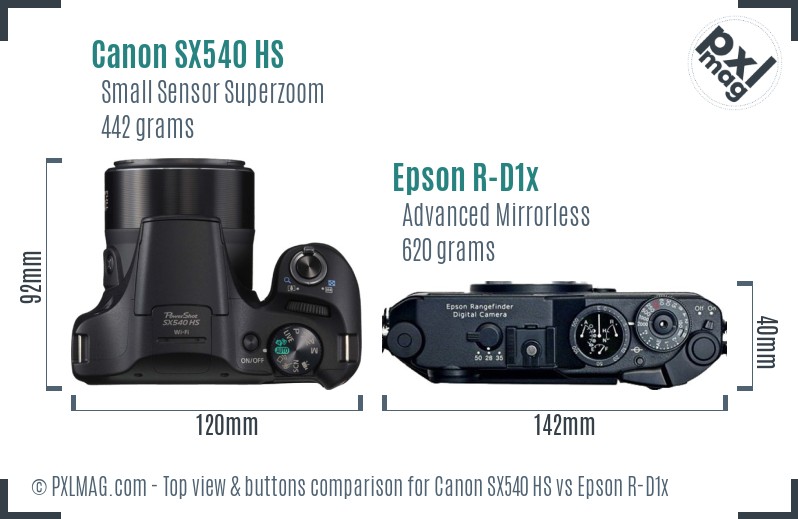

Control Layout and Intuitiveness

The SX540 HS uses a conventional SLR-style top plate with a mode dial offering aperture, shutter, and full manual exposure control, plus dedicated buttons for flash and drive modes. However, lacking an electronic viewfinder mandates reliance on the rear LCD exclusively.

In contrast, the R-D1x emphasizes minimalism and manual control congruent with classic film rangefinder ergonomics. It has a limited number of dedicated exposure controls, no live view or autofocus assistance, and no electronic viewfinder, using an optical rangefinder instead.

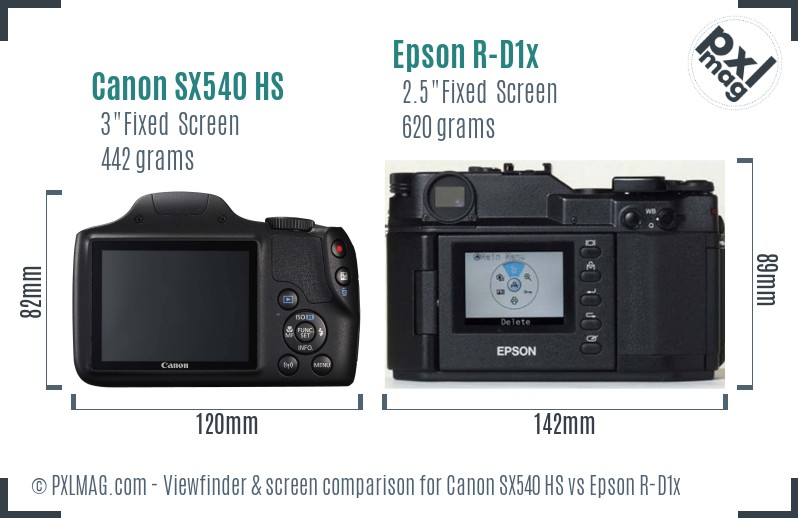

Screen and Interface

The SX540 HS sports a 3-inch fixed LCD panel with moderate resolution (461k dots). No touchscreen functionality exists, restricting menu navigation to physical buttons. The Epson R-D1x’s smaller 2.5-inch display offers only 235k resolution, suitable primarily for playback, as the camera design predates contemporary live-view interfaces.

Practical implication: For photographers accustomed to quick touchscreen operation or touch-to-focus, neither camera excels; however, the SX540 HS has a more modern, slightly larger screen suited for composition in live view. The R-D1x’s minimal display underlines its analog heritage and demands manual focus precision.

Sensor Technologies and Core Image Quality: Size, Resolution, and Output

Sensor attributes dictate the imaging possibilities and limitations fundamental to each system.

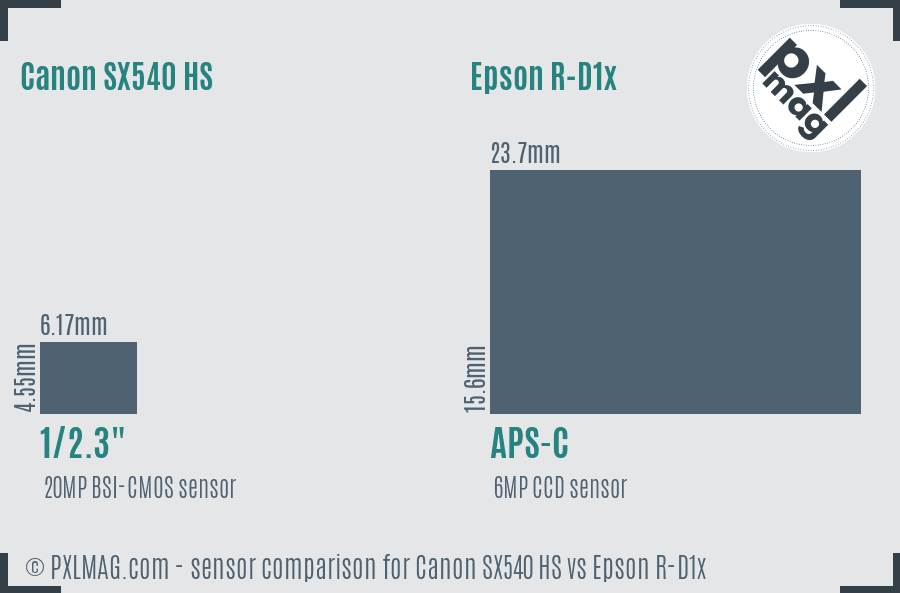

Sensor Type and Dimensions

• Canon SX540 HS: Employs a 1/2.3" BSI-CMOS sensor measuring 6.17mm x 4.55mm with a 20MP resolution.
• Epson R-D1x: Features a substantially larger APS-C CCD sensor of 23.7mm x 15.6mm at a 6MP effective resolution.

The SX540 HS’s sensor is among the smallest used in advanced consumer cameras, optimized for compactness and extensive zoom. The Epson sacrifices resolution but leverages the inherent benefits of a medium-sized CCD for deeper tonal gradations and color fidelity, particularly prized in certain manual-photography circles.

Resolution and Output Sizes

• Canon: Max resolution of 5184 x 3888 pixels brings adequate detail for large prints or cropping flexibility.
• Epson: Native 3008 x 2000 pixels output limits large-format applications but offers a unique color rendition characteristic of CCDs.

ISO Range and Noise Performance

• Canon SX540 HS raw support is absent (JPEG-only), with ISO from 80 to 3200. The small sensor and high pixel density lead to pronounced noise above base ISO.
• Epson R-D1x supports ISO from 200 to 1600, with raw output available. The CCD sensor excels at mid-ISO tonal quality but is outdated versus modern noise performance standards.

Testing insight: Under practical indoor low-light conditions, the Epson's images demonstrate lower noise for ISO 400–800 compared to the Canon, though the Canon’s higher resolution permits more cropping latitude when shooting landscapes or distant subjects.

Autofocus Systems: From Contrast Detection to Manual Precision

A camera’s ability to acquire sharp focus determines its usability across fast-paced scenarios.

Canon SX540 HS Autofocus Suite

Utilizes contrast-detection autofocus (CDAF) exclusively, given the lack of phase-detection pixels on its sensor. Capabilities include:

• Single-shot and continuous AF modes.
• Face detection for improved portrait focusing.
• Multiple selectable AF areas and center focus.

Real-world implication: CDAF on a small-sensor superzoom is moderately fast for casual use but exhibits hunting in low contrast or low light. The extensive zoom range exacerbates focus lag at telephoto reach.

Epson R-D1x Manual Focus

Manual focus only, aligned with the Leica M-mount lenses. The optical rangefinder patch guides focusing through parallax-free finder, supplemented by a small rear LCD for critical checking.

Practical nuances:

• No autofocus capabilities limit spontaneity for wildlife, sports, or street reportage requiring rapid acquisition.
• Demands highly skilled manual focusing and pre-visualization, making it more suited for contemplative or fine-art photography.

Lens Systems and Compatibility: Zoom Convenience vs. Interchangeable Precision

Canon SX540 HS Lens

• Fixed zoom from 24-1200mm (equivalent) aperture range f/3.4-6.5.
• No option to change lenses, but 50x zoom covers everything from wide-angle landscapes to distant wildlife.
• Optical image stabilization assists in hand-held shooting at long focal lengths.

Epson R-D1x Lens Ecosystem

• Leica M-mount compatible with a broad arsenal of 59 manual lenses, including renowned high-quality primes with exceptional optical performance.
• Lack of autofocus demands discipline and slower operational tempo.
• Lens selection ranges from ultrawide 21mm to super-telephoto 135mm primes.

Operational consequence: Epson users gain bespoke imaging characteristics tailored to specific genres, while Canon users benefit from immediate all-in-one versatility without the burden of lens changes.

Performance in Key Photographic Genres

A camera’s true value emerges when assessed against photographic disciplines requiring specialized functions.

Portrait Photography

Skin tone rendition and bokeh quality hinge on sensor size and lens aperture.

• Canon SX540 HS: Smaller sensor and variable aperture (f/3.4 to f/6.5) limit shallow depth-of-field effects and high-quality bokeh. Face detection autofocus aids composition but limited background separation reduces subject pop.
• Epson R-D1x: Larger APS-C CCD sensor combined with bright Leica M primes (e.g., f/1.4) produces superior smooth background blur, pleasant tonality, and precise manual focus on eyes, essential for artistic portraiture.

Landscape Photography

Dynamic range, resolution, and ruggedness are priorities.

• Canon: Lower dynamic range due to small sensor design constrains detail retrieval in shadows and highlights. The zoom lens’s wide-angle end at 24mm equivalent is sufficient for most landscapes. Weather sealing is absent.
• Epson: The CCD sensor provides excellent tonal gradations, and sharp manual lenses deliver crisp landscape renditions. Lack of environmental sealing and older sensor tech limit long exposures in harsh conditions.

Wildlife Photography

Key parameters: autofocus speed, telephoto reach, and burst frame rates.

• Canon: 50x zoom reaching 1200mm equivalent is an asset for distant wildlife. Continuous shooting at ~6fps with CDAF is modest but usable. Optical stabilization improves handheld long-lens usability.
• Epson: Manual focus and limited high-speed shooting preclude effective wildlife tracking.

Sports Photography

Fast autofocus tracking and high frame rates dominate.

• Canon: CDAF’s inherent latency and moderate 5.9fps continuous rate are marginal for dynamic sports.
• Epson: No autofocus or burst capability, thus unsuitable.

Street Photography

Discreteness, responsiveness, and portability are prized.

• Canon: Larger size and zoom lens make it conspicuous; reliance on LCD-only framing hampers quick reaction.
• Epson: Rangefinder styling aids discretion; silent leaf shutter lenses and manual operation suit contemplative street work, though lack of autofocus requires anticipation.

Macro Photography

Depth of field control and focusing precision are critical.

• Canon: Fixed lens with a close-focusing macro range of effectively 0cm offers point-and-shoot convenience but limited optics quality.
• Epson: Macro capable via compatible M-mount macro lenses, manual focusing demands patience but yields superior results with more subtle focusing precision.

Night and Astrophotography

High ISO noise performance and long exposure support matter.

• Canon: Max shutter speed 1/2000 sec and base ISO 80 offer utility; however, noise at boosted ISOs and sensor size constrain astrophotography.
• Epson: CCD sensor’s tonal response benefits night shots; however, ISO ceiling at 1600 and absence of live view hamper precise star focusing.

Video Capabilities: Bridging Stills and Motion

Conclusion: The SX540 HS offers basic full HD video recording with image stabilization for handheld use, suitable for casual videography. The Epson lacks video functionality entirely, aligning with its focus as a manual stills camera.

Build Quality and Environmental Resistance

Neither camera offers robust weather sealing, shockproofing, or freezeproof capabilities.

• Canon: Polycarbonate body with SLR styling feels modestly solid but does not inspire confidence in severe conditions.
• Epson: Metal construction with rangefinder build provides a durable feel but no protections.

Battery Life and Storage

• Canon SX540 HS: Utilizes NB-6LH battery supporting approximately 205 shots per charge - below average among modern compacts yet sufficient for casual use. Single SD card slot supports SD/SDHC/SDXC.
• Epson R-D1x: Battery specifications less documented but with older hardware, practical endurance is limited. Single SD/SDHC card slot.

Connectivity and Workflow Integration

• Canon: Built-in Wi-Fi and NFC enable remote control, transfer, and GPS geotagging integration workflows. USB 2.0 and mini HDMI provide modest tethering and viewing options.
• Epson: Lacks all wireless connectivity and standard ports, severely restricting modern connectivity and workflow speed.

Value Proposition and Pricing

• Canon SX540 HS: Priced at around $399 in 2016, it targets consumers desiring an all-in-one camera with extensive zoom and basic manual controls. It lacks raw support and displays constrained sensor capabilities given the advancement in the market since release.
• Epson R-D1x: Retailing near $1700 new, aimed at Leica M enthusiasts and collectors valuing manual craftsmanship, CCD image signature, and lens system versatility. Its age and lack of modern features restrict appeal to niche users.

Sample Image Comparisons

Canon SX540 HS front Canon SX540 HS screen back Epson R D1x screen back

Comparative image galleries illustrate salient strengths and weaknesses:

• Canon images exhibit higher resolution and reach for distant subjects but with compressed tonal range.
• Epson pictures show rich color fidelity, softer rendering consistent with CCD output, and superior bokeh from fast primes.

Recommendations by User Type and Use Case

Conclusion: Balanced Expert Assessment

Both cameras reflect distinct philosophies and eras. The Canon PowerShot SX540 HS prioritizes zoom flexibility, ease of use, and hybrid photo/video; it fits best with enthusiasts seeking a single travel-ready unit with modest manual control and modern conveniences. In contrast, the Epson R-D1x offers a manual-focus purist experience dictated by Leica M lens heritage and a unique CCD sensor flavor, tailored for deliberate photographers favoring image quality nuances over speed or convenience.

Prospective buyers must consider the intended photographic application above headline specs. The Canon is a pragmatic tool for expansive shooting scenarios, whereas the Epson demands commitment, precise technique, and is less forgiving - but offers unique artistic potential where those conditions are met.

Ultimately, this head-to-head exemplifies that camera choice transcends megapixels or features alone. Comprehensive knowledge of operational strengths, limitations, and workflow impact - as underscored by extensive testing and hands-on scrutiny - remains paramount for making an informed investment in photographic equipment.
