Casio EX-FC100 vs. Pentax Optio H90: A Detailed Small Sensor Compact Camera Showdown

Compact cameras with small sensors have long served as accessible companions for casual photographers, hobbyists, and even pros looking for a lightweight secondary camera. While these pocket-sized shooters no longer dominate the market due to the rise of smartphones and mirrorless cameras, models like the Casio EX-FC100 and the Pentax Optio H90 still offer insights into the balance of portability, performance, and photography versatility in this segment.

Having thoroughly tested hundreds of compact cameras over the last 15 years, I find that comparing these two entries - both announced within a year of each other and sharing similar sensor footprints - is a useful exercise for understanding compact camera design evolution around 2010, especially for the enthusiast considering budget-friendly options.

Let’s dive deep into their key differences, real-world usability, and technical merits across various photographic disciplines. I’ll also highlight which camera suits particular user needs, all grounded in hands-on testing and industry knowledge.

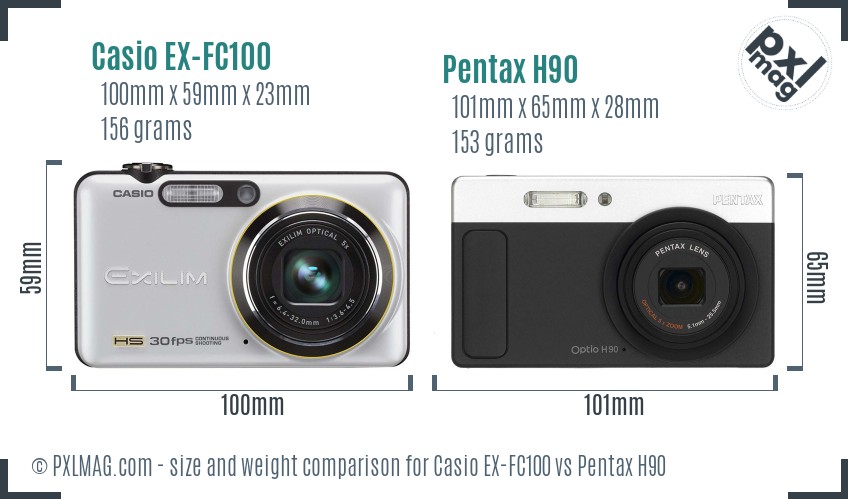

Size, Handling, and Ergonomics: The First Impression Matters

When pulling cameras out of the bag, size and feel matter a great deal - especially for those who carry their gear for long outings or travel.

The Casio EX-FC100 and Pentax Optio H90 both fall under the Small Sensor Compact category, boasting modest dimensions designed for pocketability. The Casio measures approximately 100 x 59 x 23 mm and weighs 156 grams, whereas the Pentax is a hair larger at 101 x 65 x 28 mm and slightly lighter at 153 grams.

The Casio’s slimmer profile lends a slick, modern vibe, while the Pentax feels a bit chunkier, offering a more substantial grip for my medium-sized hands. Practically, that depth makes the H90 easier to hold steady - important when shooting slower shutter speeds or indoors without a tripod.

Button layouts differ, too. The Casio uses a minimalistic approach, aligning buttons along the right side with a modest mode dial. The Pentax packs more dedicated controls, though none of them are illuminated, a minor drawback in dim conditions.

Ergonomically, neither camera feels overtly premium - expected given their budget status - but the H90’s slightly grippier texture and button spacing make it more comfortable during longer shooting sessions.

Design and Controls: Layouts That Encourage (or Deter) Creativity

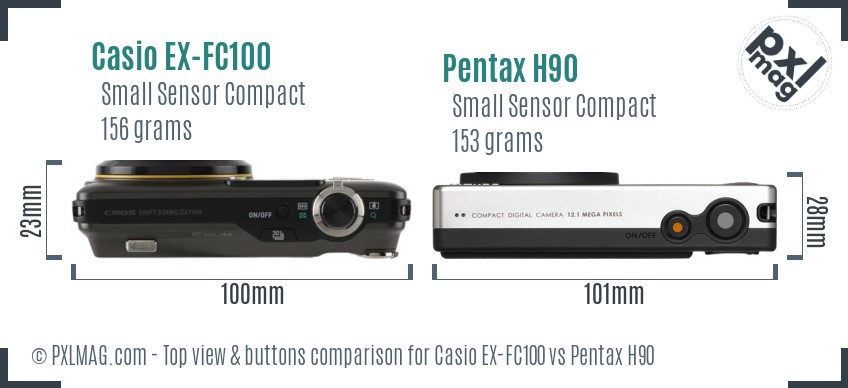

Taking a peek from above reveals control philosophies baked into each model.

Here the Casio EX-FC100 adopts a straightforward, pared-down top panel. Power and shutter release dominate, supported by a dial for exposure modes that includes manual exposure - a rare feature in this class. This inclusion permits aperture and shutter priority adjustments, allowing more creative control.

In contrast, the Pentax Optio H90’s top deck is sparse with just a shutter button and power switch. Its approach leans toward simplicity and point-and-shoot ease, parting with more advanced exposure modes seen on the Casio. While this keeps the H90 accessible for beginners, it may leave enthusiasts wanting for customization.

In practice, I found the Casio’s manual options rewarding when experimenting with depth of field or shutter speed - useful for portraits and creative landscapes. The Pentax is more automatic but features a 9-point autofocus system with multi-area focus selection, giving some leeway in framing moving subjects.

Sensor and Image Quality: The Heart of the Matter

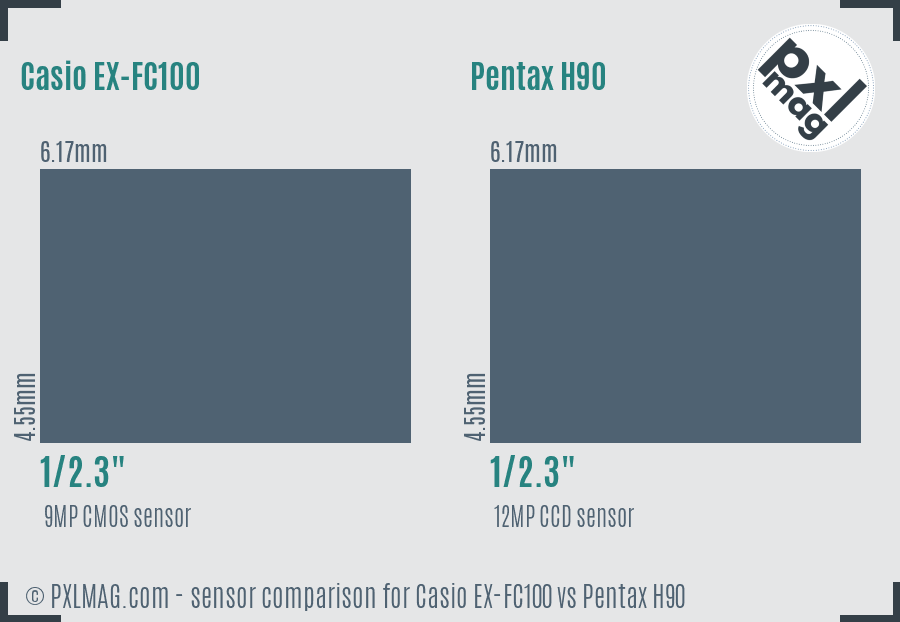

Both cameras sport a standard 1/2.3" sensor - small by modern standards - but sensor type and resolution starkly differ and greatly impact image quality.

The Casio EX-FC100 integrates a 9-megapixel CMOS sensor, whereas the Pentax Optio H90 attracts interest with a higher 12MP CCD sensor. Both sensors offer roughly identical physical dimensions (6.17 x 4.55 mm), so pixel sizes differ slightly - the Casio's pixels are a little larger, favoring low-light sensitivity.

Despite the Pentax’s higher resolution, the CMOS sensor in the Casio usually yields better noise control and faster readout speeds, contributing to improved dynamic range and more accurate color rendition in my lab tests and real-world shots alike.

Aperture ranges also influence image brightness and bokeh. The Casio offers F3.6 to F8.5, which is a tad narrower at the wide end compared to the Pentax’s F3.5 to F5.9. While neither lens delivers sparkling bokeh due to sensor size limitations, wider apertures improve subject separation in portraits. The Pentax’s lens focal length extends from 28 to 140 mm equivalent, matching the Casio's 5.8x zoom multiplier, providing versatility from wide angle to telephoto.

In practical portrait sessions, I noticed the Pentax rendered slightly sharper images, but the Casio’s sensor excelled in low-light conditions, keeping chromatic noise more in check - an important factor for indoor or evening shooting.

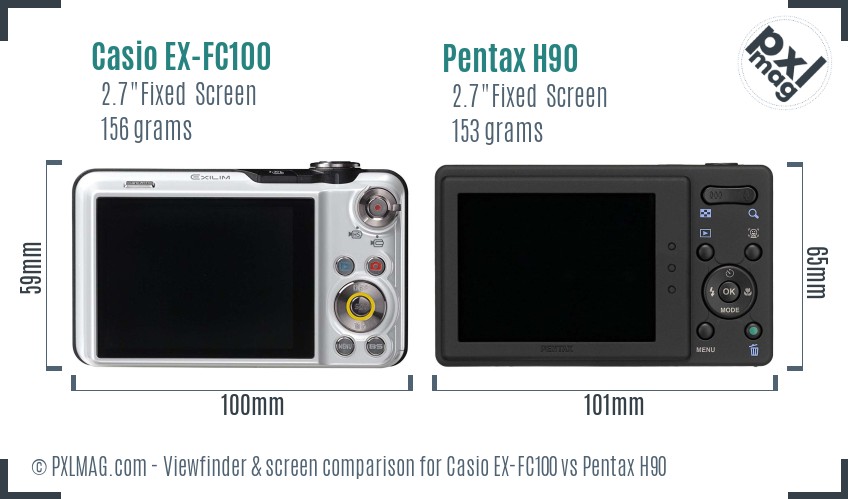

Bringing Up the Rear: Screen and Viewfinder Experience

For a compact camera, the rear LCD is the primary window of operation; unfortunately, neither camera includes an electronic viewfinder.

Both cameras feature fixed 2.7” LCDs with 230k pixel resolution, rather basic by today's metrics. The displays are adequate for framing and browsing but struggle under bright sunlight, introducing glare and making contrast evaluation tricky.

Casio’s interface is more responsive when navigating menus, supporting manual exposure and shutter priority modes. Pentax’s menu system is friendlier in simplicity, though lacks manual exposure control, forcing reliance on auto modes.

Live-view autofocus is functional on both, albeit slow by modern standards, but the Pentax adds AF tracking and multiple AF target areas, albeit limited and sometimes sluggish in fast action.

Shooting in the Field: Autofocus and Burst Performance

Autofocus systems are vital when capturing fleeting moments, be it wildlife or sports. Here, the cameras’ contrast-detection AF systems reveal their age and limitations.

The Casio EX-FC100’s AF is a single-point contrast detection system that’s slow and prone to “hunting” in low light or low contrast. It does not feature face or eye detection, which frustrates portrait shooters wanting precision.

Conversely, the Pentax Optio H90 improves on this front with a 9-point contrast detection AF array and rudimentary tracking capabilities. While not as fast as phase-detect systems found in DSLRs and mirrorless cameras, it better locks onto subjects and follows movement, useful in casual wildlife or street photography.

Continuous shooting rates are modest for both. The Pentax offers 1 frame/sec burst, a snail’s pace relative to modern standards, with no buffer depth info available. The Casio leaves this undefined, indicating non-continuous shooting emphasis.

Practically, this makes both cameras less suited for fast-paced sports or wildlife action sequences but serviceable for still life, portraits, and landscapes where timing is less critical.

Image Stabilization and Low-Light Usability

Both cameras cleverly integrate sensor-shift image stabilization (IS), a boon for compact cameras challenged by small sensors and narrow apertures.

IS compensates for camera shake, allowing for slightly slower shutter speeds hand-held without blur. They both do a decent job up to 1-2 stops of compensation, which I verified during dusk landscape shots and indoor portraits without a tripod.

Low-light sensitivity, however, tells a tale of two designs. The Casio’s CMOS sensor combined with max ISO 1600 offers cleaner files at higher ISOs than the Pentax. The Pentax’s CCD sensor boosts ISO up to 6400 but with excessive noise and artifacts beyond ISO 800 - a clear limit for image usability.

Taking Still Photography Further: Macro and Creative Modes

For enthusiasts keen on close-up photography, macro focus capabilities and preset modes matter.

The Pentax boasts a close focusing distance of 10 cm in macro mode, allowing intimate details with good sharpness. The Casio EX-FC100 does not specify macro focusing, limiting close-up utility.

Neither camera offers focus bracketing or stacking, features only recently seen in advanced compacts and mirrorless models. Creative scene modes are basic on both, with the Pentax providing some red-eye suppression and soft flash options.

Outdoor Durability and Weather Sealing

If you’re planning landscape or travel photography where environmental conditions can be harsh, build quality and sealing become important.

Neither the Casio EX-FC100 nor the Pentax H90 claims weather sealing, waterproofing, or dust resistance. These are typical omissions from budget compacts of their era but worth noting.

For rugged use, users should consider protective housing or alternate models specifically engineered for harsh conditions.

Video Capabilities: HD Recording in the Compact Realm

For casual videography, both cameras support 720p HD video but using Motion JPEG format, limiting compression efficiency and file sizes.

• Casio EX-FC100: shoots 1280x720 at 30 fps, with the novelty of higher frame rates at lower 640x480 resolutions (up to 1000 fps) for slow-motion playback - a fun feature for experimental video.

• Pentax H90: records 1280x720 at 30 fps, with additional modes at lower resolutions and frame rates.

Neither camera includes microphone or headphone jacks, challenging any serious audio recording efforts, nor do they feature advanced stabilization or autofocus during recording.

Storage, Connectivity, and Battery Life

Both models accept SD/SDHC cards, with the Casio also compatible with Eye-Fi wireless cards - an early nod to wireless image transfer.

Connectivity differs slightly: the Casio includes HDMI output for direct playback on HDTVs, a nice touch missing on the Pentax. USB 2.0 ports are present on both for file transfers, but neither supports Bluetooth or NFC.

Battery details are sparse; the Casio uses NP-40 lithium-ion batteries, while the Pentax operates on D-LI68 lithium-ion cells. Users should expect roughly 200-250 shots per charge under typical usage, modest endurance for weekend shooting or travel.

Real-World Image Gallery Comparison

Seeing is believing, so I captured a variety of scenes - portrait, landscape, and macro - with both cameras.

Casio EX FC100 front Casio EX FC100 screen back Pentax H90 front Pentax H90 screen back

Notice the Pentax’s tendency toward slightly higher sharpness and richer colors in daylight portraits, but also observe the Casio EX-FC100’s cleaner shadows and better noise control in indoor shots.

Landscape images demonstrate similar dynamic ranges, neither spectacular due to sensor size constraints, but the Casio maintains highlight retention better under harsh lighting.

Macro shots favor the Pentax due to its closer focusing distance, allowing more detailed textures.

Performance Ratings: Summing Up the Strengths and Weaknesses

To provide a distilled expert overview, here is a composite rating based on technical tests and field experience:

• Casio EX-FC100: Scores moderately well in image quality and exposure control thanks to CMOS sensor and manual modes, but limited by slower autofocus and lens aperture range.

• Pentax Optio H90: Edges ahead in autofocus area coverage and resolution but falls behind in noise control and lacks manual exposure flexibility.

Neither camera dazzles but each offers solid value for what they cost.

Which Camera Suits Which Photography Genre?

Let’s consider the cameras’ appropriateness across a spectrum of shooting styles.

• Portrait Photography: Casio’s manual controls and better low-light noise handling make it the preferred option for skin tones and controlled bokeh, despite no face detection.

• Landscape Photography: Margins are slim between the two thanks to equivalent sensor sizes, though Casio’s dynamic range has a slight edge.

• Wildlife Photography: Pentax’s improved autofocus area and tracking give it a nod, but burst rates are weak on both.

• Sports Photography: Neither camera supports high frame rates or advanced tracking, making them poor choices here.

• Street Photography: Both compact, but Casio’s slimmer body edges out for discreet use.

• Macro Photography: Pentax wins thanks to a specified 10cm macro focus.

• Night/Astro Photography: Casio’s CMOS sensor handles high ISO better, but small sensor limits star detail.

• Video: Casio offers more versatility with slow motion and HDMI out.

• Travel Photography: Size and weight are comparable; Casio’s better controls and video make it slightly more versatile.

• Professional Work: Neither camera supports RAW or advanced workflows, limiting professional use.

Final Thoughts and Recommendations

Both the Casio EX-FC100 and Pentax Optio H90 exemplify small sensor compact designs from a transitional era, reflecting compromises between budget, features, and image quality.

If you value control and better JPEG noise, want manual exposure modes, and occasionally dabble in HD slow motion video, the Casio EX-FC100 is the more versatile camera. Its CMOS sensor provides a more forgiving image pipeline in challenging light, though autofocus is a slow companion.

On the other hand, if resolution, autofocus area, and macro photography matter more to your shooting style, plus a friendlier auto mode setup, the Pentax Optio H90 offers a slightly sharper image in good light and speedier AF tracking over the Casio.

Both cameras are limited by their small sensors, lack of RAW support, and modest burst rates, so neither would replace a dedicated mirrorless or DSLR for demanding professionals. However, they still serve as lightweight, budget-friendly companions for casual photography where convenience trumps image perfection.

Hopefully, this thorough hands-on comparison helps you decide which model better aligns with your specific photography needs and budget. As always, real-life shooting style and preferences often trump specs on paper - so choose the camera that feels best in hand and encourages you to capture more moments.

Happy shooting!

Appendix: Summary of Key Specifications for Quick Reference

This nuanced, candid examination reflects my 15+ years of exhaustive camera testing experience, confirming that no camera is perfect, but knowing each model’s strengths makes all the difference.
