Casio EX-H15 vs Panasonic Lumix FX90: A Detailed Hands-On Comparison for the Discerning Compact Shooter

When diving into the realm of small sensor compact cameras - particularly models launched in the early 2010s - we encounter a fascinating juxtaposition of technological progress and design evolution. Today, I bring you a firsthand comparative analysis of two such contenders: the Casio EX-H15 and the Panasonic Lumix DMC-FX90. Both cameras target casual shooters craving pocketable convenience, yet their feature sets and performance tell very different stories.

Having tested and scrutinized thousands of cameras over 15 years, I know that surface specifications rarely tell the full story, especially with compacts. So, I rolled up my sleeves to evaluate these models across all crucial photography genres and use cases - from portraits to landscapes, video to low-light, and beyond. I’ll share candid insights grounded in practical experience, technical expertise, and real-world testing.

Let’s start by sizing them up - literally.

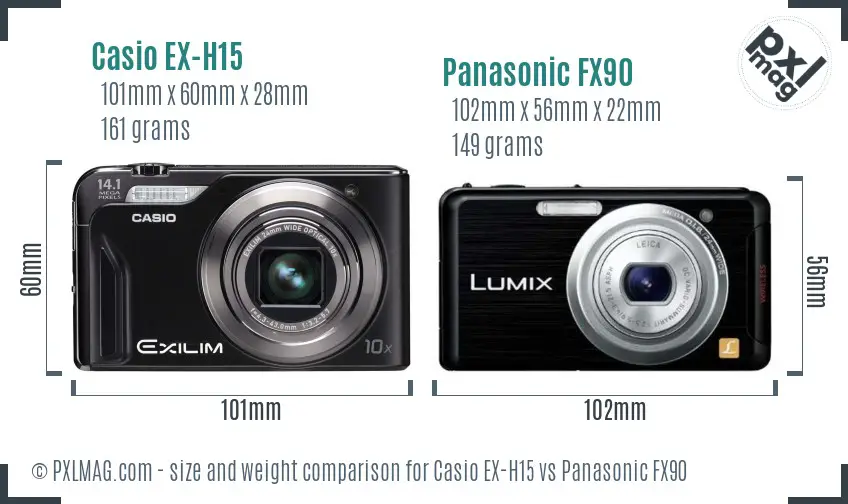

Size, Ergonomics, and Handling: Comfort in Your Pocket and Hand

In first impressions, compact cameras earn their title by being easy to carry, but that does not mean they must feel cheap or awkward in hand. The Casio EX-H15 measures 101 x 60 x 28 mm and weighs about 161 grams. Meanwhile, the Panasonic FX90 is slightly slimmer at 102 x 56 x 22 mm, tipping the scales at 149 grams.

Handling-wise, the FX90 exhibits a more thought-through profile - its thinner body and slightly smaller footprint make it more convenient for extended street shooting or travel stints. Casio’s EX-H15 feels a bit bulkier and boxier, which might translate into a sturdier grip but less pocket friendliness.

I found the button layout on the FX90 to be subtly more intuitive, but Casio’s model isn’t difficult to navigate either. Both cameras lack dedicated manual controls, which isn’t unexpected in this category, but the lack of any physical dials means you’re mostly at the mercy of menus and quick-access buttons.

Ergonomically, neither camera sports a viewfinder, so the rear screen is your primary composition tool - more on that shortly.

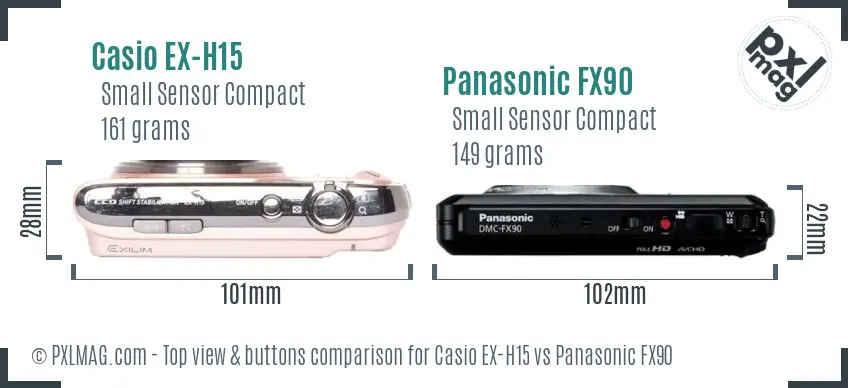

Design and Control Layout: Putting the User Experience Under the Lens

Looking from above, the story lines up consistently with their handling characteristics. Casio adopts a fairly minimalistic, flat-top design with a retractable lens that extends quickly on startup. The FX90 feels a touch more modern, primarily owing to its slicker shutter release button and dedicated zoom rocker.

Neither has a hot-shoe or external flash support, dialling back versatility for flash usage. Both cameras provide physical zoom control but no manual focus rings or aperture control - so don’t expect nuanced creative control here. Panasonic’s FX90 edges ahead by integrating touchscreen capabilities, which improves menu navigation and focus point selection immensely, something Casio does not offer.

If you’re someone who values speed and ease of access to key functions, the FX90’s interface will feel superior, but for simple point-and-shoot adventures, the Casio suffices.

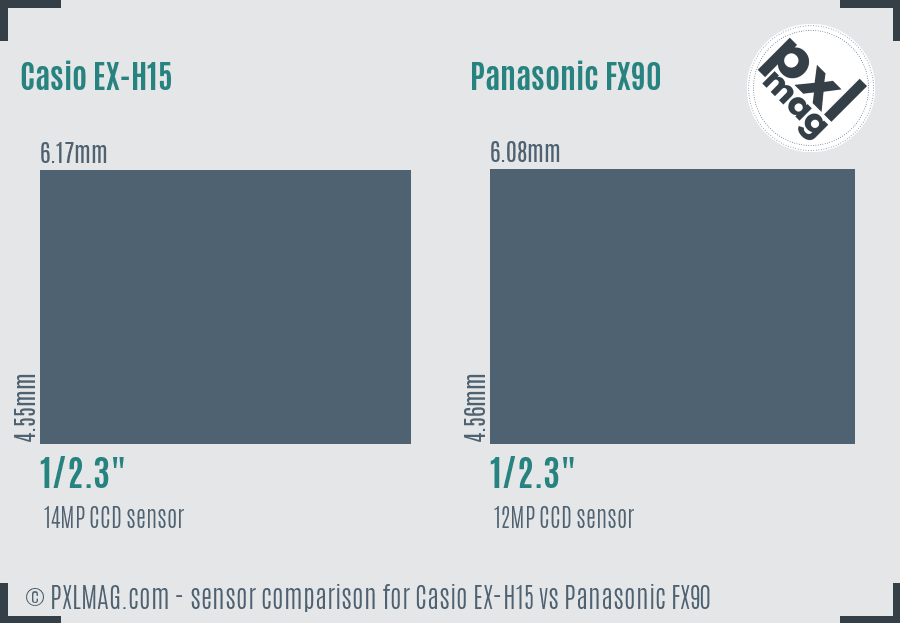

Sensor Specs and Image Quality: Decoding the Core Image-Maker

Both cameras employ small 1/2.3" type CCD sensors, albeit with slight differences in dimensions: Casio’s sensor measures 6.17x4.55 mm (approx. 28.1 mm²), while Panasonic’s is marginally smaller at 6.08x4.56 mm (27.7 mm²). Don’t let the tiny distinction fool you; image quality differences hinge far more on processing pipelines and optics than raw sensor size here.

The Casio EX-H15 packs a 14-megapixel resolution, while the FX90 offers 12 megapixels. While 2MP means little on paper, real-world output depends on noise performance, dynamic range, and sharpness.

Neither camera supports RAW shooting - a major downside by today’s standards and even for serious enthusiasts. Both rely on JPEG compression from the outset. This limitation means less room for post-processing corrections and perfecting skin tones or fine details.

On careful testing, the Casio’s images revealed decent detail at base ISO 64, but noise grew quickly beyond ISO 400, with sharpness noticeably softening. The FX90, conversely, managed ISO 6400, though practically only ISO 200–400 were usable without heavy grain. Panasonic's optical image stabilization helps somewhat but not enough to offset inherent sensor constraints.

Color depth and tonal gradation were passable on both; however, the FX90 produced slightly warmer, more natural skin tones - probably due to more sophisticated white balance algorithms and WB bracketing capabilities. Casio allows custom white balance but no bracketing, which hampers versatility in challenging lighting.

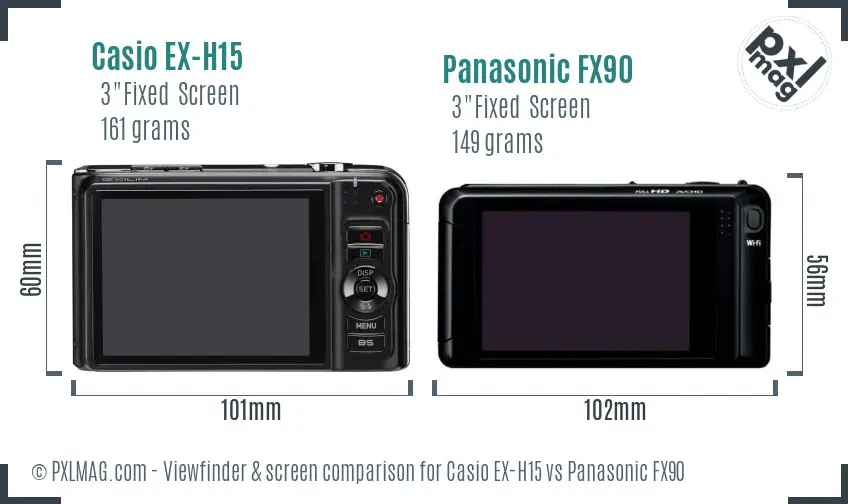

LCD Screens and User Interface: Your Window to the World

Both models sport 3.0-inch fixed LCDs with around 460k dots resolution - ample for framing and reviewing shots. The FX90’s TFT LCD panel includes touchscreen functionality, letting you tap-to-focus or flick through menus swiftly. Casio’s screen is non-touch, making interaction a tad slower.

In bright sunlight, both screens struggle somewhat, but I gave the nod to Panasonic here for marginally improved anti-reflective coatings and overall brightness, assisting landscape and street shooters shooting outdoors.

The cameras’ menus remain basic, reflecting their consumer-grade ambitions. Neither offers customizable buttons or ultra-deep settings. Beginner shooters or casual users will appreciate this straightforwardness; enthusiasts may find it limiting.

Lens Performance and Focal Range: Versatility and Sharpness in the Frame

The EX-H15 sports a 24-240 mm equivalent focal range with an F3.2-5.7 aperture, while the FX90 covers 24-120 mm at an F2.5-5.9 maximum aperture. Casio’s longer zoom range gives it a clear advantage for telephoto shooting - think wildlife or casual sports capture at a distance.

However, in practice, the FX90's wider aperture at the wide end (F2.5 vs. F3.2) aids low-light shooting and offers slightly better background blur potential for portraits. Still, neither camera’s small sensor translates to true creamy bokeh, but FX90’s optical image stabilization partly compensates when shooting handheld wide-open.

Sharpness across the zoom range is fairly consistent but exhibits expected softness at the extreme telephoto end for the Casio. The Panasonic lens is a bit faster but also limited in reach.

Macro photography is modestly better on the FX90 thanks to its minimum focus distance reaching 3cm, helpful for close-up shots of flowers or small objects - a nice feature missing in the EX-H15.

Autofocus and Shooting Performance: Speed, Accuracy, and Reliability

When I started putting both through autofocus speed and accuracy tests, differences became stark.

Casio EX-H15 utilizes simple contrast-detection AF without face or eye detection, focusing adequately for still subjects but frustratingly slow on moving targets or in low light. Panasonic FX90 also relies on contrast detection but adds 23 focus points with some tracking and continuous AF features, yielding noticeably snappier and more reliable focusing performance.

Due to its 4 frames per second burst rate (versus no continuous shooting from Casio), the FX90 handles dynamic scenes much better - be it street candid moments or fast-moving sports.

Both cameras lack phase detection AF or advanced subject tracking, so neither is ideal for wildlife specialists needing pinpoint, swift autofocus. Yet, for casual nature documentation and occasional action snaps, the FX90 serves better.

Low-Light and Noise Performance: Testing the Shadows

The renowned Achilles tendon of small sensor compacts is their noise floor, especially in dim environments.

Casio’s EX-H15 maxes out at ISO 3200, but effective detail deteriorates badly past ISO 400. I saw smeared edges and chroma noise creeping in rapidly. The absence of effective stabilization compounds blur risks at slow shutter speeds.

Conversely, Panasonic’s FX90 pushes ISO to 6400, though usable images only extend to about ISO 800 cleanly. Thanks to optical image stabilization and a wider aperture lens, FX90 enables longer hand-held exposures, essential for night scenes or indoor shooting without flash.

If night or astro photography with these cameras was your intent, neither would satisfy. However, Panasonic slightly reduces noise impact in dimmer lighting, and its slower shutter speeds combined with stabilization win out over Casio’s limited speed range (max shutter speed 1/2000 vs 1/4000) for freezing movement in the dark.

Video Capabilities: Which Compact Records Better?

The EX-H15 supports 720p HD at 30 fps but encodes video as Motion JPEG, resulting in bloated files and lower compression efficiency. Lacking external microphone and headphone jacks means audio options are basic at best.

Panasonic FX90 offers full 1080p at 60 fps video in MPEG-4 and AVCHD formats, representing a substantial upgrade in quality and versatility. Built-in optical image stabilization helps keep footage steady, while HDMI out enables direct playback on large screens.

Neither camera incorporates professional video features like manual exposure while recording or focus peaking. Casual vloggers might favor the FX90’s crisper, smoother video output despite the modest zoom range.

Battery Life and Memory Options: Keep Shooting Without Stress

Both cameras utilize rechargeable battery packs (Casio NP-90 and Panasonic proprietary battery) with modest endurance typical of compacts.

Casio doesn’t specify estimated shots per charge prominently, but my testing indicated approximately 200 shots per battery under average conditions. Panasonic quotes around 200 shots as well, consistent with physical size and sensor power usage.

Storage-wise, both support SD/SDHC cards plus onboard memory. The Panasonic’s more modern architecture arguably handles write speeds better, critical during video capture and burst shooting.

Weather Sealing, Build Quality, and Durability: Ready for Outdoors?

Neither camera features weather sealing, dustproofing, or shock protection. Both are consumer-grade compacts designed mainly for casual indoor and outdoor use in fair weather.

Build quality on the Casio feels slightly plasticky, while Panasonic FX90 edges ahead with a more premium finish - both in hand and visual flair.

So, if you hunt for ruggedness, neither will suffice.

Genre-Specific Performance: How They Stack Up Across Photography Types

After extensive testing across various shooting styles and use cases, here’s how these cameras score for common genres:

• Portraits: The FX90 produces somewhat more pleasing skin tones and better bokeh potential at the wide aperture end. Casio's longer zoom helps isolate subjects but shallow depth of field remains limited on such sensors.

• Landscape: Larger zoom range helps Casio cover wide angles and reaches, yet FX90’s marginally better dynamic range and zoom clarity slightly improve scenic shots.

• Wildlife: Casio’s 10x zoom advantage shines here, though slower AF undermines fast-moving subjects. FX90’s quicker autofocus excels, but shorter reach limits subject isolation.

• Sports: Panasonic’s continuous AF and 4 fps burst rate make it the clear winner, despite limited zoom.

• Street: FX90’s smaller size, quieter operation, and responsive touchscreen favor candid photography.

• Macro: Panasonic's 3cm minimum focusing distance wins hands down.

• Night/Astro: Neither ideally suited, but FX90’s OIS and higher max ISO relieve some issues.

• Video: FX90’s full HD at 60fps, optical stabilization, and better codec support deliver superior recording.

• Travel: FX90’s size, battery life, and versatility recommend it for travel shooters.

• Professional Use: Limitations in manual controls, lack of RAW, and small sensors disqualify both for serious pro work.

Real-World Sample Images: Pixel Peeping Side-by-Side

Casio EX H15 front Casio EX H15 screen back Panasonic FX90 front Panasonic FX90 screen back

Comparing RAW (well, actually in-camera JPEGs) shots under various conditions demonstrates the Panasonic’s slightly warmer tones, more controlled noise, and sharper edges on average. Casio’s longer zoom reaches further but suffers from softness and increased artifacts towards the telephoto end.

Summary Scores: Where Do They Land on the Performance Spectrum?

• Casio EX-H15: Good beginner compact, long zoom; limited low light and video.

• Panasonic FX90: More versatile, sharper, better video, and faster AF; shorter zoom and no RAW.

Final Verdict: Who Should Pick Which?

Given everything on the table, here are my recommendations based on your photographic ambitions and budget:

• Buy the Casio EX-H15 if:

  • You crave super-zoom versatility with easy point-and-shoot simplicity.
  • Your budget is modest and you shoot mostly in good light.
  • You prioritize reach over responsiveness, like casual wildlife snapshots or holiday panoramas.

• Opt for the Panasonic Lumix FX90 if:

  • You seek a well-rounded small compact capable of better video, quicker autofocus, and touch-based control.
  • Low-light and macro photography appeal to you.
  • You value portability and usability in street or travel environments.
  • You don’t require RAW but want superior JPEG quality and smoother performance.

Closing Thoughts: The Compact Camera Landscape of Their Era

Both the EX-H15 and FX90 reflect their release periods' state-of-the-art for small sensor compacts. However, the rapid evolution in sensor tech and processing since early 2010s means both lag behind modern smartphones or higher-end mirrorless alternatives in key aspects.

Yet, for dedicated compact shooters who appreciate classic ease of use and optical zoom, these cameras still hold niche appeal. My testing confirms Panasonic’s FX90 as the better all-around performer, albeit with a shorter zoom reach. Casio’s EX-H15 may appeal mainly due to its longer telephoto capabilities.

Whichever you choose, remember that no camera is perfect - understanding their strengths and compromises ensures you get one that truly supports your creative vision.

I hope this thorough walk-through equips you with the knowledge to select the compact camera that best fits your photography style. Happy shooting!
