Casio EX-Z800 vs Ricoh WG-20
96 Imaging
37 Features
25 Overall
32


93 Imaging
38 Features
36 Overall
37
Casio EX-Z800 vs Ricoh WG-20 Key Specs
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 50 - 3200
- Sensor-shift Image Stabilization
- 640 x 480 video
- 27-108mm (F3.2-5.9) lens
- 124g - 91 x 52 x 20mm
- Released August 2010
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 80 - 6400
- Digital Image Stabilization
- 1280 x 720 video
- 28-140mm (F3.5-5.5) lens
- 164g - 114 x 58 x 28mm
- Announced February 2014

Casio EX-Z800 vs Ricoh WG-20 Overview
Here, we are reviewing the Casio EX-Z800 and Ricoh WG-20, one being a Ultracompact and the other is a Waterproof by competitors Casio and Ricoh. The sensor resolution of the EX-Z800 (14MP) and the WG-20 (14MP) is very well matched and both cameras posses the identical sensor dimensions (1/2.3").

The EX-Z800 was unveiled 4 years before the WG-20 and that is quite a large gap as far as technology is concerned. Both of the cameras feature different body design with the Casio EX-Z800 being a Ultracompact camera and the Ricoh WG-20 being a Compact camera.
Before going right into a in depth comparison, here is a brief introduction of how the EX-Z800 matches up versus the WG-20 in relation to portability, imaging, features and an overall grade.

Casio EX-Z800 vs Ricoh WG-20 Gallery
This is a sample of the gallery pics for Casio Exilim EX-Z800 and Ricoh WG-20. The full galleries are available at Casio EX-Z800 Gallery and Ricoh WG-20 Gallery.
Reasons to pick Casio EX-Z800 over the Ricoh WG-20
EX-Z800 | WG-20 |
---|
Reasons to pick Ricoh WG-20 over the Casio EX-Z800
WG-20 | EX-Z800 | |||
---|---|---|---|---|
Announced | February 2014 | ![]() | August 2010 | More recent by 42 months |
Common features in the Casio EX-Z800 and Ricoh WG-20
EX-Z800 | WG-20 | |||
---|---|---|---|---|
Manually focus | ![]() | More precise focus | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Display size | 2.7" | ![]() | 2.7" | Same display sizing |
Display resolution | 230k | ![]() | 230k | Identical display resolution |
Selfie screen | ![]() | Absent selfie screen | ||
Touch display | ![]() | Absent Touch display |
Casio EX-Z800 vs Ricoh WG-20 Physical Comparison
For anybody who is looking to lug around your camera often, you will have to factor its weight and proportions. The Casio EX-Z800 has got physical dimensions of 91mm x 52mm x 20mm (3.6" x 2.0" x 0.8") having a weight of 124 grams (0.27 lbs) while the Ricoh WG-20 has measurements of 114mm x 58mm x 28mm (4.5" x 2.3" x 1.1") accompanied by a weight of 164 grams (0.36 lbs).
Look at the Casio EX-Z800 and Ricoh WG-20 in the new Camera with Lens Size Comparison Tool.
Do not forget, the weight of an Interchangeable Lens Camera will change depending on the lens you have during that time. The following is a front view dimensions comparison of the EX-Z800 against the WG-20.

Using dimensions and weight, the portability score of the EX-Z800 and WG-20 is 96 and 93 respectively.

Casio EX-Z800 vs Ricoh WG-20 Sensor Comparison
Typically, it can be difficult to see the contrast between sensor measurements simply by reading through technical specs. The visual here should give you a greater sense of the sensor sizes in the EX-Z800 and WG-20.
As you have seen, each of these cameras come with the identical sensor size and the same megapixels and you should expect similar quality of photographs although you may want to factor the release date of the products into consideration. The older EX-Z800 is going to be behind with regard to sensor technology.

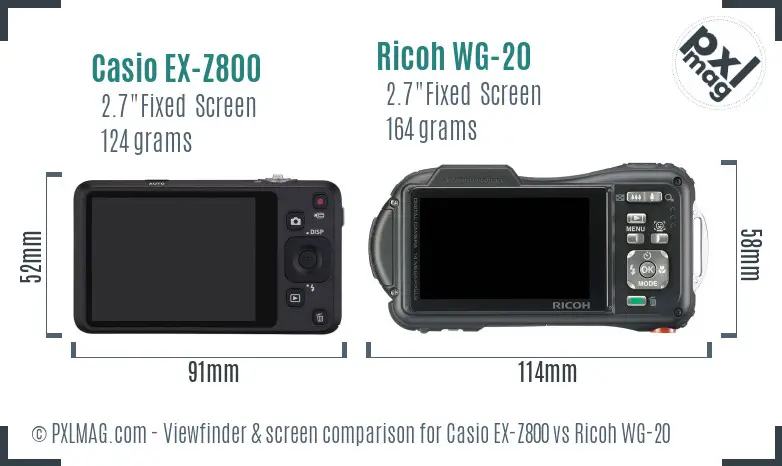

Casio EX-Z800 vs Ricoh WG-20 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Casio EX-Z800 vs Ricoh WG-20 Specifications
Casio Exilim EX-Z800 | Ricoh WG-20 | |
---|---|---|
General Information | ||
Make | Casio | Ricoh |
Model | Casio Exilim EX-Z800 | Ricoh WG-20 |
Category | Ultracompact | Waterproof |
Released | 2010-08-03 | 2014-02-05 |
Body design | Ultracompact | Compact |
Sensor Information | ||
Processor | Exilim Engine 5.0 | - |
Sensor type | CCD | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor area | 28.1mm² | 28.1mm² |
Sensor resolution | 14 megapixel | 14 megapixel |
Anti aliasing filter | ||
Aspect ratio | 4:3, 3:2 and 16:9 | 1:1, 4:3 and 16:9 |
Full resolution | 4320 x 3240 | 4288 x 3216 |
Max native ISO | 3200 | 6400 |
Min native ISO | 50 | 80 |
RAW support | ||
Autofocusing | ||
Manual focus | ||
Touch to focus | ||
Autofocus continuous | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Center weighted autofocus | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detect focus | ||
Contract detect focus | ||
Phase detect focus | ||
Number of focus points | - | 9 |
Cross focus points | - | - |
Lens | ||
Lens mount | fixed lens | fixed lens |
Lens focal range | 27-108mm (4.0x) | 28-140mm (5.0x) |
Highest aperture | f/3.2-5.9 | f/3.5-5.5 |
Macro focus distance | - | 1cm |
Crop factor | 5.8 | 5.8 |
Screen | ||
Display type | Fixed Type | Fixed Type |
Display diagonal | 2.7 inches | 2.7 inches |
Display resolution | 230 thousand dot | 230 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Display technology | - | TFT LCD |
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Slowest shutter speed | 4s | 4s |
Maximum shutter speed | 1/2000s | 1/1500s |
Continuous shooting speed | - | 1.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | - | 4.00 m (Auto ISO) |
Flash modes | Auto, flash off, flash on, red eye reduction | Auto, flash off, flash on, auto + redeye |
External flash | ||
Auto exposure bracketing | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1280 × 720 (20 fps), 640 x 480 (30 f ps) | 1280 x 720 (30p, 15p), 640 x 480 (30p, 15p), 320 x 240 (30p, 15p) |
Max video resolution | 640x480 | 1280x720 |
Video file format | Motion JPEG | Motion JPEG |
Mic input | ||
Headphone input | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environment seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 124g (0.27 pounds) | 164g (0.36 pounds) |
Physical dimensions | 91 x 52 x 20mm (3.6" x 2.0" x 0.8") | 114 x 58 x 28mm (4.5" x 2.3" x 1.1") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | - | 260 photographs |
Battery format | - | Battery Pack |
Battery model | NP-120 | D-LI92 |
Self timer | Yes (10 seconds, 2 seconds, Triple Self-timer) | Yes (2 or 10 secs) |
Time lapse feature | ||
Storage media | SD/SDHC, Internal | SD/SDHC/SDXC, internal |
Storage slots | One | One |
Retail price | $150 | $370 |
