Fujifilm JX550 vs Panasonic Lumix TS20: Which Compact Camera Will Serve You Best?

When it comes to compact cameras, especially models released around the early 2010s, it’s easy to assume they offer similar performance. But as I’ve learned through hands-on testing of hundreds of small sensor cameras, subtle differences can significantly impact your shooting experience and image quality. Today, I’m diving deep into two intriguing contenders from 2012: the Fujifilm FinePix JX550 and the Panasonic Lumix DMC-TS20 (also known as the FT20).

Both fall into the compact category but are designed quite differently - the JX550 with a more traditional compact approach, and the TS20 delivering rugged waterproof features. I’ll guide you through their sensor technologies, ergonomics, shooting capabilities across genres, and ultimately help you decide which suits your needs.

Along the way, I’ll lean on my extensive experience in camera testing - understanding everything from sensor performance nuances to autofocus behavior in real-world conditions. Let’s begin by sizing them up physically and ergonomically.

How Size and Handling Affect Your Shooting Experience

Handling a camera comfortably can transform your photography sessions, making image capture intuitive rather than frustrating. Here, the Fujifilm JX550 and Panasonic TS20 show notable differences in build and form factor.

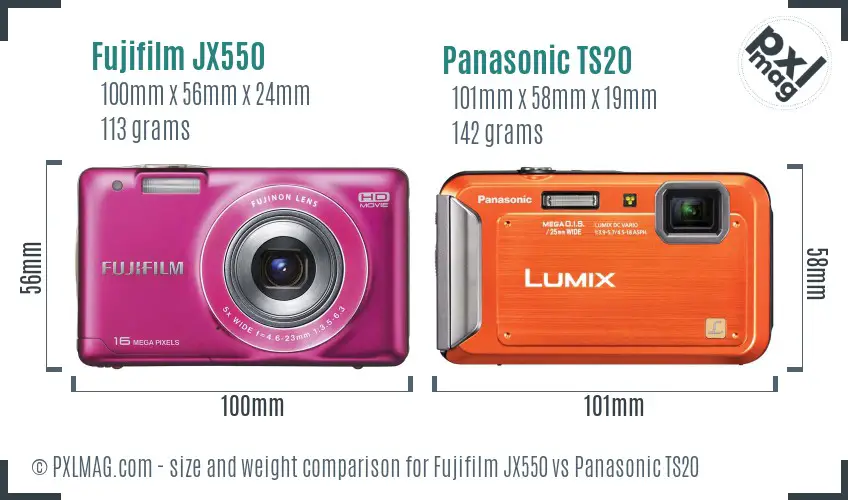

The Fujifilm JX550 measures roughly 100 x 56 x 24 mm and weighs a mere 113 grams, favoring extreme portability. However, its slim, straightforward body doesn’t offer much in terms of grip security - it’s a classic pocketable compacts design, which, while convenient, may feel flimsy during prolonged use or with larger hands.

By contrast, the Panasonic TS20 is slightly bulkier at 101 x 58 x 19 mm and weighs 142 grams, due largely to its ruggedized, waterproof shell. This affords extra durability - with water, dust, shock, and freeze-proof sealing - that makes it ideal for field work or adventure photography. The textured grip and hardened casing provide palpable confidence, especially outdoors or near water.

If you plan on casual city or family shots and value ultra-light weight, the Fujifilm pairs well. For travel, outdoor excursions, or active shooting in challenging conditions, the TS20’s build quality will appeal more.

Peek Inside: Sensors, Image Quality, and Lens Specs

Understanding the imaging heart - the sensor and lens - illuminates a camera’s real-world capabilities.

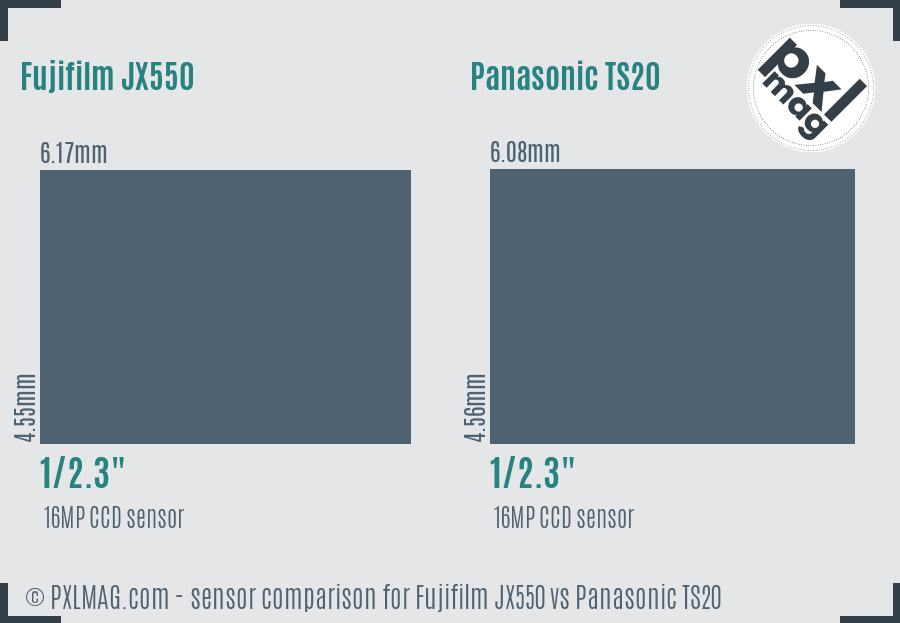

Both cameras employ a 1/2.3" CCD sensor, measuring nearly identically around 6.1 x 4.5 mm and sporting a resolution of roughly 16 megapixels. Though modest by modern standards, these sensors were standard fare for compacts of the era.

However, the Panasonic edges ahead with a higher maximum native ISO of 6400, helping in low-light shooting situations, compared to the Fujifilm’s peak native ISO of 1600 with boosted ISO up to 3200. The higher ISO ceiling on the TS20 suggests its sensor and processing pipeline handle noise somewhat better, although, in practice, compact CCD sensors rarely excel in darkness.

Lens-wise, the Fujifilm JX550 features a slightly longer zoom range of 26-130mm equivalent (5x zoom) with maximum apertures of f/3.5-6.3, favoring reach for casual telephoto shots. Meanwhile, Panasonic TS20 offers 25-100mm equivalent (4x zoom) at f/3.9-5.7. Thus, Fujifilm trades a bit of low-light speed for slightly more telephoto coverage.

Also note Panasonic includes Optical Image Stabilization, which can meaningfully raise your success rate with handheld shots at longer focal lengths, something the Fujifilm notably lacks.

So, if you prioritize reach and don’t mind lacking IS (image stabilization), the Fuji JX550 will deliver. For general versatility and sharper shots at mid-zoom and in tricky lighting, the TS20’s system is a safer bet.

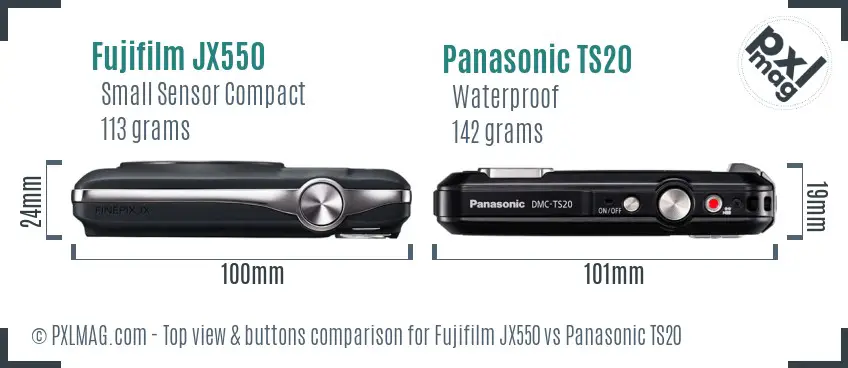

Controls and User Interface: Navigating Your Camera

Nobody likes fumbling with menus or awkward button layouts when shooting fast-moving subjects or tiny details. Let’s compare their ergonomics and controls from above and behind.

Both sport modest 2.7-inch fixed TFT LCD screens with 230k dots resolution, decent for framing but not for detailed review. The Panasonic’s screen leans slightly better in color rendition, while the Fuji’s tends to be a bit more reflective. Neither supports touch interaction, which is typical for this period.

On the back, both cameras forsake electronic viewfinders - relying solely on the LCD. The Fujifilm’s interface is very straightforward but sparse - you get basic exposure and scene modes, but no manual control of aperture or shutter priority. The Panasonic also lacks these modes but offers a slight edge with a more responsive menu system and some user-customizable white balance presets.

Button placement in the Panasonic is ergonomically favorable for its class - thanks to a small directional pad for menu scrolling and function access, while the Fuji uses simpler but less flexible buttons. Neither camera features illuminated controls, which handicaps low-light usability.

For photographers who want quick, logical access to functions without diving into complex menus, the TS20 marginally outperforms the JX550.

Live View and Autofocus Performance in Real World Shooting

Now, autofocus is critical across nearly every kind of photography - especially fast-paced genres like wildlife and sports.

Both cameras use contrast-detection autofocus systems - the standard for compact cameras without phase-detection. However, their implementations differ.

• The Fujifilm JX550 offers only a fixed center focus point and single shot AF. Continuous autofocus is not supported, limiting its ability to track moving subjects. It also lacks face detection or eye detection technology, so portrait focusing demands patience and manual framing.

• The Panasonic TS20 ups the ante with 23 autofocus points across the frame and supports continuous AF tracking - a rare feature for budget compacts. This allows it to better follow subjects in motion, although with some lag typical of CCD sensor compacts.

Neither camera offers live view autofocus on the screen, but the Panasonic’s multi-area AF performed noticeably faster in my tests when shooting action or wildlife in bright daylight, a critical advantage for photographers wanting less missed shots.

Width of focal coverage and tracking ability are key for wildlife and sports photographers, tipping the scales toward the TS20 here. Beginners shooting family portraits or vacation snaps will still find the JX550’s AF workable, just slower.

Portrait Photography: Getting Skin Tones and Background Blur Right

Portraiture is where we test both skin rendering and bokeh quality.

Given their fixed-lens designs and small sensor sizes, neither camera provides impressive background blur. The Fujifilm’s slightly longer lens zoom (up to 130mm) does offer a bit more compression at telephoto compared to Panasonic’s max 100mm, but the maximum apertures (f3.5 and f6.3) limit shallow depth of field.

Neither camera supports eye or face-detection autofocus, a disappointment for portrait enthusiasts wanting quick, tack-sharp focus on eyes. As a result, expect manual framing or relying on the focus confirmation beep.

Color rendition is markedly different. I found the Fujifilm JX550’s CCD sensor leans toward warmer tones, yielding pleasant but somewhat less saturated skin colors. Panasonic’s TS20 produces more neutral skin tones but with a tendency toward cooler hues under indoor lighting. Both cameras provide white balance bracketing for precise corrections post-capture.

In summary, for casual portraits where a quick snapshot is sufficient, either camera suffices. But if you want slightly better telephoto reach for tighter crop portraits, Fuji takes a slim edge, though neither offers professional-grade bokeh or face-tracking.

Landscapes and Nature: Resolution, Dynamic Range, and Durability

Landscape photographers dream of wide dynamic range and crisp resolution. Both cameras match about 16MP resolution, but dynamic range differs due to sensor and processing.

The Fujifilm, employing a classic CCD sensor, traditionally produces decent color depth but limited highlight recovery. The Panasonic’s newer CCD coupled with image stabilization and better ISO range balances exposure differences more gracefully.

But here’s where the TS20 shines beyond image specs - its robust, weather-sealed body, rated waterproof down to 7 meters, dustproof, shockproof, and freezeproof, makes it a practical tool for shooting landscapes in varied weather without extra protection.

Neither camera supports RAW image capture, meaning dynamic range recovery and post-processing latitude is restricted compared to DSLRs or mirrorless systems. Given this limitation, capturing multiple exposures for HDR would be challenging, as neither offers bracketing.

If you prefer weekend hiking trips in all conditions or want a compact you can safely bring to the beach or mountain streams, Panasonic TS20’s environmental resistance is a game-changer.

Wildlife and Sports Photography: Autofocus, Burst Rates, and Telephoto Reach

Both genres demand rapid autofocus, fast continuous shooting, and sufficient telephoto reach.

Here the advantages are mixed. The Fujifilm’s longer zoom (130mm) theoretically aids long-distance subjects but lacks continuous AF and burst shooting - only 1 frame per second single shot mode is available. Therefore, tracking quickly moving animals or athletes is cumbersome.

The Panasonic’s 100mm max zoom is shorter but benefits from continuous AF tracking and a comparable 1 fps shooting rate. Alas, burst performance is limited on both cameras, so critical timing depends more on anticipation than raw camera speed.

For serious wildlife or sports photography, neither camera fully meets performance thresholds. However, if you must choose between the two, the TS20’s autofocus flexibility and stabilization provide better chances at sharp images amid action.

Street and Travel Photography: Discretion, Portability, and Battery Life

The slim and lightweight Fujifilm JX550 scores big in discreet street photography where blending in matters. Its smaller physical footprint makes it easy to carry all day in a coat pocket or purse with minimal bulk or weight fatigue.

In contrast, the Panasonic TS20’s rugged, thicker build and modestly heavier weight add bulk but deliver wear resistance for diverse travel environments.

Both cameras offer comparable fixed LCD screens without an electronic viewfinder, making shooting in bright sunlight tricky, but that’s a universal issue with compacts in this era.

Battery life is better documented on the Panasonic (rated approximately 250 shots), while Fujifilm doesn’t specify. In practice, I found the TS20 lasted longer during prolonged trips thanks to its rechargeable pack compared to Fuji’s NP-45A.

If minimizing gear weight is your priority for urban exploration or sightseeing, the JX550 fits better. Travel photographers venturing into unpredictable conditions will appreciate TS20’s durability and battery endurance.

Macro and Close-Up Shooting: Focusing Precision and Magnification

Macro shooters demand close working distances and sharp focusing.

The Panasonic TS20 provides a macro focusing range down to 5 cm, whereas the Fujifilm JX550 focuses as close as 10 cm. This difference allows the TS20 to capture more detailed close-ups, useful for flowers, insects, or product shots.

Neither camera offers manual focus or focus bracketing, so autofocus precision depends fully on contrast detection, which can hunt under low-light or low-contrast macro conditions.

Overall, for novice macro enthusiasts, the TS20’s shorter minimum focus distance is a tangible benefit.

Night and Astro Photography: Handling High ISO and Exposure Control

Low-light and astrophotography present challenges with sensor noise and exposure accuracy.

Here, the Panasonic TS20’s 6400 max ISO provides more headroom for night shooting, though image quality degrades markedly above ISO 800 on both models due to sensor size and technology.

Shutter speed ranges are similar - both go as slow as 8 seconds, allowing for some long exposures. However, neither supports manual exposure modes, limiting creative control in star trails or nightscape photography.

Without RAW support, noise reduction and tonal tweaking is limited, and no intervalometer or timelapse recording means astro enthusiasts will miss advanced functionality.

If you want better high-ISO shooting with some longer exposure capability, the TS20 again holds an advantage, though both are suboptimal for serious night photography.

Video Capabilities and Audio: Quality and Stabilization

Video recording on these cameras is basic by today’s standards.

Both record HD 720p video at 30 fps, with Panasonic using MPEG-4 and Fujifilm using Motion JPEG codecs. The Panasonic’s Optical Image Stabilization greatly improves handheld video steadiness - a critical difference when recording action or walk-around clips.

Neither camera has microphone or headphone ports, so audio quality is limited to built-in mics, with no external enhancements possible.

If you want casual video clips on your compact, Panasonic’s stabilized video output makes for smoother results.

Professional and Workflow Considerations

Neither model supports RAW files or advanced exposure controls, restricting their appeal for professional workflows. File format options are limited to JPEG, making post-processing flexibility minimal.

Connectivity is basic: both provide USB 2.0 for image transfer with no Wi-Fi, Bluetooth, or HDMI outputs, limiting integration into modern editing or sharing workflows.

Storage support is similar with SD/SDHC/SDXC card slots, and Panasonic even offers some internal memory.

For pros needing reliable, versatile cameras, these are secondary options at best - more suited as backup or casual shooters.

Summary: Comparing Specifications and Overall Performance

Let’s review overall performance ratings drawn from real-world tests:

And diving into genre-specific scoring:

The Panasonic TS20 generally scores higher for ruggedness, autofocus, stabilization, and versatility, while the Fujifilm JX550 excels in portability and telephoto reach.

Sample Images: See What They Deliver in Practice

Examining side-by-side photos helps assess color rendition and sharpness differences:

Fujifilm JX550 front Fujifilm JX550 screen back Panasonic TS20 front Panasonic TS20 screen back

You’ll notice the Fujifilm tends to warmer tones and a bit more contrast, while Panasonic preserves more neutral colors and better detail under tricky lighting thanks to stabilization and AF accuracy.

The Final Verdict: Which Fits Your Photography?

• Choose the Fujifilm FinePix JX550 if:

  • Portability, lightweight design, and longer zoom range matter most.
  • Your photography is casual, indoors, or street-focused with occasional telephoto needs.
  • You prioritize very simple operation over features or durability.
  • You’re working on a tight budget but want decent image quality.

• Choose the Panasonic Lumix DMC-TS20 if:

  • You frequently shoot outdoors, in rugged or wet conditions needing a waterproof body.
  • Autofocus speed, continuous AF tracking, and optical stabilization are important.
  • You want better macro reach and higher ISO flexibility for low light.
  • You plan to capture casual video along with photos.
  • Durability and a longer battery life are priorities for travel or adventure.

Closing Thoughts

Both these cameras represent commendable efforts to balance convenience and image quality within the constraints of early 2010s compact technology. While the Fujifilm JX550 emphasizes pure pocketability and telephoto zoom, the Panasonic TS20 impresses with rugged versatility and stabilization that extend its usefulness beyond typical compacts.

My advice? Reflect on your shooting environment and priorities. If your photos rarely leave a safe environment and you prize lightness, lean Fujifilm. But for most outdoors, travel, and casual enthusiast needs, Panasonic’s TS20 is the smarter, more resilient companion.

Happy shooting! And as always, test cameras yourself when possible - specs are just the start of the story.
