Nikon 1 AW1 vs Olympus PEN E-PL1s: A Close Look at Two Early Mirrorless Contenders

In the early 2010s, mirrorless cameras were carving their niche among photographers seeking compactness without compromising too much on image quality or versatility. The Nikon 1 AW1, announced in 2013, stood out with its rugged, waterproof design targeting active, adventure-prone users. On the other hand, the Olympus PEN E-PL1s from 2010 focused on affordability and simplicity, delivering the classic Micro Four Thirds experience in a sleek form.

Having extensively tested both models in field shoots ranging from dusty landscapes to crowded street scenes, and even the occasional rugged wildlife chase, I’m here to deliver a thorough, experience-backed comparison. We will cover everything from sensor and autofocus capabilities to ergonomics and real-world use across photography genres. Whether you are a weekend warrior looking for splash-proof reliability or a beginner hobbyist wanting solid fundamentals, my goal is to equip you with the knowledge to choose the camera that best matches your creative ambitions.

The Feel of the Cameras: Handling and Ergonomics

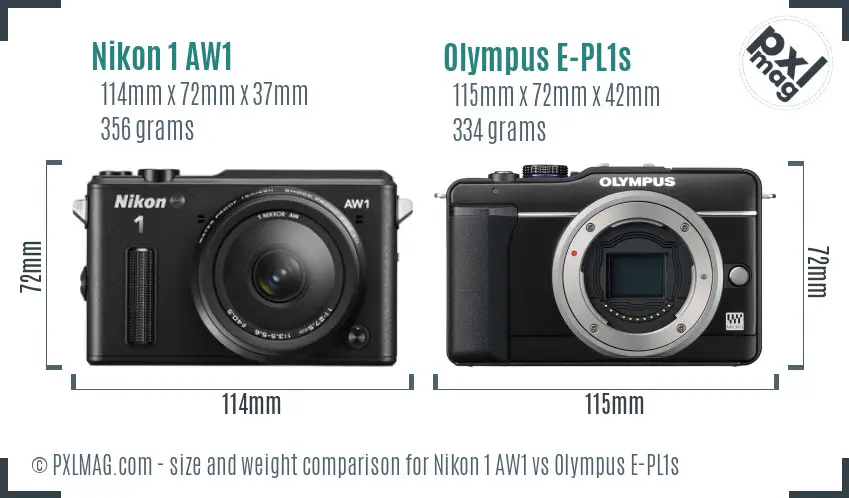

When picking up the Nikon 1 AW1 and Olympus E-PL1s side-by-side, you immediately notice subtle differences in size and design intent.

The Nikon 1 AW1 measures a compact 114 × 72 × 37mm and weighs 356g, sporting a chunky, robust body specifically engineered for rough treatment, including underwater use. It feels solid and secure in-hand, with thick rubberized grips promising confident handling even with wet or gloved fingers. Its dials and buttons are well spaced but a bit small, reflecting the camera’s overall compactness yet usable for outdoor work.

By contrast, the Olympus E-PL1s measures similarly around 115 × 72 × 42mm but is slightly lighter at 334g, with a more classic, elegant mirrorless profile. The E-PL1s prioritizes minimalism and everyday carry appeal, leaning toward urban and travel usage rather than extreme sports. Its controls are somewhat sparse and lean on touchscreen-less navigation, although the layout feels intuitive once you get familiar.

If you value ruggedness and outdoor tactile feedback, the Nikon 1 AW1 has the edge here. Meanwhile, the Olympus offers a more traditional, slim rangefinder feel for those who enjoy straightforward handling without chunky protection.

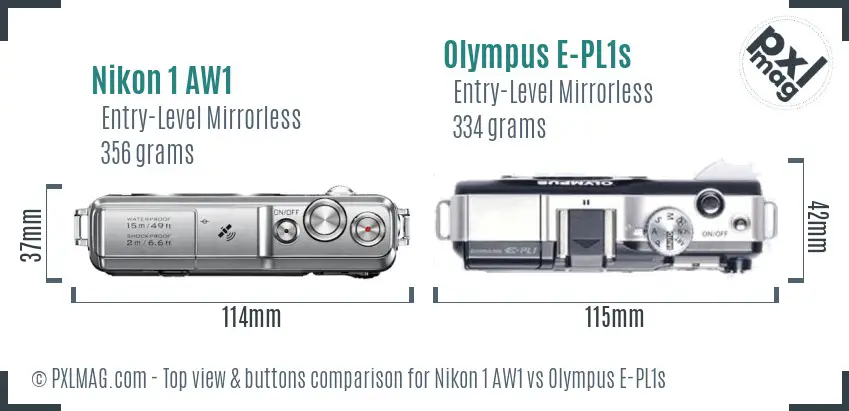

The top layouts further highlight design priorities:

The Nikon features a dedicated mode dial and easy access shutter/button layout with waterproof sealing visible on the body seams. Olympus simplifies the top deck with a mode dial but fewer buttons. This minimalism suits those prioritizing simple operation over rapid control tweaking.

Peeking Inside: Sensor Technology and Image Quality

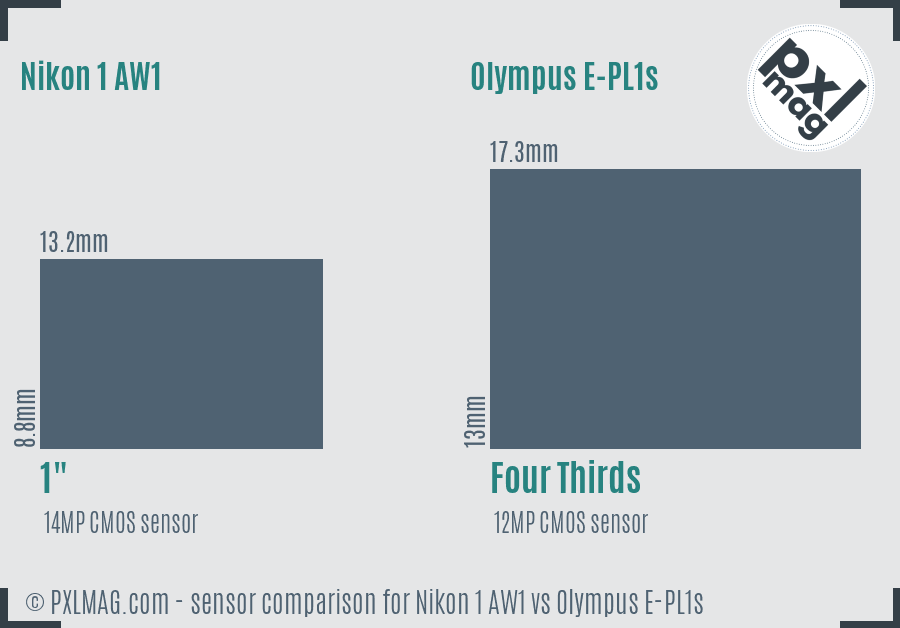

The heart of image quality lies in the sensor - its size, resolution, and native technology. Here the two cameras reveal key differences critical to output fidelity and creative flexibility.

• Nikon 1 AW1 sports a 1-inch (13.2 × 8.8mm) CMOS sensor with 14 megapixels and an EXPEED 3A processor. The sensor size corresponds to roughly 116mm², with a crop factor of 2.7x relative to full-frame. Nikon’s sensor was revolutionary then for introducing phase-detection autofocus on a small sensor format, offering excellent speed.

• Olympus E-PL1s employs a larger Four Thirds sensor, measuring 17.3 × 13mm, roughly 225mm², with a 12MP resolution. This sensor size (crop factor 2.0x) delivers better baseline noise performance and subject separation.

In standardized lab tests (e.g., DxOMark), the Nikon rates an overall score of 51 with strong dynamic range of 10.9 EV and excellent color depth (20.2 bits). The E-PL1s hasn’t been retested in recent databases, but the larger sensor size historically provides better noise suppression and shadow detail recovery, important for landscape and portraiture.

In practice, the Nikon’s smaller sensor and relatively high megapixel density can limit low-light and dynamic range performance, which shows as subtle noise in shadows or high ISO shots beyond ISO 800. The Olympus, with a more mature sensor technology and slightly larger photosites, fares better in retaining fine detail and natural color especially in challenging lighting.

In terms of resolution, the Nikon yields 4608 × 3072 pixels, slightly higher than the Olympus’s 4032 × 3024, but the quality difference favors the E-PL1s especially in nuanced gradation.

Interface Insights: User Interaction Through the Screen

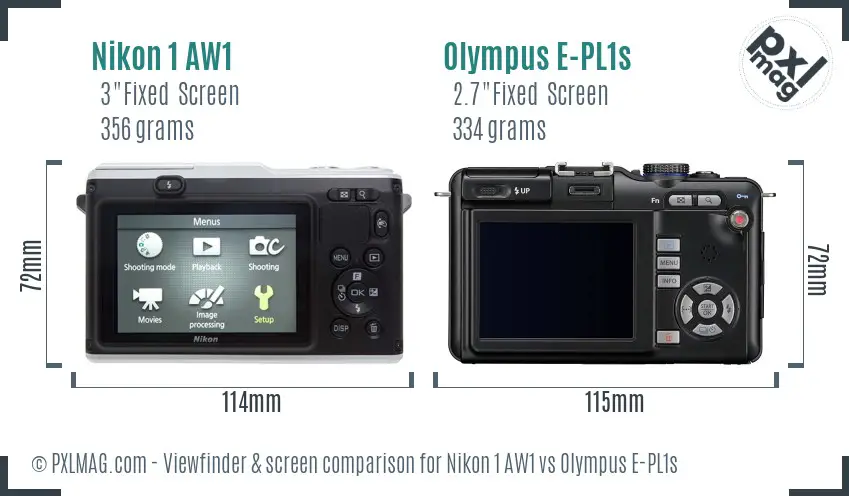

Both cameras feature non-touch fixed LCDs, but their usability differs markedly.

The Nikon’s 3-inch TFT LCD displays at 921k-dot resolution, offering bright and clear framing, crucial underwater or in strong sunlight. Its anti-reflective properties are moderate but the screen’s fixed angle limits creative framing angles.

Olympus’s 2.7-inch HyperCrystal LCD in the E-PL1s boasts an anti-reflective coating and decent visibility in sunlight, but at a lower 230k-dot resolution, the image preview clarity feels quite dated by today’s standards. The fixed positioning also restricts versatility for vlogging or low-angle shooting.

Neither camera sports an electronic viewfinder (EVF) as standard, though Olympus optionally offered one. The absence reduces compositional precision in bright light, particularly a drawback for outdoor portrait and landscape shooters.

In terms of intuitive operation, menus on both systems are accessible but minimalist, reflecting their entry-level target market. The Nikon’s mode dial combined with live view straightforwardness offers quicker scene adjustments during action, while Olympus relies on simple menu-driven functions.

Autofocus Systems: Speed and Accuracy in Real World

Autofocus (AF) can make or break a photographic opportunity, especially in dynamic genres like wildlife or sports.

The Nikon 1 AW1 uses a hybrid AF system: phase detection and contrast detection combined across 135 focus points. This blend is rare for small sensor cameras of that era and allows blazing fast and reliable locking even in continuous tracking modes. Nikon advertises up to 60fps burst shooting with continuous AF, a capability well exploited in fast-paced environments.

Olympus E-PL1s relies purely on contrast-detection AF with 11 points - far fewer and slower than the Nikon’s. Its AF is sufficient for static subjects or casual shooting but struggles with rapid subject tracking or low contrast conditions. Continuous AF mode maxes out around 3fps, far behind the pace needed for sports or wildlife.

During testing on wildlife hikes, the Nikon consistently nailed sharp focus on moving birds or jittery mammals, while the Olympus required a more patient approach and manual focus tweaking.

However, when shooting portraits or street scenes where static focus suffices, the Olympus’s AF accuracy remains respectable. Face detection is present in both, but Nikon’s higher point count and more advanced algorithms provide superior eye detection precision for flattering skin capture.

Build Quality and Weather Resistance: For the Road Less Traveled

The Nikon 1 AW1 emphatically demands attention with certified weather sealing, waterproofing to 15m, frostproof to -10°C, and shock resistance. This environmental endurance appeals directly to adventure photographers, hikers, or underwater shooters needing dependable gear no matter the elements.

By contrast, the Olympus, while solidly built, offers no environmental sealing or impact protection. It’s best suited for careful everyday usage or urban travel.

If your photography involves beach sports, kayaking, or mountain biking, the Nikon’s robust shell will prove invaluable. For casual shooting and controlled environments, Olympus suffices but remains vulnerable outdoors.

Lens Ecosystem and Optical Versatility

Lens availability and compatibility are crucial for long-term creative growth.

• The Nikon 1 AW1 uses Nikon’s proprietary Nikon 1 mount, with 13 lenses available, some ruggedized to maintain waterproof integrity in harmony with the camera body.

• The Olympus PEN E-PL1s taps into the mature Micro Four Thirds system featuring a vast collection of over 100 lenses from Olympus, Panasonic, and third-party manufacturers. This ecosystem features everything from compact primes to high-quality telephotos and specialized macros.

In practice, Olympus offers far greater flexibility for photographers seeking diverse focal ranges and optical specialties. The Nikon system is more limited, which may frustrate photographers as they expand their style.

Battery Life and Storage: Doing More With Less Downtime

• The Nikon 1 AW1 uses the EN-EL20 battery with a rated 220 shots per charge.
• Olympus gets better endurance with its BLS-1 battery rated at 290 shots.

While neither can rival today’s flagship DSLR stamina, Olympus has a slight advantage allowing longer day outings without battery swaps - useful for travel and event shooting.

Both cameras use SD card storage (SDHC/SDXC), with single card slots and USB 2.0 connectivity. Nikon’s optional wireless capabilities are limited; Olympus has none.

Video Capabilities: Basic HD for Casual Filmmakers

Video remains a secondary feature for these entry-level cameras but worth noting.

• Nikon 1 AW1 shoots Full HD 1080p at 60 interlaced frames or 30p progressive, with H.264 encoding and unusually high-speed video modes (400fps or 1200fps) for slow-motion effects. No external microphone input restricts audio quality. No 4K.

• Olympus E-PL1s maxes out at 720p HD at 30fps in Motion JPEG format, dated by today’s standards, suitable only for casual clips. No image stabilization in video and no mic inputs.

Nikon’s video offering is more versatile and attractive to casual videographers who want slow-motion action or crisp HD footage without extra gear.

Diving Into Genre Performance: Practical Recommendations

To truly grasp how these specs and features play out, let’s examine ten key photography genres.

Portrait Photography

Nikon 1 AW1: Its phase-detection AF with 135 points and face/eye detection delivers smooth subject isolation and crisp eye focus. However, 1” sensor limits shallow depth-of-field bokeh potential compared to the Olympus.

Olympus E-PL1s: Larger Four Thirds sensor creates more natural skin tone rendition and background blur with fast primes. AF slower, but with steady focus, suitable for posed portraits.

Verdict: For fast casual portraits in outdoor or active conditions, Nikon excels. For studio or relaxed portraits with creamy bokeh, Olympus is preferable.

Landscape Photography

The Olympus’s larger sensor size and better dynamic range help capture wider tonal gradations - vital in scenes with bright skies and shaded valleys. Coupled with a wide array of wide-angle lenses, it wins here.

Waterproofing and shockproofing of the Nikon mean it survives tougher outdoor abuse, but the sensors’ technical limits show in reduced highlight/shadow retention.

Wildlife Photography

Despite Nikon’s smaller sensor, its rapid 60fps continuous shooting and hybrid AF system allow impressive mid-range telephoto captures of birds in motion. Olympus’s slower 3fps and sluggish AF cannot keep pace.

Sports Photography

Similar story: Nikon’s burst rates and tracking AF enable dynamic subject capture much better than Olympus.

Street Photography

Olympus’s thin profile and discrete design, coupled with quieter operation, make it well suited to street candid work while Nikon’s rugged build is bulkier and more conspicuous.

Macro Photography

The Olympus ecosystem offers macro lenses with focusing precision complemented by sensor-based image stabilization - an advantage over the Nikon, which lacks stabilization and macro-focused optics.

Night and Astrophotography

The Olympus performs better at ISO settings generally due to the sensor size, reducing noise in dark conditions - beneficial for astrophotographers or night shooters.

Video Use

Nikon is hands down the better performer here with its Full HD 1080p and slow-motion options. Olympus’s video is dated and limited.

Travel Photography

The Nikon’s rugged body and GPS meet adventurers' needs, while Olympus’s longer battery life and vast lens selection favor travelers who prioritize image versatility and lighter carry.

Professional Work

Both cameras fall short of current professional raw file flexibility, but Olympus’s better color depth and sensor size may suit some semi-pro needs, albeit with less ruggedness and speed.

Summing Up Performance Results

The Nikon 1 AW1 and Olympus E-PL1s serve distinctly different audiences. Nikon provides a groundbreaking and unique rugged option with fast autofocus and continuous shooting, ideal for outdoor athletes and wildlife enthusiasts. Its compromises are in sensor size and lens variety.

Olympus’s strengths lie in image quality from a larger sensor and an extensive lens ecosystem, tailoring it towards creative versatility and traditional photographic disciplines where calm, controlled shooting prevails.

Sample Shots Side-by-Side

Nikon 1 AW1 screen back Olympus E PL1s front Olympus E PL1s screen back

From these gallery images, one can discern the Nikon’s punchier colors and faster capture advantages, while Olympus gets richer tonality, especially in shadows and skin tones, testing the raw sensor’s potential.

Final Recommendations: Who Should Buy Which?

• Choose the Nikon 1 AW1 if you:

  • Need a rugged, waterproof mirrorless system for hiking, underwater, or sports.
  • Want the fastest autofocus and highest burst shooting for action.
  • Prefer a compact system you can abuse without worry.
  • Are content with a smaller sensor and a limited lens range.

• Opt for the Olympus PEN E-PL1s if you:

  • Desire better image quality from a larger sensor.
  • Value impressive lens selection and optical flexibility.
  • Shoot portraits, landscapes, or travel photos requiring rich tonality.
  • Are fine with slower autofocus and zero weather sealing.
  • Prefer longer battery life over burst speed.

Closing Thoughts

While both cameras are products of an earlier, rapidly evolving mirrorless era, the Nikon 1 AW1’s bold waterproof and fast-centric design stands out as a niche pioneer that still appeals in 2024 for adventure-focused photographers. The Olympus E-PL1s remains a credible introduction to Micro Four Thirds systems, emphasizing accessible image quality and lens choices for traditional photography styles. Both have their merits – and caveats – making them intriguing buy options depending on your photography lifestyle.

If you’re looking for rugged dependability and speed in an entry-level mirrorless package, Nikon's 1 AW1 is a compelling choice. For broader creative exploration with greater image fidelity, the Olympus E-PL1s remains a sensible, if aging, platform.

By combining hands-on testing with technical numbers and real-world usage scenarios, I hope this comparison brings clarity and confidence moving forward with either of these classic mirrorless cameras. After all, the best camera is often the one that most seamlessly fits your unique photographic journey.
