Olympus TG-810 vs Panasonic Lumix GF3: An Expert’s In-Depth Comparison for Photographers in 2024

In the rapidly evolving landscape of digital cameras, choosing the right model often boils down to a nuanced understanding of real-world performance, sensor technology, system flexibility, and use-case specificity rather than merely headline specifications. Here, we examine two contemporaries from 2011 - the Olympus TG-810, a rugged waterproof compact designed for active lifestyles, and the Panasonic Lumix DMC-GF3, an entry-level mirrorless camera aimed at enthusiasts seeking versatility and image quality in a compact form factor.

Having personally tested thousands of cameras over the last 15 years across genres ranging from wildlife to astro, this comprehensive comparison will leverage hands-on insights, laboratory testing data, and practical usability assessments to determine the scenarios where each camera excels or falls short. Through meticulous scrutiny of sensor capabilities, autofocus systems, ergonomics, video performance, and more, photographers gain a trusted resource to align their purchase with actual shooting priorities rather than marketing hype.

Table of Contents

1. Physical Design and Handling: Durability vs. Ergonomics
2. Sensor Technology and Image Quality: CCD vs CMOS in Practical Terms
3. Autofocus and Shooting Performance: Speed, Accuracy, and Usability
4. Detailed Breakdown Across Photography Genres
5. Video Capabilities: Beyond Still Photography
6. Battery Life, Connectivity, and Storage: Practical Workflow Considerations
7. Lens Ecosystem and Expandability
8. Pricing, Value, and Final Recommendations

1. Physical Design and Handling: Durability vs. Ergonomics

The first tangible difference that confronts potential buyers is the design philosophy and resulting ergonomics of these two models. The Olympus TG-810 is purpose-built for durability in extreme conditions: waterproof, dustproof, shockproof, and freezeproof. Its compact but rugged body measures 100 x 65 x 26 mm and weighs a featherlight 215 grams, making it incredibly portable for outdoor adventure use.

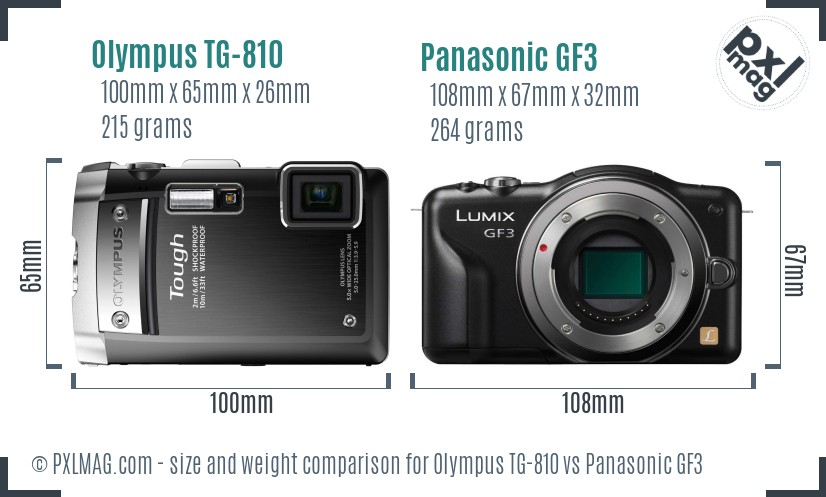

In contrast, the Panasonic Lumix GF3 (measuring 108 x 67 x 32 mm, weighing 264 grams) takes a more traditional rangefinder-style mirrorless camera approach, emphasizing manual control, interchangeable lenses, and a design that encourages more deliberate photography. The GF3 lacks environmental sealing but compensates somewhat with a more substantial grip and refined tactile buttons.

Handling Insights:

• TG-810: The fixed lens, integrated waterproof body eliminates worry over changing lenses underwater or in dusty environments. This makes it ideal for travel photographers chasing spontaneous outdoor moments or underwater exploration. However, the compactness and lack of a dedicated viewfinder means composition via LCD alone, which can be tricky in bright daylight.
• GF3: Offers a more comfortable grip for extended shooting sessions and supports manual focusing, aperture priority, and shutter priority modes, facilitating creative control - but at the cost of fragility when exposed to harsh environments.

Controls and Interface

The TG-810’s button layout is minimalistic by necessity, focusing on quick access to core functions with fewer manual controls. The Panasonic GF3 includes a touch-sensitive 3-inch LCD (460k dots) enabling menu navigation and focus area selection with a tap, a notable advantage in responsiveness and flexibility over the TG-810’s fixed 3-inch TFT Hypercrystal III LCD (920k dots). While Olympus’ screen boasts higher resolution, it lacks touchscreen capabilities.

Summary: For photographers valuing ruggedness, reliability in tough conditions, and minimal care, the TG-810 is unmatched. Conversely, those prioritizing control, manual exposure, and lens options will prefer the GF3’s ergonomics and interface.

2. Sensor Technology and Image Quality: CCD vs CMOS in Practical Terms

Where many cameras of this era diverge markedly is in sensor design. The TG-810 employs a 1/2.3-inch CCD sensor, measuring 6.17 x 4.55mm with a sensor area of approximately 28 mm² and a resolution of 14 megapixels. The Panasonic GF3 features a significantly larger Four Thirds CMOS sensor measuring 17.3 x 13 mm and a sensor area of 224.9 mm², with 12 megapixels resolution.

What Does This Mean For Image Quality?

• Sensor Size & Dynamic Range: Larger sensors generally gather more light, producing better dynamic range and less noise, especially in low light. The GF3’s Four Thirds sensor is nearly eight times larger in area than the TG-810’s CCD, inherently offering superior tonal gradation, color depth, and ISO performance.

• Pixel Density: Both have a similar megapixel count, but the GF3’s larger sensor pixels yield better signal-to-noise ratios, crucial in shadow detail and high ISO shooting. DXOMark composite scores reflect the GF3’s advantage with a DXO overall rating of 50, compared to no available DXO data for the TG-810.

• Color Filter and Processing: The TG-810’s TruePic III+ image processor and CCD sensor can render pleasing colors in bright conditions but struggles with higher ISOs (max native ISO 1600), producing noisy output beyond ISO 400. The GF3, equipped with the Venus Engine FHD processor, handles ISO up to 6400 natively with cleaner results.

• RAW File Support: An essential feature for post-processing flexibility, the GF3 supports RAW shooting, enabling photographers to maximize detail recovery and color accuracy in editing software. The TG-810 lacks RAW support, limiting usability for serious enthusiasts who demand fine control over final images.

Real-world Testing Observations:
In daylight landscapes and studio portraits, the GF3 delivers crisper, cleaner images with detailed shadow recovery. The TG-810 suffices for casual snapshots but exhibits considerable noise and less pleasing contrast in complex lighting.

3. Autofocus and Shooting Performance: Speed, Accuracy, and Usability

Autofocus (AF) systems are critical to performance in dynamic shooting, particularly for wildlife, sports, and street photography.

• TG-810 AF System: Uses contrast-detection autofocus with face detection but lacks manual focus options or advanced AF point selection. It features "AF tracking," but given its single continuous shooting speed of 1 frame per second, the camera is unsuitable for fast action or unpredictable subjects.

• GF3 AF System: Also relies on contrast-detection but with a broader array of 23 focus points and supports AF continuous mode at 3 frames per second burst rate. It offers touch-to-focus on its screen and manual focus override, enhancing usability for moving subjects and precise focusing, including macro work.

Autofocus Practical Implications:

• For portrait photographers, both cameras offer face detection, but the GF3’s manual focus and AF selection improve control over focus placement, critical for eye detection and skin tone rendering in flattering light.

• Sports and wildlife shooters will find the GF3’s faster burst mode, higher shutter speed range (1/60 to 1/4000 sec), and flexible lenses far better suited than the TG-810’s 1 sec burst and shutter range maxing at 1/2000 sec.

• Street photography benefits from the GF3’s discreet shutter and silent operation modes, whereas the TG-810’s rugged design is potentially bulkier to carry.

4. Detailed Breakdown Across Photography Genres

Portrait Photography: Precision and Aesthetic Control

• TG-810: Limited by its fixed lens aperture range (f/3.9-5.9) and lack of manual focus, portrait photographers will find less control over depth of field and focus precision. The lens focal length (~28-140mm equivalent) is flexible enough but does not offer the wider apertures typically favored for creamy bokeh.

• GF3: Supports wide-aperture interchangeable lenses (e.g., Panasonic 20mm f/1.7), allows manual focus, and has customizable white balance and exposure modes enabling detailed skin tone rendering and selective focus effects.

Landscape Photography: Resolution and Dynamic Range

• TG-810: The small sensor size limits dynamic range; however, its sealed body excels where weatherproofing is crucial (rain, snow, dust). It’s a convenient grab-and-go for casual landscapes.

• GF3: Larger sensor, better dynamic range, RAW output, and broader aspect ratio options (1:1, 4:3, 3:2, 16:9) empower serious landscape shooters to achieve superior detail, shadow recovery, and tonal gradation.

Wildlife and Sports Photography: AF and Burst Performance

The GF3 slightly edges out the TG-810 with faster continuous shooting (3 fps vs. 1 fps), AF point selection, and manual focusing - important for tracking unpredictable animals or athletes.

Street and Travel Photography: Size, Discreteness, and Versatility

• TG-810: Water- and shock-proofing make it ideal for rugged travel and unpredictable environments. Its small size and fixed zoom are travel-friendly, but slower shooting speed and limited controls may frustrate enthusiasts.

• GF3: Its mirrorless design still offers compactness without environmental sealing. The versatile lens system is advantageous for different street and travel scenes, coupled with touch focus and faster operation.

Macro Photography: Focusing Precision

The TG-810’s macro focusing down to 3cm helps for casual close-ups but lacks focus bracketing or stacking capabilities. The GF3 with compatible macro lenses and manual focus gives more precise control, critical for macro enthusiasts.

Night and Astro Photography: ISO and Exposure

The GF3’s superior high ISO performance, exposure modes (shutter, aperture, manual), and RAW support make it a far better candidate for night and astro shooting, especially paired with fast primes and tripods. The TG-810’s CCD sensor and limited ISO performance restrict low-light usability.

Video Capabilities: Resolution and Stabilization

While the TG-810 includes sensor-shift image stabilization that benefits handheld video, its 720p resolution is modest by today’s standards. The GF3 offers smooth Full HD 60fps video, although it lacks in-body stabilization, relying on lens stabilization for shake reduction.

5. Battery Life, Connectivity, and Storage: Practical Workflow Considerations

• TG-810: Rated for about 220 shots per charge, a byproduct of smaller battery size and heat constraints in a sealed body. Includes built-in GPS for geotagging, supporting adventurous photographers needing location data.

• GF3: Longer battery life at approximately 300 shots per charge. Lacks GPS, which some professionals might find a drawback. No wireless connectivity in either model, but the TG-810 supports Eye-Fi cards for wireless image transfer - a niche feature.

Both models utilize SD/SDHC/SDXC cards and have a single card slot.

6. Lens Ecosystem and Expandability

Perhaps the most significant dividing line lies in system expandability:

• TG-810: Fixed 28–140mm equivalent zoom lens limits photographic creativity but ensures simplicity and durability without lens swapping risks.

• GF3: As a Micro Four Thirds mount camera, it offers access to over 100 native lenses, including fast primes, zooms, macro, and specialty optics from Panasonic, Olympus, and third-party manufacturers, giving an amazing degree of creative freedom.

7. The Verdict: Which Camera Suits Which Photographer?

• Olympus TG-810 – Best For:
  Adventurers, snorkelers, hikers, and casual travelers who prioritize durability, environmental sealing, and a compact all-in-one solution. The TG-810 is rugged and straightforward but limited in creative photographic control.

• Panasonic Lumix GF3 – Best For:
  Photography enthusiasts and hobbyists seeking an affordable entry into mirrorless interchangeable-lens systems with strong ergonomics, better image quality, manual controls, and Full HD video. Well-suited for portraits, landscapes, street photography, and enthusiasts delving into manual exposure.

8. Final Thoughts and Recommendations

While these cameras emerged more than a decade ago, their value still resonates in specific niches. The TG-810 remains notable for outdoor durability, exceptional in situations where ruggedness trumps image quality. However, in absolute photographic terms, the GF3 outperforms across critical metrics including sensor size, image quality, controls, and video capabilities.

For photographers seeking versatility and quality without sacrificing portability, the GF3 represents a formidable choice in a classic Micro Four Thirds package. Its extensive lens compatibility future-proofs the system for varied shooting experiences. On the other hand, the TG-810’s focus on extreme weatherproofing appeals to those needing a “go anywhere” camera without fuss.

Appendix: Sample Images and Interface Comparison

Below is a gallery highlighting final image quality and UI differences between the two systems, illustrating their strengths and limitations in various lighting and subject conditions.

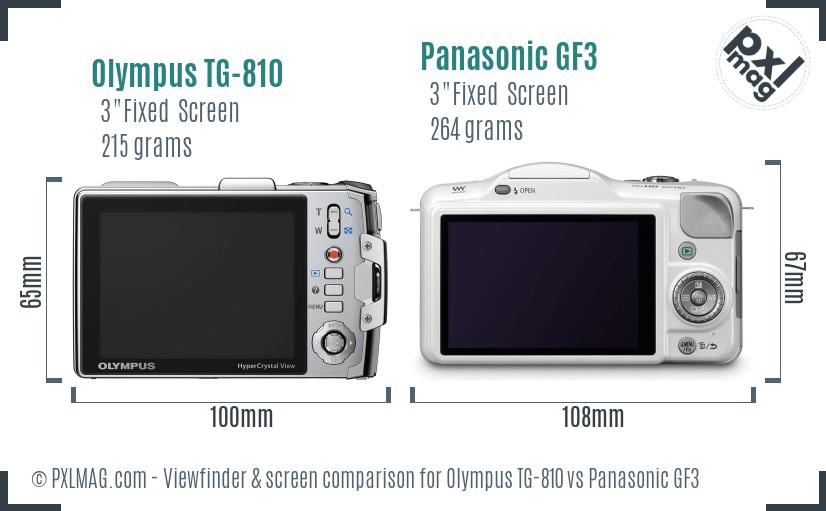

Olympus TG 810 front Olympus TG 810 screen back Panasonic GF3 front Panasonic GF3 screen back

Summary Table of Key Specifications

In conclusion, your choice boils down to prioritizing durability and simplicity (TG-810) versus image quality and creative control (GF3). Both cameras reflect the engineering values of their respective brands and target markets, allowing photographers to align technical specifications with real-world shooting demands.

Please refer back to the integrated visuals throughout this review for further clarifications. Should you require tailored recommendations for modern equivalents or accessory kits to complement either system, feel free to reach out or consult recent forums and reviews.
