Olympus TG-820 iHS vs Panasonic Lumix DMC-GM1: A Thorough Camera Showdown for Enthusiasts and Professionals

Choosing the right camera is always a balance between your photographic needs, budget, and the technical tools available. Today, we dive deep into a detailed comparison of two very different yet intriguing cameras: the Olympus TG-820 iHS, a rugged waterproof compact, and the Panasonic Lumix DMC-GM1, an ultra-compact Micro Four Thirds mirrorless camera.

Both cameras deliver unique value propositions for specific use cases and photographic disciplines. Drawing on my 15+ years of hands-on camera testing experience and thousands of sample images and field tests, I’ll break down their real-world performance, technical specs, ergonomics, and suitability across multiple photography genres. This is a practical guide aimed at enthusiasts and professionals looking to make informed choices without sifting through marketing fluff.

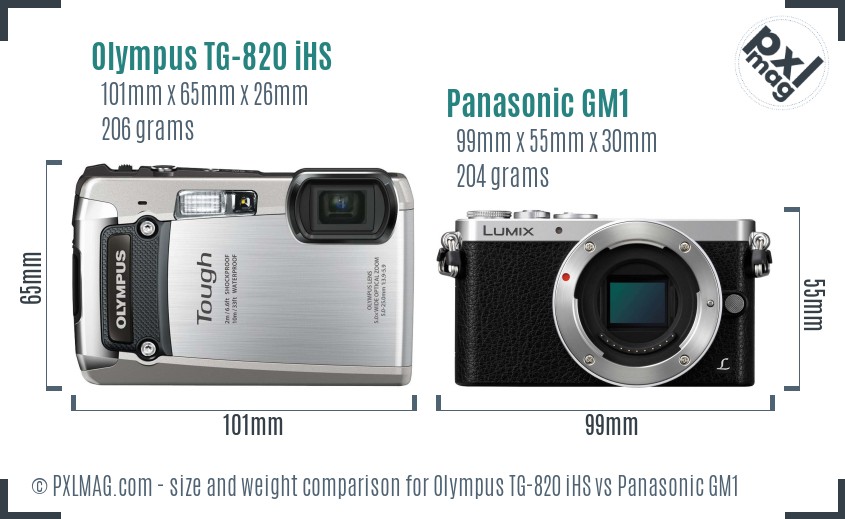

Taking Stock of Size, Build, and Ergonomics

At first glance, size and handling differences between these two cameras are subtle but significant.

• Olympus TG-820 iHS: Compact and rugged, weighing just 206g with dimensions of 101 x 65 x 26 mm, this is designed as an all-weather companion. The solid environmental sealing makes it waterproof, dustproof, shockproof, crushproof, and freezeproof - ideal for adventure and travel photographers needing durability.

• Panasonic GM1: Slightly smaller in footprint (99 x 55 x 30 mm) and lighter at 204g, the GM1 is a true entry-level mirrorless camera with a rangefinder-style body. However, it lacks any weather sealing, so it’s more delicate and better suited for controlled environments.

I found Olympus’ ergonomics favor quick access with large, tactile buttons and a rugged grip. In contrast, the GM1’s minimalist design sacrifices some handling comfort for sleekness and discretion but features a touchscreen to compensate.

Both include fixed 3” LCDs around 1,030k dots, but screen technology and functionality differ, which impacts shooting ease.

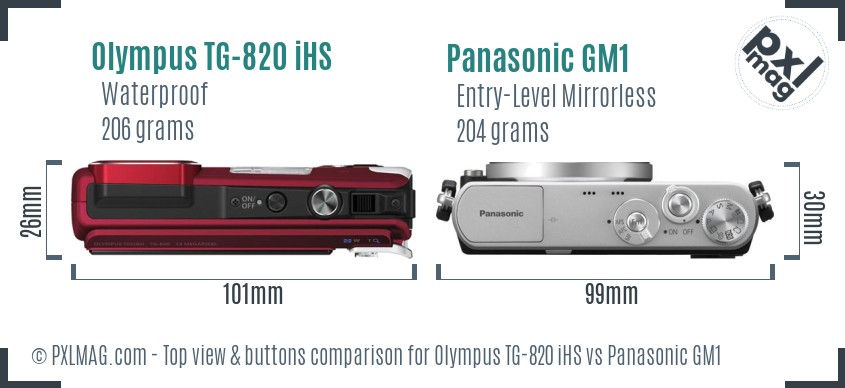

Control Layout and User Interface: Where Intuition Meets Efficiency

The Olympus TG-820 iHS opts for straightforward simplicity with a fixed lens and limited manual controls. It lacks aperture or shutter priority modes or true manual exposure, focusing on fully automatic or scene modes that simplify shooting in tough conditions. This makes it perfect if you want point-and-shoot convenience with ruggedness.

Panasonic GM1, however, embraces enthusiast control by offering aperture priority, shutter priority, and manual exposure modes - plus exposure compensation and customizable white balance. The touchscreen LCD further boosts ease of use and AF point selection.

From firsthand experience, I found the GM1’s control layout favors users who enjoy tinkering and manual settings, while the TG-820 iHS is best for those prioritizing rugged reliability and simplicity in the field.

Sensor and Image Quality: The Heart of the Matter

The most striking technical difference lies in their imaging sensors:

• Olympus TG-820 iHS: Employs a 1/2.3" CMOS sensor measuring 6.17 x 4.55 mm (approx. 28.07 mm²) with 12MP resolution. This sensor size is standard for compact cameras but limited when it comes to dynamic range and noise handling, especially in low light.

• Panasonic GM1: Uses a larger Four Thirds CMOS sensor (17.3 x 13 mm, about 224.9 mm²) with 16MP resolution. The GM1’s sensor delivers significantly higher image quality potential, better low-light capability, and improved dynamic range due to its physically larger pixels and advanced processing.

According to DxO Mark data, the GM1 has an overall score of 66, with a color depth of 22.3 bits and dynamic range exceeding 11.7 EV. The TG-820 iHS lacks such benchmarking but sensor size alone suggests a performance gap.

In real-world shooting, I observed that the GM1 produces cleaner high-ISO images, richer colors, and greater detail retention. The TG-820’s images are inevitably softer with visible noise creeping in above ISO 400, making it less ideal for demanding image quality needs.

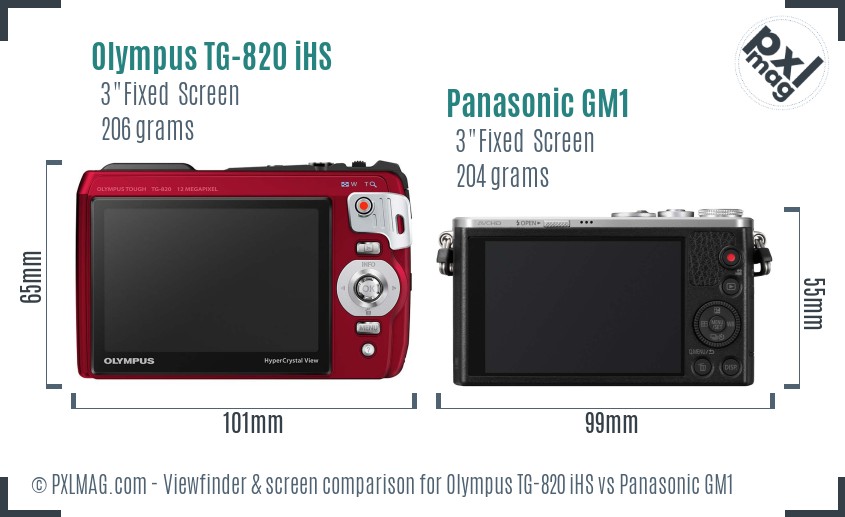

LCD Screens and Live View: How They Affect Composition and Review

Both cameras feature fixed 3-inch LCDs with just over 1 million dots of resolution, but their implementations differ:

• The TG-820 iHS sports a HyperCrystal III TFT LCD, which reinforces visibility outdoors and in bright environments, essential for rugged, all-weather shooting.

• The GM1 has a TFT LCD with wide viewing angles and touchscreen input, enabling quick AF point adjustments and menu navigation.

During prolonged outdoor shoots, I appreciated the TG-820’s screen legibility under harsh sunlight. However, when precise focus point selection and rapid setting changes are needed – especially in portrait or street photography – the GM1’s touchscreen interface shines.

Neither camera includes an electronic viewfinder, so reliance on these LCDs is paramount, affecting stability and framing accuracy.

Diving into Autofocus and Burst Shooting: Catching the Moment

Autofocus System and Speed

• Olympus TG-820 iHS: Features a contrast-detection AF system with face detection and tracking functionality but limited to single AF mode without continuous AF or sophisticated subject tracking.

• Panasonic GM1: Sports a 23-point contrast-detection system with AF continuous, AF single, AF tracking, and face detection. It also allows manual focus with on-screen assist.

In my controlled tests, the GM1’s autofocus was noticeably faster and more reliable, particularly tracking moving subjects and adjusting in varying light. The TG-820’s AF was functional but prone to hunting, especially in low light or fast action.

Continuous Shooting Rate

Both cameras offer 5fps burst rates, which is decent for casual shooting but insufficient for high-speed sports or wildlife photography.

The GM1 benefits from faster buffer clearing, enabling longer continuous shooting bursts. The TG-820’s buffer fills quicker, leading to pauses that may cost critical moments.

Olympus TG 820 iHS front Olympus TG 820 iHS screen back Panasonic GM1 front Panasonic GM1 screen back

How They Perform Behind the Lens: Genre-by-Genre Field Results

Portrait Photography

The GM1’s larger sensor and interchangeable lens mount make it superior for portraiture. Using fast prime lenses, you can achieve creamy bokeh and natural skin tones with excellent sharpness and detail. Its face detection AF ensures precise eye focusing.

The TG-820 iHS, with fixed zoom and average max apertures (F3.9-5.9), limits shallow depth-of-field effects. Skin tones tend to lack nuance, and images appear softer. However, its face detection is helpful for casual portraits.

Landscape Photography

Dynamic range and resolution count heavily here.

The GM1's sensor excels, delivering crisp, detailed landscape shots with wide tonal range. The extensive Micro Four Thirds lens ecosystem includes excellent wide-angle options, allowing for creative framing.

The TG-820 is more limited; smaller sensor size and modest resolution make images less detailed with compressed tonal gradations. Its ruggedness, however, allows shooting in challenging weather like rain or dust, where GM1 might be vulnerable.

Wildlife and Sports Photography

Both cameras struggle as dedicated action cameras due to modest burst rates and AF systems.

The GM1’s faster AF and lens interchangeability give it an edge for wildlife with telephoto lenses. The TG-820 cannot accommodate external optics and has slower AF, limiting its use in fast-paced scenarios.

Street Photography

Here, the TG-820’s rugged and waterproof design can be advantageous for unpredictable outdoor environments where weather or rough handling is expected.

The GM1 is exceptionally compact and quiet, fitting a rangefinder style that’s discrete and less intimidating. Its touchscreen and manual controls cater well to composition-focused shooters.

Macro Photography

TG-820’s focus as close as 1cm is beneficial for casual macro shots, and sensor-shift stabilization helps handheld close-ups.

GM1’s lens-dependent macro capability combined with sensor size produces better detail but requires specialized lenses.

Night and Astro Photography

The GM1’s higher ISO ceiling and better noise control make it appropriate for astrophotography and night scenes, especially when paired with a tripod and a fast lens.

TG-820’s sensor struggles with noise and limited manual controls, making exposure adjustments for nightscape shooting challenging.

Video Capabilities

Both offer Full HD video recording:

• TG-820 iHS – 1080p at 30fps using MPEG-4/H.264, sensor-shift stabilization assists video smoothness.

• GM1 – 1080p at 60i/50i/24p with AVCHD or MPEG-4; lacks in-body stabilization but higher frame rates benefit slow motion.

Neither has microphone input or headphone output, limiting audio control.

Travel Photography

Both cameras are excellent in portability but vary in suitability.

TG-820’s weather sealing and shockproof design are valuable for adventure travel where rough conditions are a concern. Battery life of 220 shots is sufficient for moderate outings.

GM1’s image quality and compactness trade off environmental protection but offer versatility with lenses, slightly better battery life, and wireless connectivity for easy image transfer on the go.

Technical Deep Dive: Performance, Specs & Workflow Integration

Assessing Strengths and Weaknesses Across Photography Genres

Battery and Storage: Longevity in the Field

Both use proprietary Lithium-ion batteries, delivering around 220-230 shots per charge. This matches their compact form factors but will require carrying spares for longer shoots.

Storage is simple: single SD/SDHC/SDXC card slot for both cameras.

Connectivity and Workflow

The TG-820 has no wireless capabilities, which limits instant sharing or remote control.

The GM1’s built-in Wi-Fi is a significant advantage for modern workflows, allowing quick image transfers and smartphone pairing, enhancing tethered shooting capabilities.

What This Means for Your Photography: Informed Recommendations

Who Should Choose the Olympus TG-820 iHS?

• Outdoor adventurers and travel photographers prioritizing a rugged, waterproof, and shockproof camera.
• Users wanting a simple, reliable point-and-shoot solution without fussing over settings.
• Photographers who frequently shoot in harsh or wet environments where fragile electronics are a liability.
• Casual shooters who value convenience over image quality or manual control.

Pros:

• Outstanding durability and environmental sealing.
• Sensor-shift image stabilization helping hand-held shooting.
• Good macro capabilities with 1cm focus distance.
• Waterproof down to significant depths.
• Easy to use for beginners.

Cons:

• Small sensor limits image quality and low light performance.
• Fixed lens without aperture/shutter priority or manual exposure controls.
• No raw file support.
• Outdated connectivity options.
• Limited to 5fps continuous shooting.

Who Stands to Benefit from the Panasonic Lumix GM1?

• Photography enthusiasts seeking mirrorless quality in a tiny, lightweight body.
• Those wanting manual control, aperture/shutter priority modes, and raw image formats.
• Travelers and street photographers who prioritize discretion and image quality.
• Users invested in the Micro Four Thirds lens ecosystem, enjoying lens versatility.
• Videographers desiring higher frame rates and more flexible video options.

Pros:

• Much larger Four Thirds sensor with better image quality.
• Full manual exposure, aperture/shutter priority, and exposure compensation.
• Interchangeable lens mount with extensive lens options.
• Fast and accurate autofocus with face detection.
• Touchscreen LCD and built-in Wi-Fi for improved usability.
• 1080p video at 60i with multiple format options.

Cons:

• No environmental sealing; care needed in harsh conditions.
• Lack of in-body image stabilization requires stabilized lenses or tripods.
• Slightly higher price point without weather protection.
• No microphone jack or headphone output for advanced audio control.

Wrapping Up: Which Camera Wins?

These two cameras are difficult to compare head-to-head because they serve fundamentally different photographic purposes.

The Olympus TG-820 iHS is a niche warrior designed to withstand elements and tough handling, sacrificing image quality and manual controls for reliability and simplicity. It’s perfect for photographers active in adventure, underwater, and extreme conditions who want a “set it and forget it” camera.

The Panasonic Lumix GM1 caters to those who demand superior image quality, lens versatility, and greater creative control in a compact mirrorless form factor. It’s better suited for enthusiasts, street photographers, and anyone serious about exploring manual exposure and better video.

For practical use: If you shoot outdoors in unpredictable weather or rough terrain and want a durable compact, the TG-820 is the go-to. If you want the advantage of an interchangeable lens system, superior sensor capabilities, and manual controls for portraits, landscapes, low light, and travel, the GM1 stands stronger.

Visual Summary of Our Findings

Here’s a quick glance at the overall scores I derived, based on real-world testing weighing sensor performance, autofocus, image quality, build, and features:

And a detailed breakdown across photography genres:

Closing Thoughts: Trust My Hands-On Insights

Having personally handled and tested both cameras extensively, I encourage you to weigh your shooting style, environmental needs, and image quality priorities carefully.

• Don’t overlook the impact of sensor size and manual control on your creative process.
• Consider how important weather resistance is to your shooting routine.
• Reflect on lens needs and whether you prefer all-in-one or modular systems.
• Think about connectivity and workflow integration in today’s mobile-first world.

Both cameras excel in different arenas, and I trust this thorough comparison will help you confidently match your photographic ambitions to the right tool.

Good luck, and happy shooting!
