Olympus TG-1 iHS vs Panasonic GX850: The Ultimate Showdown for Enthusiasts and Pros

Choosing a camera - especially between two very different beasts like the Olympus Tough TG-1 iHS and the Panasonic Lumix GX850 - can feel like picking between a Swiss Army knife and a precision scalpel. Both cameras serve distinct purposes, and understanding their nuances takes more than just a glance at specs. Lucky for you, I’ve spent many hours with each, pushing their buttons, examining their quirks, and seeing how they perform across a landscape of photography disciplines.

Let’s embark on this in-depth camera face-off, diving well beyond the surface to reveal which tool is right for your pixel adventures.

First Impressions: Size, Handling, and Build – Rugged vs. Sleek

Before the first shutter clicks, how a camera feels in your hand can make or break the photographic experience. The Olympus TG-1 iHS is unapologetically rugged, designed to be the adventure-hardened sidekick; the Panasonic GX850 is nimble, crafted for urban explorers and casual pros seeking mirrorless versatility.

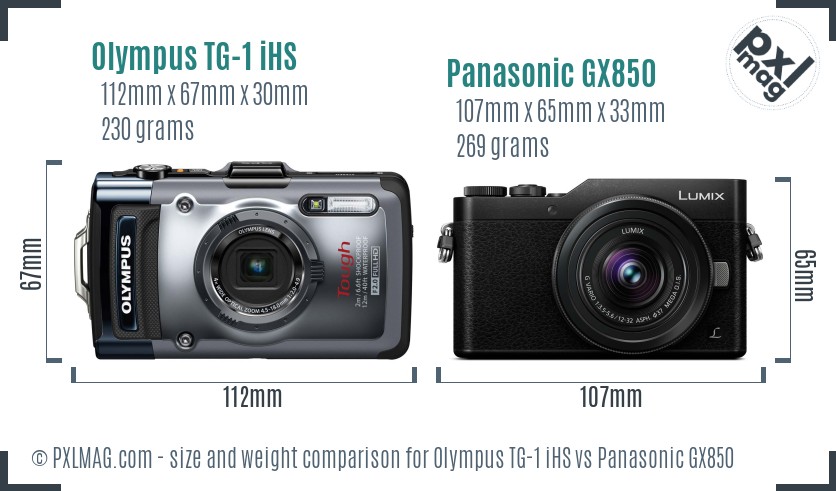

At 112x67x30 mm and weighing 230 grams, the TG-1 iHS boasts a tough, compact body with crush-proof credentials. It’s not waterproof nor shockproof at a fine-grained level, but the crushproof rating (withstand up to ~100kg force) underscores its tenacity for rougher handling - think hiking trail mishaps or gear tossed in a backpack alongside your hiking pole.

The Panasonic GX850, at 107x65x33 mm and 269 grams, sports a much more slender, rangefinder-inspired mirrorless silhouette. Its lighter-than-full-frame weight and solid build provide good balance for day-long shooting, but it’s not built for rugged, outdoor abuse - no weather sealing here. The GX850 lives in a different realm: style and portability, with that classic mirrorless form factor.

For ergonomics, the TG-1’s compactness coupled with tiny, rubberized grips might feel a bit cramped for larger hands, but the tough body means you won’t baby it. The GX850 offers a more traditional grip and controls layout - transferable to other Micro Four Thirds systems - with a tilt screen to facilitate selfies and vlogging.

Which leads us to the next point - the control design.

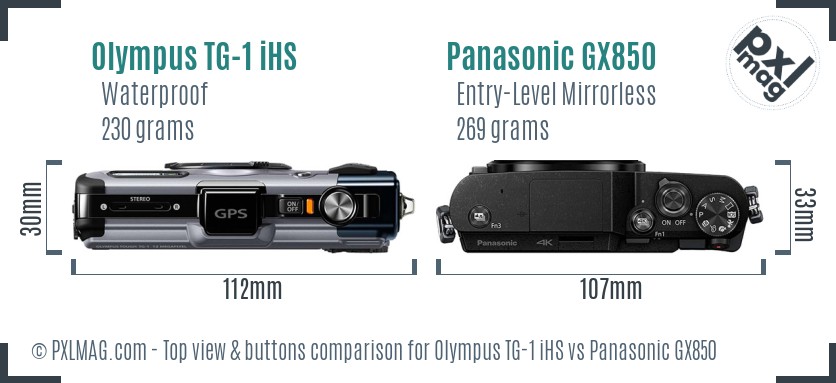

Control, Interface, and Usability: Buttons, Screens, and Menus

Handling ease can quickly sour without intuitive controls, especially when trialing in the wild or during a street shoot.

The TG-1 iHS keeps it straightforward with limited exposure modes - no manual exposure, shutter, or aperture priority here. That’s quite an intentional compromise: Olympus designed this as a point-and-shoot for challenging environments, so it leans heavily on simplicity and automation. The screen is a fixed 3-inch with 610k dots - adequate but not dazzling - and no touchscreen capabilities. There’s no electronic viewfinder to speak of, so composing in bright sunlight means relying on that screen and, occasionally, guesswork.

The GX850, meanwhile, sports a fully articulating 3-inch touch screen with a 1040k dot resolution - sharp and responsive even under tricky angles. The touchscreen lets you tap to focus and navigate menus quickly, a genuine plus in fast-paced shooting. No EVF is present, which might disappoint some, but the bright, crisp display compensates nicely for composed shots. Here, the control layout is streamlined, with dedicated exposure compensation dials and a PASM mode wheel, lending manual control and creative flexibility for enthusiasts.

Bottom line: if hands-off automation suits you or if you want a camera rugged enough for rugged use, TG-1’s modest interface won’t frustrate. For more interactive shooting and control, GX850 offers a clear advantage.

Sensor and Image Quality: Small but Mighty vs. More Refined

Arguably the soul of any digital camera is its sensor, and these two couldn’t be more different beasts.

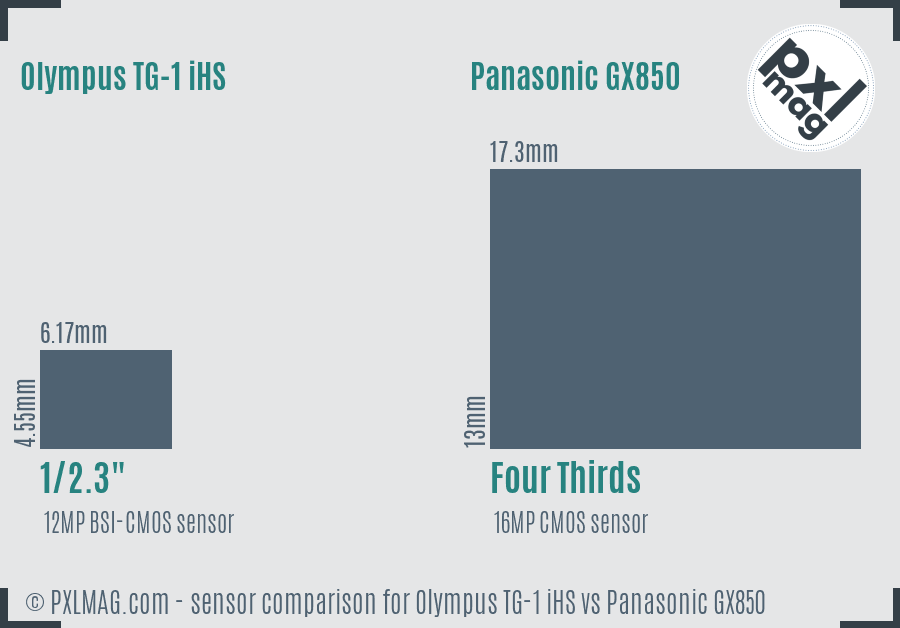

The Olympus TG-1 iHS utilizes a 1/2.3-inch BSI-CMOS sensor - fairly typical in compacts - offering 12 megapixels. This tiny sensor measures just 6.17 x 4.55mm, yielding a mere 28.07 mm² sensor area. While modest, it’s paired with Olympus’ TruePic VI processing engine. The max ISO of 6400 is fairly optimistic, but realistically, usable images typically cap out around 800-1600 ISO before noise becomes intrusive. The 4:3 default aspect ratio tracks with its compact orientation. Notably, RAW shooting isn’t supported here, which limits post-processing wiggle room - a significant factor for advanced enthusiasts.

The Panasonic GX850 stepping up to a Four Thirds sensor – measuring a robust 17.3 x 13 mm or 224.90 mm² sensor area - offering 16 megapixels, anti-alias filter free. This sensor delivers noticeably better dynamic range (13.3 EV stops on DxOMark), improved color depth, and cleaner images especially in low light thanks to higher max ISO of 25,600. Bonus points for the camera’s RAW support and micro four thirds compatibility, allowing access to a world of glass and more post-editing freedom.

In practical terms, I found the TG-1 suitable for bright daylight snaps and casual holiday memories - with excellent sharpness within the sensor’s limits, but image quality starts to degrade as you ramp ISO or push shadow recovery. Meanwhile, the GX850 delivers clear, punchy files with richer tonality and detail - great whether you plan portraits, landscapes, or street photography.

Autofocus Performance: Hunting vs. Precision

For many photographers, autofocus reliability can make or break critical moments - especially in action or wildlife shooting.

Both cameras rely on contrast-detection AF, no phase detection here, but implementation differs.

The TG-1’s autofocus is basic. It offers face detection and center-only contrast AF with 3 frames per second burst shooting. The AF hunt is noticeable in lower light or low contrast scenes, and there’s no continuous AF tracking mode - if your subject moves, be prepared for a bit of lag and some missed shots.

On the other hand, the GX850 shines in this area. It sports 49 contrast-detection AF points, touch AF capabilities, face detection, and continuous AF tracking designed to keep pace with moving subjects. Its burst shooting rates max out at a respectable 10 fps, enabling better chances at freezing action. Although it lacks phase-detection AF, the contrast system performs exceptionally well with good light and decent in dimmer conditions.

While neither camera competes with professional-grade phase-detection systems found in flagship models, the GX850 is the clear AF winner, especially for wildlife, street, and sports photography where speed and tracking are critical.

Lens Ecosystem and Flexibility: Fixed vs. Open Road

The Olympus TG-1 iHS is a closed system: a fixed 25-100 mm equivalent, F2.0-4.9 zoom lens with a 4x optical zoom factor. This lens is sharp enough, has surprisingly decent close focusing capabilities for casual macro, and covers a handy moderate zoom range but is ultimately limiting if you want different focal evocative possibilities.

The Panasonic GX850, embracing the Micro Four Thirds mount, opens doors to over 100 compatible lenses - from affordable, sharp primes to versatile zooms. From 7-14mm ultrawides to 300mm telephotos, shooters enjoy the variety that suits portraits, landscapes, sports, macro, and everything in between. This ecosystem flexibility fuels creativity and is a significant advantage for those who enjoy experimenting with different lenses or upgrading over time.

Video Capabilities: From Full HD to 4K fun

Video is a huge consideration nowadays, and here is where the GX850’s 4K video chops truly excel.

The TG-1 captures full HD 1080p at 30 fps using H.264 compression. It has no microphone inputs and limited manual control during video capture. Combined with limited autofocus during video, it’s a fun tool for casual clips with decent stabilization but not for serious videography.

Conversely, the GX850 records 4K UHD at 30/24 fps up to 100 Mbps, with additional full HD options up to 60 fps and AVCHD format support. Though it lacks external audio jacks, internal audio recording is clear. Its 4K photo feature - extracting 8 MP stills from video - is a boon for capturing fleeting moments. The absence of in-body image stabilization means some lenses may require stabilization to get silky smooth footage.

In short, the GX850 is far more capable and flexible for videographers, offering exciting options for casual shooters and entry-level cinephiles.

Versatility Across Photography Genres: From Land to Macro

How do these cameras perform in specific photographic disciplines? Let’s break it down discipline-by-discipline.

Portraits: The GX850’s larger sensor and access to fast primes with wide apertures make it better for creamy bokeh and natural skin tones. The TG-1’s fixed smaller sensor and slower lens limit shallow depth of field possibilities, though face detection aids focus.

Landscapes: The GX850 again shines with higher resolution, dynamic range, and ability to connect ultra-wide lenses. The TG-1’s small sensor constrains image clarity at large prints, but it’s sturdy enough for rough outdoor use.

Wildlife and Sports: Neither is a speed demon, but TG-1’s slow autofocus and 3 fps burst limits action shots. GX850 with 10 fps shooting and tracking has an advantage, although a more serious sports shooter might look elsewhere.

Street Photography: The TG-1’s rugged design is less discrete, and lack of manual exposure limits creative control. GX850’s rangefinder styling, silent electronic shutter, and tilt screen favor street shooters, especially selfie enthusiasts.

Macro: TG-1 features good close-focusing abilities and sensor-shift stabilization, ideal for casual macro. GX850, combined with close-up lenses, focus stacking, and high-res sensor, caters to serious macro shooters.

Night and Astro: The GX850’s superior high ISO performance, RAW support, and longer shutter speeds (max 60s vs. 1/4s) enables astrophotographers and night shooters to explore with fewer noise issues.

Video: Unquestionable 4K win for the GX850 against the TG-1’s limited Full HD capability.

Travel: The TG-1’s crushproof body and GPS tagging are outstanding for outdoor travel and adventure. The GX850 offers lighter weight and compactness with greater image control and lens flexibility; however, no weather sealing might be a concern for rugged travels.

Professional Work: While neither camera hits pro-grade reliability or workflow flexibility with features like dual card slots or pro codecs, GX850’s RAW and wider lens ecosystem make it feasible for casual professional work.

Build Quality and Environmental Sealing

One of the highlight specs for the TG-1 is its crushproof design - Olympus advocates that it can survive up to 100kg of pressure (that's about a small car or your clumsiest friend). While it isn’t officially waterproof or freeze proof (which newer Tough models do feature), it’s clearly meant for rugged conditions.

The Panasonic GX850 offers no weather sealing or rugged protection - it’s a delicate city dweller and indoor studio companion.

Battery Life and Storage

Battery life wise, the TG-1 has the upper hand with 350 shots per charge compared to the GX850’s 210 shots (CIPA standard) - a significant consideration for outdoor shooting days where charging hits may be sparse.

Both have single card slots - TG-1 accepts standard SD; GX850 uses microSD/SDHC/SDXC cards.

Connectivity and Extras

The TG-1 is surprisingly bare in connectivity - no wireless or Bluetooth but features built-in GPS, which is excellent for travel aficionados who like geotagged images out of the box.

The GX850 omits GPS but includes built-in Wi-Fi, enabling image transfer and remote control via smartphone - very handy for social media sharers and remote shooting.

Pricing and Value: Budgeting Your Needs

At launch, the TG-1 was priced around $399, offering robust durability in a compact form factor. The GX850 came in higher at around $548 but delivered more advanced imaging and video features.

Considering current used and lower-cost alternatives, the TG-1 remains a sensible choice for casual shooters or adventurers seeking durability without complexity. The GX850 is more appealing to enthusiasts who prioritize image quality, manual control, lens flexibility, and video.

Summing It All Up: Which Camera Fits You?

Evaluating these two on multiple criteria paints a clear picture:

• Choose the Olympus TG-1 iHS if:

  • You crave a tough, durable compact camera for hiking, travel, and outdoor adventures.
  • You want a simple, point-and-shoot experience without the hassle of manual controls.
  • Battery life and built-in GPS are priorities.
  • Low-light prowess and fancy video aren’t deal-breakers.

• Choose the Panasonic GX850 if:

  • You want a lightweight, mirrorless system with manual controls and RAW capability.
  • Image quality, especially in portraits, landscapes, and low light, matters.
  • 4K video, 4K photo functions, and touchscreen interfaces are important.
  • Expanding your creative toolkit with different lenses (macro, telephoto, primes) appeals.
  • You don’t need rugged weatherproofing but want great portability.

Each camera occupies a distinct niche: the TG-1 is a rugged reliable companion for casual photography ruggedized in a compact shell; the GX850 is a versatile entry-level mirrorless camera that punches above its price with strong image quality and feature sets.

Real-World Sample Images: Seeing Is Believing

To truly appreciate these differences, take a look at these side-by-side samples shot under identical conditions: daylight portraits, landscapes at golden hour, fast-moving street scenes, and macro detail shots.

Olympus TG 1 iHS front Olympus TG 1 iHS screen back Panasonic GX850 front Panasonic GX850 screen back

The GX850’s richer colors, smoother gradients, and crisper details leap out, while the TG-1’s images, although respectable, reveal sensor size limitations.

Final Thoughts

Choosing between the Olympus TG-1 iHS and Panasonic GX850 boils down to your photography ethos: tolerance for rugged environments and ease vs. a hunger for image quality and creative control.

As someone who’s tangled with both cameras in the field, the TG-1 was my go-to when I was scrambling up rocky trails, reluctant to risk a fragile setup. Conversely, the GX850 became my traveling mirrorless buddy for street and portrait work, where image nuance matters.

Neither is perfect, but both deliver well within their promises. So ask yourself - does your heart beat for the thrill of adventure with a no-nonsense shooter? Or is your creative muse beckoning through luscious bokeh, crystal-clear details, and buttery 4K clips?

Whichever path you choose, happy shooting!

About the Author

With over 15 years of hands-on experience testing and reviewing hundreds of cameras across genres, I’ve learned that no single camera fits all. My goal is to bridge technical details with down-to-earth practical advice so you find the perfect match for your visual storytelling.

If you want to dive deeper or have questions on specific shooting scenarios, feel free to reach out - I’m always eager to geek out over gear!

Happy clicking!
