Olympus TG-1 iHS vs Pentax MX-1
91 Imaging
36 Features
40 Overall
37
84 Imaging
37 Features
60 Overall
46
Olympus TG-1 iHS vs Pentax MX-1 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- Sensor-shift Image Stabilization
- 1920 x 1080 video
- 25-100mm (F2.0-4.9) lens
- 230g - 112 x 67 x 30mm
- Launched May 2012
(Full Review)
- 12MP - 1/1.7" Sensor
- 3" Tilting Display
- ISO 100 - 12800
- Sensor-shift Image Stabilization
- 1/8000s Maximum Shutter
- 1920 x 1080 video
- 28-112mm (F1.8-2.5) lens
- 391g - 122 x 61 x 51mm
- Announced July 2013
Olympus TG-1 iHS vs Pentax MX-1 Overview
Below, we are comparing the Olympus TG-1 iHS and Pentax MX-1, former being a Waterproof while the other is a Small Sensor Compact by companies Olympus and Pentax. The image resolution of the TG-1 iHS (12MP) and the MX-1 (12MP) is fairly well matched but the TG-1 iHS (1/2.3") and MX-1 (1/1.7") come with different sensor sizing.
Photography GlossaryThe TG-1 iHS was manufactured 13 months before the MX-1 making the cameras a generation apart from each other. Both the cameras come with the identical body type (Compact).
Before diving straight into a in-depth comparison, below is a short summary of how the TG-1 iHS grades versus the MX-1 in the way of portability, imaging, features and an overall grade.
Olympus TG-1 iHS vs Pentax MX-1 Gallery
Below is a sample of the gallery pictures for Olympus Tough TG-1 iHS & Pentax MX-1. The entire galleries are viewable at Olympus TG-1 iHS Gallery & Pentax MX-1 Gallery.
Reasons to pick Olympus TG-1 iHS over the Pentax MX-1
TG-1 iHS | MX-1 |
---|
Reasons to pick Pentax MX-1 over the Olympus TG-1 iHS
MX-1 | TG-1 iHS | |||
---|---|---|---|---|
Announced | July 2013 | May 2012 | More recent by 13 months | |
Focus manually | Dial precise focusing | |||
Display type | Tilting | Fixed | Tilting display | |
Display resolution | 920k | 610k | Crisper display (+310k dot) |
Common features in the Olympus TG-1 iHS and Pentax MX-1
TG-1 iHS | MX-1 | |||
---|---|---|---|---|
Display dimension | 3" | 3" | Identical display measurement | |
Selfie screen | Neither includes selfie screen | |||
Touch friendly display | Missing Touch friendly display |
Olympus TG-1 iHS vs Pentax MX-1 Physical Comparison
In case you're planning to lug around your camera frequently, you need to consider its weight and size. The Olympus TG-1 iHS features outer dimensions of 112mm x 67mm x 30mm (4.4" x 2.6" x 1.2") with a weight of 230 grams (0.51 lbs) whilst the Pentax MX-1 has specifications of 122mm x 61mm x 51mm (4.8" x 2.4" x 2.0") along with a weight of 391 grams (0.86 lbs).
Examine the Olympus TG-1 iHS and Pentax MX-1 in our completely new Camera & Lens Size Comparison Tool.Do not forget, the weight of an ILC will change dependant on the lens you are utilizing at that moment. Here is the front view proportions comparison of the TG-1 iHS and the MX-1.
Taking into account size and weight, the portability grade of the TG-1 iHS and MX-1 is 91 and 84 respectively.
Olympus TG-1 iHS vs Pentax MX-1 Sensor Comparison
Usually, it is very hard to imagine the gap between sensor measurements just by reading through specs. The graphic below may provide you a better sense of the sensor sizes in the TG-1 iHS and MX-1.
All in all, both of these cameras have got the exact same resolution but different sensor measurements. The TG-1 iHS contains the tinier sensor which will make obtaining shallower DOF tougher. The older TG-1 iHS is going to be behind with regard to sensor technology.

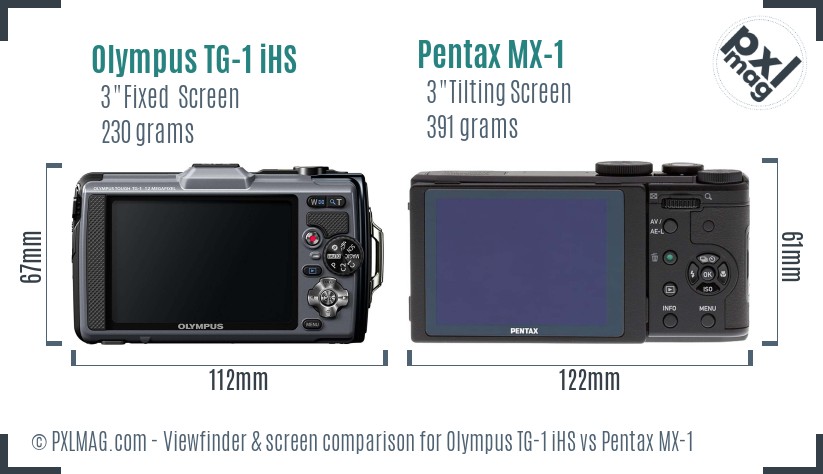

Olympus TG-1 iHS vs Pentax MX-1 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus TG-1 iHS vs Pentax MX-1 Specifications
Olympus Tough TG-1 iHS | Pentax MX-1 | |
---|---|---|
General Information | ||
Manufacturer | Olympus | Pentax |
Model type | Olympus Tough TG-1 iHS | Pentax MX-1 |
Type | Waterproof | Small Sensor Compact |
Launched | 2012-05-08 | 2013-07-01 |
Body design | Compact | Compact |
Sensor Information | ||
Processor Chip | TruePic VI | - |
Sensor type | BSI-CMOS | CMOS |
Sensor size | 1/2.3" | 1/1.7" |
Sensor dimensions | 6.17 x 4.55mm | 7.44 x 5.58mm |
Sensor area | 28.1mm² | 41.5mm² |
Sensor resolution | 12 megapixel | 12 megapixel |
Anti alias filter | ||
Aspect ratio | 4:3 and 16:9 | 4:3, 3:2 and 16:9 |
Highest resolution | 3968 x 2976 | 4000 x 3000 |
Highest native ISO | 6400 | 12800 |
Minimum native ISO | 100 | 100 |
RAW data | ||
Autofocusing | ||
Focus manually | ||
AF touch | ||
AF continuous | ||
Single AF | ||
AF tracking | ||
Selective AF | ||
AF center weighted | ||
Multi area AF | ||
AF live view | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Total focus points | - | 25 |
Cross type focus points | - | - |
Lens | ||
Lens mount type | fixed lens | fixed lens |
Lens zoom range | 25-100mm (4.0x) | 28-112mm (4.0x) |
Maximal aperture | f/2.0-4.9 | f/1.8-2.5 |
Macro focusing range | - | 1cm |
Focal length multiplier | 5.8 | 4.8 |
Screen | ||
Screen type | Fixed Type | Tilting |
Screen sizing | 3" | 3" |
Screen resolution | 610k dot | 920k dot |
Selfie friendly | ||
Liveview | ||
Touch functionality | ||
Screen technology | - | TFT LCD with AR coating |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Slowest shutter speed | 4 seconds | 30 seconds |
Maximum shutter speed | 1/2000 seconds | 1/8000 seconds |
Continuous shooting speed | 3.0 frames/s | 1.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | - | Yes |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | - | 12.00 m |
Flash settings | - | Auto, On, Off, Red-Eye, Fill-in, Slow Speed sync, Trailing Curtain sync |
External flash | ||
AEB | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | 1920 x 1080 | 1920 x 1080 (30 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30 fps) |
Highest video resolution | 1920x1080 | 1920x1080 |
Video format | H.264 | MPEG-4, H.264 |
Mic jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | BuiltIn | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 230 gr (0.51 lbs) | 391 gr (0.86 lbs) |
Dimensions | 112 x 67 x 30mm (4.4" x 2.6" x 1.2") | 122 x 61 x 51mm (4.8" x 2.4" x 2.0") |
DXO scores | ||
DXO All around rating | not tested | 49 |
DXO Color Depth rating | not tested | 20.4 |
DXO Dynamic range rating | not tested | 11.3 |
DXO Low light rating | not tested | 208 |
Other | ||
Battery life | 350 pictures | 290 pictures |
Battery form | Battery Pack | Battery Pack |
Battery ID | LI90B | D-Li-106 |
Self timer | Yes (2 and 12 sec) | Yes (2 or 12 sec) |
Time lapse feature | ||
Type of storage | - | SD/SDHC/SDXC |
Storage slots | 1 | 1 |
Launch cost | $399 | $400 |
