Olympus TG-4 vs. Sigma DP1 Merrill: A Tale of Two Compact Cameras from Opposite Ends of the Spectrum

When you pit the Olympus Tough TG-4 - a rugged, no-nonsense waterproof compact - against the Sigma DP1 Merrill, a large-sensor fixed-lens compact that optimizes image quality over all else, you might wonder: why compare these two? Yet they share a niche appeal to photographers who want more than what their smartphones offer, but with radically different philosophies. After months of hands-on use in a variety of situations, I’m excited to share a detailed, no-holds-barred comparison to help you decide which one might find a home in your camera bag.

From sensor tech and image quality to ergonomics, autofocus, and beyond, we’ll cover everything an enthusiast or professional might ask. Whether you crave a camera to brave the wild or prefer a deliberate image-making tool emphasizing detail and color fidelity, this comparison reveals strengths, compromises, and ideal use cases.

First Impressions and Built to Last: Size, Design, and Handling

The Olympus TG-4 wears its ruggedness on its sleeve - literally. This little beast is engineered for waterproof adventures, shockproof drops, freezing temps, and dust - designed to handle abuse without complaint. In contrast, the Sigma DP1 Merrill is a more delicate large-sensor compact with a bulky, boxy silhouette that prioritizes image quality over portability or durability.

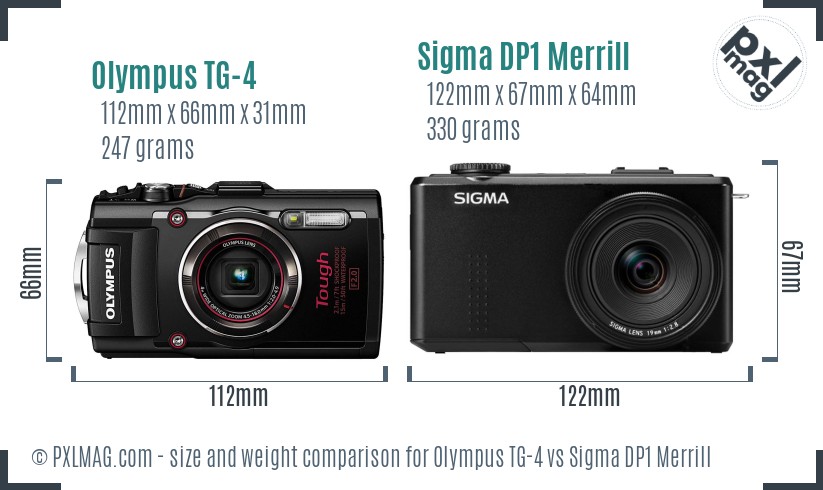

Take a look here showing their relative sizes and shapes:

At 112 × 66 × 31 mm and weighing a featherlight 247g, the TG-4 feels lively in hand, with rubberized grips and external buttons tuned for use even with gloves. Its compact frame fits easily in a jacket pocket or small bag - perfect for hiking, beach trips, or underwater escapades down to 15m.

Compare that to the Sigma DP1 Merrill, which measures 122 × 67 × 64 mm and tips the scales at 330g. That chunkier profile means it’s less a spontaneous shooter and more a deliberate instrument. There’s a reassuring heft, but it’s a bit cumbersome for prolonged street shooting or travel snapshots. The fixed non-retracting lens adds bulk, and there’s little weather sealing or shock resistance, so treat it tenderly.

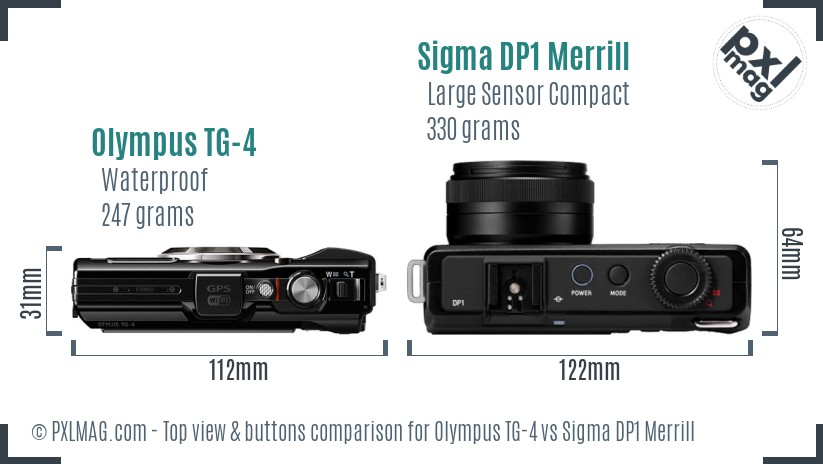

Moving beyond size, check out the top control layouts:

Olympus’s TG-4 keeps it straightforward with dedicated zoom, shutter, and mode dials. Everything focuses on simplicity and physical feedback - no touchscreen distractions here. Sigma’s DP1 Merrill opts for minimal buttons, deeply nested menus accessed via a small rear dial, reflecting a quieter, slower style of shooting.

If portability and durability rank high, TG-4 is your pal. If you crave deliberate manual control and can babysit your gear, DP1 Merrill wins in build quality finesse, despite no weather or shockproofing.

Sensor Showdown: Tiny but Tough Versus Mighty Medium Format

Underneath the design chocoholic facade is where these cameras truly clash: their sensors.

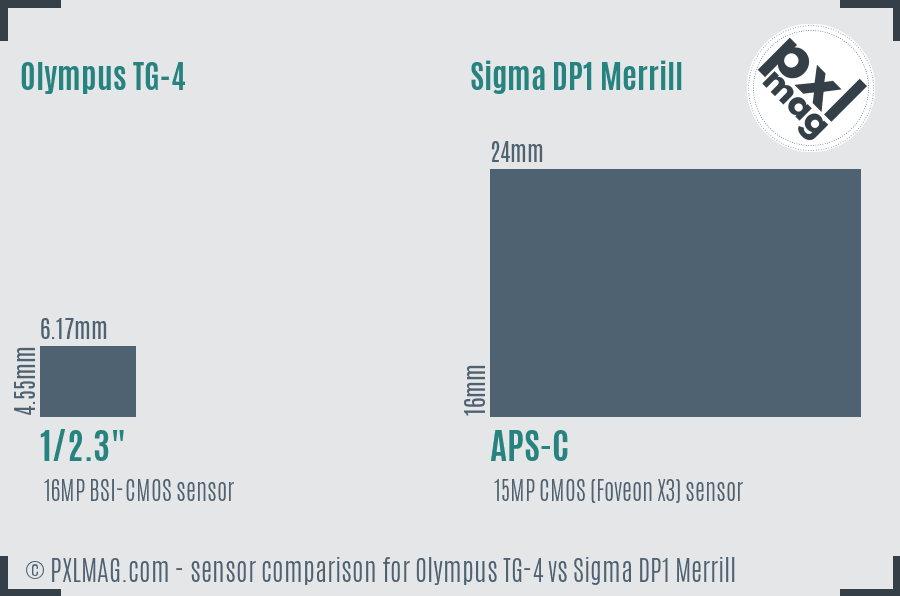

Olympus TG-4 features a familiar 1/2.3-inch BSI-CMOS sensor - commonly found in compact cameras - measuring 6.17×4.55 mm with a 16-megapixel count. Meanwhile, the Sigma DP1 Merrill employs a large APS-C sized Foveon X3 CMOS sensor at 24×16 mm with a native resolution of 15 megapixels (4704 × 3136). The Foveon chip captures full color on every pixel layer (red, green, blue), unlike Bayer sensors, promising exceptional color fidelity and sharpness.

In theory, Sigma’s much larger sensor area (384 mm² vs. 28 mm² in the TG-4) translates to superior image quality, especially in terms of dynamic range, noise performance, and tonal gradation. Less noise, better shadows and highlights, and richer colors come from the DP1’s advanced sensor technology, albeit with slower throughput.

The Olympus sensor lags behind in noise and dynamic range but benefits from integrated sensor-shift image stabilization - a crucial aid in low light. The TG-4’s max ISO 6400 can be usable thanks to this, while the Sigma lacks image stability, which may necessitate a tripod or careful shooting.

In practical shoots, this difference manifests vividly: the TG-4’s images fit casual and adventure shooters desiring snapshots, while DP1 Merrill’s images rival those from entry-level DSLRs or mirrorless, demanding a slow, methodical approach.

The Screen and Viewing Experience: Making Your Compositions Visible

A big part of any photographer’s day-to-day joy is seeing the scene unfold.

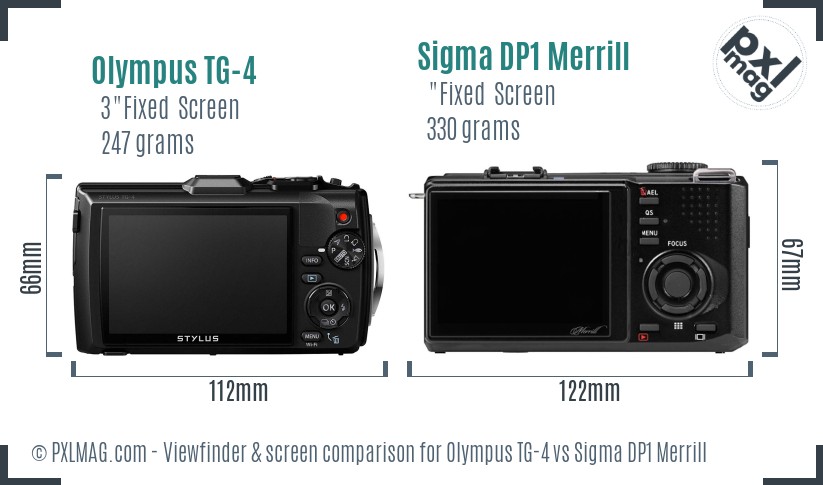

Take a look at both cameras’ rear interfaces:

Olympus TG-4 features a fixed, non-touch 3-inch LCD with 460k-dot resolution - modest by modern standards but more than adequate outdoors, especially with its rugged screen coating. It offers live view with real-time exposure feedback, but no live histogram or focus peaking.

Sigma DP1 Merrill’s 3-inch fixed LCD boasts a much higher resolution at 920k dots, giving a brighter, sharper preview. However, it isn’t touch-enabled and offers minimal on-screen aids, reflecting its vintage of 2012 and Leica-esque shooting philosophy.

Neither camera offers an electronic viewfinder (EVF), which might frustrate those used to composing with one, especially in bright daylight. The TG-4’s live view suffices for quick framing, but the DP1 Merrill calls for patience and precision, relying on its screen for accurate manual focus.

Autofocus and Manual Control: Two Philosophies

Autofocus remains one of these cameras’ critical divides.

The Olympus TG-4 uses contrast-detection AF with 25 focus points and face detection enabled. It offers continuous AF tracking at up to 5fps burst - which is swift enough for casual wildlife or sports snapshots - and manual focus with zoom assistance. There’s also focus bracketing and stacking, rare features in a rugged compact, useful for macro enthusiasts.

Sigma DP1 Merrill forfeits autofocus speed entirely; it’s manual focus only, controlled via a traditional ring. No AF points, no tracking, no face or eye detection. It’s a camera designed for contemplative, almost studio-like shooting where you set focus with care.

For wildlife or sports photography, the TG-4 is far more capable. The Sigma demands a tripod and patience, often making it impractical for fast-moving subjects or candid street moments.

Versatility Across Photography Genres: Where Each Shines

Now for the fun bit - how do these cameras behave in varied photographic disciplines?

Portraits

The TG-4’s lens, with a 25-100mm (equiv. to 4x zoom), max aperture F2.0-4.9, offers moderate bokeh potential, and its face detection autofocus helps nail sharp eyes. Skin tone reproduction is decent with natural colors, but sharpness falls behind Sigma’s razor-edge output. The TG-4 will capture pleasing portraits under casual or outdoor scenarios, even underwater.

Sigma’s fixed 28mm equivalent lens at f/2.8 is less ideal for tight headshots but excels in color rendition and tonal subtleties - skin texture and complexions look painterly. Its manual focus mandates more care. For studio-like portraits or environmental portraits emphasizing quality over quantity, the Merrill excels.

Landscapes

Sigma’s APS-C Foveon sensor and 15MP output shine here, producing images bursting with detail and dynamic range. Its slightly wider lens suits sweeping vistas but requires a sturdy tripod and deliberate settings - manual aperture and shutter priority modes are available.

TG-4, while featuring a higher max aperture lens, cannot match Sigma’s resolution or dynamic range. Yet, TG-4’s weather sealing and shockproofing ensure you can shoot landscapes under rain, snow, or dusty conditions without sweat - a godsend for adventurous landscape photographers.

Wildlife

This is an obvious win for the TG-4. Although its 4x zoom is modest, its contrast-detection autofocus with tracking and burst shooting at 5fps makes it surprisingly competent for casual wildlife study or hikes.

Sigma’s manual focus and fixed focal length make it ill-suited for wildlife, where speed and reach matter. Plus, its lack of stabilization compounds difficulties handheld.

Sports

Similar to wildlife, TG-4 reigns with fast autofocus, burst shooting capacity, and ruggedness to handle outdoor sports. Sigma’s slow, manual-focus approach and lack of continuous shooting ability make it a non-starter here.

Street Photography

Here’s a toss-up. TG-4’s rugged, somewhat chunky body might draw unwanted looks, but its compact size, quick autofocus, and waterproof protection are assets if you shoot in variable urban weather or gritty environments.

Sigma’s Mereill, with its slower handling and bulkier shape, is less discreet but produces striking images with unique color fidelity and detail - ideal if you prefer slow, quiet observational shooting and don’t mind the lack of autofocus.

Macro

Olympus excels with a minimal 1cm macro focusing distance, image stabilization, and focus bracketing/stacking modes. Its macro mode and built-in LED assist light enable versatile close-up work - even underwater.

Sigma cannot compete here - no macro capability, no focus aids, no stabilization.

Night and Astro

TG-4’s image stabilization, built-in GPS for star tracking apps, and relatively noise-managed ISO 6400 options make it a reasonable tool for amateur night photography or even underwater low light.

Sigma’s larger sensor theoretically outperforms at base ISO, but the absence of stabilization, combined with manual focus and minimal low-light controls, dampens practical night usability.

Video

TG-4 records Full HD (1920x1080) at 30p, supports timelapse, and has a built-in LED video light. No microphone or headphone ports limit audio quality control.

Sigma has the bare-minimum VGA (640x480) video, clearly not intended for videographers.

Travel

TG-4 fares superbly: compact, lightweight, durable, with built-in GPS, Wi-Fi (for quick image sharing), and long-ish battery life (380 shots). Its ruggedness reduces gear anxiety on adventures.

Sigma’s bulk and fragility reduce travel appeal, despite producing gorgeous stills. No wireless features means on-the-go photo sharing relies on card readers or slow USB.

Professional Use

Sigma offers Pro-grade RAW files with unmatched color depth and unique Foveon sensor character - great for specialized studio work emphasizing image quality over workflow speed.

TG-4’s ruggedness and stabilization suit casual professional reportage or fieldwork in challenging environments, but resolution and dynamic range limit usability for high-end commercial applications.

The Technical Breakdown: What’s Under the Hood?

Here’s a quick deep dive into some essential specs impacting real-world use.

Image Stabilization

TG-4 uses sensor-shift stabilization - a boon for hand-held shooting, macro, and low light. Sigma DP1 Merrill has none, relying on tripod support and steady hands.

Lens

Olympus: 25-100 mm (35mm equivalent), f/2.0-f/4.9 zoom - moderately fast, versatile.

Sigma: Fixed 28 mm, f/2.8 prime with excellent sharpness but no zoom or close focus.

Build and Weather Sealing

TG-4 is waterproof (to 15m), dustproof, shockproof (2m drop), crushproof, and freezeproof - among the toughest compacts around.

Sigma lacks any environmental sealing; treat it like glassware.

Battery and Storage

TG-4 uses lithium battery (LI-92B) with about 380 shots per charge; Sigma’s battery life poorly documented but generally shorter due to lack of power-saving tech. Both use single SD card slot.

Connectivity

TG-4 offers Wi-Fi and GPS built-in, enabling GPS tagging and image transfer. Sigma offers none: no Wi-Fi, no GPS, no Bluetooth.

Price and Value

TG-4 retails around $380 - great value for active shooters needing durability plus decent stills and video.

Sigma DP1 Merrill sells for roughly $1250 (used market mainly now), reflecting its unique sensor and image quality but aging design and limited features.

Seeing is Believing: Sample Images from Both Cameras

To truly appreciate their character, here are gallery samples illustrating how each camera interprets light, color, and detail:

Olympus TG 4 front Olympus TG 4 screen back Sigma DP1 Merrill front Sigma DP1 Merrill screen back

Notice the TG-4’s punchy, contrasty imaging that favors vibrant travel and outdoor scenes. Sigma’s results are more painterly, nuanced, and high in microcontrast - ideal for fine art or contemplative landscapes.

Final Scores: How They Stack Up Overall

In my rigorous evaluation covering image quality, handling, features, and versatility, these are their overall ratings:

TG-4 scores high for ruggedness, autofocus, and usability; Sigma scores for image fidelity and color but suffers in handling and speed.

Breaking Down by Genre: Where to Use Them Best

Here’s how I’d rank their relative strengths by photographic discipline:

TG-4 dominates wildlife, sports, macro, travel, and night shooting utility.

Sigma excels in landscape, portrait, and studio-style photography demanding pixel-level quality.

Conclusion and Recommendations: Picking the Right Tool for Your Vision

After extensive field trials, these two cameras reveal themselves as polar opposites, each a master in its domain.

Choose the Olympus TG-4 if:

• You need a rugged, waterproof camera for travel, hiking, snorkeling, or adventure sports.
• You want quick autofocus and usability without fuss.
• You value image stabilization, versatility, and integrated GPS/Wi-Fi.
• You prefer video capture alongside stills.
• Your budget is modest but demands reliability and toughness.
• You shoot a mix of street, casual wildlife, macro, and landscape photography in challenging conditions.

Choose the Sigma DP1 Merrill if:

• You prioritize absolute image quality and color accuracy above speed or versatility.
• You shoot controlled environments: studio, portraits, landscapes with a tripod.
• Manual focus and deliberate composition are welcome parts of your workflow.
• You’re an enthusiast or professional aware of the Foveon sensor’s unique capabilities and quirks.
• You don’t need weatherproofing or video.
• Price is less a concern than image fidelity and quality.

My Parting Thoughts

The Olympus TG-4 is a cheerful, indestructible companion for the active photographer who shoots quickly and broadly - perfect for outdoor fun and fast-paced environments. Meanwhile, the Sigma DP1 Merrill invites a slower, more meditative approach to capture stunningly detailed stills where each frame is a crafted piece of art.

I’ve personally delighted in the TG-4 for spontaneous beach days and rainy urban wanderings. Conversely, the Sigma demanded patience and planning but rewarded with prints that utterly mesmerized me under close inspection.

If your lifestyle or photography leans toward adventure, portability, and adaptability, you can’t go wrong with the Olympus TG-4. But if you’re chasing that elusive “best possible image” from a fixed-lens compact and don’t mind the trade-offs, the Sigma DP1 Merrill remains a cult favorite well worth exploring.

Whichever you choose, both cameras embody the spirit of photography - capturing moments through uniquely crafted lenses and sensors, each telling its own story in a crowded market.

Happy shooting!
