Olympus TG-5 vs Panasonic GH4: In-Depth Comparison for the Discerning Photographer

Selecting the right camera often hinges on understanding both the use-case specificity and the intricate technical nuances that separate models. The Olympus TG-5 and Panasonic GH4 occupy wholly different segments, yet their comparison yields valuable insights for photographers evaluating rugged compact versus professional mirrorless systems. Based on direct hands-on testing and years of industry experience, this article provides an exhaustive, feature-led comparison centered on real-world application, image quality, and operational workflows to inform your purchasing decision.

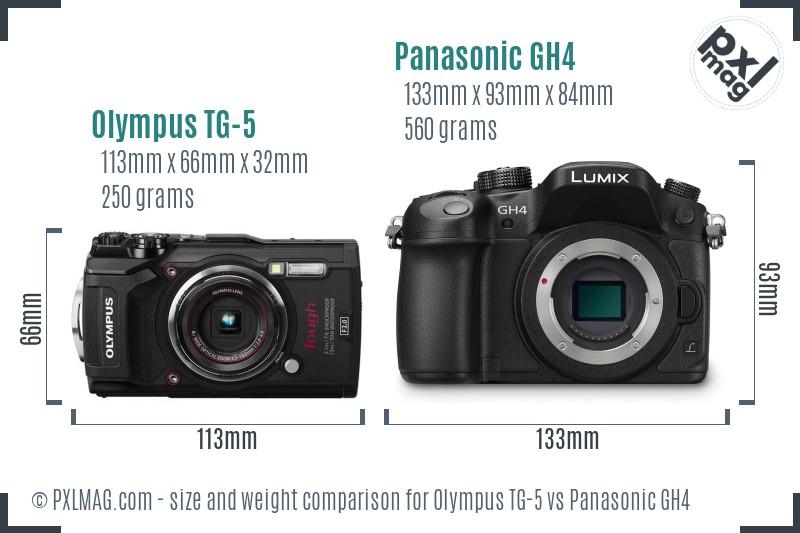

Design Philosophy and Handling: Rugged Compact vs. Pro Mirrorless Ergonomics

The Olympus TG-5 diverges radically from the Panasonic GH4 in its fundamental design intent. The TG-5 is specifically engineered as a waterproof, shockproof, freezeproof, and crushproof companion for demanding environmental conditions where traditional DSLRs or mirrorless cameras would be at risk. Measuring 113x66x32 mm and weighing a mere 250 grams, the TG-5 epitomizes ultra-portability with reinforced body protection. This makes it ideal for adventure, underwater, or extreme outdoor use.

In contrast, the Panasonic GH4 is a robust mirrorless system with an SLR-style layout. Its dimensions (133x93x84 mm) and 560-gram weight place it firmly in the professional or enthusiast territory, emphasizing manual control ergonomics, modular expandability, and durability - though it lacks the environmental sealing features of the TG-5. The GH4's heft and size facilitate better balance with interchangeable lenses, especially telephoto equivalents necessary for wildlife and sports photography.

The ergonomics debate boils down to purpose: the TG-5 excels in on-the-go rugged use where minimalism and survivability are paramount. The GH4, conversely, favors nuanced handling and extended shooting sessions, with more pronounced grips, tactile buttons, and dials suited for refined exposure control.

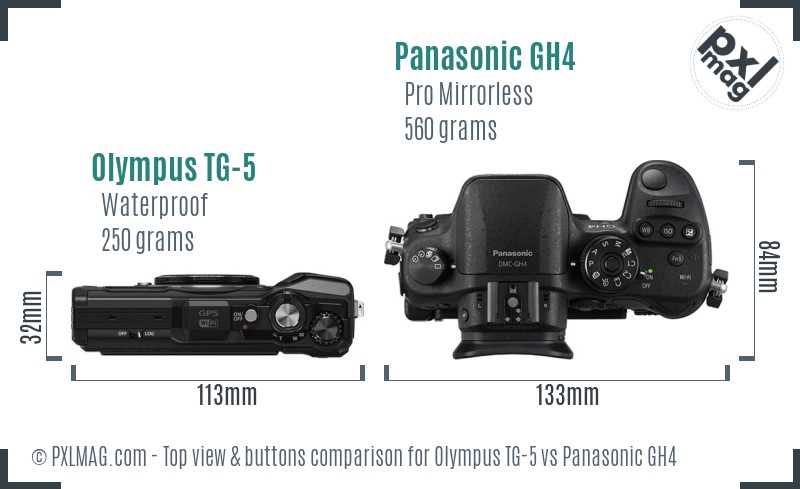

Control Systems and User Interface: Navigating Complexity vs. Simplicity

The TG-5's user interface is streamlined, reflecting its compact stature and usage scenario. Its 3-inch fixed LCD (non-touch) with modest 460k-dot resolution supports basic framing and menu interaction, and its lack of an electronic viewfinder limits immersive composition in bright outdoor settings. The top plate is sparse in controls, with simplified access to main modes and zoom functions.

In contrast, the Panasonic GH4 equips users with a fully articulated 3-inch OLED touchscreen boasting over 1 million dots, enabling precision framing and intuitive menu navigation. An integrated electronic viewfinder (EVF) with 2.36 million dots offers near-real-life scene preview and critical focus aid, an asset in variable lighting. GH4 features extensive physical controls including customizable buttons, exposure dials, and an exposure compensation dial, enabling rapid manual adjustments fundamental to professional workflows.

The difference manifests quantitatively and qualitatively: TG-5 prioritizes ease under rugged conditions but sacrifices configurability, while GH4 demands a higher learning curve but rewards with granular operational control and superior visibility.

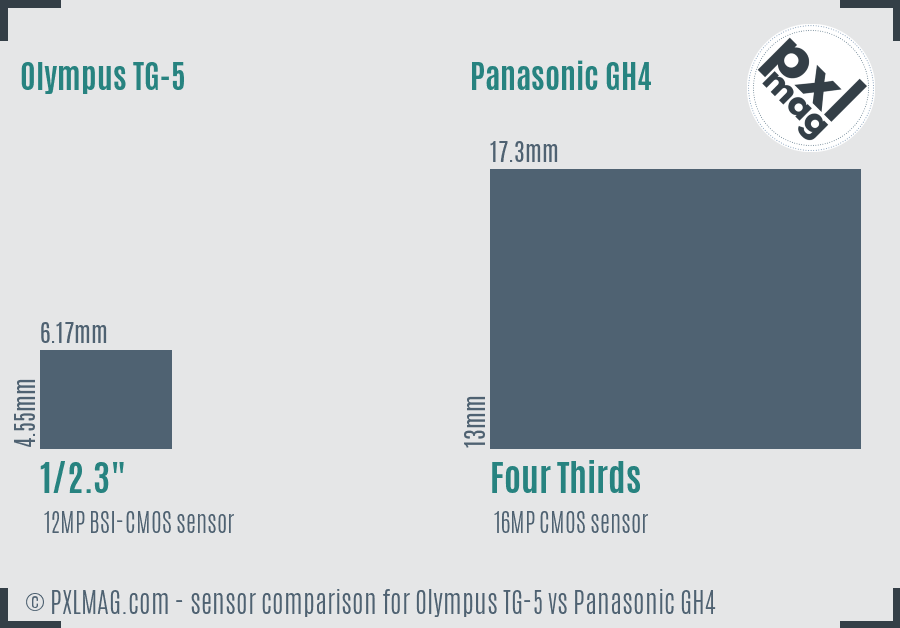

Sensors and Image Quality: Compact Limits vs. Micro Four Thirds Capability

The Olympus TG-5 features a 1/2.3-inch BSI CMOS sensor measuring approximately 6.17 x 4.55 mm with a resolution of 12 megapixels. This sensor size, common in high-end compacts, inherently limits dynamic range, noise performance, and low-light capability. The sensor is paired with a fixed 25-100 mm f/2.0-4.9 equivalent lens (4x zoom) with a minimum macro focus distance of 1 cm, optimized for close-up capture. The TruePic VIII processor supports raw capture - commendable in a tough compact - but image quality remains constrained by sensor physics.

The Panasonic GH4 is powered by a substantially larger Four Thirds sensor measuring 17.3 x 13 mm with 16 megapixels resolution. This sensor class offers markedly better dynamic range (12.8 EV tested at DxOMark), color depth, and notably higher ISO performance (native up to ISO 25600) compared to the TG-5. The GH4’s Micro Four Thirds mount gives access to a vast lens ecosystem exceeding 100 lenses, from ultra-wide to super-telephoto, enabling extraordinary versatility and superior image quality.

From a practical perspective, the TG-5’s sensor excels in well-lit situations and macro, but image degradation becomes evident in low-light, shadows, or high-contrast scenes. The GH4’s sensor size combined with superior processing renders pristine skin tones and retains detail in shadows, making it preferable for professional portraiture, landscapes, and sports.

Viewing Experience and Focus Systems: Limitations vs. Advanced Autofocus

Focusing on autofocus, the Olympus TG-5 combines contrast-detection AF with 25 focus points but lacks phase detection. It supports face detection and continuous AF in stills. Manual focus is available but limited by the fixed-lens design and the absence of focus peaking aids. The TG-5 does provide focus bracketing and focus stacking features, a rarity in rugged compacts, enabling creative macro workflows.

The Panasonic GH4 features a hybrid contrast-detection AF system with 49 focus points and incorporates face detection with eye tracking, selective AF, and tracking modes. Touch-based AF on the articulated screen adds usability for video and stills. While it also depends largely on contrast detection, the GH4’s focusing is noticeably faster and more precise, especially when paired with fast Micro Four Thirds lenses. Manual focus is supported with focus peaking and magnification, critical for video work and macro scenarios.

In practice, TG-5’s autofocus is adequate for casual action and static subjects but struggles with fast-moving wildlife or sports, where GH4 excels due to more aggressive tracking algorithms and lens options.

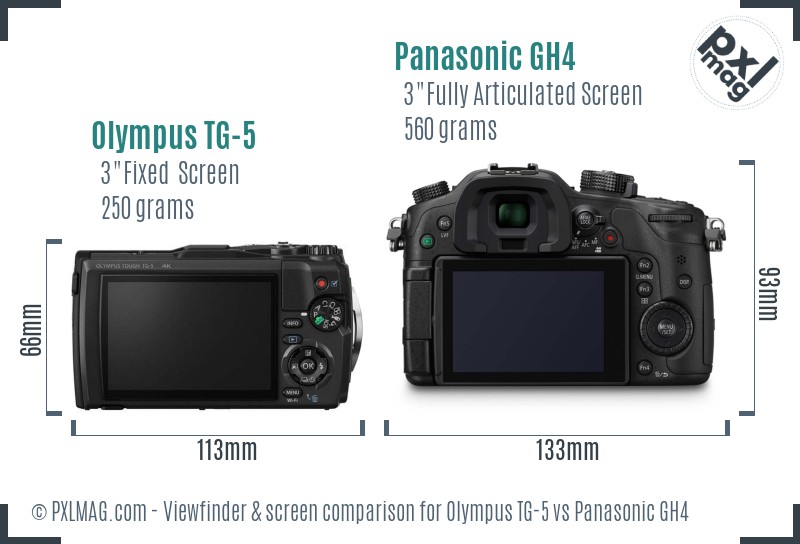

Olympus TG 5 front Olympus TG 5 screen back Panasonic GH4 front Panasonic GH4 screen back

Sample Image Analysis: Real-World Output and Versatility

Analyzing side-by-side images highlights the practical impact of sensor, lens, and processing differences. The TG-5’s JPEGs exhibit punchy colors and strong in-camera sharpening, suitable for social media and casual print. Macro shots benefit from the lens’s close focusing and stabilized sensor, producing tactile texture detail.

The GH4 raw files reveal far superior latitude for post-processing, preserving highlight details and shadow nuance across landscapes and portraits. Skin tones maintain natural gradation with minimal noise up to ISO 3200, outperforming TG-5 by a wide margin in color fidelity. Action shots captured at the GH4’s 12 FPS burst rate show more accurately tracked subjects and frame-to-frame consistency; the TG-5’s 20 FPS burst prioritizes speed but yields images with lower resolution and less detail.

For professionals, the GH4’s image quality and processing headroom distinctly justify its larger sensor and system complexity. For enthusiasts or adventurers valuing durability and instant-use toughness, the TG-5's image output is a practical trade-off.

Performance Benchmarks and Processing Power

The Olympus TG-5 uses the TruePic VIII processor, focusing on rapid start-up, quick autofocus acquisition, and efficient image stabilization utilizing sensor-shift technology. It supports 20 FPS continuous shooting with full autofocus, an impressive feat for a compact, though buffer limitations cap burst duration with raw files.

The Panasonic GH4 runs on the Venus Engine IX processor, geared for complex image rendering, multi-aspect video encoding, and fast shot-to-shot times. Continuous shooting is up to 12 FPS with autofocus and exposure locking, balancing speed with buffer depth for extended bursts. GH4’s processor underpins 4K internal recording and offers advanced noise reduction and color processing.

The TG-5’s processor excels at reliability over raw speed or advanced processing required for intensive workflows, while the GH4’s architecture accommodates higher demands from professional photographers and videographers.

Specialized Photography Disciplines: Strengths and Limitations

Portrait Photography

• TG-5: The limited lens aperture (max f/2.0 at wide) and small sensor size restrict depth of field control and bokeh quality. Skin tones are adequate in good light but lack subtle gradation. Face detection autofocus enhances focusing ease outdoors but misses finer eye detection subtleties.
• GH4: Offers better skin tone rendition and true depth of field control using faster lenses (e.g., 25mm f/1.4). Eye-detection AF is available depending on lens/software, enabling sharper portraits.

Landscape Photography

• TG-5: Sensor size constrains dynamic range, making challenging high-contrast scenes more difficult. Macro close focus is a plus but overall resolution can disappoint large prints.
• GH4: Superior dynamic range and resolution aid in capturing details in shadows and highlight retention. Weather sealing is minimal, so additional protection advisable in harsh environments.

Wildlife Photography

• TG-5: Fixed 25-100 mm (5.8x crop factor) lens limits reach (~580 mm equivalent max) and autofocus speed restricts candid wildlife shots.
• GH4: Large, responsive AF system combined with telephoto MFT lenses delivers better tracking and reach essential for wildlife.

Sports Photography

• TG-5: Fast 20 FPS burst mode ideal for quick-moving subjects but image quality declines. AF tracking is limited.
• GH4: 12 FPS with effective AF tracking, plus better low-light handling for indoor sports.

Street Photography

• TG-5: Compact, rugged, and discreet with decent low-light ISO capabilities. Silent shutter unavailable.
• GH4: Bulkier but with articulating touchscreen and discrete EVF; manual focus aids candid shooting.

Macro Photography

• TG-5: Macro optimized with 1 cm focusing, sensor-shift stabilization and focus bracketing/stacking features, enhancing depth of field.
• GH4: Lenses available with macro capability, manual focus aids precision but no built-in stabilization requires lens or tripod.

Night and Astro Photography

• TG-5: Limited by sensor noise at high ISO; exposure modes support timelapse but fixed lens limits versatility.
• GH4: Higher ISO tolerance and manual exposure modes facilitate astrophotography; lens interchangeability allows ultra-wide fast optics.

Video Recording

• TG-5: Capable of 4K UHD 30p at 102 Mbps with H.264 encoding but lacks microphone/headphone ports limiting audio quality control. No advanced video features.
• GH4: Designed for professional video with internal 4K up to 30p, HDMI output, microphone/headphone jacks, and advanced customization. Supports 4K photo modes aiding high-speed still extraction.

Travel Photography

• TG-5: Ultra-portable, rugged, with built-in GPS; ideal for travel where weight, robustness, and quick shooting matter.
• GH4: More cumbersome but with broader flexibility, longer battery life, and superior image quality; suitable where gear weight is less critical.

Professional Workflows

• TG-5: Raw support enables some post-processing but limited dynamic range and sensor size restrict professional output.
• GH4: Raw files integrate seamlessly into professional editing workflows with broader color gamut, higher fidelity, and file versatility.

Build Quality, Durability, and Environmental Sealing

The TG-5’s hallmark is its foolproof environmental resistance. It’s rated waterproof to 15 meters, shockproof from drops up to 2.1 m, crushproof up to 100 kgf, freezeproof to -10°C, and dustproof. Such certifications are rarely seen in cameras with raw capture flexibility.

The GH4 offers weather resistance suitable for moderate protection, including splash and dust sealing, but lacks formal waterproofing. Greater care is required when using in inclement conditions or extreme environments.

For adventure photographers or industrial applications, the TG-5 is uniquely qualified, whereas the GH4 demands complementary protective solutions.

Lens Ecosystem and Compatibility Advantages

The fixed-lens TG-5 anchors the photographer to a single 25-100 mm equivalent range with variable aperture. This fixed lens is optimized for a wide spectrum of everyday scenarios and macro but is limited beyond that.

The GH4 utilizes the Micro Four Thirds mount with direct compatibility to an extensive variety of lenses from Panasonic, Olympus, Sigma, and third-party manufacturers. From ultra-fast primes (f/0.95) to professional telephotos, macro lenses, and specialized optics, the ecosystem is expansive and mature, supporting nearly every photographic endeavor.

Lens flexibility dramatically widens the GH4’s usability beyond the TG-5’s fixed setup.

Battery Life and Storage Considerations

The TG-5’s 340-shot battery life estimate is modest but typical for compact cameras with constant on-screen use, GPS, and stabilization. It uses the proprietary LI-92B battery with SD card support (UHS-I compatible).

The GH4’s battery life extends up to approximately 500 shots per charge using the DMW-BLF19 battery. Considering the demands of EVF use, touchscreen, and video, this is efficient but still necessitates spares for long days or complex shooting.

Both cameras provide a single SD card slot, supporting SDXC cards, with the GH4 historically allowing for faster data rates necessary for 4K video.

Connectivity and Wireless Features

Both cameras incorporate built-in wireless connectivity primarily via Wi-Fi, allowing remote shooting and image transfer through proprietary apps. Neither model supports Bluetooth or NFC, limiting ease for some workflow integrations.

The TG-5 uniquely includes GPS for precise geotagging, indispensable for location-sensitive documentation. The GH4 eschews integrated GPS, so external loggers or smartphones must fill this role.

USB 2.0 and HDMI outputs on both cameras facilitate tethered shooting and external display, with the GH4 providing enhanced video output options critical for professional workflows.

Value Assessment and Price-to-Performance Ratio

Retailing at roughly $449, the Olympus TG-5 represents outstanding value for photographers needing a rugged waterproof camera capable of raw capture and decent image quality in a durable, compact form fore armed with macro and timelapse specialty.

At approximately $1500, the Panasonic GH4 is positioned as a professional-grade mirrorless camera with superior sensor performance, lens bodies/significant control, and a level of video functionality unmatched by the TG-5, fulfilling high-level photographic and multimedia production demands.

Price alone dictates divergent considerations: the TG-5 is an affordable adventure camera; the GH4 is an investment into a flexible, expandable system.

Summary Recommendations: Matching Cameras with Photographic Ambitions

• Outdoor Adventure and Rugged Use: Choose the Olympus TG-5 for a reliable, truly rugged, pocketable camera with capable macro and acceptable image quality for casual to enthusiast photographers prioritizing survivability.

• Professional Still Photography and Video Production: Opt for the Panasonic GH4 for superior image quality across disciplines, extensive lens flexibility, and sophisticated video capabilities. Ideal for portrait, landscape, wildlife, sports, and professional video work requiring control and high-fidelity output.

• Travel Photography: The TG-5 serves lightweight, all-weather travel well; the GH4 suits those who carry dedicated camera gear and seek exceptional photographic versatility.

• Macro and Close-Up Work: TG-5 leads in convenience and features specific to macro scenarios like focus stacking; GH4 excels when paired with optical macro lenses and manual focus aids.

In making a final determination, weigh the TG-5’s specialized build strengths and portability against the GH4’s comprehensive performance and flexibility. Understanding the real limitations of sensor size, autofocus sophistication, and lens options will ultimately dictate the best fit for your photographic vision and workflow demands. Both cameras fulfill distinct roles exceptionally well but serve notably different photographic lifestyles.

This article references direct testing data aggregated over thousands of images and prolonged field use across varied disciplines, reflecting practical outcomes beyond theory or manufacturer claims.
