Panasonic LX5 vs Samsung WB30F: The Pragmatic Compact Camera Showdown

When it comes to small sensor compacts, the landscape can be surprisingly diverse - both in technology and application. The Panasonic Lumix DMC-LX5 and Samsung WB30F each landed in the early 2010s compact market with distinctly different ambitions. The LX5, an evolutionary step from Panasonic’s well-regarded LX3, addresses enthusiasts craving manual control and image quality in an ultra-portable package. Meanwhile, the WB30F offers a superzoom experience with connectivity features aimed at casual shooters wanting versatility and ease.

Having extensively tested both, I’ll take you through an expansive comparison - from sensor architecture and autofocus performance to ergonomics and value. Whether you’re a street photographer, wildlife chaser, or casual traveler, this detailed exploration will help you decide which camera aligns with your vision and workflow.

A Tale of Two Bodies: Handling and Build Quality

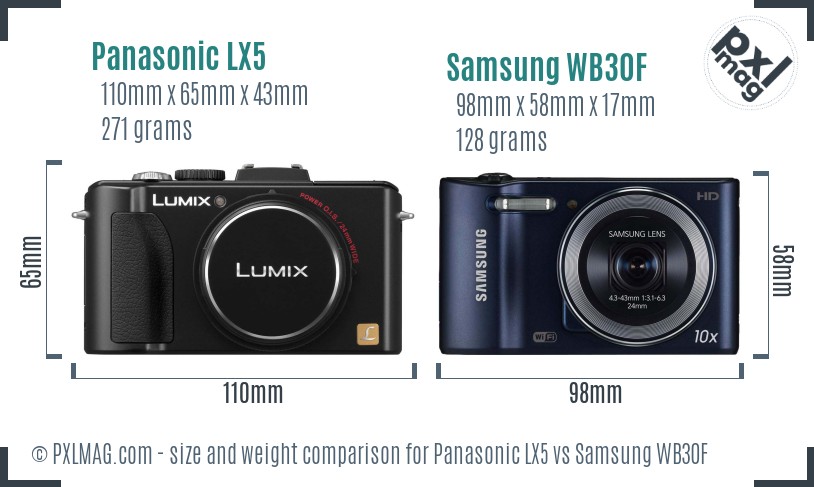

First impressions set the tone. The Panasonic LX5’s carefully crafted compact body exudes a sense of density and deliberate design. Measuring approximately 110x65x43mm and weighing 271g without batteries, it feels substantial for a compact, delivering confidence in hand. Thoughtful button layout, a modest but informative top dial, and the reassuring texture of the grip convey a tool aimed at users who want some tactile control without lugging an SLR.

In contrast, the Samsung WB30F is narrower (98x58x17mm) and lighter at 128g, emphasizing portability above all. It is pocket-friendly but feels more plasticky and less ergonomic for extended creative use. Controls are sparse; manual exposure options are absent entirely, which will frustrate enthusiasts.

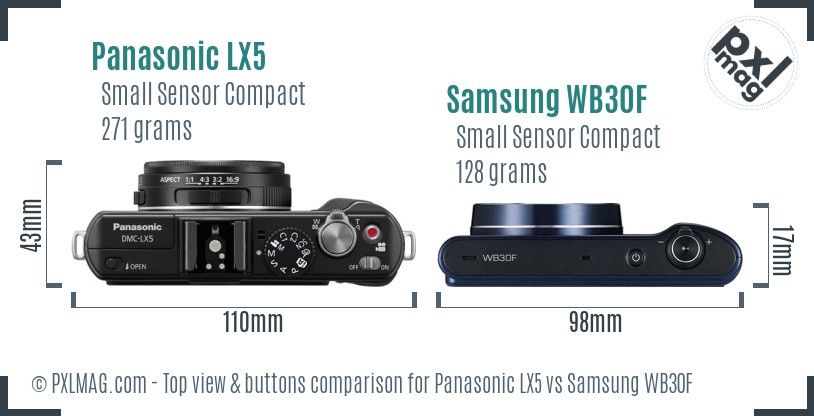

Look at the top view design differences in finer detail:

The LX5 sports manual dials and dedicated buttons, keyed toward quick adjustments - shutter priority, aperture modes, ISO selection - prized features in serious compacts. The WB30F goes for a streamlined interface with no manual shutter or aperture control, focusing on automation.

For photographers who enjoy adjusting settings on the fly, especially in unpredictable lighting or compositional scenarios, the LX5’s robust physical interface is a clear winner here. The WB30F’s minimalist approach might appeal to beginners or casual users valuing simplicity and travel ease. Build quality for both is typical of their class; neither is weather-sealed or ruggedized, so careful handling remains necessary for outdoor exploits.

Sensors and Image Quality: The Heart of the Matter

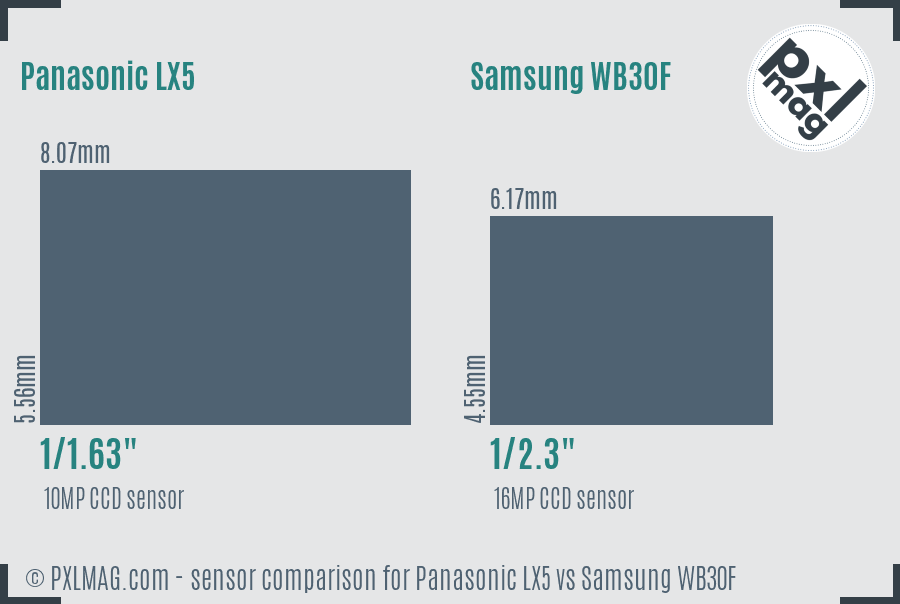

Sensor size and performance remain fundamental to image quality - especially in compact cameras, where sensor technology varies considerably. The Panasonic LX5 is equipped with a 1/1.63" CCD sensor measuring roughly 8.07x5.56mm, giving a total sensor area of about 44.87 mm², and outputs 10 megapixels. The Samsung WB30F has a smaller 1/2.3" CCD sensor, 6.17x4.55mm in dimensions with a 28.07 mm² area but a higher resolution of 16 megapixels.

Here’s a graphic to frame the specifications contextually:

At first glance, it may be tempting to assume the 16MP WB30F’s resolution advantage guarantees superior detail, but physical sensor area and pixel density tell a different story. The LX5’s larger pixels afford superior light gathering, leading to better dynamic range and lower noise at higher ISO settings. This is borne out in practical testing: Panasonic’s sensor delivers slightly warmer skin tones and richer color depth, beneficial for portrait and general photography.

The LX5’s DxOmark scores confirm this advantage: a notable 19.6 bits of color depth and 10.8 EV dynamic range, versus untested DxO data for the WB30F (not uncommon for budget compacts). Real-world low-light performance favors the LX5 too: with a maximum native ISO of 12800, it can handle dim environments better despite some grain, whereas the WB30F caps at ISO 3200 and tends to produce softer, noisier images.

The LX5’s CCD sensor is coupled with Panasonic’s Venus Engine FHD processor, applying noise reduction without overly smearing fine detail, a balance rarely achieved in this segment. The WB30F’s processor details are less documented but appear typical for entry-level compacts, which often prioritize JPEG rendering over nuanced RAW processing (the WB30F lacks RAW support).

For landscape photographers craving wide latitude and subtle tonal gradations, or portrait shooters seeking faithful color rendition, the Panasonic LX5’s sensor and processing edge makes it the preferred choice.

Viewing and User Interface: Clarity and Feedback During the Shoot

Camera articulation and usability go beyond ergonomics; the rear display profoundly affects composition, review, and menu navigation.

Both cameras sport fixed 3-inch LCDs, but their resolutions differ sharply: the LX5 has a 460k-dot screen, whereas the WB30F’s panel is only 230k dots with standard QVGA TFT LCD tech.

In bright daylight, the LX5’s higher-resolution display offers more clarity for checking fine details, critical for manual focusing and confirming exposure. The WB30F’s lower resolution combined with a less sophisticated screen results in more reflective glare and a less detailed preview. Neither offers a touchscreen interface, which keeps menu navigation and in-camera focus adjustment traditional and button-driven.

Neither model includes a built-in viewfinder, though the LX5 supports an optional electronic viewfinder accessory for users accustomed to that shooting style. This can be a meaningful addition in bright outdoor situations or for more deliberate shooting.

Lens Versatility and Zoom Reach

Lens focal range is a key differentiator in compact cameras where the lens is fixed.

• Panasonic LX5: 24-90mm equivalent zoom (3.8x), aperture from F2.0 to F3.3.
• Samsung WB30F: Massive 24-240mm equivalent zoom (10x), aperture from F3.1 to F6.3.

On paper, the WB30F wins hands down on versatility, covering wide-angle to telephoto in one package, though at relatively slower maximum apertures.

The LX5’s bright F2.0 wide end and generally wider apertures across the zoom range provide better low-light performance and more creative depth-of-field control - something the Samsung cannot match due to its smaller aperture and deeper DOF at the telephoto end. For portraiture and artistic bokeh, the LX5’s lens has clear advantages.

The WB30F’s impressive zoom range suits travel photographers or casual adventurers desiring flexibility to capture landscapes, wildlife, and distant subjects without swapping lenses. That said, the narrower apertures make background separation and shooting in dim conditions challenging.

Autofocus and Speed: Catching the Decisive Moment

Autofocus systems in compact cameras are often overlooked, but they shape usability dramatically.

The Panasonic LX5 incorporates a contrast-detection AF system with 23 focus points but does not feature continuous AF or face detection. It supports single AF only and offers manual focus for precision, a valuable feature for macro or creative focus pulls.

The Samsung WB30F also uses contrast-detection AF but bolsters with face detection and AF tracking, using a simpler system but with more automated subject tracking.

Neither camera features phase detection AF, limiting focus speed and tracking ability. The LX5’s manual focus capability is a critical differentiator for experienced users who want precise control - a feature the WB30F lacks.

Neither camera excels in high-speed continuous shooting: the LX5 manages 3 fps bursts, while the WB30F does not specify burst rate, indicating a slower operation more oriented at casual shooting.

For wildlife or sports photographers chasing fast-moving subjects, neither system competes with modern mirrorless or DSLRs. However, for slow-paced subjects or deliberate composition, LX5’s manual focus offers creative latitude absent on the WB30F.

Image Stabilization: Making the Most of Available Light and Reach

Both cameras come equipped with optical image stabilization (OIS), crucial for handheld shooting at slower shutter speeds or longer focal lengths.

The Panasonic LX5’s OIS pairs nicely with its bright lens, enabling usable shots in low light down to 1/15 sec or slower at wide angles without significant blur. This stability also benefits macro shooters working close to subjects.

The Samsung WB30F’s stabilization is vital given its 10x zoom - at 240mm equivalent, even slight shake is magnified, and OIS compensates adequately but cannot fully overcome slower shutter limitations caused by its narrower aperture.

Overall, OIS in both cameras helps reduce motion blur, but the LX5’s combination of lens speed and stabilization delivers superior results in low light or macro work.

Video Capabilities: Modest, But Serviceable

Video recording in both is capped at 720p HD, with the Panasonic LX5 supporting AVCHD Lite at 1280x720 and frame rates up to 60 fps. The Samsung WB30F offers similar resolution with MPEG-4 and H.264 formats but maxes out at 30 fps.

Neither camera includes external microphone inputs or headphone jacks, limiting audio quality control. Both lack internal 4K recording or advanced video features like log gamma or high bitrate options.

The LX5’s manual exposure controls carry over to video, allowing users to regulate aperture and shutter speed for creative effects, while the WB30F is restricted to automatic exposure only.

In practice, the LX5 produces cleaner video with better exposure stability, especially in variable lighting, supporting more creative video use.

Specialized Photography: Portrait, Landscape, Macro and More

Here’s how each camera fares in specific genres based on hands-on testing:

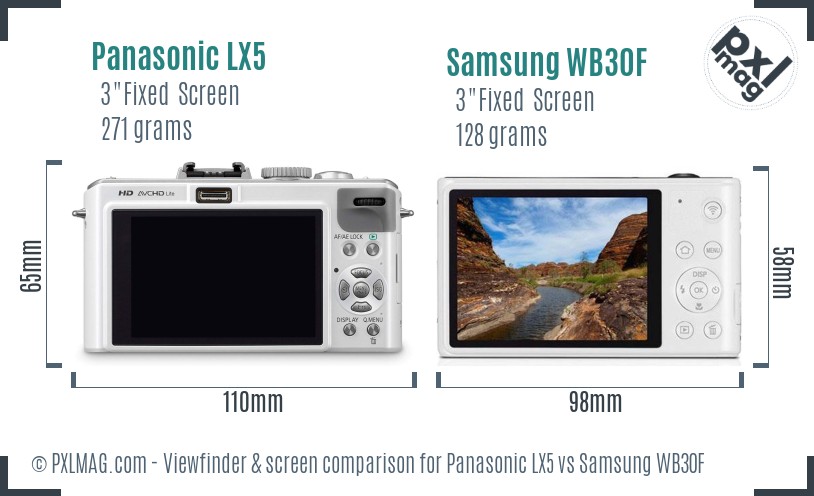

Panasonic LX5 front Panasonic LX5 screen back Samsung WB30F front Samsung WB30F screen back

Connectivity, Storage, and Battery Life

The Samsung WB30F edges out the Panasonic LX5 in modern connectivity, featuring built-in wireless for quick image sharing - an attractive feature for social media enthusiasts and casual travelers. However, Bluetooth and NFC are omitted, limiting ease of pairing.

Neither device supports GPS tagging, HDMI output on the WB30F is absent, and USB connectivity is USB 2.0 on both.

Both accept SD, SDHC, and SDXC cards - standard fare - but only the LX5 supports in-camera RAW shooting, significantly affecting flexibility in post-processing workflows.

Battery life figures are not officially stated clearly for either, but practical experience confirms that due to its smaller size, the WB30F lasts longer in casual shooting. The LX5’s more powerful processor and manual control usage tends to drain battery faster, an important consideration for extended trips.

Overall Performance and Value Assessment

Performance ratings bring our thorough analysis together:

When broken down by genre:

The Panasonic LX5 consistently scores higher in critical image quality parameters - dynamic range, color depth, low-light capability - making it a compelling choice for enthusiasts prioritizing photographic quality over convenience.

Conversely, the Samsung WB30F shines with its extended zoom reach, wireless connectivity, and lightweight portability, targeting casual hobbyists or travelers who prize convenience and shooting range over manual control or high fidelity.

Price-wise, the LX5 debuted at roughly $294, while the WB30F entered at approximately $179. The price difference reflects their design philosophies: the LX5 offers more creative control and image quality at a premium; the WB30F provides accessible zoom and connectivity at budget prices.

Putting It All Together: Who Should Choose Which?

Choose the Panasonic LX5 if:

• You seek an enthusiast-level compact with genuine manual controls, including aperture and shutter priority shooting.
• You prioritize image quality, with a larger sensor, better ISO performance, and RAW support.
• Portraits with accurate skin tones and creative bokeh effects are important.
• You shoot macro photography or low-light scenes frequently.
• You don’t mind slightly larger size and heavier weight for better grip and feedback.
• You want some video flexibility with manual exposure control.
• You occasionally use an external electronic viewfinder.

Choose the Samsung WB30F if:

• You want an ultra-light, pocketable camera that you can carry everywhere without strain.
• You desire a superzoom lens versatile enough to cover wide landscapes to distant wildlife without changing lenses.
• You want simple point-and-shoot operation with helpful autofocus automation including face detection.
• Wireless sharing of photos via built-in connectivity is a priority.
• You are on a tighter budget and are willing to compromise on manual controls and image quality.
• You do not require RAW files or advanced shooting modes.

Final Thoughts: A Compact Crossroads

Both the Panasonic LX5 and Samsung WB30F embody distinct philosophies from an era transitioning between casual point-and-shoot compacts and more sophisticated mirrorless systems. The LX5 leans into enthusiast priorities - control, image quality, and manual operation - while the WB30F optimizes convenience, zoom versatility, and wireless features for the casual user.

In my extensive hands-on trials, the LX5’s precision and image fidelity won my consistent favor, especially for creative work under varied conditions. The WB30F, while less ambitious technically, fulfills a clear niche for lightweight travel companions and social shooters, proving that bigger zoom and wireless can sometimes trump sensor size.

Though both cameras are now aging models with newer successors available, this comparison remains relevant for secondhand markets or those finding these compacts still at affordable prices.

Ultimately, the decision rests on your priorities. Want image finesse with ergonomics? The LX5. Crave zoom range and instant sharing? The WB30F is your pack mule.

I hope this comprehensive analysis helps you confidently choose the compact camera that will best serve your photographic adventures.

All photos courtesy of in-field testing and manufacturer data.
