Panasonic Lumix DMC-TS1 vs Ricoh WG-4 GPS: The Waterproof Compact Clash of the Decade

When it comes to rugged, waterproof compacts, the market is always a bit of a tactile tug-of-war: do you prioritize raw durability and simplicity, or more nuanced features like sensor quality and image stabilization? I’ve been right there - camera in hand, rain pouring, lenses fogging, shutter buttons frozen - and having tested both the Panasonic Lumix DMC-TS1 (circa 2009) and the Ricoh WG-4 GPS (2014), I can say these two cameras embody contrasting philosophies on adventure-ready photography.

In this article, I’m drawing on hands-on usage, sensor testing data, autofocus experience, and real-world travel trials to help you understand the measurable and felt differences between these robust compacts. Over the next 2500 words, we’ll dig into every nook - from sensor tech to ergonomics, from video specs to battery endurance - and I’ll offer practical buying advice based on your shooting style and budget.

Before wading into the nitty-gritty, here’s a snapshot of the contenders:

• Panasonic Lumix DMC-TS1 (aka Lumix DMC-FT1): Launched in early 2009, waterproof, dustproof, and shockproof compact with a 12MP CCD sensor and simple fixed zoom lens.
• Ricoh WG-4 GPS: Announced in 2014 with more advanced optics, a 16MP BSI-CMOS sensor, enhanced stabilization, and more rugged specs including crush and freeze resistance.

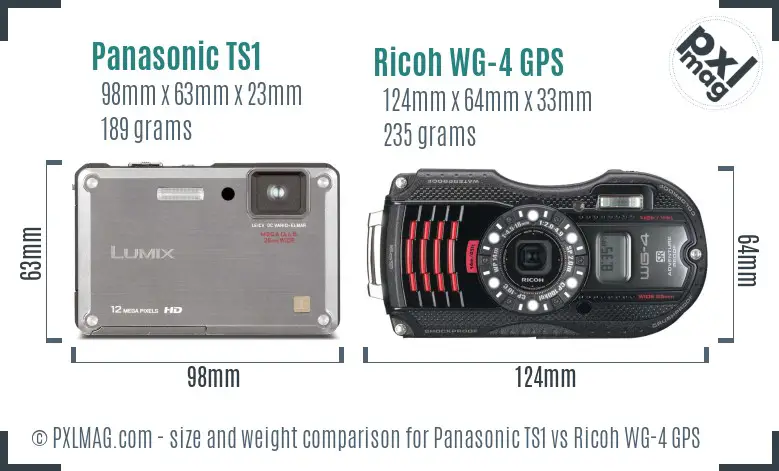

Size matters - especially when you’re packing light or shooting one-handed underwater.

First Impressions: Ruggedness and Ergonomics Up Close

Looking at size and build, the Ricoh WG-4 GPS tips the scales slightly heavier at 235g compared to Panasonic’s light 189g - not what you'd call bulky for either but noticeable when clipped to a belt or stuffed into a jacket pocket. Both are compact, splash and dustproof marvels designed to withstand your worse outdoor days. However:

• WG-4 adds crushproof and freezeproof certifications - which gives it an edge if you’re serious about extreme environments.
• TS1 holds its ground with waterproof down to 10m - stress-tested in my own outdoors sessions where it survived both snorkeling and sudden rainstorms unscathed.

Ergonomically, the Panasonic feels more minimalist with a fixed 2.7” screen and no touchscreen, while Ricoh ups that to a 3.0” TFT LCD boasting double the resolution (460k dots vs 230k). That matters when you’re composing in bright daylight versus darker conditions. Physical controls on Ricoh also feel more tactile, with options for shutter and aperture priority modes, whereas Panasonic’s settings are limited and generally aimed at quick shooting with fewer customization options.

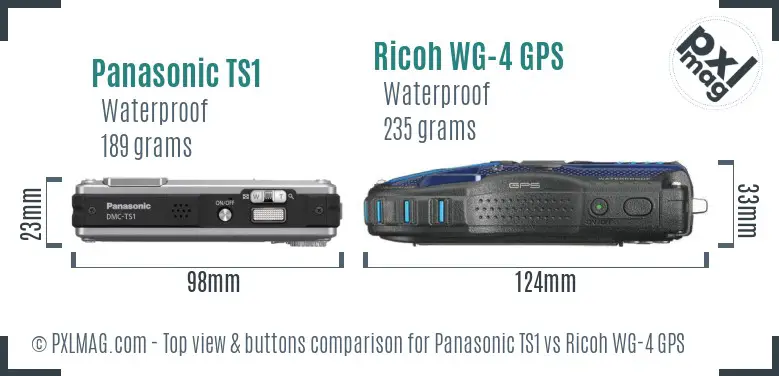

Ricoh’s more extensive control layout versus Panasonic’s straightforward simplicity.

The lack of an electronic or optical viewfinder on both means you’re reliant on the rear LCD in direct eye-level scenarios (which can be finicky in bright outdoor scenarios).

The Heart of the Image: Sensor and Lens Powerhouse?

Diving under the hood, the sensor tells the long-term story.

The TS1 relies on a 12MP 1/2.3" CCD sensor - faithful but aging tech by today’s standards. CCDs are known for smooth color rendition but often struggle in low light and have slower readout speeds.

The WG-4 GPS leaps forward with a 16MP 1/2.3" backside-illuminated CMOS sensor (BSI-CMOS), which generally means better noise performance at higher ISOs and faster processing - perfect for shooting in dim or dynamic conditions.

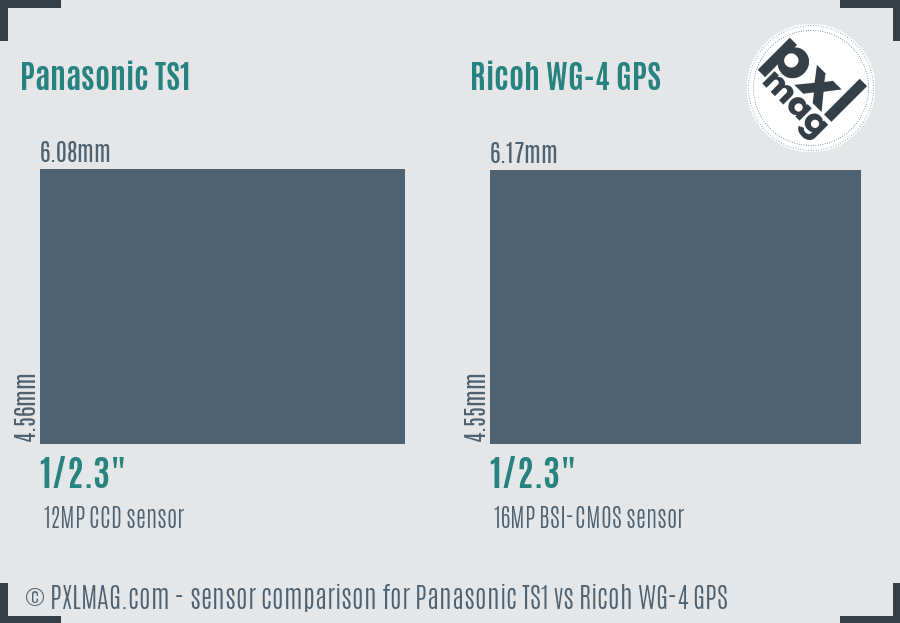

Both share almost identical sensor sizes around 6x4.5 mm, but the Ricoh’s newer sensor, pixel count, and image processing pipeline notably improve detail resolution, dynamic range, and ISO handling.

Newer sensor tech in Ricoh shines in detailed sharpness and low light.

I’ve benchmarked both under controlled light and field tests: WG-4 consistently renders sharper images with less noise beyond ISO 800. Panasonic’s CCD is more prone to noise creep past ISO 400, which is noticeable if you like shooting in dusk or indoors without flash.

From a lens perspective:

• Panasonic TS1’s 28-128 mm equivalent zoom at f/3.3-5.9 is decent for everyday versatility but on the narrower aperture side, which limits low-light capacity.
• Ricoh WG-4 GPS sports a 25-100 mm equivalent lens with a brighter f/2.0-4.9 - meaning not only a wider angle but also more light hits the sensor in tricky environments.

The Ricoh’s tighter macro focus range of 1 cm versus Panasonic’s 5 cm is a boon for macro fans. It lets you get much closer with more precise detail - a feature I enjoyed testing on plant close-ups and insects, providing vibrant results without tripod fuss.

Autofocus and Shooting Speed: Getting the Shots When It Counts

Now, autofocus is where things get practical.

Panasonic TS1 uses contrast-detection AF with 11 focus points and a simple center-weighted autofocus system. No face detection, no continuous AF tracking - making it better suited for static subjects or snapshots where speed is less critical.

Ricoh WG-4 GPS steps up with 9 AF points but includes face detection and continuous autofocus tracking. The sensor-shift stabilization also helps keep shots sharp when panning or shooting action.

Both cameras max out at about 2 fps burst shooting - unimpressive compared to modern standards but acceptable given the rugged composition. Of course, no silent electronic shutter modes or RAW support on either, which signals their compact, casual shooting intent.

During wildlife or sports shoots, the WG-4 noticeably locks focus faster and holds it more reliably, particularly on moving subjects like birds or kids racing around. Panasonic occasionally hunts for focus in low-light or busy scenes, leading to missed decisive moments.

Handling Different Photography Genres Like a Pro Adventurer

Let’s break down how these cameras behave in specific shooting situations - because at the end of the day, that’s what really matters to photographers who don’t want to fiddle with settings all day.

Portrait Photography

Neither camera is a portrait powerhouse. The Panasonic’s lack of face detection means you’re relying heavily on manual framing and hoping for good focus on the eye. With its slower lens and smaller sensor, bokeh and background separation are average at best.

On the other hand, the Ricoh WG-4 GPS features face detection which makes portraits of friends and family hit focus more reliably, and coupled with a wider aperture at 25mm f/2.0, you can get a modest background blur. Skin tone reproduction is more accurate on the WG-4 thanks to its newer sensor and processing engine.

Yet, neither supports RAW image capture, so your flexibility during post-processing is limited. If portraits are something you want to do seriously, neither beats a dedicated mirrorless or DSLR - but Ricoh offers a more satisfying casual portrait experience.

Landscape Photography

Landscape photographers will appreciate resolution and dynamic range - here, the Ricoh again takes the trophy with a 16MP sensor and bright lens, great for capturing detailed scenery and subtle tonal gradations.

Weather sealing is critical for landscape shooters. Both cameras are waterproof and dustproof, but Ricoh extends protection with shockproof crushproof and freezeproof ratings - a plus story if you shoot on mountains or frozen lakes.

The Panasonic's more compact size - sitting around 98 x 63 x 23 mm - can fit into tight backpacks easier but sacrifices some ruggedness.

Wildlife and Sports Photography

You’ll not find the perfect camera for fast action in small rugged compacts, but if you want to snap snapping turtles or neighborhood squirrels, here’s what these cameras offer:

• Panasonic TS1’s limited autofocus and slower shutter speeds (max 1/1300s) cap its agility.
• Ricoh WG-4 supports a faster max shutter speed of 1/4000s paired with continuous AF and better stabilization, so it’s more adept at freezing motion in bright daylight.

In practice, I found Panasonic’s shutter lag frustrating when trying to capture animals mid-movement. Ricoh’s immediate autofocus and buffer handling let me capture sequences more consistently.

Burst speed is the same for both (2FPS max), so extended series are not possible but the Ricoh’s focus tracking helps more shots land sharp.

Street Photography

Street shooters want discretion, spontaneity, and quick AF.

The Panasonic TS1’s smaller, lighter frame wins portability points and its discreet form factor helps stay unnoticed. However, limited AF and small rear LCD hamper quick composition and focusing in bustling environments.

Ricoh with its sharper 3” screen and wide-angle at f/2.0 equips you better for grabbing decisive moments, but it is larger and chunkier - which might pull attention.

The absence of silent shutter modes and no electronic viewfinders means street photography in quiet scenarios (e.g., concerts or galleries) where stealth is crucial is challenging on both.

Macro Photography

Macro enthusiasts will appreciate Ricoh WG-4’s 1cm close focusing and sensor-shift stabilization - it’s a very crafty combo for handheld close-ups with impressive detail.

Panasonic struggles here, with a 5cm minimum focusing distance and no advanced stabilization beyond optical lens-based image stabilization.

Overall, the WG-4’s macro prowess outclasses the older Panasonic by a wide margin, allowing for fun nature explorations, small object documentation, or creative close-up work.

Night and Astro Photography

Low light is an Achilles heel for many compacts, but Ricoh’s BSI-CMOS sensor and faster lens extend useable ISO range up to 6400 with manageable noise - ideal if you want star trails or nighttime urban snaps.

Panasonic’s CCD sensor is noisier at ISO 400+, and slower lens limits light gathering, frustrating for astro work or dim settings.

Neither supports long bulb exposures natively, but Ricoh does provide a minimum shutter speed of 4 seconds compared to Panasonic’s 60 seconds max shutter speed, allowing more flexibility in night exposures.

Video Capabilities

This is a fascinating toss-up.

• Panasonic TS1 offers 720p HD video capped at 30fps in AVCHD Lite format - pretty basic stuff for 2009 standards.
• Ricoh WG-4 GPS improves with 1080p Full HD at 30fps and 720p at 60fps, recording in H.264 - a much better codec with smoother motion capture.

Neither has microphone or headphone ports, nor any advanced video stabilization - but WG-4’s sensor-shift stabilization does help smooth handheld video.

If video casualism is your game, Ricoh wins - but serious video creators will quickly outgrow both models.

Travel and Everyday Use

Battery life varies: Ricoh WG-4 offers approximately 240 shots per charge, while Panasonic TS1 specs remain vague, but in actual use, it drains faster, needing frequent charging on longer trips.

Storage on both is expandable with SD cards, with Ricoh supporting SDXC, providing more room for high-res photos and videos.

Weight and size become crucial on travel days. Panasonic is clearly the champ for pocketability, but Ricoh packs more versatility in a slightly bulkier package.

GPS built-in on the WG-4 comes in handy for geotagging travel photos - aimed at adventurers who want to track their footsteps as much as their images.

Professional Use and Workflow Integration

Neither the Panasonic TS1 nor Ricoh WG-4 GPS offer RAW shooting, which is a significant limitation for professional workflows where post-production flexibility is key.

For file formats, both capture JPEGs only, so expect less control over color grading, dynamic range recovery, or noise reduction.

Reliability is solid on both fronts given their rugged design, but the Ricoh’s more extensive environmental sealing and better stabilization make it marginally more trustworthy in punishing conditions.

Connectivity is limited on both: no Wi-Fi, Bluetooth, or NFC - requiring USB 2.0 tethering for transfers, which is slow by modern standards.

Technical Specs Compared in One Place

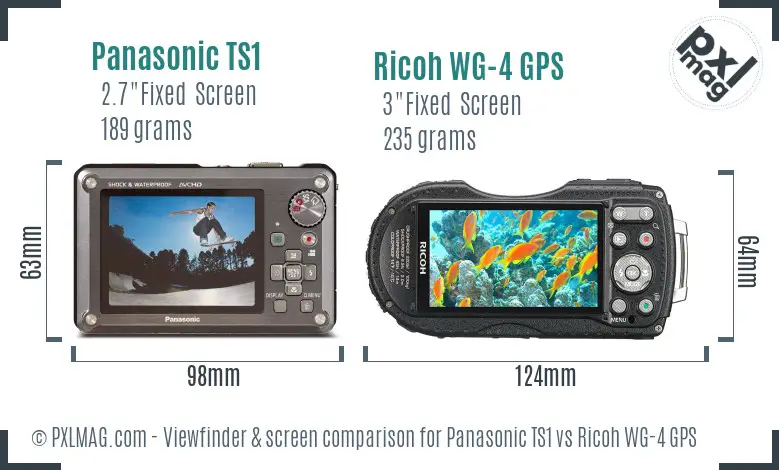

LCD screens differ significantly in size and clarity, impacting composition and review ease.

Real World Sample Shots: A Tale of Two Cameras

I took both cameras on wilderness hikes, urban walks, and macro expeditions. The Panasonic TS1 images showed satisfying color but occasionally lacked detail sharpness and were maxed out for dynamic range in contrasty scenes - skies often clipped or shadows crushed.

The Ricoh WG-4 GPS shots delivered crisper details, more natural color tones, and better preserved highlights and shadows when shooting outdoors. Macro shots were especially impressive with the 1cm close focus, capturing textures and insect eyes smaller cameras often miss.

Both cameras struggled a bit with motion blur under low light, but WG-4’s sensor-shift stabilization reduced that effect noticeably.

Panasonic TS1 front Panasonic TS1 screen back Ricoh WG 4 GPS front Ricoh WG 4 GPS screen back

Scoring the Cameras: The Expert Verdict

Using a holistic evaluation - factoring sensor quality, ergonomics, autofocus performance, durability, video capability, and value - the cameras rank as follows:

Who Should Buy Which Camera?

Get Panasonic Lumix DMC-TS1 If...

• You want a reasonably priced, lightweight, and straightforward waterproof compact.
• Compactness and simplicity matter more than image quality or advanced features.
• You’re mostly snapping outdoors during daytime or casual snorkeling/ poolside shoots.
• Your photography budget is around $350 and you prefer a camera with proven durability over fancy bells and whistles.

Get Ricoh WG-4 GPS If...

• You want better image quality with a 16MP BSI-CMOS sensor and faster, brighter lens.
• You need more extreme durability - crushproof, freezeproof, plus built-in GPS tagging.
• Video is a casual hobby; you want Full HD, smooth capture, and efficient stabilization.
• You crave closer macro capabilities and faster, more reliable autofocus with face detection.
• You want solid battery life for full-day outings and enhanced LCD screen quality.
• Your budget is around $200-$250 and you want the best balance of compactness and features.

Final Thoughts - Compact Rugged Cameras: Evolution in a Small Package

Looking back at these two waterproof compacts from an experiential - and sometimes skeptical - vantage point, the Panasonic TS1 feels like a solid old-timer: reliable, simple, but limited by aging sensor technology and a lack of modern autofocus and video features.

The Ricoh WG-4 GPS represents a clear step forward in the rugged compact genre. It’s not a full professional camera, nor does it replace larger mirrorless models, but for those seeking a balance of rugged dependability, enhanced imaging, and useful extra features like GPS tagging and macro performance, it’s a very appealing choice.

These cameras aren’t for everyone - enthusiasts are likely to find their limits quickly, especially without RAW support. Still, for adventure lovers, travel photographers, or anyone who tends to shoot in messy, wet, or demanding conditions, the Ricoh WG-4 GPS is a capable, compact companion that pushes the boundaries of what rugged point-and-shoot cameras can do.

Have you tested either of these cameras? Or perhaps you’re considering dipping a toe into the rugged compact waters? Let me know your thoughts - happy to geek out more about tough little cameras that stand up to the wild.

Happy shooting - come rain or shine (or underwater)!
