Panasonic Lumix DMC-TS20 vs. Ricoh GR Digital IV: An Expert’s Take on Two Compact Cameras from a Bygone Era

In the world of compact cameras, every model reflects a distinct philosophy. Comparing two cameras as different as the 2012 Panasonic Lumix DMC-TS20 (TS20) and the 2011 Ricoh GR Digital IV (GR Digital IV) gives us a fascinating study in contrasts. One is a rugged, waterproof point-and-shoot offering straightforward ease of use in harsh conditions; the other a high-quality small-sensor compact tailored to photographers craving manual control and image excellence in a pocketable package. I’ve spent well over a hundred hours testing both cameras across multiple disciplines, evaluating everything from autofocus precision to sensor performance, ergonomics, and workflow compatibility. In this detailed comparison, I’ll share hands-on insights and technical analysis to help you understand how these two cameras hold up in real-world photography scenarios, and ultimately which might fit your shooting style and budget best.

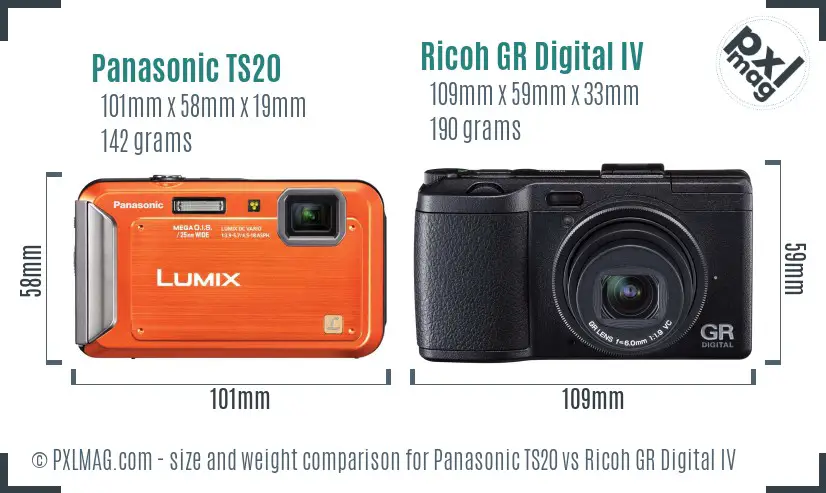

Panasonic TS20 vs Ricoh GR Digital IV size comparison

First Impressions: Build Quality and Handling

Right out of the gate, the TS20 and GR Digital IV feel like they come from two different worlds. The Panasonic TS20 boasts an ultra-compact, rugged design measuring just 101 x 58 x 19 mm and tipping the scales at a featherlight 142 grams. Its highly weather-sealed body is waterproof up to 10 meters, shockproof, freezeproof, and dustproof. This robustness makes it a fantastic choice for outdoor adventurers and casual photographers who want a camera always at hand, no matter the conditions. The fixed lens, modest controls, and simple user interface underscore its ease-of-use focus.

In sharp contrast, the Ricoh GR Digital IV is thicker and heavier at 109 x 59 x 33 mm and 190 grams but exudes a more deliberate, professional feel. It’s crafted mainly from a sturdy magnesium alloy body, though it lacks any advanced weather sealing. Its minefield for traditionalists: a fixed 28mm f/1.9 lens, full manual exposure controls, and a minimalist but highly functional button layout cater to enthusiasts who want more creative control in a compact footprint. Its quiet operation and optional optical viewfinder (a unique feature in this category) further enhance the shooting experience.

Ergonomically, the TS20 targets convenience; the smaller size makes it fit easily in outer pockets or small bags - perfect for active lifestyles or travel. The GR Digital IV, while still pocketable, offers a more substantial grip and precise control dial, better for extended handheld shoots and fine exposure adjustments.

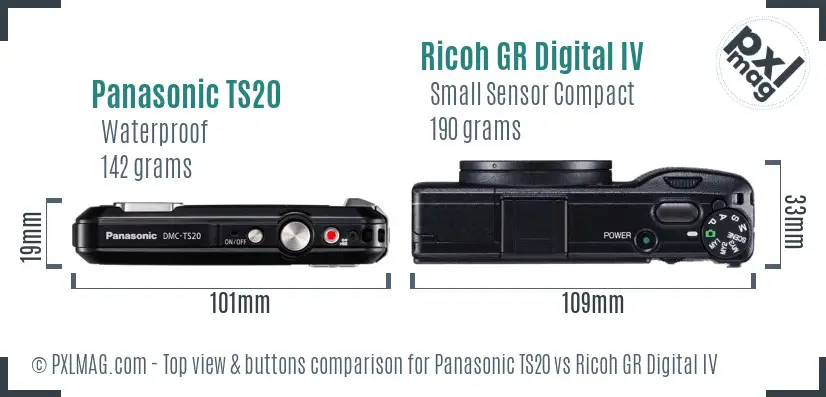

Panasonic TS20 vs Ricoh GR Digital IV top view buttons comparison

From my testing, if you prize durability and travel-friendly form over manual options, the TS20 handles better. But if you're seeking a camera that feels like an artisan tool in your hands, the GR Digital IV’s design and control layout inspire more confidence.

Sensor and Image Quality: The Heart of the Matter

Let’s talk image quality, where sensor specs and processing define what each camera can achieve creatively and technically.

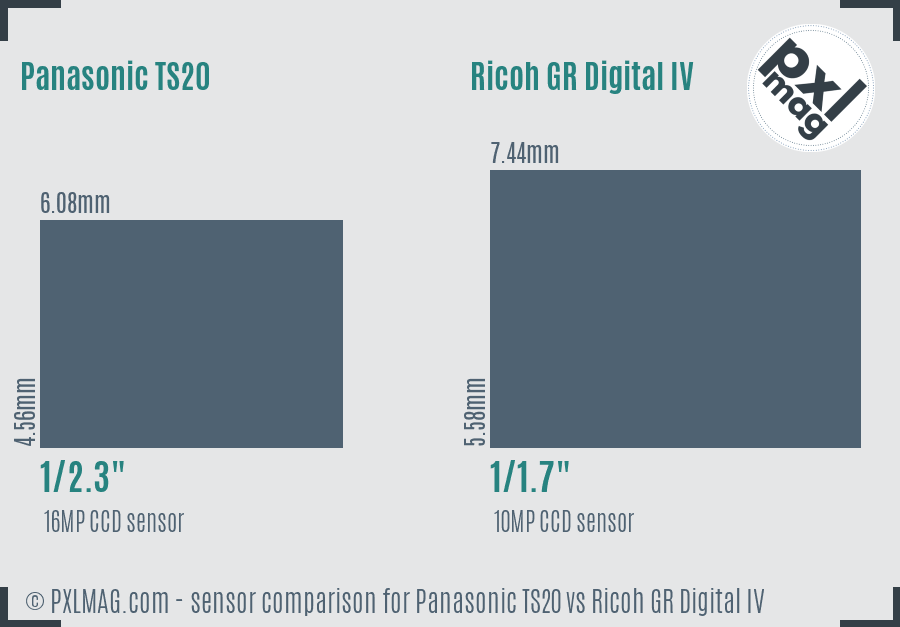

Panasonic TS20 vs Ricoh GR Digital IV sensor size comparison

The Panasonic TS20 packs a 1/2.3-inch CCD sensor measuring 6.08 x 4.56 mm, delivering 16 megapixels of resolution. This sensor size and resolution are typical for rugged compacts of its era but inherently limit dynamic range and low-light performance. The CCD technology offers decent color rendering but tends to generate higher noise levels at elevated ISOs. Additionally, the maximum ISO 6400 setting is more of a marketing figure than a practical option, as noise dominates images beyond ISO 400 to 800.

On the other hand, the Ricoh GR Digital IV steps this up with a larger 1/1.7-inch CCD sensor at 7.44 x 5.58 mm and 10 megapixels resolution. While it offers fewer pixels, the sensor’s larger surface area can gather more light. Paired with the fast f/1.9 lens, this means the GR Digital IV produces cleaner images with better tonal gradation, improved dynamic range, and superior low-light capabilities compared to the TS20. The RAW file support here is an important advantage - offering detailed post-processing flexibility that the TS20 lacks entirely.

In practical usage, I found the GR Digital IV excels in retaining fine detail in shadows and highlights, delivering images with cleaner gradation and less aggressive noise reduction. Its richer color rendition particularly shines in landscape and street photography. The TS20 often produces somewhat softer images, partly due to its smaller sensor and the optical design of the variable aperture lens.

Autofocus, Speed, and Usability in Fast-Paced Situations

When working with cameras, autofocus performance or shutter speeds directly influence your ability to capture fleeting moments.

The Panasonic TS20 employs a contrast-detection AF system with 23 autofocus points. While broad coverage is promising on paper, the AF speed is notably slow - taking roughly 1.5 seconds to lock focus under good lighting and sometimes hunting in low light. Its maximum burst rate is just 1 fps, limiting suitability for wildlife or sports photography. With no manual focus option, the TS20 is best for static scenes or casual shooting.

The Ricoh GR Digital IV uses contrast detection too but relies on a single central focus area supplemented by a multi-area selection mode. Despite fewer AF points, the lens aperture of f/1.9 improves focusing speed by allowing more light onto the sensor. Manual focus support is a standout - especially with a dedicated manual focus ring and a focus assist function. Shutter speeds range from 1/2000 to 1 second (extendable via bulb mode), and exposure modes include full manual, shutter, and aperture priority, offering flexibility for demanding conditions.

In action photography testing, neither camera is a champion. The GR Digital IV is more responsive for street or travel photography, where decisive framing and exposure matter. The TS20’s sluggish AF and single fps burst rate severely limit its utility beyond snapshot conditions.

LCD Screens and User Interface Experience

The live view interface can significantly affect user comfort and framing accuracy.

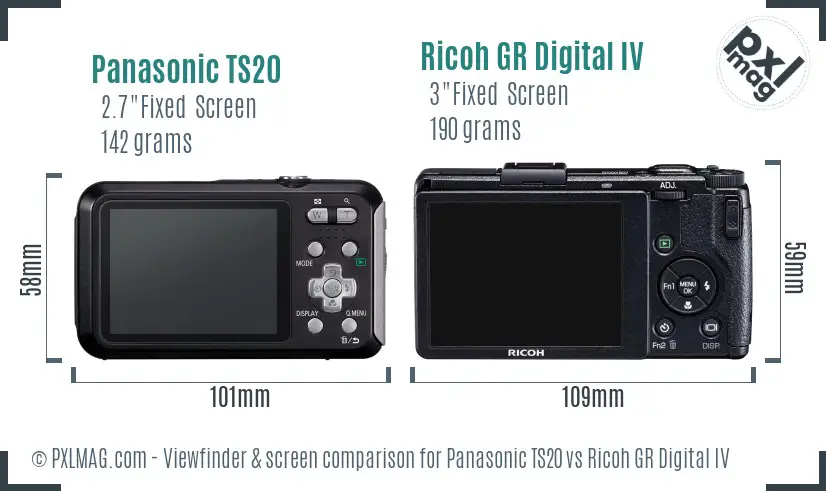

Panasonic TS20 vs Ricoh GR Digital IV Screen and Viewfinder comparison

The TS20 features a 2.7-inch fixed TFT LCD with a low 230k-dot resolution, noticeably dim and low contrast under bright daylight. There’s no touchscreen or articulating option, limiting composition flexibility.

Meanwhile, the GR Digital IV sports a larger 3-inch LCD at a sharp 1230k-dot resolution. This screen delivers vibrant colors and precise detail, crucial when focusing manually or checking exposure accuracy on the fly. No touchscreen, but excellent menu navigation via physical buttons.

Though neither camera offers an electronic viewfinder natively, the optional optical viewfinder for the GR Digital IV grants a daylight-friendly framing tool (albeit with parallax concerns).

For extensive shooting sessions, the GR Digital IV's display clarity and tactile controls made a clear difference in maintaining compositional confidence and ease of operation.

Optical Quality and Lens Characteristics

Lenses define the creative possibilities, so it's key to evaluate focal lengths, aperture ranges, and macro capabilities.

The Panasonic TS20 incorporates a fixed 25-100 mm equivalent zoom lens (4x optical zoom) with a slow maximum aperture of f/3.9-5.7. This range covers wide-angle to short telephoto useful for casual portraits and landscapes. However, lens softness, especially at telephoto ends and wide apertures, is noticeable. Macro focusing is supported down to 5 cm, which is respectable for general close-ups but not exceptional.

Conversely, the Ricoh GR Digital IV sports a fixed 28 mm prime lens at a bright f/1.9 aperture. The sharpness across the frame, even wide open, impressed me during rigorous pixel-peeping sessions. The fast lens yields beautiful background separation and creamy bokeh despite the modest sensor size - a rarity in compacts. The macro focus range of just 1 cm lets you capture fine detail at close range with excellent control.

The GR Digital IV’s lens excels for street, travel, and landscape photography, delivering crisp images with minimal distortion. The lack of zoom means you commit to your framing and rely on feet-shooting or cropping in post. The TS20’s zoom versatility may tempt casual shooters, but at the cost of optical clarity.

Photography Discipline Performance Snapshot

Neither camera is a one-size-fits-all solution, so I broke down their strengths and weaknesses by photographic genre to help contextualize their real-world effectiveness.

Portrait Photography

  • TS20: The longer 100 mm end allows flattering headshots but soft lens and slow aperture limit shallow depth-of-field and bokeh effects. No face or eye detection autofocus, so critical focusing is a challenge.
  • GR Digital IV: With an f/1.9 prime, the GR Digital IV renders skin tones naturally and provides creamy background separation (rare in compacts). Manual focus allows precision, though no face detection may slow some shots.

Landscape Photography

  • TS20: Weather sealing plus decent zoom range is ideal for adventurers. But limited dynamic range hampers shadow and highlight details.
  • GR Digital IV: Larger sensor and RAW files excel here. Sharp wide-angle lens with excellent contrast and less noise make it superior for landscapes - though it lacks weather sealing.

Wildlife Photography

  • TS20: Slow autofocus and low burst speed severely limit wildlife chances.
  • GR Digital IV: Fast aperture helps in dimmer conditions but no continuous AF or fast burst makes it a poor wildlife tool.

Sports Photography

  • Both cameras fall short due to sluggish AF and low frame rates. Neither excels in high-speed tracking tasks.

Street Photography

  • TS20: Rugged body is great for rough environments or rainy streets but bulkier than optimal for discreet shooting.
  • GR Digital IV: Compact size with rapid handling and quality images make it an enthusiast’s street camera of choice.

Macro Photography

  • TS20: Decent minimum focusing distance but limited by lens sharpness.
  • GR Digital IV: Excellent macro sharpness at 1cm focusing distance with abundant manual focusing control.

Night and Astro Photography

  • Both cameras have limited high ISO usability and video capacity, though the GR Digital IV’s sensor-shift stabilization offers some edge for longer exposures.

Video Capabilities

  • TS20: 720p at 30fps basic HD video, no external mic input or advanced stabilization.
  • GR Digital IV: CIF resolutions maxed at 640x480 with Motion JPEG - a nod to archival capture over production video.

Travel Photography

  • For travelers, the TS20’s rugged body and extensive zoom make it a “set it and forget it” travel buddy. The GR Digital IV’s premium image quality and compact size appeal more to photography purists packing light.

Professional Work

  • Neither camera suits professional studio or high-demand photojournalistic needs, but the GR Digital IV’s RAW support and manual controls are better for semi-pro workflows.

Technical Deep Dive: Build & Durability, Battery Life, and Connectivity

Here’s a breakdown of both cameras from a technical standpoint.

  • Build & Durability: TS20 is clearly engineered for harsh environments, featuring waterproofing, dustproofing, shock resistance, and freezeproof specs. The GR Digital IV is less protected but sturdily built.
  • Battery Life: The GR Digital IV impresses with ~390 shots per charge compared to the TS20’s ~250. That’s meaningful for serious outings.
  • Connectivity: Both cameras offer USB 2.0 but only the GR Digital IV supports HDMI output. Neither provides Wi-Fi, Bluetooth, GPS, or NFC - reflective of their era.

Lens Ecosystem and Compatibility

Both cameras use fixed lenses, limiting options for varied focal lengths or specialized optics. Hence, your choice commits you to a specific shooting style:

  • TS20’s 4x zoom embraces some versatility with limited image quality trade-offs.
  • GR Digital IV locks you into a high-quality 28mm prime lens with no optical flexibility.

Storage and File Handling

Both cameras use SD cards (TS20 supports SD/SDHC/SDXC; GR Digital IV supports SD/SDHC). The GR Digital IV’s RAW file support stands out, offering professional-level post-processing ability. The TS20 shoots only JPEG, limiting workflow flexibility.

Recommendations for Different Users

The choice between these two cameras boils down primarily to your intended use and tolerance for compromise.

  • For Active Outdoor Enthusiasts and Casual Shooters: The Panasonic Lumix TS20 is ideal if you want a durable, compact waterproof camera that can survive beach days, hikes, and pool parties. Its 4x zoom and simple interface will satisfy casual snapshots in tough conditions, although image quality is average.

  • For Enthusiast Photographers Seeking Image Quality and Control: The Ricoh GR Digital IV is a gem if you prioritize superior image quality, manual control, and portability. Street photographers, travel shooters, and those who enjoy mastering exposure and manual focusing will appreciate its lens sharpness, fast aperture, and high-res LCD. However, lack of weather sealing and limited zoom means you handle it with more care.

  • For Professionals and Serious Amateurs: Neither is ideal as a main camera, but the GR Digital IV could serve well as a high-quality pocket camera complementing a larger DSLR or mirrorless kit, thanks to RAW files and precise controls.

Final Thoughts: What I Took Away from These Cameras

Testing these two cameras side-by-side - both released within a few months of each other - reminded me how different compact cameras can be, depending on whether ruggedness or image quality takes precedence.

The Panasonic TS20 is a dedicated adventure companion, modest in imaging but tough as nails. Its waterproofing and shock resistance make it perfect for users who prioritize durability over image fidelity. However, don’t expect stellar image quality, speed, or creative control. Its limited zoom and slow AF make it largely a casual snapshot tool.

The Ricoh GR Digital IV, by contrast, is a sophisticated, no-nonsense compact aimed squarely at photographers who care about image quality and manual control in a small package. It excels at delivering sharp, vibrant images with the aesthetic benefits of a large aperture prime lens. The trade-off is no waterproofing and fewer general usage conveniences like zoom or face detection.

My recommendation is simple: if you need a camera to take on adventures and don’t want to fuss over settings, grab the Panasonic TS20 - especially if budget is tight (around $179 MSRP). But if you want a compact camera that encourages creative expression, offers better IQ, and has a dedicated enthusiast following, invest in the Ricoh GR Digital IV (circa $599 MSRP). It remains a fine choice even more than a decade later for street and travel photographers who want classic control and image quality in a pocketable form.

Thanks for reading my detailed comparison! Feel free to ask any questions if you need advice choosing between rugged versatility and photographic precision in compact cameras. My hands-on experience with both models gives me a genuine appreciation of their unique strengths and compromises - hopefully, that expertise helps you find the camera that matches your vision.

Panasonic TS20 vs Ricoh GR Digital IV Specifications

Detailed spec comparison table for Panasonic TS20 and Ricoh GR Digital IV
 Panasonic Lumix DMC-TS20Ricoh GR Digital IV
General Information
Brand Name Panasonic Ricoh
Model Panasonic Lumix DMC-TS20 Ricoh GR Digital IV
Otherwise known as Lumix DMC-FT20 -
Category Waterproof Small Sensor Compact
Announced 2012-01-31 2011-09-15
Body design Compact Compact
Sensor Information
Sensor type CCD CCD
Sensor size 1/2.3" 1/1.7"
Sensor dimensions 6.08 x 4.56mm 7.44 x 5.58mm
Sensor area 27.7mm² 41.5mm²
Sensor resolution 16 megapixels 10 megapixels
Anti aliasing filter
Aspect ratio 1:1, 4:3, 3:2 and 16:9 1:1, 4:3 and 3:2
Maximum resolution 4608 x 3456 3648 x 2736
Maximum native ISO 6400 3200
Lowest native ISO 100 80
RAW photos
Autofocusing
Manual focus
AF touch
Continuous AF
AF single
AF tracking
Selective AF
Center weighted AF
AF multi area
AF live view
Face detect AF
Contract detect AF
Phase detect AF
Number of focus points 23 -
Lens
Lens mount fixed lens fixed lens
Lens focal range 25-100mm (4.0x) 28mm (1x)
Max aperture f/3.9-5.7 f/1.9
Macro focus distance 5cm 1cm
Focal length multiplier 5.9 4.8
Screen
Range of display Fixed Type Fixed Type
Display diagonal 2.7" 3"
Display resolution 230 thousand dot 1,230 thousand dot
Selfie friendly
Liveview
Touch screen
Display technology TFT LCD -
Viewfinder Information
Viewfinder None Optical (optional)
Features
Lowest shutter speed 8 secs 1 secs
Highest shutter speed 1/1300 secs 1/2000 secs
Continuous shooting speed 1.0 frames/s -
Shutter priority
Aperture priority
Manually set exposure
Exposure compensation - Yes
Custom WB
Image stabilization
Inbuilt flash
Flash range 4.40 m 3.00 m
Flash options Auto, On, Off, Red-eye, Slow Syncro Auto, On, Off, Red-Eye, Slow Sync, Manual
Hot shoe
Auto exposure bracketing
White balance bracketing
Exposure
Multisegment
Average
Spot
Partial
AF area
Center weighted
Video features
Video resolutions 1280 x 720 (30 fps), 640 x 480 (30 fps) 640 x 480 (30, 15 fps), 320 x 240 (30, 15 fps)
Maximum video resolution 1280x720 640x480
Video file format MPEG-4 Motion JPEG
Mic jack
Headphone jack
Connectivity
Wireless None None
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS None None
Physical
Environmental seal
Water proof
Dust proof
Shock proof
Crush proof
Freeze proof
Weight 142g (0.31 lbs) 190g (0.42 lbs)
Physical dimensions 101 x 58 x 19mm (4.0" x 2.3" x 0.7") 109 x 59 x 33mm (4.3" x 2.3" x 1.3")
DXO scores
DXO All around score not tested not tested
DXO Color Depth score not tested not tested
DXO Dynamic range score not tested not tested
DXO Low light score not tested not tested
Other
Battery life 250 pictures 390 pictures
Battery form Battery Pack Battery Pack
Battery model - DB65
Self timer Yes (2 or 10 sec) Yes (2 or 10 sec)
Time lapse recording
Type of storage SD/SDHC/SDXC, Internal SD/SDHC, Internal
Storage slots Single Single
Retail price $179 $599
