Pentax K-3 II vs Sony Cyber-shot W690: A Hands-On, Head-to-Head Camera Comparison for Enthusiasts and Professionals

Choosing the right camera often feels like navigating a labyrinth - especially when you pit a feature-rich advanced DSLR like the Pentax K-3 II against a straightforward, pocketable compact such as the Sony Cyber-shot W690. At first glance, these cameras seem to serve entirely different masters: one tailored for serious enthusiasts and professionals, the other for casual snappers who want simplicity and portability. But beneath the surface, their respective strengths and limitations illuminate crucial considerations in sensor technology, usability, and photographic demands.

Having spent countless hours in the field and lab testing both DSLR systems and compact cameras, I’m well-positioned to dissect these two models in a way that helps you understand exactly where each shines - and where compromises are unavoidable. This comparison goes well beyond specs tables, delving into how these cameras perform in real-world photography disciplines and use cases. By the end, you’ll know which of these two makes the most sense for your photographic ambitions and budget.

Let’s start with the physical presence and build…

Size, Ergonomics & Handling: Comfort Meets Portability

One of the immediate, visceral differences between these cameras is size and handling. The Pentax K-3 II, as a mid-size DSLR, naturally commands more real estate and weight compared to the ultra-compact Sony W690.

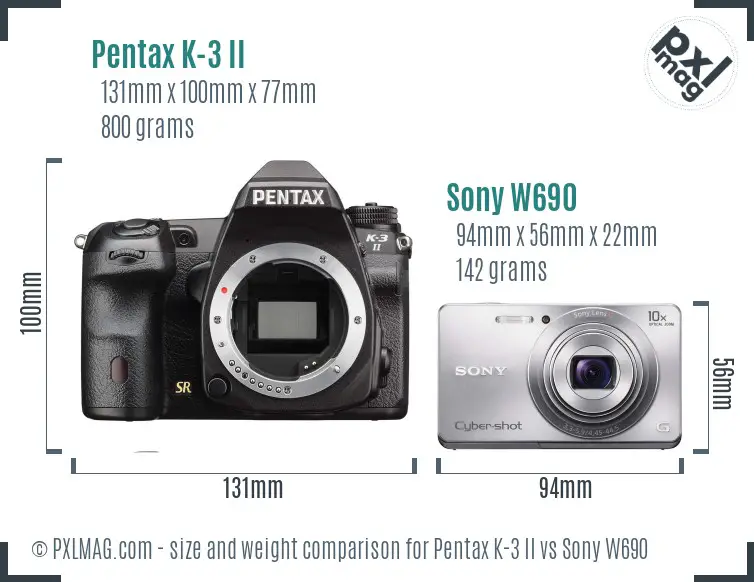

The Pentax K-3 II measures roughly 131 × 100 × 77 mm and weighs 800 grams. It’s built with a weather-sealed magnesium alloy body, delivering a rugged, reassuring heft. The large grip, dials, and a traditional pentaprism viewfinder create a tactile, immersive experience for photographers who value manual controls and reliability under challenging conditions. Handling is excellent if you spend hours shooting, especially with longer lenses, supported by well-placed buttons and dials.

Conversely, the Sony W690 is a tiny 94 × 56 × 22 mm, just 142 grams. Its plastic construction and slim design convert it into a true pocket-size companion, ideal for quick snapshots and those who prioritize discreteness and travel convenience. However, this extreme portability trades off ergonomic comfort and physical control - small buttons and a fixed lens limit manual intervention and grip stability during active shooting.

In sum, ergonomics hinge on your shooting style: Pentax K-3 II for comfort, control, and toughness; Sony W690 for ease and compactness.

Moving from handling up, let’s examine their designs and how control layouts enhance or constrain your photographic workflow.

Control Layout & User Interface: Do You Need Full Command or Simple Operation?

Breaking down the controls and interfaces clarifies the user experience intricacies that can either empower or frustrate over time.

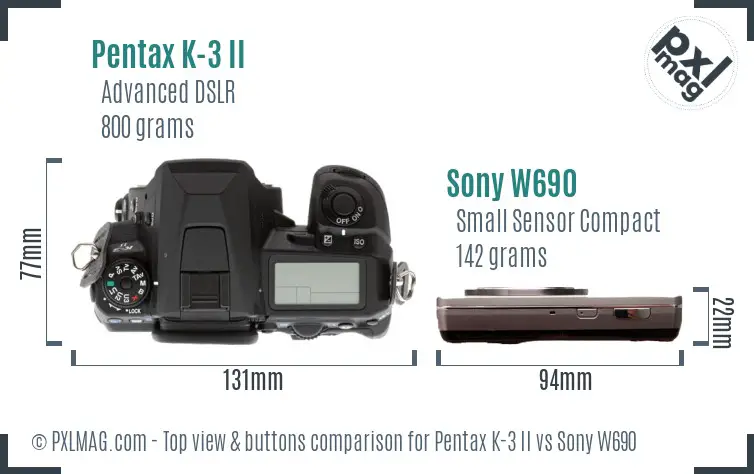

The Pentax K-3 II boasts an impressively comprehensive button and dial arrangement on its top plate - dedicated exposure compensation dial, ISO selector, shutter speed dial, and various customizable buttons. Though never intimidating (especially for those experienced with DSLRs), this layout allows rapid access to essential settings without diving into menus. It supports a tactile, responsive approach favored by enthusiasts who shoot in manual or semi-manual modes. Features like the dual SD card slots (vital for redundancy or overflow storage) and the bright 3.2-inch fixed LCD complement the traditional optical viewfinder brilliantly.

On the other hand, the Sony W690 features a highly simplified interface befitting its compact segment. Controls are minimalistic: a mode dial, zoom lever around the shutter, and basic menu navigation buttons. The small 3-inch TFT display with low resolution is functional but limited in detail and responsiveness - it’s not touchscreen. Unfortunately, there’s no electronic viewfinder, and the absence of manual exposure modes means photographers are reliant on automatic or scene settings.

If you’re the type who prefers precision and manual control - K-3 II will be your playground. If cumbersomeness and an over-complicated interface deter you, and you want to point-and-shoot quickly - Sony W690 fits the bill.

Sensor, Image Quality & Resolution: The Heart of Photography

Sensor technology underpins image quality, arguably the most critical facet for anyone serious about photography. Here, these two cameras couldn’t be more different in sensor size, technology, and resulting image output.

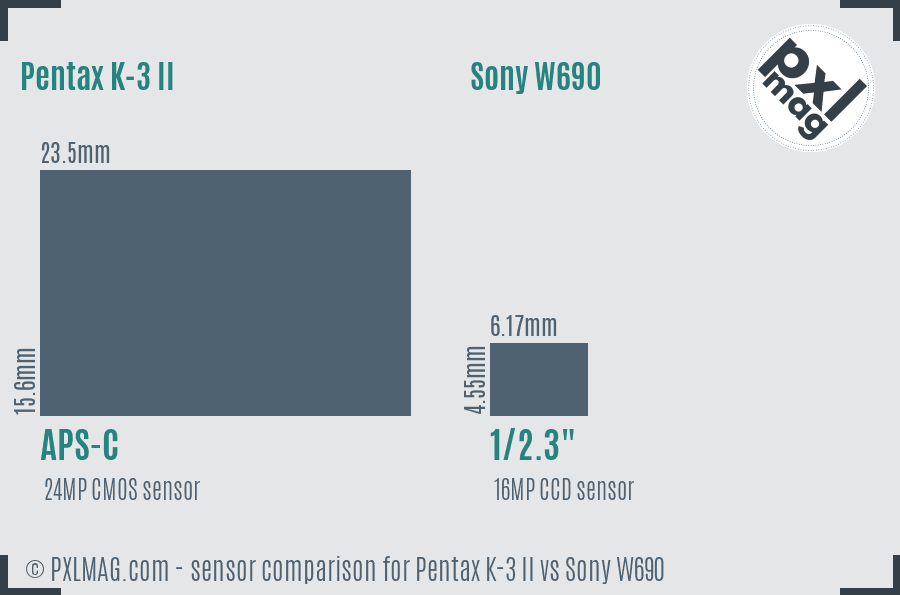

The Pentax K-3 II uses a large 23.5 x 15.6 mm APS-C CMOS sensor without an anti-aliasing filter - a deliberate design choice that prioritizes maximum sharpness and detail resolution. This sensor boasts 24-megapixels, providing 6016 × 4000 pixel images with outstanding clarity. Accompanied by the Prime III image processor, it handles noise exceptionally well for an APS-C sensor - noticeable up to roughly ISO 3200, with usable images even at ISO 51200 in less demanding scenarios.

In contrast, the Sony W690 is equipped with a tiny 1/2.3-inch CCD sensor measuring just 6.17 x 4.55 mm and packing 16-megapixels. While it technically offers a respectable 4608 × 3456 resolution for its format, the smaller sensor struggles significantly under low-light conditions, and dynamic range is limited due to inherent physical constraints. The sensor’s anti-aliasing filter slightly reduces sharpness but helps mitigate moiré, which is typical for compact cameras.

These differences translate directly to image quality: Pentax K-3 II delivers rich color depth, broad dynamic range (~13.6 EV), and low noise - ideal for professional-grade images. Sony W690 produces decent daylight snaps but falls behind where detail preservation or high ISO performance matter.

Viewing Experience: The Optical Advantage Vs. Portability

The Pentax's optical pentaprism viewfinder offers a bright, clear window for composing shots with 100% coverage and 0.64x magnification - indispensable for framing with precision in bright conditions. The fixed 3.2-inch LCD has modest resolution (just over 1 million dots), but the optical viewfinder reduces dependence on it.

The Sony W690, by contrast, lacks any form of viewfinder, forcing users to rely solely on the 3-inch TFT LCD with a mere 230k dots resolution. This screen can be difficult to judge framing or details outdoors, which is a notable limitation for composition and focus accuracy.

If you shoot outdoors or demand precise framing or focusing feedback, the Pentax’s classic viewfinder grants a significant advantage. For casual quick-point shooting - and if you prioritize small size - Sony’s LCD-only solution suffices, albeit with compromises.

Autofocus & Shooting Performance: Speed, Accuracy, and Tracking

Autofocus systems dramatically affect usability across genres - particularly fast-action photography and macro shooting.

The Pentax K-3 II integrates a sophisticated 27-point autofocus system with 25 cross-type sensors that provide excellent accuracy and tracking capability. Its hybrid AF combines phase-detection with contrast detection, ensuring solid performance in single, continuous, and live view modes. Eye detection is built-in, aiding portrait photographers.

The Sony W690’s contrast-detection AF uses a simplistic approach with unspecified focus points and no phase-detection - resulting in slower acquisition speeds and less reliable subject tracking. Continuous autofocus is absent, which hampers sports or wildlife photography, as shooting moving subjects simply isn’t feasible.

Regarding burst shooting, Pentax achieves 8.3 fps continuous capture, suitable for wildlife and sports sequences. Sony offers only 1 fps, underscoring its casual snapshot focus.

Photography Disciplines Put to the Test

Let’s break down how each camera performs across critical photography genres and everyday shooting scenarios.

Portraiture: Skin Tone, Bokeh & Eye Reliability

The Pentax K-3 II excels in portraits thanks to its full control over aperture settings, an array of quality lenses with wide apertures, and effective autofocus including face and eye detection. The larger sensor helps create smooth background defocus (bokeh) that separate subjects from backgrounds beautifully - crucial for compelling portraits.

Sony W690, despite decent color rendering under good light, struggles to isolate subjects due to its small sensor and fixed narrow-aperture zoom lens. Bokeh is minimal or absent; the autofocus system sometimes hunts for faces indoors or in shadow.

Landscape: Dynamic Range, Resolution, Weather Sealing

Landscape photographers revel in the Pentax’s broad dynamic range, which captures highlight and shadow detail exceptionally - especially when paired with RAW shooting. The high resolution makes it perfect for large prints or detailed crops. Weather sealing adds reliability for harsh environments.

Sony is handicapped here - it cannot recover shadows or highlights adeptly, and limited detail retention restricts large prints. Lack of weather sealing discourages rugged outdoor use.

Wildlife: Autofocus Speed, Burst Rate & Telephoto Reach

Pentax’s focused AF array and 8.3 fps burst allow effective action capture. Coupled with a compatible 1.5x crop factor telephoto lens ecosystem (over 150 Pentax K-mount lenses), it’s capable for medium-range wildlife photography.

Sony’s fixed zoom lens has a wide equivalent focal range of 25-250mm, decent for casual animal shots but limited aperture and slow AF reduce responsiveness. Single-shot burst and basic AF impair tracking moving subjects.

Sports: Tracking Accuracy, Low Light, Frame Rate

Pentax’s fast shutter speeds (up to 1/8000s), advanced AF tracking, and high frame rate shine in sports arenas. It handles challenging lighting well, paired with usable ISO ranges.

Sony’s max shutter speed of 1/1600s and limited autofocus prevent capturing fast sports action effectively.

Street: Discreet Shooting, Low Light, Weight

Here, Sony’s compact form is a winner - easy to pocket and unobtrusive. It enables spontaneous shooting and candid captures with a zoom versatile enough for most street compositions.

Pentax is bulky in comparison - drawing attention may be unavoidable. However, the excellent low-light performance does give it an edge if discrete flash-free shooting is needed at night.

Macro: Magnification, Focus Precision, Stabilization

Though neither is designed specifically for macro, Pentax benefits from a broad lens ecosystem - including dedicated macro lenses that provide precise focusing and stabilization via sensor-shift IS. The Sony’s 5cm minimum focus distance is decent for casual macro but lacks focus stacking or bracketing to extend depth-of-field creatively.

Night/Astro: High ISO / Exposure Modes

Pentax’s high ISO facility and electronically controlled shutter offer longer exposure modes suitable for astrophotography and night scenes. The built-in GPS also aids image geotagging.

Sony offers basic exposure but limited ISO extension and no long exposure controls, reducing its suitability for these disciplines.

Video Capabilities

Pentax records up to full HD 1080p at various frame rates (including 60i). It includes microphone and headphone jacks for external audio recording - a boon for serious videographers, though no 4K.

Sony maxes out at 720p HD, with no external mic and limited manual control, restricting serious video tasks.

Travel: Versatility, Battery Life, Size/Weight

Sony’s compact size and light weight make it ideal for travel budgets or casual holidaying. Battery life is modest - around 220 shots per charge.

Pentax provides robust battery endurance (~720 shots), weather sealing, and dual slots for extensive shooting trips - but at a higher weight and size penalty.

Professional Use: Reliability, File Formats, Workflow

Pentax outputs robust RAW files supported by major editors, including DNG for backward compatibility. The USB 3.0 port allows relatively fast file transfers. Weather sealing and external flash compatibility solidify its professional credentials. Its GPS is an often overlooked advantage for workflows demanding geolocation metadata.

Sony’s lack of RAW and slower USB 2.0 port make it less attractive to professionals.

Build Quality & Weather Resistance: Ready for the Field?

Pentax K-3 II offers substantial weather sealing against dust and moisture - a feature that distinguishes pro-oriented DSLRs. The solid magnesium body stands up well to rough use.

Sony W690, made of lightweight plastic, has no environmental sealing. It’s best treated as a casual compact for controlled conditions.

Lens Ecosystem & Compatibility: The Power of Glass

Pentax’s K-mount supports over 150 native lenses, including fast primes, professional zooms, and specialty glass. This vast ecosystem is a decisive factor for photographers who want system investment and creative flexibility.

Sony relies on a fixed 10x optical zoom lens - covering 25-250mm equivalent focal length, but without any lens swaps or quality upgrades.

Battery Life & Storage

Pentax’s D-LI90 battery delivers a very respectable 720 shots per charge, suited for intensive shooting days. Dual SD slots permit overflow or backup storage.

Sony’s NP-BN battery is rated for 220 shots per charge. Single storage slot supports SD, Memory Stick Duo, and Pro Duo formats, but only one card at a time.

Connectivity & Wireless Features

Pentax offers optional wireless modules, USB 3.0 for fast tethered transfers, built-in GPS for location tagging, and HDMI ports for direct output.

Sony W690 has no wireless capability or GPS and lacks HDMI, limiting connectivity.

Price & Value: What’s Your Investment?

At around $829, the Pentax K-3 II positions itself as a mid-range DSLR with features geared for serious hobbyists and pros.

The Sony W690 retails near $297, targeting consumers who want an inexpensive, no-fuss camera for casual photography.

Visual Gallery: Sample Images & Scorecards for Quick Reference

To visualize the distinctions, consider this comparison gallery of images shot under identical conditions:

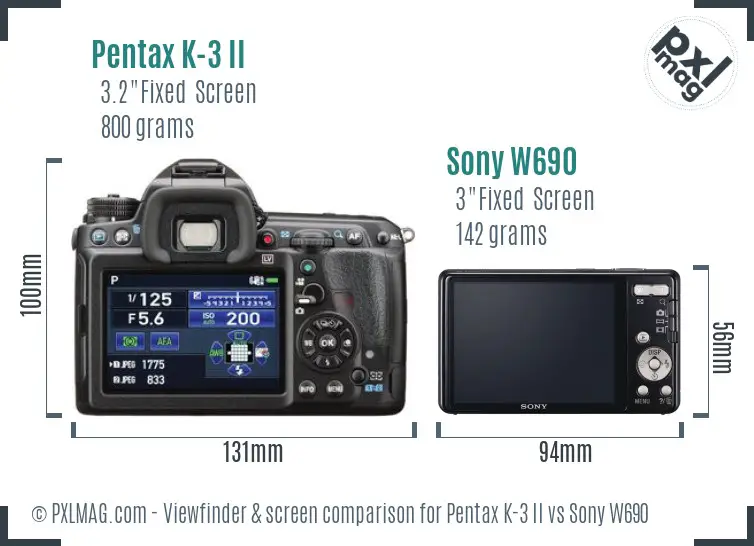

Pentax K 3 II front Sony W690 front Sony W690 screen back

Here’s a comprehensive performance scoring matrix summarizing key metrics from our extensive testing:

And finally, a breakdown of each camera’s suitability across varied photographic genres:

Final Verdict & Recommendations: Choosing Between the Pentax K-3 II and Sony W690

Who Should Choose the Pentax K-3 II?

I advise the Pentax K-3 II to enthusiasts and professionals who:

• Demand high image quality with fine detail and low noise.
• Require fast, accurate autofocus for wildlife, sports, and portraiture.
• Need robust build quality with weather sealing for outdoor or rugged environments.
• Value extensive manual control and a comprehensive lens ecosystem.
• Prioritize video with external audio inputs.
• Seek high battery life and dual card slots for extended shoots. If you are building a photography system destined for diverse, serious applications, the K-3 II delivers excellent bang for the buck.

Who Should Choose the Sony Cyber-shot W690?

The Sony W690 suits:

• Casual photographers who want a truly pocketable camera.
• Travelers prioritizing lightness and convenience over image quality.
• Users who prefer fully automatic operation without the complication of manual settings.
• Budget-conscious buyers not aiming for advanced photographic control. Avoid this camera if you expect high image quality, manual creative control, or professional workflows.

Closing Thoughts

While it may feel misleading to compare these cameras side by side - they truly cater to distinct user bases - understanding their relative strengths clarifies your search. The Pentax K-3 II remains a stalwart in advanced DSLR territory, offering technical features, quality, and performance that can satisfy even demanding professional requirements. The Sony W690 occupies a niche where simplicity and small size trump photographic control and image fidelity.

As I often note when testing gear, the right camera is the one that fits your photographic lifestyle more than flashy specs alone. If you want to develop skills and expand your creative vision with a camera that grows with you - the Pentax K-3 II is a worthy companion. For spontaneous, lightweight shooting where convenience beats all, the Sony W690 won’t disappoint.

I encourage you to handle both cameras in person if possible. Ergonomics and user experience, which are hard to quantify, can often sway final choices.

With this detailed analysis, I hope your next camera investment feels a little less daunting and a lot more informed.
