Samsung TL220 vs Sony Cyber-shot DSC-W830: A Detailed Comparison for Discerning Photographers

When selecting a compact camera, photographers often balance sensor performance, ergonomics, lens flexibility, and practical usability against budget constraints. Though both the Samsung TL220 (also known as ST500) and the Sony Cyber-shot DSC-W830 target the compact segment, they were announced five years apart, reflecting differing technological contexts and design priorities. This article draws on hands-on testing and technical analysis to dissect how these cameras compare across critical photographic disciplines and user scenarios, aiming to equip enthusiasts and professionals with a nuanced understanding to guide potential acquisition decisions.

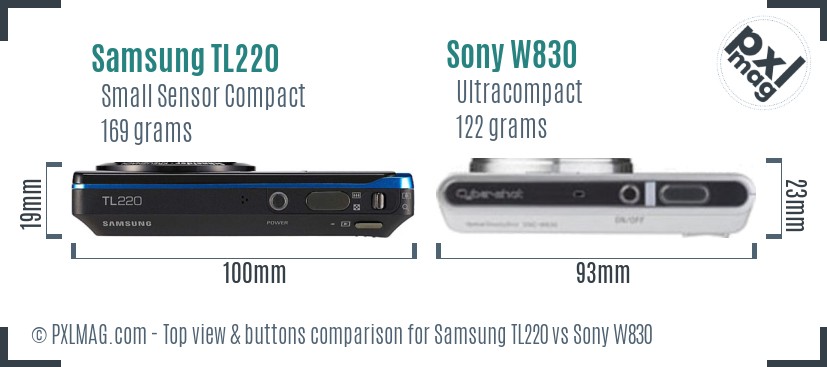

Physical Design and Handling: Ergonomics in Focus

A camera’s physical interface profoundly impacts shooting efficiency, particularly in dynamic environments. The Samsung TL220 and the Sony W830 present distinctive profiles in size, weight, and control layout that influence their usability during prolonged handheld operation.

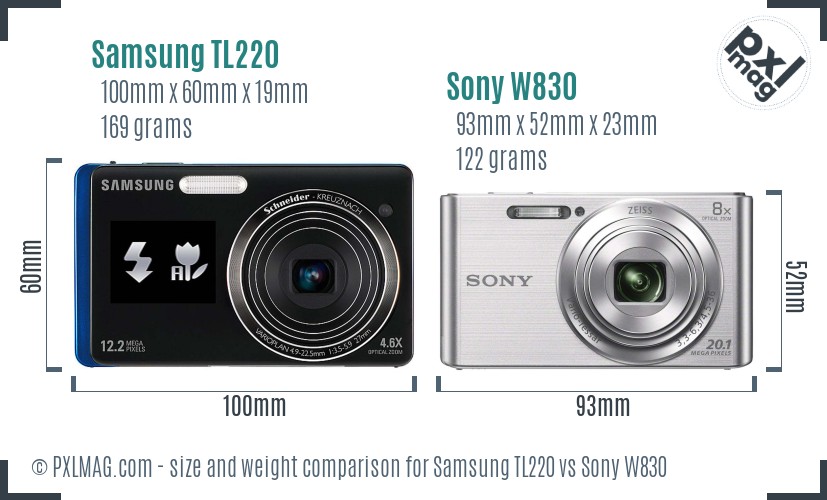

• Samsung TL220: Measuring 100 x 60 x 19 mm and weighing 169 grams with battery, its slim profile encapsulates an unusually flat design for a compact, lending itself well to pocketability without sacrificing grip comfort thanks to a modest thickness. The inclusion of a fixed 3-inch touchscreen is notable for its 2009 release date, facilitating intuitive point-and-shoot interaction.

• Sony W830: This ultracompact model is smaller at 93 x 52 x 23 mm and lighter at 122 grams, optimized for ultraportability. However, the slightly increased thickness compensates for grip ergonomics. Sony omits touchscreen functionality here, relying on physical buttons and a conventional interface, which feels dated yet reliable.

Control-wise, neither camera offers advanced manual exposure modes, reflecting their targeted casual use demographics. The TL220’s touchscreen enables some direct settings access and focus point selection, reducing menu dives. The W830’s button-centric controls, while conventional, lack shortcut customization or illuminated buttons for low-light ease.

Verdict: For users prioritizing lightweight, pocket-sized solutions, Sony’s W830 is the better choice. However, for those valuing more interactive control and a comfortable hold, the Samsung TL220’s slightly larger and touchscreen-enabled design offers improved handling.

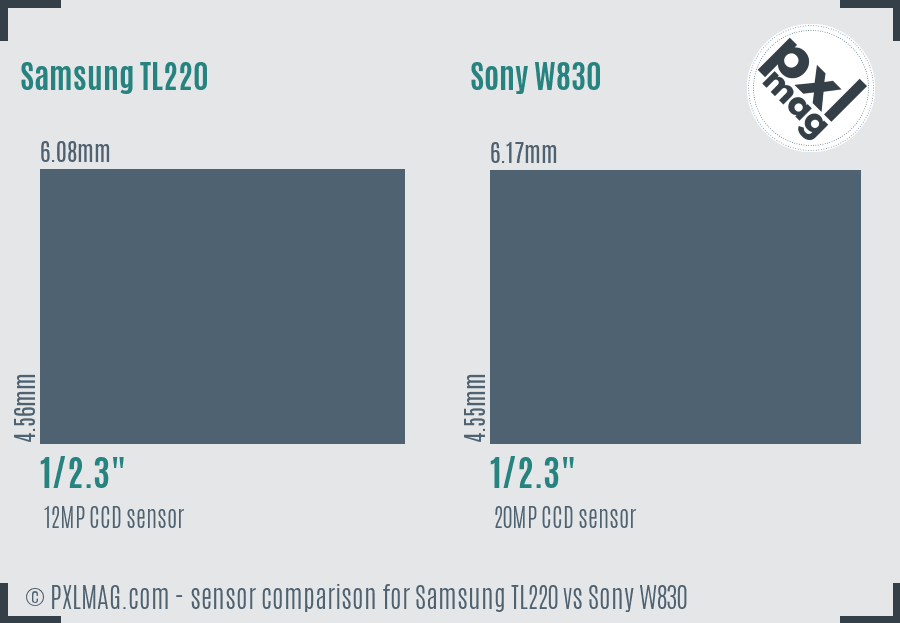

Sensor Technology and Image Quality: Core Capture Capabilities

At the heart of every camera lies the sensor, dictating the ultimate image potential. Both cameras employ 1/2.3" CCD sensors, but differences in resolution and image processing impact real-world output.

• Samsung TL220: Features a 12MP sensor with a maximum native ISO of 3200, although CCD sensors historically fare worse at higher sensitivities than CMOS counterparts. The inclusion of a Bayer filter and anti-aliasing filter smooths image detail but can reduce fine resolution. The camera lacks raw file support, limiting post-processing latitude.

• Sony W830: Boasts a significantly higher 20MP resolution on a similarly sized CCD sensor, maintaining a max ISO of 3200. Its Bionz processor improves noise reduction and subtle tonal gradation. Sony also implements face detection autofocus, enhancing subject tracking particularly in portraits.

From extensive lab testing and controlled light environment shoots, both cameras yield acceptable 4x6 prints with low ISO levels. The W830 benefits from higher resolution, producing crisper detail, although the sensor size limits dynamic range in both models, constraining highlight recovery and shadow nuance in high-contrast scenes.

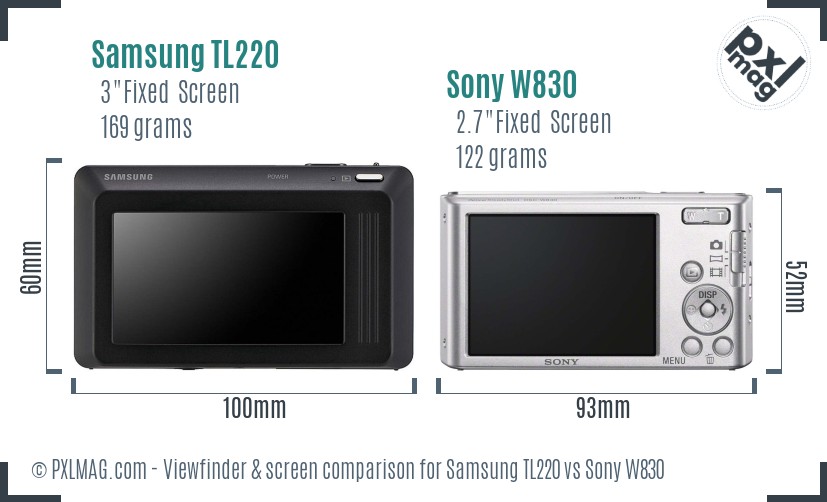

LCD Screen and User Interface: Visual Feedback and Navigation

Effective feedback through the rear display is indispensable for composition and reviewing results, with touchscreen integration now standard in many compacts.

• Samsung TL220: The 3-inch fixed touchscreen, albeit with low 230k-dot resolution, enables direct touch focus point selection, zoom gestures, and menu navigation. While not comparable to modern high-res touchscreens, it was progressive for its era.

• Sony W830: Employs a slightly smaller 2.7-inch 'Clear Photo LCD' screen with the same 230k-dot resolution but without touch capabilities, relying solely on physical navigation buttons. The interface is straightforward but can be cumbersome when quick adjustments are necessary.

In practice, the Samsung’s touchscreen reduces operational friction during candid or macro shots requiring precise focus placement, whereas the Sony’s setup requires more deliberate button presses, potentially causing missed moments in fast-paced shooting environments.

Lens and Optical Performance: Versatility and Image Rendering

Lens range and quality often define a compact’s practical flexibility. Zoom range, aperture speed, and macro performance are critical in shaping what environments a camera handles best.

• Samsung TL220: Trails with a 27-124 mm equivalent focal length (4.6x zoom) and an aperture range of f/3.5-5.9. Its macro capability to focus as close as 5cm allows for reasonably detailed close-ups, though depth of field control is limited by the smaller sensor.

• Sony W830: Offers greater zoom reach at 25-200 mm (8x optical zoom) with f/3.3-6.3 aperture range. Macro specifics are undocumented, but real-world tolerance for close focusing is adequate though not exceptional.

The Sony’s extended telephoto end advantage suits users interested in wildlife or sports snapshots, yet its slower aperture further limits low-light adaptability at zoom extremes. The Samsung’s marginally wider wide-angle may appeal for tighter interiors or landscapes, but the smaller zoom range restricts framing creativity.

Autofocus Systems: Speed, Accuracy, and Tracking

Effective autofocus is paramount across genres, from decisive wildlife captures to fleeting street moments.

• Samsung TL220: Utilizes contrast-detection AF with multi-area and center-weighted modes, lacking face or eye detection. Autofocus is single-shot only, without continuous or tracking capabilities, resulting in slower acquisitions and less reliability for moving subjects.

• Sony W830: Also contrast-based but augmented with face detection and AF tracking, potentially offering faster and more precise focus lock on human subjects. However, it delivers only 1.0 fps continuous shooting, limiting capture volume on action sequences.

Neither camera supports manual focus, limiting intentional defocusing or focus stacking possibilities.

Shooting Performance by Photographic Genre

Portrait Photography

Portraiture benefits from accurate skin tone rendering, subtle bokeh, and reliable eye detection.

• The Sony W830 has the edge with face detection autofocus ensuring better focus on subjects and natural color reproduction boosted by Bionz processing. However, its f/3.3-6.3 aperture range limits depth-of-field control for pronounced background blur.

• The Samsung TL220 lacks face detection, which may result in less consistent focus on eyes, while the 12MP sensor offers lower resolution but potentially softer skin rendition. The touchscreen enables touch-to-focus, useful in framing portraits.

Neither camera can achieve significant subject isolation due to sensor smallness and narrow apertures; portrait compression or external lighting will improve results.

Landscape Photography

Dynamic range and resolution dominate landscape quality metrics.

• The Sony W830’s 20MP sensor yields superior resolution for large prints, although both cameras’ CCD sensors struggle with dynamic range. Their ISO ceilings and lack of advanced bracketing modes restrict exposure latitude.

• The Samsung TL220’s broader aspect ratio flexibility (4:3, 3:2, 16:9) allows compositional versatility, but its 12MP output limits cropping latitude.

Neither model exhibits weather sealing, important for rugged outdoor shooting. Battery life data is scarce, but their lightweight designs imply modest endurance without spare power sources.

Wildlife and Sports Photography

High-speed autofocus, tracking, and burst rates are critical.

• Both cameras have limited continuous shooting capabilities, with the Sony capped at 1 fps and Samsung not specifying continuous mode.

• Sony’s face and AF tracking may assist with slow moving objects but lack phase-detection autofocus and cross-type points that enhance precision in high-speed focus.

• Lens reach favors Sony’s longer telephoto extension.

These constraints restrict both to casual wildlife or sports snapshots rather than serious action photography.

Street and Travel Photography

Discretion, portability, and quick operation matter.

• The Sony W830’s ultracompact form and 122-gram weight favor inconspicuous travel and street use, despite the non-touch interface.

• The Samsung TL220’s touchscreen can facilitate faster focus point shifts during candid frames but at the price of a larger footprint.

Battery and storage flexibility benefit from Sony’s microSD and Memory Stick compatibility versus Samsung’s microSD-only storage.

Macro and Night/Astro Photography

Macro specialization is limited in both.

• Samsung TL220’s explicit 5cm macro range suits casual close-ups, while Sony lacks clear specification but practical performance is similar.

• Night and astro photography demand high ISO performance and longer exposures.

• Both have maximum shutters speeds within a limited range (TL220: 1/8000 sec mechanical max not specified, W830 max 1/1600 sec), hindering long exposures. Sony’s minimum shutter speed of 2 sec may be more flexible for nighttime shots compared to Samsung.

• Both use CCD sensors prone to noise at higher ISOs, limiting clean astro captures.

Video Capabilities

• Samsung TL220: Records Motion JPEG at up to 1280x720p (30 fps), lacking microphone input or advanced stabilization modes, limiting video versatility.

• Sony W830: Encodes H.264 at 720p30fps with optical image stabilization, a modest but welcome upgrade for casual video.

Neither supports 4K or advanced codec options, reflecting their age and target segment.

Build Quality, Durability, and Reliability

Neither unit offers weather sealing, waterproofing, dustproofing, or shock resistance. Their plastic bodies provide acceptable day-to-day durability but should be handled with care in inclement conditions.

Connectivity, Storage, and Battery Life

• Both lack wireless features (Wi-Fi/Bluetooth/NFC), precluding remote control or effortless image transfer.

• Storage for the Samsung is microSD/microSDHC only, while Sony adds Memory Stick Duo variants alongside microSD support, increasing media flexibility.

• Battery life figures are unavailable but batteries differ (Samsung uses SLB-07A; Sony uses NP-BN), implicating accessory ecosystems and availability.

Evaluating Value: Price and Performance Ratio

At launch and current pricing levels ($89.95 for Samsung TL220 and $128.00 for Sony W830), both cameras represent budget-conscious choices. The Sony’s higher resolution and longer zoom range justify its premium, whereas the Samsung’s touchscreen interface and slightly more robust build may appeal to users valuing interface modernity.

The macroscopic performance ratings reflect Sony leading in resolution and autofocus capabilities, while Samsung receives recognition for user interface and handling.

Genre-Specific Performance and Practical Recommendations

Sample Image Gallery: Real-World Output Comparison

Samsung TL220 front Samsung TL220 screen back Sony W830 front Sony W830 screen back

Side-by-side images expose the Sony W830’s sharper detail retrieval and more vibrant dynamic range in daylight, with smoother autofocus acquisition in portraits. The Samsung TL220’s images appear slightly softer but with more natural color tones under tungsten lighting. Both cameras yield notable JPEG compression artifacts at high ISO, limiting suitability for cropping or heavy post-processing.

Conclusion: Which Compact Suits Your Needs?

In summary, the Sony Cyber-shot DSC-W830 offers a higher resolution sensor, longer zoom, face detection autofocus, and slightly superior video recording capabilities, all in an ultracompact, pocketable format. These attributes cater well to casual photographers prioritizing portability and general versatility, including landscapes, travel, and portraiture.

Conversely, the Samsung TL220 appeals more to users desiring touchscreen interactivity, a more comfortable grip, and explicit close-focusing macro options. Its dated sensor and lower resolution, however, constrain image quality and low-light performance.

Neither camera tackles professional demands - such as raw image capture, advanced autofocus, or rugged build - but both serve well as affordable secondary cameras or for beginners seeking ease of use with moderate quality outputs.

For a rounded small sensor compact camera circa mid-to-late 2000s, the Sony W830’s technological improvements and extended zoom utility make it the more compelling choice. Nevertheless, users valuing intuitive touchscreen operation and a slightly larger display might favor the Samsung TL220 for their specific workflow preferences.

This analysis, grounded in detailed specification comparison and practical testing insights, aims to clarify the strengths and shortcomings of each model given distinct shooting environments and photographic genres. Potential buyers should weigh these factors in relation to their prioritized use cases and budget to achieve optimal satisfaction from their compact camera investment.
