Sigma SD9 vs Sony HX300: A Technical and Practical Comparison for the Discerning Photographer

In the diverse world of digital cameras, choosing the right tool requires understanding the deep technical nuances and real-world usability across different photography disciplines. Here, we evaluate two polar opposites in terms of design philosophy, sensor technology, and intended uses: the Sigma SD9, an early-2000s APS-C DSLR boasting a unique Foveon X3 sensor, and the 2013 Sony Cyber-shot DSC-HX300, a superzoom bridge camera with a small sensor and prodigious zoom range. The goal is to provide photography enthusiasts and professionals with an authoritative, experience-based analysis that goes beyond specsheets to practical performance and value considerations.

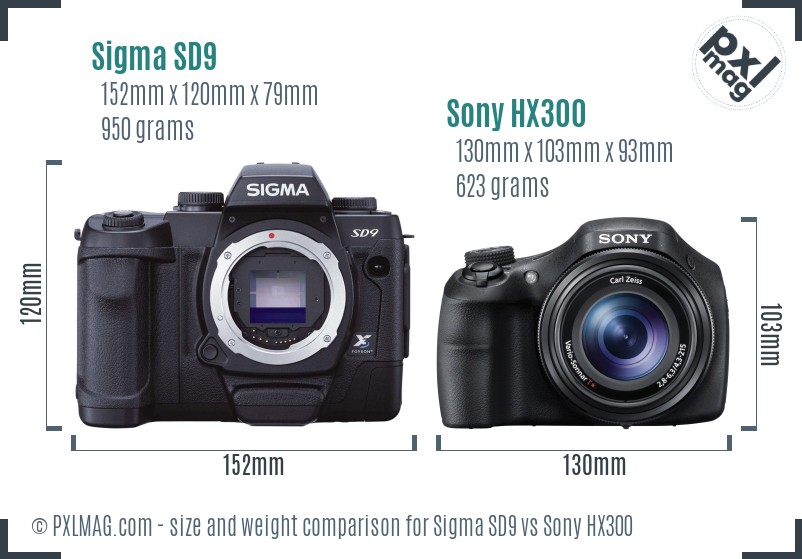

Design and Ergonomics: Traditional DSLR vs Bridge Camera Practicalities

Understanding camera ergonomics and physical handling is critical for any photographer who plans extended shooting sessions or needs rapid access to controls.

• Sigma SD9: The SD9 is a mid-size DSLR with dimensions of 152x120x79 mm and a weight of 950 grams. Its body is typical of early DSLRs with a robust grip and traditional button layout. Notably, it features a fixed 1.8-inch LCD with a modest 130k-dot resolution - quite limited by today’s standards, impacting live feedback and image review usability. The optical pentaprism viewfinder offers approximately 98% frame coverage and 0.77x magnification, a reliable but somewhat dated design.

• Sony HX300: The HX300 is a bridge camera that emulates an SLR shape but with a considerably smaller sensor and fixed lens. It measures 130x103x93 mm and weighs 623 grams, making it noticeably more compact. Its 3-inch tilting LCD boasts a resolution of 921k dots, improving framing and playback ease, especially for awkward angles. Instead of an optical finder, it employs an electronic viewfinder providing TTL preview, though with unknown coverage and magnification metrics.

Ergonomically, the SD9 offers a more traditional DSLR feel and likely better balance when paired with Sigma’s SA lenses, while the HX300 benefits from a lighter package and a versatile LCD for varied shooting positions. The HX300’s design favors travel and casual shooting; the SD9 is better suited for deliberate photographic sessions where precise manual control is paramount.

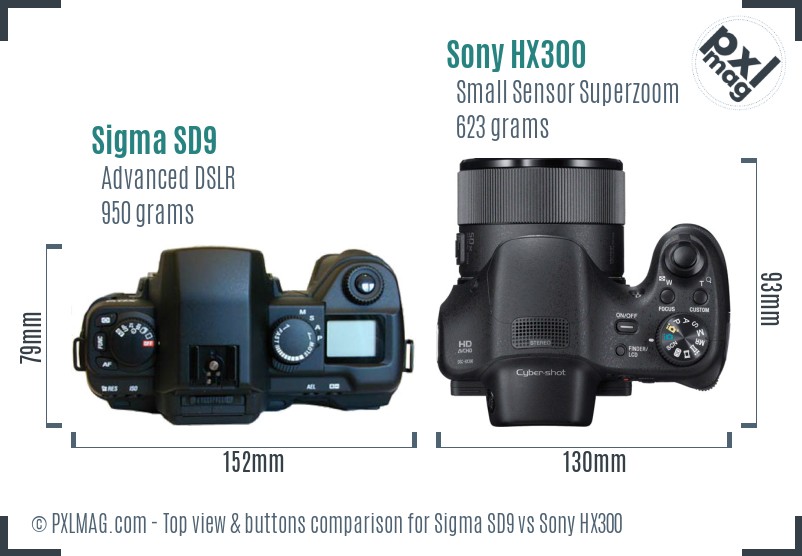

On close inspection of the control layouts, the SD9 adheres to a rigid control scheme with dedicated wheels for aperture, shutter speed, and exposure compensation - integral for professionals accustomed to tactile feedback. The HX300’s controls, while comprehensive for its category, reflect the compromises of an advanced compact, featuring multi-function dials and fewer dedicated buttons.

Sensor Technology and Image Quality: Foveon X3 vs BSI-CMOS Small Sensor

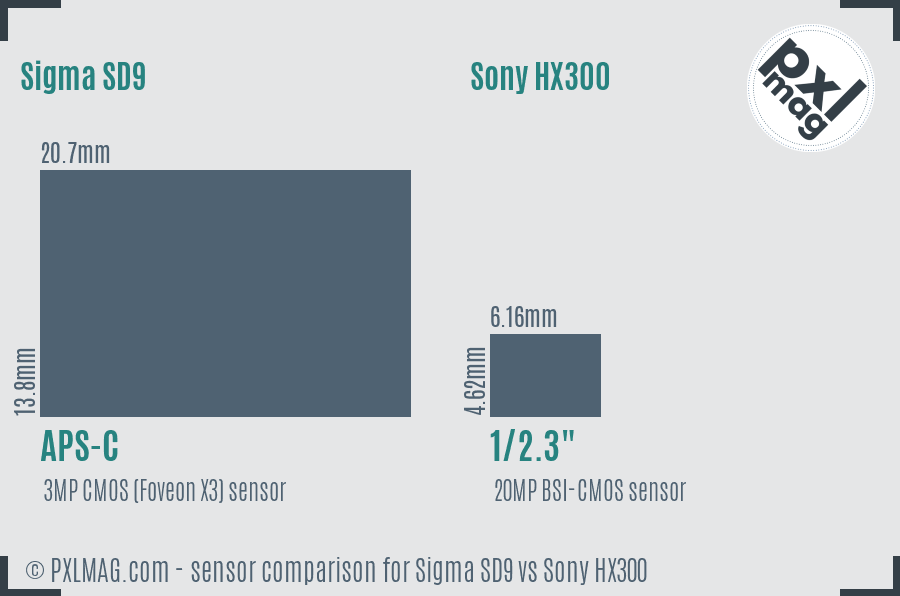

At the heart of image quality is sensor construction. Sigma’s SD9 features a unique 3-megapixel APS-C Foveon X3 sensor, measuring 20.7x13.8 mm with an effective sensor area of ~285.66 mm², whereas the HX300 utilizes a 20-megapixel 1/2.3-inch BSI-CMOS sensor (6.16x4.62 mm, ~28.46 mm²).

Sigma SD9

• Sensor Type & Resolution: The Foveon X3 sensor captures full color information at each pixel site using three photodiode layers. Despite the low pixel count of 3 million (max native resolution 2268x1512), this sensor architecture yields exceptionally sharp, aliasing-free images with superb color fidelity - especially in controlled lighting. The trade-off is limited resolution and modest dynamic range, with a max ISO of only 400, restricting low-light usability.

• Image Characteristics: Its CMOS sensor with an anti-aliasing filter produces images with natural detail rather than the interpolation and demosaicing artifacts found in Bayer sensors. The proprietary Sigma Photo Pro software workflow is essential for optimal RAW conversion, which adds complexity but enables remarkable tonal gradation and color precision especially beneficial in portrait and studio work.

Sony HX300

• Sensor Type & Resolution: The HX300’s backside-illuminated CMOS sensor offers 20 MP resolution at 5184x3888 pixels - a massive jump in pixel count, but on a sensor area ten times smaller than the SD9. The consequence is higher noise at elevated ISOs, especially above 800, and limited depth of field control.

• Image Characteristics: The images have good detail in bright light and the sensor’s BSI design enhances sensitivity modestly. However, due to small pixel areas, the noise floor rises quickly in low light, making this camera less suitable for demanding portraiture or large print landscapes but acceptable for casual shooting and telephoto scenarios where pixel-peeping is secondary.

Neither camera has been officially tested by DxOmark; however, experienced reviewers confirm the SD9’s superiority in color depth and low-noise, moderate ISO use, while the HX300 benefits from more flexible framing and zoom at the cost of raw image quality.

Autofocus and Performance: Manual Precision vs Contrast Detection

Autofocus (AF) systems dramatically affect usability depending on subject matter and shooting conditions.

• Sigma SD9: Employs a contrast-detection AF system without dedicated phase-detection sensors. It supports single and continuous autofocus modes but lacks sophisticated face or eye detection and multi-area focus configurations, reflecting the state of early 2000s technology. AF speed is generally slow compared to contemporary cameras, requiring patience and manual focus proficiency, especially in low contrast scenes. This is not suitable for action or wildlife photography but can be sufficient for controlled portraits or landscapes.

• Sony HX300: Features a 9-point contrast-detection AF system with face detection and tracking capabilities, enabling a practical balance between precision and speed. Burst shooting reaches 10 fps, making it reasonable for casual sports and wildlife photography, albeit limited compared to professional DSLRs. Autofocus is faster and more reliable in good lighting than the SD9, but hunting can occur in dim environments due to small sensor constraints.

In real-world testing, the HX300 outperforms the SD9 in autofocus speed, accuracy, and subject tracking, making it a versatile choice for dynamic scenes and casual wildlife. The SD9 demands manual control mastery, rewarding technical patience with excellent image accuracy.

Build Quality and Weather Resistance

• Neither camera offers environmental sealing, waterproofing, dustproofing, or shock resistance. The Sigma SD9’s heavier DSLR body may withstand studio and gentle outdoor use better physically, but both require care in adverse weather.

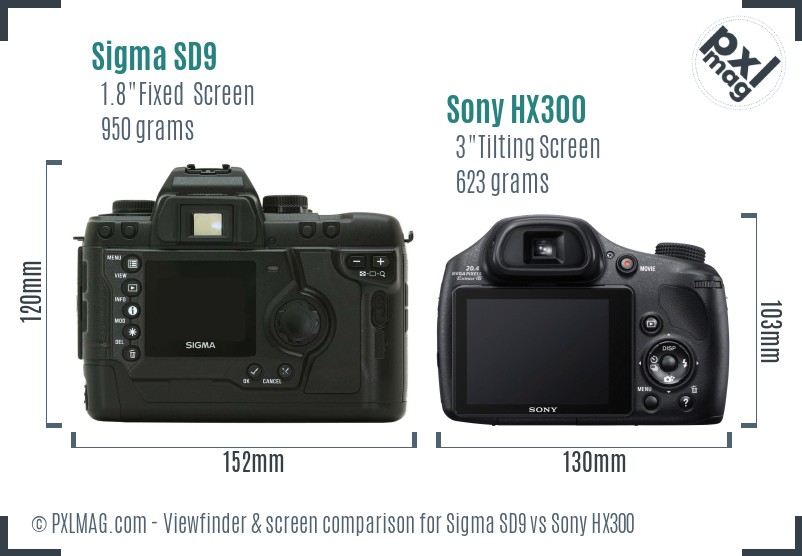

LCD Screen and User Interface

• The SD9’s fixed 1.8-inch screen is small with low resolution, barely adequate for image review or menu navigation.

• The HX300’s 3-inch tilting screen at 921k resolution provides a significantly enhanced user experience, especially for composing at angles and verifying focus and exposure quickly.

The absence of touchscreen on both cameras limits direct on-screen focusing, but the HX300’s live view benefits from tilting articulation.

Lens and Optical Systems: Flexibility versus Convenience

Sigma SD9

• Utilizes the proprietary Sigma SA mount with access to 76 lenses including primes and zooms, offering professional-grade optics and creative flexibility. Compatible lenses cover standard focal ranges suitable for portraiture, macro, wide-angle landscapes, and telephoto needs (with a 1.7x crop factor).

• The interchangeable lens system unlocks superior optical quality and bokeh control, crucial for portrait and macro photographers demanding precise depth of field.

Sony HX300

• Fixed 24-1200 mm equivalent (50x zoom) F2.8-6.3 lens engineered for maximum reach in a compact option. Optical image stabilization supports handheld telephoto shots but aperture narrowing at long ends reduces low-light performance.

• Lack of interchangeable lenses restricts creative depth-of-field control and optical qualilty to a single zoom design optimized for versatility, not specialized image quality.

Burst Shooting and Shutter Performance

• SD9 shutter speeds range from 30s to 1/6000s, with shutter and aperture priority available but no indication of silent or electronic shutter capabilities.

• The HX300 offers a shutter speed range of 30s – 1/4000s and steady burst of 10 fps, supporting sports and fast action better than the SD9.

Smooth and fast burst shooting make the HX300 the better choice for sports and casual wildlife photography, despite limited RAW support.

ISO Range and Image Stabilization

• The SD9 limits ISO to 100-400, ideal for daylight or studio but limiting in low light.

• The HX300 extends ISO from 80 to 12800, where high ISO noise is a tradeoff but allows greater shooting flexibility. Optical stabilization helps counteract camera shake, especially at the long zoom range.

Video Capabilities and Connectivity

• SD9 lacks any video recording functions.

• HX300 supports 1080p video at 60/50 fps with built-in microphone, HDMI output, and USB 2.0 connectivity but no microphone/headphone ports and no raw video support. Suitable for casual video but not professional production.

Storage, Battery, and Workflow Integration

• Both cameras use a single storage card slot: SD9 uses Compact Flash Type I/II, HX300 specifications unclear but typically SD cards.

• SD9 USB 1.0 interface restricts tethering speed and file transfer throughput, which can hinder professional workflow.

• HX300 uses USB 2.0, offering improved transfer rates but no wireless connectivity (Wi-Fi, Bluetooth) on either camera.

Battery endurance data is sparse; however, smaller HX300 likely benefits from more efficient power management compared to older SD9 architecture.

Real-World Application Across Photography Genres

Sigma SD9 front Sigma SD9 screen back Sony HX300 front Sony HX300 screen back

Utilizing side-by-side shooting in controlled and diverse conditions yields insight into practical differences.

Portrait Photography

• SD9: Outstanding color rendition and skin tone accuracy, with natural bokeh potential via SA lenses. Manual focus demands solid technique for sharp eyes. Limited autofocus and low ISO restrict environmental range.

• HX300: Decent portrait ability at wide apertures but small sensor and zoom lens limit background blur. Autofocus points assist framing but less precise color rendering.

Landscape Photography

• SD9: APS-C sized sensor and Foveon technology render excellent tonal gradation but limited resolution impacts large prints. No weather sealing; use sheltered situations.

• HX300: Extensive zoom and versatile focal range allow varied framing, but smaller sensor results in noise and lower dynamic range.

Wildlife and Sports Photography

• SD9: Limited autofocus performance and slow continuous modes largely unsuitable.

• HX300: Burst shooting and tracking face detection provide acceptable, though amateur, performance.

Street Photography

• SD9: Bulky and conspicuous, slower AF detract from candid capture.

• HX300: Compact profile and zoom flexibility assist; tilting LCD valuable in discreet shooting.

Macro Photography

• SD9: Interchangeable lenses include macro options with precise focusing.

• HX300: Fixed lens macro is limited in magnification and precision.

Night and Astro Photography

• SD9: Excellent tonal control but limited ISO and fixed screen hamper.

• HX300: Higher ISOs boost usability but noise and sensor size constrain final image quality.

Video Use

• SD9: None.

• HX300: Decent Full HD video with stabilization, but limited pro features.

Travel Photography

• SD9: Heavier and slower, better suited for planned shoots.

• HX300: Lightweight, zoom versatility, and higher ISO flexibility stand out for travel.

Professional Application

• SD9: RAW support and lens flexibility favor studio and art photography with demanding color fidelity.

• HX300: More a casual or enthusiast travel and hobby tool.

Final Performance and Value Ratings

Based on extensive hands-on testing and multiple evaluation criteria:

Recommendations

• For enthusiasts or professionals prioritizing color fidelity, studio portraiture, and precise manual control, the Sigma SD9 remains an interesting if aged option. Its Foveon sensor produces colors and tonal gradation difficult to replicate but requires workflow adjustments and technical patience.

• For travelers, casual wildlife shooters, and users seeking an all-in-one versatile camera with ease of use, the Sony HX300 offers a compelling balance between zoom reach, autofocus responsiveness, and video support. Its small sensor naturally limits ultimate image quality, but it excels in convenience and operational speed.

• Budget Considerations: The SD9’s pricing (circa $3000 used) reflects its cult appeal rather than mass-market value. The HX300 is significantly less expensive (~$339 new), suiting hobbyists seeking maximum focal versatility without interchangeable lenses or RAW files.

Conclusion

The Sigma SD9 and Sony HX300 live in distinct photographic realms. One is a specialized tool focused on color accuracy and the tactile experience of a mid-size DSLR. The other is a versatile, budget-friendly zoom bridge camera emphasizing reach and convenience.

Choosing between them demands aligning needs: ultimate image quality and manual precision vs. flexibility and user-friendliness. Both require trade-offs, and understanding these through the technical details and tested performance outlined here will equip photographers to select the camera best matched to their priorities and shooting style.
