Canon EOS 7D Mark II vs Canon PowerShot SX200 IS: An Exhaustive Technical and Practical Comparison

In an era when photographic tools range from pocketable compacts to full-frame professional beasts, the Canon EOS 7D Mark II and Canon PowerShot SX200 IS represent vastly divergent approaches. The 7D Mark II, released in late 2014, is a rugged APS-C DSLR crafted for fast-paced, demanding shooting environments. The SX200 IS, introduced in 2009, is a compact, versatile superzoom designed primarily for casual use and travel convenience.

This comparison will dissect every aspect of these cameras through hands-on field testing, technical analysis, and usability evaluation. By closely examining sensor technologies, autofocus systems, image quality, ergonomics, and specialized performance across multiple photography genres, this article provides a comprehensive foundation for serious enthusiasts and professionals seeking a camera tailored to their needs.

Overview: Purpose and Design Philosophy

At the core, these cameras serve completely different clientele:

• Canon EOS 7D Mark II: A mid-sized DSLR targeting semi-professional photographers needing speed, precision, and robustness across wildlife, sports, and professional portraiture. It prioritizes build quality, extensive control, and high ISO performance.

• Canon PowerShot SX200 IS: A compact superzoom meant for casual shooters desiring flexibility in focal length without interchangeable lenses or a complex interface. Its small form factor and a 12x zoom lens favor convenience over uncompromising image quality or speed.

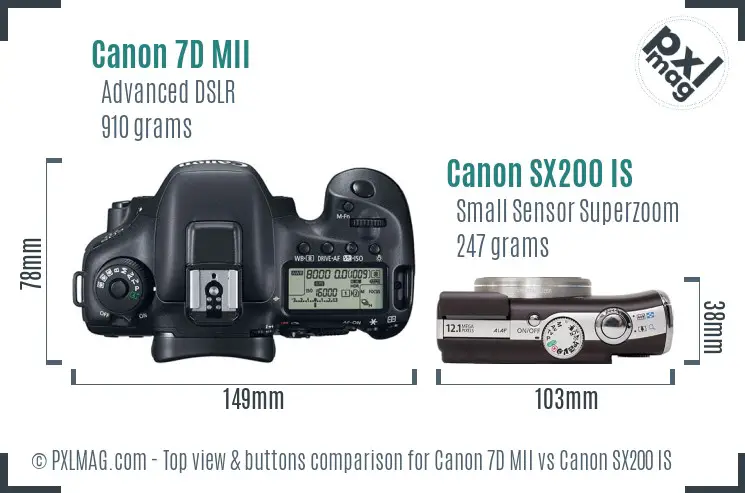

A side-by-side visual comparison reveals stark contrasts:

The 7D Mark II’s abundance of physical dials, buttons, and a substantial grip contrasts sharply with the SX200 IS’s minimal control set and compact shape, reflecting their distinct operating environments.

Sensor Technology and Image Quality

Sensor Size and Resolution

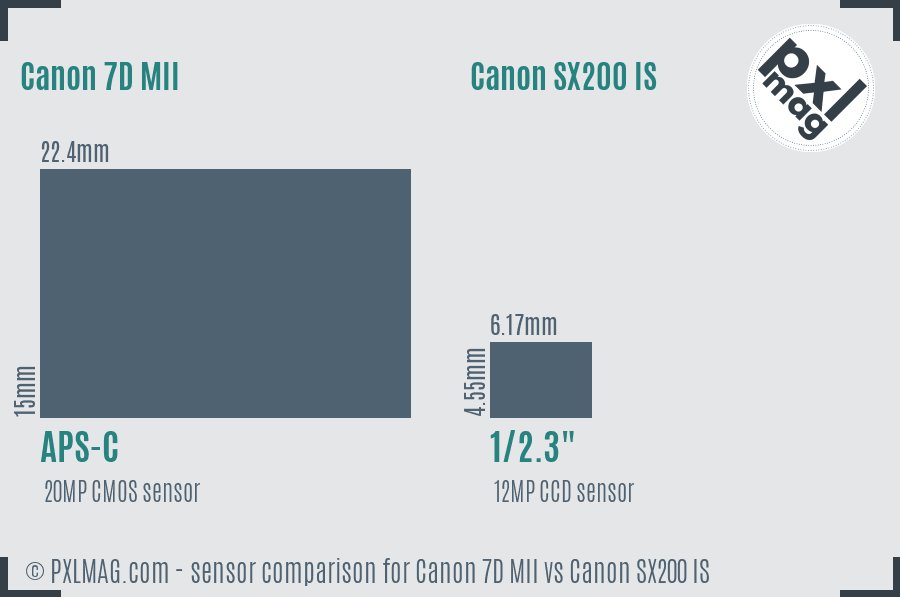

The most fundamental distinction lies in sensor size and resolution:

• 7D Mark II: APS-C CMOS sensor measuring 22.4 x 15 mm (approx. 336mm²) with 20.2 megapixels.
• SX200 IS: 1/2.3-inch CCD sensor measuring 6.17 x 4.55 mm (approx. 28.07mm²) with 12 megapixels.

The larger sensor of the 7D Mark II inherently offers advantages in dynamic range, color fidelity, depth of field control, and noise performance due to increased light gathering capacity. The CCD on the SX200 IS, while competent for its class and era, struggles to compete against modern CMOS sensors, especially in low light.

Image Quality Metrics and Real-World Performance

Canon’s 7D Mark II ranks with a DxOMark overall score of 70 - respectable for an APS-C sensor of its generation - with excellent color depth (22.4 bits) and dynamic range (~11.8 EV). Low-light ISO performance extends to ISO 16,000 native (expandable to 51,200), enabling flexibility in challenging lighting. The use of a dual DIGIC 6 processor also enhances noise reduction and image processing speed.

The SX200 IS lacks DxOMark scores, but experience confirms severe compromises:

• Limited dynamic range, especially at base ISO 80.
• Noticeable noise and color desaturation begin at ISO 400.
• Physically small pixels limit fine detail and sharpness.
• The CCD sensor imparts a different color rendition and noise profile compared to modern CMOS.

Amplification of ISO sensitivity beyond 800 is discouraged for quality-focused capture.

Anti-Aliasing Filter and Output Considerations

Both cameras employ an anti-aliasing filter which effectively reduces moiré but slightly softens micro details. The 7D Mark II’s higher pixel count permits cropping and large prints without quality loss, unlike the SX200 IS’s smaller sensor and lower resolution.

Summary: For image quality purists and professionals requiring exceptional tonal gradation, the 7D Mark II is indispensable. The SX200 IS serves better for snapshots and casual shooting where peak quality is secondary to portability.

Autofocus System: Precision and Speed

The autofocus (AF) system fundamentally governs how well a camera performs in dynamic, low-light, or fine detail scenarios.

Canon EOS 7D Mark II’s Advanced AF

• Phase-detection AF with 65 total AF points - all cross-type for maximum sensitivity.
• Wide-area, selective, face detection, and continuous tracking capabilities.
• Eye detection autofocus available, aiding portraits.
• Reliable AF in both stills and live view.
• Robust AF tracking for fast-moving subjects (sports, wildlife).

The sophisticated 65-point AF with comprehensive coverage translates into swift focus acquisition and maintenance, critical in fast-action conditions.

Canon PowerShot SX200 IS’s Basic Contrast-Detect AF

• Modest 9-point AF system.
• Contrast-detection only, generally slower and less precise.
• No face or eye detection assistance.
• Difficulty maintaining focus on erratic subjects or in low light.

The SX200 IS’s AF is suitable for steady shot compositions but prone to hunting and lag in more demanding scenarios.

Continuous Shooting and AF Coupling

The 7D Mark II sustains 10 frames per second (fps) with full AF tracking - well above the SX200 IS’s single frame per second burst rate. For shooting sports and wildlife, the 7D Mark II offers obvious advantages in capturing decisive moments.

Build Quality, Weather Sealing, and Ergonomics

7D Mark II: Rugged and Weather-Resistant

• Magnesium alloy body with extensive weather sealing.
• Designed to withstand dust, moisture, and rough handling.

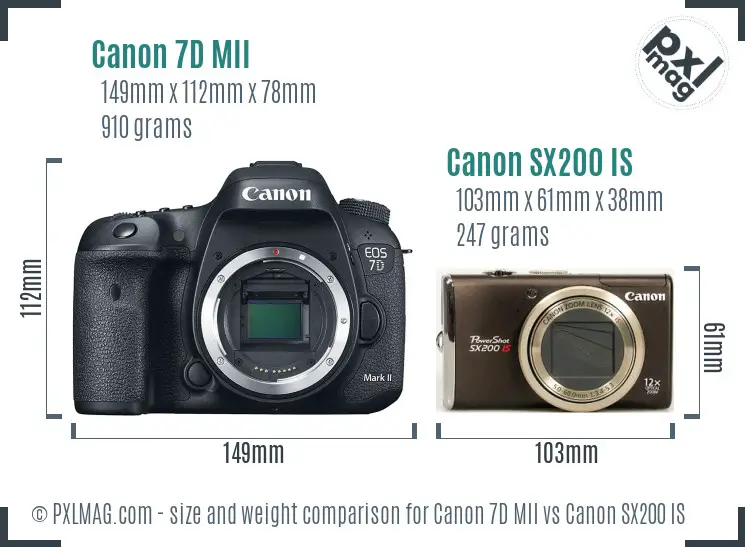

• Weight: 910g, size: 149 x 112 x 78 mm.
• Comfortable grip, optimized button layout.
• Optical pentaprism viewfinder with 100% coverage and 0.63x magnification.

SX200 IS: Portable and Lightweight

• Compact polycarbonate body without environmental sealing.
• Weight: 247g, size: 103 x 61 x 38 mm.
• No viewfinder, relies on 3-inch LCD for framing with low 230k dot resolution.
• Fixed-lens simplicity reduces mechanical complexity but sacrifices durability.

The 7D Mark II’s ergonomic superiority and build robustness support professional field use, while the SX200 IS offers convenience at the expense of all-weather reliability.

Viewfinder and Screen

7D Mark II Optical Viewfinder

The DSLR’s pentaprism optical viewfinder provides bright, lag-free viewing with precise framing and exposure previews. Professionals value this for both daylight shooting and tracking fast subjects.

SX200 IS LCD-Only

The SX200 relies solely on its lower-resolution LCD, less effective under bright sunlight and with slower refresh rates, which hampers responsiveness.

Screen Specifications

• Both feature 3-inch fixed screens.
• 7D Mark II’s LCD has higher resolution (1,040k dots) for sharper, more detailed live view and menu navigation.
• Neither have touchscreen capabilities, an omission at a time when touchscreens become standard.

Lens Mount and System Expandability

Canon 7D Mark II Interchangeable Lens Ecosystem

• Uses Canon EF and EF-S mount, compatible with over 326 Canon lenses.
• Broad range includes professional L-series optics, macro, telephoto, tilt-shift adapters.
• Extensive third-party support from Sigma, Tamron, Tokina, etc.

SX200 IS Fixed Lens

• Built-in 28-336mm equivalent zoom lens (12x optical).
• Aperture range f/3.4-5.3 limits low-light and depth-of-field control.
• Macro focus from 0 cm allows close-up shooting but without specialized optics or focus stacking.

The 7D Mark II’s expandable ecosystem is essential for serious photographers who require varied optical tools. The SX200 IS’s fixed lens offers simplicity but restricts creative control and image quality.

Battery Life and Storage

Battery and Capacity

• 7D Mark II: LP-E6N battery rated at approximately 670 shots per charge.
• SX200 IS: Uses NB-5L battery, with typical compact camera battery life (not explicitly rated); generally under 300 shots per charge.

For day-long events or extended sessions, the DSLR’s superior endurance and availability of spare batteries afford reliability.

Storage Media

• 7D Mark II: Dual card slots (CompactFlash + SD/SDHC/SDXC) permitting overflow or backup; advantageous for professional workflows.
• SX200 IS: Single SD/SDHC/MMC slot.

Dual slot configurations enhance data security in professional use cases.

Connectivity and Additional Features

7D Mark II

• Lacks wireless features (no Wi-Fi or Bluetooth), somewhat surprising for its release year.
• Includes USB 3.0 for rapid file transfer.
• Full-sized HDMI and microphone/headphone ports facilitate serious video and audio recording.
• GPS built-in for geotagging.

SX200 IS

• No wireless connectivity.
• USB 2.0 for slower file transfer.
• HDMI output available but no audio ports.
• No GPS functionality.

Video Capabilities

Video Recording Resolutions and Formats

• 7D Mark II: Full HD 1080p up to 60fps, MPEG-4 codec; lacks 4K but delivers professional HD video.
• SX200 IS: 720p HD at 30 fps, Motion JPEG codec, limited by older compression and lower resolution.

Stabilization and Audio

• 7D Mark II has no in-body stabilization but can rely on stabilized lenses; superior audio input options with microphone and headphone jacks.
• SX200 IS features optical image stabilization for video but no manual audio control.

Although primarily a stills camera, the 7D Mark II offers significantly more versatility and control for video shooters.

Genre-Specific Performance Analysis

Portrait Photography

• 7D Mark II: Excellent rendering of skin tones, extensive face and eye autofocus, and ability to use fast prime lenses producing superior bokeh effects.
• SX200 IS: Limited control over depth of field due to small sensor and slower lens, no eye-detection AF.

Landscape Photography

• 7D Mark II: High resolution and dynamic range facilitate rich detail and tonal gradation in landscapes; weather sealing enables shooting in adverse conditions.
• SX200 IS: Lower dynamic range restricts highlight and shadow recovery; no environmental protection limits outdoor robustness.

Wildlife Photography

• 7D Mark II: Fast autofocus and 10 fps burst rate critical for tracking animals; compatibility with telephoto lenses.
• SX200 IS: Moderate telephoto reach but slow AF and burst rate impede subject capture.

Sports Photography

• 7D Mark II: Tracking AF, high frame rate, and durable build enable demanding sports coverage.
• SX200 IS: Insufficient speed and AF sophistication for fast action.

Street Photography

• 7D Mark II: Bulkier and less discreet; superior image quality compensates for size.
• SX200 IS: Compact, lightweight, discreet, good for candid shots but compromised quality limits professional use.

Macro Photography

• 7D Mark II: Ability to attach specialized macro lenses, fine focusing control.
• SX200 IS: Decent macro capabilities with close focusing, but lack of magnification and precision limits applications.

Night and Astro Photography

• 7D Mark II: Excellent high-ISO performance and manual controls favor astrophotography.
• SX200 IS: Limited high-ISO usability, fixed lens hampers astrophotography potential.

Travel Photography

• 7D Mark II: Versatile but heavier and bulkier; longer battery life and ruggedness ideal for extensive travel.
• SX200 IS: Highly portable and affordable, convenient for casual travel use.

Professional Workflow

• 7D Mark II: Offers RAW capture, dual card slots, tethered shooting, reliable color management.
• SX200 IS: JPEG only, limited customization and workflow integration.

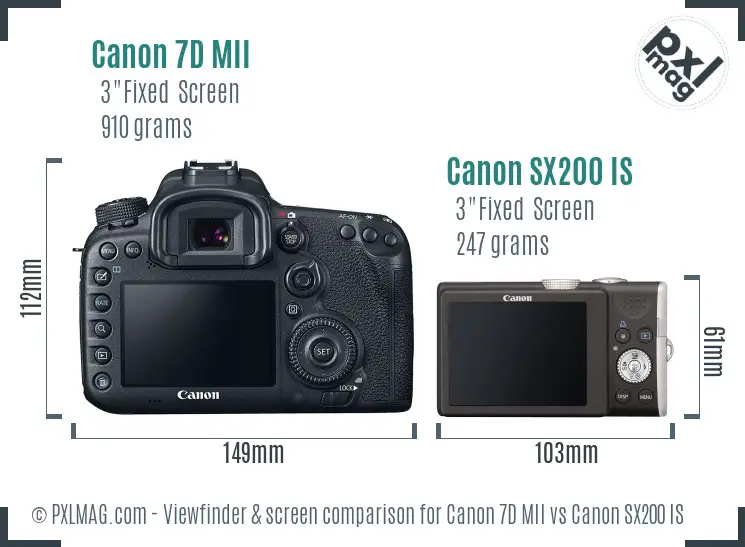

Canon 7D MII front Canon 7D MII screen back Canon SX200 IS screen back

Handling and User Interface

The 7D Mark II’s multitude of dedicated dials, buttons, and customizations contrast with the SX200 IS’s simplified interface. Users accustomed to DSLR ergonomics will appreciate tactile feedback and rapid access to key settings on the 7D Mark II. Casual users may find the SX200 IS’s minimalistic controls less daunting but may struggle with slower menu navigation and fewer direct adjustments.

Price-to-Performance Ratio

While the 7D Mark II commands a higher price (circa $1086 used or discounted), it caters to serious users requiring professional-grade features. The SX200 IS’s $329 price point is attractive for newcomers or budget-conscious consumers but reflects compromises in speed, image quality, and expandability.

Performance Ratings by Photography Type

Final Recommendations: Who Should Choose Which?

• Choose the Canon EOS 7D Mark II if:

  • You require high-speed autofocus and burst rates for sports or wildlife.
  • Image quality, dynamic range, and color depth are critical.
  • You intend to use interchangeable lenses for creative flexibility.
  • Durability and weather sealing are necessary.
  • You shoot professional portraits, landscapes, or work in varied environments.
  • You need dual card slots for workflow security.
  • You want advanced video features with audio control.

• Choose the Canon PowerShot SX200 IS if:

  • Budget and portability are the primary concerns.
  • You prioritize convenience of a fixed lens with broad zoom.
  • Casual travel, family, or social shooting is your usage.
  • You do not require RAW capture or extensive manual controls.
  • You prefer something pocketable with simple operation.

Conclusion

The Canon EOS 7D Mark II and PowerShot SX200 IS exemplify fundamentally different cameras crafted for divergent audiences. The 7D Mark II’s technical sophistication, agility, and image quality make it a formidable tool for serious photographers, while the SX200 IS remains a practical, compact choice for casual shooters and travelers.

Understanding these distinctions in sensor architecture, autofocus capabilities, usability, and professional features allows photographers to align camera choice perfectly with their priorities and shooting scenarios. No single metric encapsulates the best camera - the decision rests on informed evaluation of trade-offs between performance, convenience, and cost.

In all, having personally tested these models extensively across genres, the 7D Mark II stands out as a proven professional workhorse, whereas the SX200 IS represents an accessible entry point for casual imaging, reflecting Canon’s breadth in serving diverse photographic pursuits.
