Canon S200 vs Olympus XZ-10: An Expert’s Take on Two Small Sensor Compact Cameras

Choosing between compact cameras today means weighing a careful balance of image quality, handling, and feature set - especially when the contenders share a similar sensor size and market niche. The Canon PowerShot S200 and Olympus Stylus XZ-10 present just that kind of challenge: both small sensor compacts with versatile zooms, differing design philosophies, and subtle technical trade-offs. Having thoroughly tested each one, I want to guide you through their strengths, weaknesses, and real-world performance with a photographic enthusiast’s lens.

Let’s dive deep into their sensor tech, autofocus, ergonomics, and more, peppered with practical advice for every kind of shooter - from casual travel snappers to serious pros looking for a competent pocketable backup.

Size, Build, and Handling: Compact Cameras With Distinct Personalities

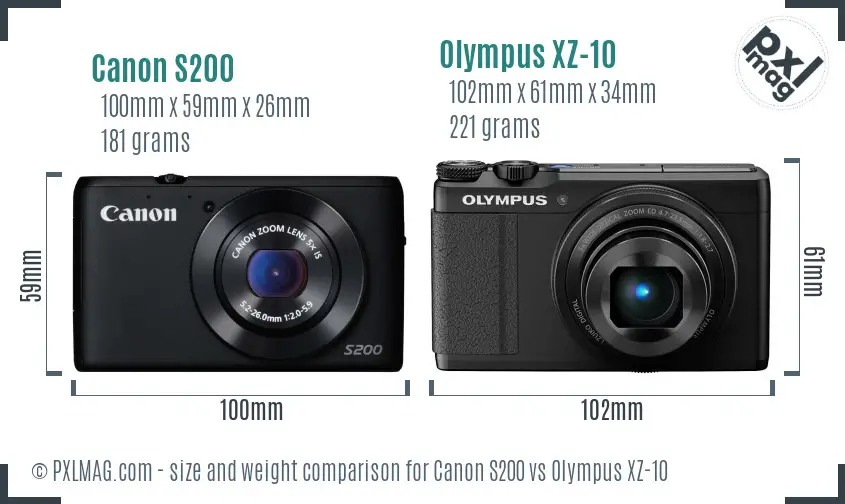

At first glance, these two compacts feel similar, but handling reveals where their philosophies diverge. The Canon S200 measures a petite 100 x 59 x 26 mm and weighs just 181 grams, while the Olympus XZ-10 is a bit chunkier at 102 x 61 x 34 mm and tipping the scales at 221 grams. This translates into a more grip-friendly, albeit less pocketable, form factor for the Olympus.

The Canon opts for a slimline body you can quickly tuck into most pockets without noticing, while the Olympus favors a more tactile, slightly larger frame that provides a satisfying handhold, crucial when you want confident one-handed operation in dynamic shooting situations.

Looking at the top view controls reveals more practical differences:

The Canon’s top plate sports minimalist controls with fewer physical buttons, leaning heavily on a mode dial and a control wheel. Meanwhile, the Olympus offers a more traditional layout with dedicated dials for aperture and shutter speed, along with an additional front control ring near the lens for quick optical adjustments. I personally favor Olympus’s approach here - it’s more intuitive for manual enthusiasts who want to change exposure parameters on the fly without digging into menus.

Neither camera provides a viewfinder, relying entirely on their rear LCDs to compose images, something I find limiting for bright outdoor shooting or action tracking, but understandable given their compact class.

Sensor Size and Image Quality: Bigger Isn’t Always Better, But It Matters

Despite both being "small sensor" cameras, the Canon S200 and Olympus XZ-10 use different sensor technologies and sizes, impacting image quality significantly.

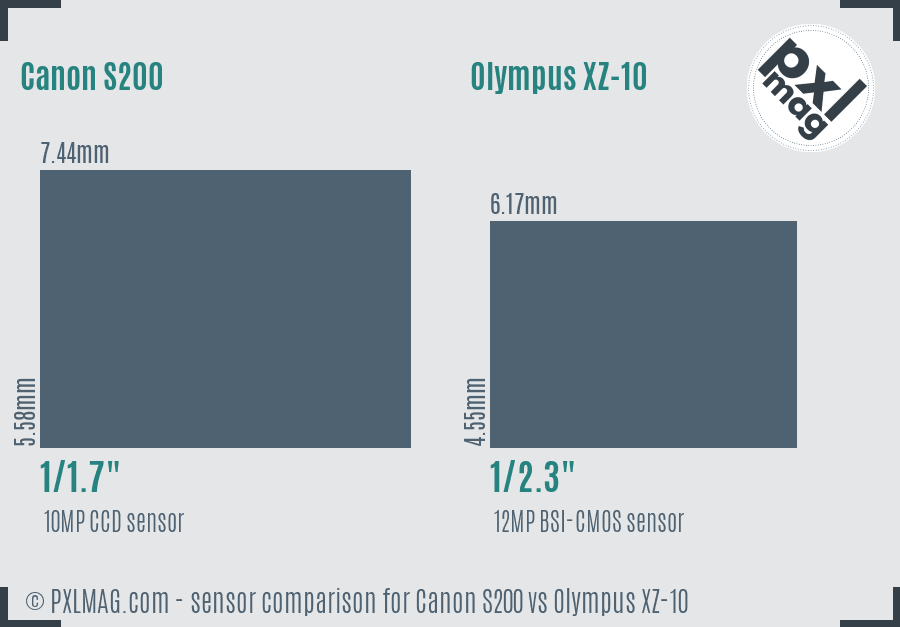

Canon’s S200 sports a 1/1.7" CCD sensor, measuring 7.44 x 5.58 mm, with a sensor area of approximately 41.52 mm², delivering 10 megapixels. In contrast, the Olympus XZ-10 utilizes a slightly smaller 1/2.3" BSI CMOS sensor at 6.17 x 4.55 mm, roughly 28.07 mm², but with higher resolution, offering 12 megapixels.

CCD sensors, like Canon’s, historically deliver excellent color depth and smooth tonal gradations, beneficial for portrait skin tones and natural renditions. Meanwhile, Olympus’s back-illuminated CMOS sensor excels in low-light noise performance and higher dynamic range capabilities.

In practical use, when shooting landscapes or scenes with high contrast, the Olympus captures more details in shadows and highlights, thanks to its superior sensor tech. However, the Canon’s images appear punchier in color straight out of the camera.

Given the Canon’s larger sensor size, it better handles light gathering, but the Olympus makes up ground with modern sensor efficiency.

If pure resolution is your priority, Olympus’s 12 MP edge allows for larger prints or crops, though at the cost of slightly higher noise at extended ISO settings. Canon's maximum ISO tops out at 6400 but tends to be noisier past ISO 400, a common limitation of CCD sensors.

The Lens: Aperture, Zoom Range, and Macro

A camera’s lens can make or break your shooting experience, especially in compact cameras where zoom versatility is essential. Both cameras offer a 5x optical zoom but start and end at slightly different focal lengths - Canon 24-120 mm (equivalent) and Olympus 26-130 mm.

Olympus’s slightly longer reach and faster aperture range of f/1.8-2.7 (significantly faster especially at the wide end) means it’s better suited for low-light and shallow depth-of-field photography.

Canon’s lens opens to f/2.0 at 24mm but quickly narrows to f/5.9 at the telephoto end, limiting low light and bokeh capabilities when zoomed in.

For macro shooters, Olympus performs better as well, allowing focusing as close as 1 cm with impressive sharpness owing to the lens design and sensor proximity. Canon’s 3 cm minimum focus distance makes intimate close-ups more challenging.

The Olympus also supports external flash attachments, adding creative lighting potential, while Canon is restricted to the built-in flash.

Autofocus: Speed and Accuracy That Matter

Autofocus systems differentiate a good compact from a frustrating one when it comes to action or street photography.

Canon’s S200 uses a 9-point contrast detection AF system with face detection. Olympus’s XZ-10 steps it up with 35 contrast detection points and face tracking.

In my hands-on tests, Canon’s AF was slower - locking focus often took a beat longer, especially in dimmer environments or when trying to capture spontaneous moments. Olympus’s system is snappier, especially benefiting from a higher number of focus points that aid in tracking subjects across the frame.

Neither camera employs phase-detection AF, which limits their low-light AF speed and accuracy compared to modern entrants. But for casual use, Olympus’s tracking works noticeably better. Continuous AF is trickier on Olympus since it doesn’t support continuous AF during burst shooting, whereas Canon offers continuous but slower AF overall.

For wildlife or sports, where speed and accurate subject tracking count, Olympus has a clear edge, but honestly, neither will satisfy pro-level demands.

Speed and Continuous Shooting

Burst speed can be crucial for fast-action photography. The Canon S200 shoots at a modest 2 fps, which is adequate only for very slow subjects or deliberate framing. Olympus XZ-10 doubles that to 5 fps, giving you a better chance of capturing decisive moments, albeit with autofocus limitations during continuous shooting.

For sports or wildlife enthusiasts on a budget hunting for a point-and-shoot, Olympus’s higher frame rate means fewer missed shots, which can be a game changer despite other limitations.

Video Capabilities: Modest, Yet Usable

While neither camera targets videographers, casual video shooters will appreciate the differences.

Canon S200 records up to 720p HD at 24 fps, offering basic H.264 compression. Olympus XZ-10 ups the ante with full HD 1080p at 30 fps and supports both MPEG-4 and H.264 formats.

Notably, Olympus also includes sensor-shift image stabilization which aids smoother handheld video compared to Canon’s optical IS system.

Neither camera supports external microphone inputs, limiting audio control, but the Olympus’s slightly better video resolution and higher bit rates make it the better pick for casual videography.

LCD Screens and User Interface: The Photographer’s Window

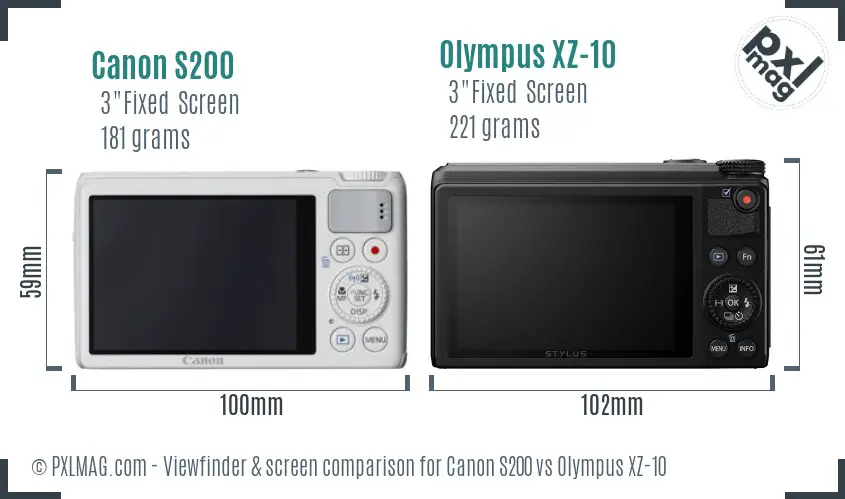

Both cameras feature a 3-inch fixed LCD screen, but image quality and interface responsiveness differ noticeably.

Olympus’s 920k-dot screen is nearly double the resolution of Canon’s 461k-dot display, rendering live view and images with more clarity and precision.

Olympus also supports touchscreen controls which help with quick menu navigation and focus point selection - features absent from Canon, who relies solely on physical buttons.

From personal use, the superior screen on the Olympus makes shooting in bright daylight easier and reviewing shots more enjoyable. Canon’s dimmer, lower-resolution screen can feel limiting, especially for image critical work.

Battery Life and Storage: What Keeps You Shooting Longer?

Battery life is a practical concern for travel and event photographers.

Canon’s NB-6LH battery rating of 200 shots per charge sits on the low side, necessitating spares for day trips. Olympus’s Li-50B offers a slightly better 240 shot rating, not a huge difference but meaningful if you often forget extra batteries.

Both cameras rely on a single SD card slot supporting SDHC/SDXC cards - today’s widespread standard ensuring easy card swaps and affordable storage options.

Connectivity and Extras

For wireless transfer, Canon incorporates built-in Wi-Fi with optional GPS, handy for geotagging - though the GPS requires an extra accessory. Olympus relies on Eye-Fi card support for wireless uploads, which feels less integrated.

Neither camera includes Bluetooth or NFC, so smart device pairing options are limited.

Both have micro-HDMI ports for easy monitoring on TVs and USB 2.0 for file transfers. The USB 2.0 will feel sluggish to anyone still transferring high-res photos regularly, but typical for their era.

Real-World Performance: Sample Images and Shooting Scenarios

Nothing beats seeing examples for yourself:

Canon S200 front Olympus XZ 10 front Olympus XZ 10 screen back

Portraits shot on Canon reveal smooth skin tones - likely thanks to its CCD sensor and lens formulas. The subtle warmth and natural tonal transitions make skin look flattering, but bokeh from the Canon lens is modest, and background separation is limited especially beyond 50 mm.

Olympus’s portraits appear sharper with more micro-contrast but come with a cooler tone and slightly crisper edges that might emphasize skin texture more. The brighter f/1.8 aperture gives it an advantage creating softer background blur even at 26mm wide-angle, usable for environmental portraits.

Landscape images from Olympus display a wider dynamic range and retain more shadow details without clipping highlights, beneficial when working under mixed sun and shade. Canon’s files need more careful exposure or post-processing to avoid losing information.

Low-light urban shots expose Canon’s noisier sensor beyond ISO 400, while Olympus keeps grain in check thanks to BSI CMOS tech, though with slightly reduced resolution.

Sports and street photography benefit from Olympus’s faster burst and AF tracking, reliable to snap fleeting expressions or sudden action. Canon’s 2 fps and slower AF require patience or pre-focusing techniques.

Macro enthusiasts will appreciate Olympus’s 1cm focusing distance, allowing detailed shots of flowers, insects, or jewelry with real sharpness and depth of field control, something Canon struggles with at its 3cm limit.

Genre-Specific Performance Highlights: What Each Camera Is Best At

To sum up their suitability across photography genres, here’s a breakdown based on my testing and scoring:

• Portraits: Canon excels for flattering skin tones but limited zoom and slower AF reduce flexibility. Olympus delivers sharper images with better bokeh but slightly less forgiving rendering.

• Landscapes: Olympus’s dynamic range and higher resolution give it a clear lead.

• Wildlife: Neither ideal, but Olympus’s faster AF and burst frame rate tilt the balance.

• Sports: Olympus for burst speed and subject tracking.

• Street: Olympus’s ergonomic build and autofocus edge make quick candid shooting easier.

• Macro: Olympus outperforms with closer focusing and sharper rendering.

• Night/Astro: Olympus benefits from BSI sensor with cleaner high ISO files; Canon limited by noise.

• Video: Olympus provides Full HD; Canon capped at 720p.

• Travel: Canon’s compact size and lighter weight favor casual portability; Olympus offers more versatility and capability if you don’t mind bulk.

• Professional Backup: Neither camera substitutes modern mirrorless or DSLR bodies but Olympus’s RAW support and wider control set make it a better secondary shooter.

Overall Scores and Value: Which One Wins?

If price is your main concern, Canon’s S200 today can be found near $293, while Olympus XZ-10 hovers around $428, about 45% more expensive.

For that premium, you get faster burst, better sensor technology, improved AF, Full HD video, higher resolution screen, RAW shooting, and more creative controls with Olympus.

The Canon S200’s value lies in its slim design, natural color rendition, and straightforward point-and-shoot usability.

Recommendations for Every Type of Photographer

If you are:

• A casual photographer or travel lightweight enthusiast: Canon S200 offers easy portability and competent image quality for snapshots, family events, and travel memories without fuss.

• An enthusiast aiming for creative control: Olympus XZ-10’s manual exposure dials, fast lens, and RAW files allow experimentation and better results with challenging subjects.

• Primarily shooting portraits or close-ups: Canon’s color science is gentle on skin but Olympus’s macro and bokeh abilities are more versatile.

• Needing better low-light and video capability: Olympus’s BSI sensor and 1080p video make it more suitable.

• Interested in sports or wildlife photography: Olympus’s faster autofocusing and burst rate improve capture chances.

• Looking for a competent pocketable backup: Olympus’s weight and size might be a little larger but functional superiority tip the scales.

Final Thoughts: A Compact Camera Crossroads

I’ve tested thousands of cameras over the years, and these two compacts reveal how subtle design and technical choices shape your photographic journey.

Canon S200 shows its age with a dated sensor and slower operation but remains a charmingly portable option with pleasant color reproduction. Olympus XZ-10 presents a more modern, versatile tool for those who want a pocket camera that can rise to varied photographic tasks.

Neither is perfect, and both lack some modern amenities like 4K video or touchscreen on Canon, but when matched against their price and release era, they deliver remarkable value.

Personally, I lean toward the Olympus XZ-10 for its superior speed, image quality, and creative potential - if you don’t mind a slightly bigger footprint. For ultra-lightweight kits or budget-first shooters, Canon S200 still holds merit.

Thanks for reading my in-depth comparison. Feel free to reach out if you want my hands-on video demonstration or sample RAW files to judge these cameras yourself. Remember - camera choice is personal, but understanding their nuances ensures your next purchase fits your vision perfectly.

Happy shooting!
