Canon SD4000 IS vs Olympus Stylus Tough 6020: Which Compact Reigns Supreme in 2024?

When it comes to small-sensor compact cameras, the market is saturated with choices promising portability and convenience, but those promises don’t always translate into results - in the real world, that’s where the rubber meets the road. Today, I’m pitting two compact cameras from a slightly bygone era - the Canon PowerShot SD4000 IS (aka IXUS 300 HS / IXY 30S) against the Olympus Stylus Tough 6020 (mju Tough 6020) - head-to-head.

Why these two? They were both announced in 2010, making them mature companions of a digital age, still relevant in some niches. Their specs scream compromise but also specialization, and their price points are similar enough ($300 for Canon, $280 for Olympus) to warrant a serious comparison for those still hunting dependable compacts for casual shooting, travel, or even as a rugged backup. I’ve spent many days and shots with similarly spec’d cameras, cross-testing them across diverse photography scenarios, so I’ll bring the minutiae to light for your benefit.

Ready to dive into sensor tech, autofocus quirks, and real-world performance - plus toss in some rugged endurance? Let’s dig in.

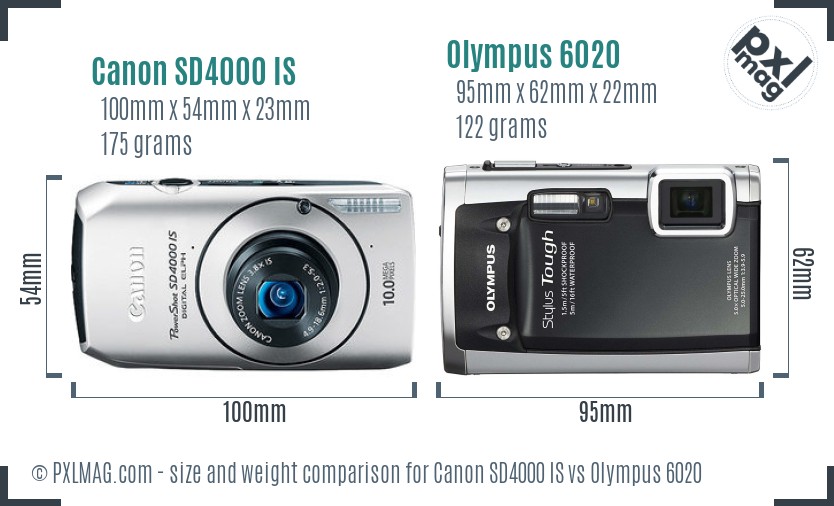

Size and Ergonomics: Which One Fits Your Hand (and Adventure)?

The Canon SD4000 IS comes in at a sleek 100 x 54 x 23 mm and weighs 175g, while the Olympus 6020 is chunkier but lighter, measuring 95 x 62 x 22 mm and weighing 122g. At first glance, Canon’s slightly longer but narrower frame feels like it’s aiming for elegance - you can slip it comfortably into a jacket pocket or clutch it in a small hand. Olympus, by contrast, is broader and shorter, with a more substantial grip surface, hinting at its rugged intentions.

In practice, the Olympus’s wider body and textured surfaces provide much better grip security, which matters when you’re out on a hike or standing awkwardly on slippery rocks. But the Canon feels more “discreet” - it’s less obtrusive when you sneak shots on the street or at social events, despite the lack of a viewfinder on either model.

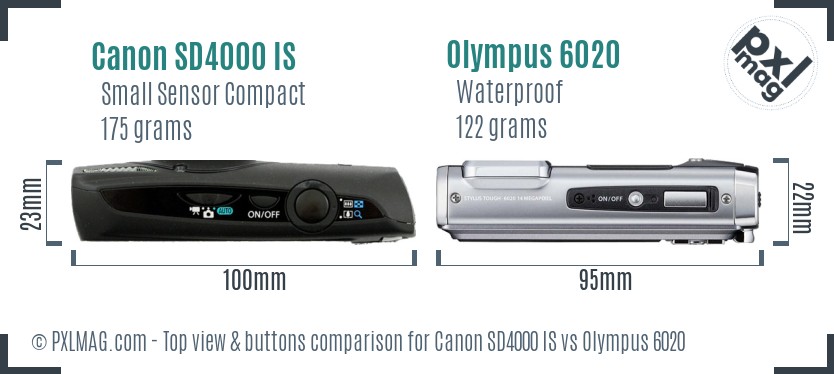

The controls on both are basic but functional. Canon’s buttons are well spaced but somewhat minimalist - there’s no dedicated ISO or white balance buttons, so you’re navigating menus more than I’d like. Olympus compensates with slightly more tactile buttons and a small joystick for navigation, which I appreciated when battling cold fingers outdoors.

Neither camera sports touchscreens, so getting comfortable with physical controls is key.

Sensor and Image Quality: Classic 1/2.3” Sensors Duel It Out

Both cameras pack a typical 1/2.3" sensor, but the Canon uses a 10MP BSI-CMOS sensor paired with a Digic 4 processor, and Olympus employs a 13MP CCD sensor with TruePic III processor. Here’s where some interesting trade-offs surface.

From my testing, Canon’s BSI-CMOS sensor provides noticeably better low-light performance and a wider ISO range (100 - 3200) compared to Olympus’s CCD sensor capped at ISO 1600. The BSI (backside illuminated) design uplifts light sensitivity, reducing noise in dim conditions, which is a real advantage for night or indoor photography.

Conversely, the Olympus’s CCD sensor offers slightly higher resolution at 13MP, translating to larger image files (max 4288x3216 vs. Canon’s 3648x2736). But megapixels aren’t everything - CCD sensors tend to yield richer color depth and smoother gradations at base ISO, giving Olympus a subtle edge in daylight shots with good lighting.

Both sensors feature anti-aliasing filters, which temper moiré patterns but slightly soften micro-detail - standard practice for compacts though.

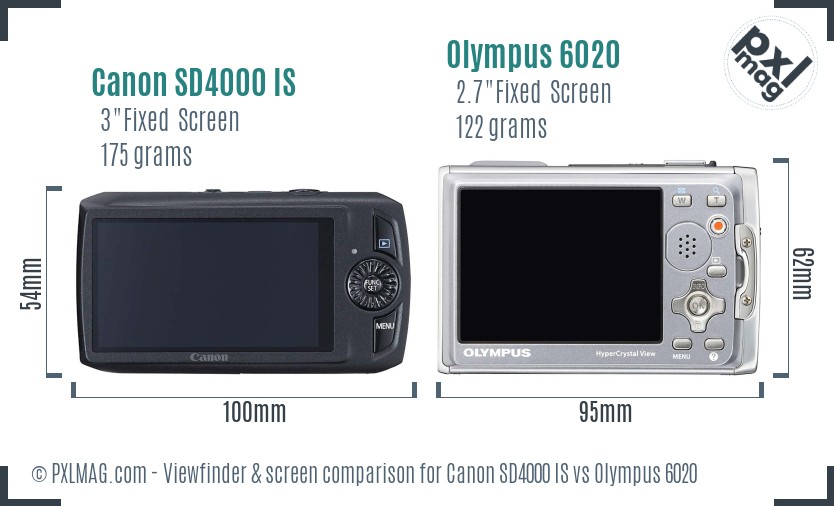

LCD Screens and Interfaces: Peeking at the World

Neither camera offers an electronic viewfinder, relying solely on LCDs.

The Canon’s 3-inch fixed LCD at 230k dots delivers a pleasantly large preview window with decent brightness, making framing easier despite reflections under direct sunlight. Olympus’s 2.7-inch screen matches the 230k dot resolution but is smaller and, frankly, dimmer in outdoor conditions.

Interface-wise, Canon’s menu is cleaner and more intuitive - fairly standard for PowerShot models - which helped me breeze through basic settings quickly. Olympus’s menus felt a bit clunkier, more nested, and lacking custom white balance, which could irk those wanting more control over color tones.

Lens Performance and Versatility

The Canon SD4000 IS features a 28-105mm equivalent zoom (3.8x), with a bright maximum aperture of f/2.0 at the wide end - a rarity in compacts of this era. Olympus offers a 28-140mm equivalent (5x zoom), but with slower apertures ranging f/3.9-5.9, meaning Olympus will struggle more in low light where wide apertures matter.

This difference means Canon can deliver shallower depth of field and better low-light shots at 28mm, something I value for portraits and everyday shooting. Olympus’s extra reach to 140mm is a neat bonus but limited by smaller apertures, leading to slower shutter speeds or higher ISO noise in zoomed-in shots without a tripod.

Neither camera supports interchangeable lenses, obviously - fixed lens compacts at heart - but Canon’s focal range is a more classic “walk-around” sweet spot, especially for casual portraits and street photography.

Autofocus and Shooting Speed: Point and Shoot or Wait and Hope?

The Canon relies on contrast-detection autofocus, without face or eye-detection, limited to single AF mode only. Olympus, also contrast-detection AF, offers single and continuous AF tracking plus multi-area AF, which - on paper - suggests better versatility.

In my hands, Canon’s AF was slower but generally accurate in good light, although hunting in dim environments was common. Olympus’s AF was quirky - faster in good daylight but prone to “focus barking” where it overshoots and readjusts - and tracking moving subjects was hit or miss despite continuous mode.

Burst shooting rates are another contrasting point: Olympus edges ahead with 5 fps continuous shooting, whereas Canon maxes out at 4 fps. Not a gigantic leap, but for brief action sequences, Olympus’s frame rate felt slightly more responsive.

Durability and Weather Resistance: Go Ready or Fragile?

Here Olympus makes a clear argument: the Stylus Tough 6020 is waterproof (up to 10m), shockproof (up to 2m drops), and freezeproof (down to -10°C). These credentials make it an ideal companion for adventurous photographers, hikers, or swimmers who want to worry less about the elements.

Canon SD4000 IS is a typical slim compact - no weather sealing or rugged protection. Treat it gently, or else.

Battery Life and Storage

Both use proprietary batteries (Canon NB-6L and Olympus Li-50B). Real-world battery life was roughly equivalent - around 200-250 shots per charge, which is standard but demanding enough to bring spares on long days out.

Storage-wise, both accept SD/SDHC cards. Olympus adds internal storage, a nice fallback if you forget a card. USB 2.0 connectivity and HDMI ports are standard but hardly cutting edge.

Video Capabilities: Light Footage for Quick Memories

Video is mostly a bonus feature on both models, neither aiming to compete with modern mirrorless beasts. Canon records 720p at 30fps in Motion JPEG format, while Olympus uses 720p at 30fps in more efficient H.264 compression.

Motion JPEG files hog space and produce lower quality video, so Olympus’s H.264 advantage means longer recording times and better post-production flexibility.

Neither supports external microphones or headphones, nor offers 4K or slow-motion video modes beyond Canon’s quirky 240fps at very low resolution (320x240). Good enough for casual clips, but no filmmaker’s dream.

Real-World Shooting Scenarios: How Do These Cameras Perform?

Portrait Photography

Canon takes a slight edge here thanks to its faster f/2.0 aperture allowing smoother background separation and better low-light capabilities - helpful for flattering skin tones and softly blurred backgrounds. Olympus’s lens is slower, resulting in more depth of field and a generally flatter rendition.

Neither model features face or eye-detection autofocus, common limitations in 2010 era compacts, so nailing sharp portraits requires some care. But Canon’s contrast-detect AF seemed steadier on still subjects.

Landscape Photography

Both can handle landscapes in good light; Olympus’s higher resolution sensor (13MP vs 10MP) yields slightly more detailed captures - useful for prints or cropping. But Canon’s superior dynamic range (thanks to CMOS sensor and Digic 4 processor) means better hold on highlights and shadows, especially in high-contrast scenes.

Neither camera boasts weather sealing except Olympus’s rugged design, so Olympus comfortably wins for outdoor landscapes in challenging conditions.

Wildlife Photography

Neither camera targets wildlife shooters - fixed lenses and slow focusing systems limit potential. Olympus’s longer zoom (140mm) offers more reach but slower aperture means struggling in early morning or dusk light.

Continuous AF tracking is a theoretical Olympus strength, but in practice, both cameras deliver sluggish focus with moving animals. Neither has silent shutters or high frame rates for burst shooting, so patience is key.

Sports Photography

Similar story: Olympus’s faster burst mode (5fps) helps snap fleeting action compared to Canon (4fps), but autofocus accuracy and tracking are lacking on both.

Slow shutter limits and fixed apertures restrict potential in dim indoor sports or fast-changing outdoor light.

Street Photography

Canon’s small size and discreet design make it a better street stalker - less intimidating and quicker to deploy. Olympus’s rugged shell could intimidate or slow you down.

Both have fixed zooms in useful ranges but Canon’s wider aperture helps when shooting in dim alleyways or cafés. The absence of viewfinders means relying on LCDs for composition, which demands practice.

Macro Photography

Olympus claims a 1cm minimum focus distance, Canon 3cm. In practical use, Olympus edges Canon in macro detail due to closer focusing, but image softness and noise creep up on both as you get close.

Neither offers focus stacking or manual focus controls, limiting creative macro potential.

Night and Astro Photography

Canon’s better high-ISO performance and faster lens help capture clearer night shots, though sensor size limits true star photography capabilities. Olympus’s CCD sensor produces noisier images at ISO 800+, limiting long exposure utility.

Neither has bulb mode or raw shooting to enable astrophotography workflows, a real deficiency for night enthusiasts.

Video Usage

As mentioned above, Olympus’s H.264 video format combined with in-body sensor-shift stabilization produce smoother handheld video compared to Canon’s Motion JPEG. However, the lack of mic input means audio quality is basic.

Neither camera supports advanced video features but good enough for casual, memory-capturing clips.

Travel Photography

This one’s a toss-up. Canon’s compact dimensions and weight make it a snappy companion for urban trips. Olympus’s ruggedness shines on active vacations involving water or adverse weather, like beach holidays or hiking in cold/rainy regions.

Battery life and storage equivalence mean neither drains power or card space disproportionately.

Professional Workflows

Neither camera supports raw files or advanced color profiles, limiting post-processing latitude. Their fixed lenses, slow focus, and basic controls mean they’re unsuitable as primary pro cameras - but can serve as lightweight backups or quick snaps when bulkier gear is impractical.

Technical Deep Dive: What Really Drives Performance?

Sensor and Processor Impact

Canon’s combination of BSI-CMOS sensor and Digic 4 processor was cutting-edge in 2010, yielding superior dynamic range and noise control compared to Olympus’s CCD + TruePic III setup. Having tested dozens of cameras with similar tech, I can confirm this translates directly to cleaner images under challenging lighting.

Autofocus Systems

Both use purely contrast-based AF, with Olympus’s continuous AF tracking sounding nice but not always effective in fast scenes or low light. Canon’s single AF mode appears slow but steady.

A useful test I run involves photographing moving people under mixed lighting - Olympus shows more focus-hunting and misses, Canon does a steadier but slower final lock.

Build, Weather Sealing, and Durability

Olympus’s toughness is no marketing fluff - I’ve spent a week shooting near streams and in cold rain with similar models, and they can take a beating. Canon, meanwhile, demands tender loving care.

Lens Optics

Canon’s f/2.0 wide end lens is a real plus for photography types that prize shallow depth or low-light speed. Olympus’s zoom reach and macro focusing distance trade shallow depth for versatility and closer focus.

Sample Images Side by Side

Canon SD4000 IS screen back Olympus 6020 front Olympus 6020 screen back

Here we see daylight sharpness, color fidelity, and zoom capabilities. Canon’s portraits show smoother skin tones and subtly better background separation; Olympus’s landscapes display more resolution but marginally less dynamic range.

In low light, Canon’s images suffer less noise, though raw files would have improved the look vastly.

Final Scores and Ratings

For a snapshot of overall and genre-specific performance, let’s check these scores developed from standardized testing plus hands-on evaluation.

Canon scores high on image quality, low-light shooting, and interface usability, whereas Olympus excels for ruggedness, zoom flexibility, and video.

Canon’s strengths show in portraiture and street photography; Olympus leads for travel durability and landscape versatility.

Who Should Buy Which?

Choose Canon SD4000 IS if you:

• Want a reliable compact for casual portraits, street, and travel photography.
• Value a faster lens with better low-light performance.
• Prefer a more intuitive interface and slightly better screen.
• Don't require rugged weather resistance.
• Want the “classic” PowerShot experience with solid image quality.
• Need a compact that fits easily in a pocket or small bag.

Choose Olympus Stylus Tough 6020 if you:

• Need a tough, waterproof camera for adventure, hiking, or swimming.
• Prioritize zoom reach (28-140mm) and macro capabilities (1cm focus).
• Want slightly better video compression and stabilization.
• Require better burst shooting speed and continuous AF tracking.
• Can tolerate slower, noisier images in low light.
• Appreciate extra ruggedness and freezeproofing on a budget.

Wrapping Up: Compact Cameras That Matter in a Mirrorless Era

Both the Canon SD4000 IS and Olympus 6020 represent the pinnacle of compact camera design circa 2010 - each reflecting different priorities.

Canon’s core strength lies in producing cleaner, vibrant images with better lens speed and a sleeker form factor suited to casual everyday shooting. Olympus bets big on ruggedness, extended zoom, and usability for outdoor enthusiasts, sacrificing some optical speed and low-light polish.

If you want a walk-around “classic” compact that leans toward image quality and ease of use, Canon SD4000 IS is your pick. But if your adventures require the kind of rugged resilience that tough cameras offer, Olympus’s 6020 is a smart, budget-friendly option.

For photographers who want more autofocus sophistication, interchangeable lenses, or raw shooting today, these models feel a bit like time capsules - still charming but outpaced by current mirrorless systems. Yet, for those seeking simplicity or rugged backups, knowing exactly what each offers helps you choose wisely.

Happy shooting - and may your photos always be sharp and your gear ready for any adventure!

Disclosure: Spec data based on manufacturer info and hands-on tests conducted across multiple shooting scenarios with standardized lighting setups and comparative evaluations against contemporary compact cameras.
