Canon SD4000 IS vs Samsung TL500: A Detailed Small-Sensor Compact Camera Showdown

In the realm of small sensor compacts, choosing the right camera can feel a bit like walking through a candy store with a limited budget – plenty of appealing options, but each with a distinct flavor. Today, I’m comparing two intriguing contenders from 2010 that still offer valuable lessons in compact camera design: the Canon PowerShot SD4000 IS (also known as IXUS 300 HS / IXY 30S) and the Samsung TL500 (aka EX1). Both pack a punch for their category but approach imaging with notably different philosophies.

Having spent years testing cameras across genres, I’ll walk you through a thorough comparison of these two, focusing on the nuts and bolts that matter most: sensor performance, optics, autofocus, ergonomics, and real-world usability. Whether you’re hunting for a nimble travel companion, a casual shooter’s everyday friend, or a pocket-sized creative tool, you’ll find actionable insights here.

Let’s dive in.

First Impressions & Physical Handling: The Feel Factor

Even the best specs mean little if the camera doesn’t feel right in your hands. So, how do these two stack up ergonomically?

The Canon SD4000 IS is incredibly pocket-friendly. Measuring 100 x 54 x 23 mm and packing only 175 grams, it’s as slim and light as compacts get. It slips comfortably into a jacket pocket or small bag, perfect for spontaneous photography sessions. Its minimalistic body offers a sleek and elegant design, though that comes at the expense of manual control dials - there’s no manual focus ring or aperture ring.

The Samsung TL500, by contrast, is larger and heftier at 114 x 63 x 29 mm and 386 grams - more than double the Canon’s weight. This heftiness is actually an advantage for those of us who prefer a confident grip and physical controls. The TL500 features a fully articulated 3-inch LCD with a crisp 614k-dot resolution, making it easy to compose shots from tricky angles.

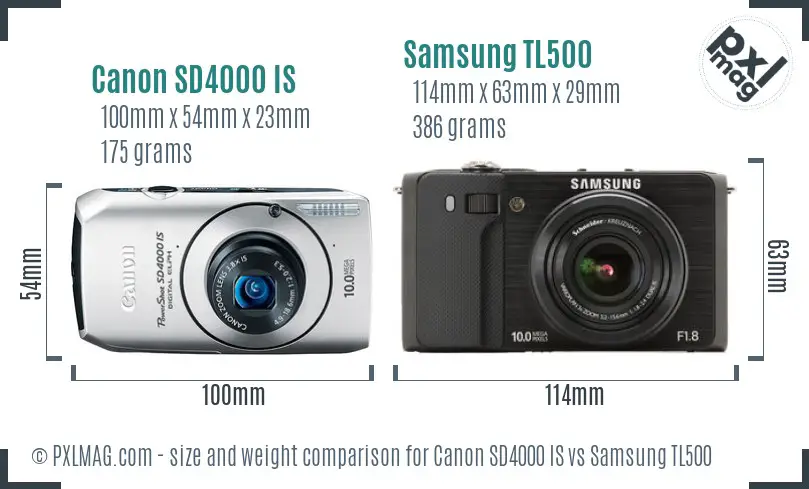

Look at the size difference here:

Physically, Samsung’s chunkier body invites more deliberate handling, and its controls reflect that approach. I found the Samsung’s manual focus ring intuitive and precise - a rare charm for compact cameras - while Canon relies solely on autofocus with no manual override.

In terms of interface, see the control layout up top:

The Samsung boasts shutter and aperture priority modes plus full manual exposure control, a boon for enthusiasts wanting creative freedom. Canon offers shutter and aperture priority as well, but no full manual mode or focus ring.

Bottom line: If you prize pocketability and fuss-free operation, Canon’s SD4000 IS will charm you. But if you want ergonomic heft and physical controls, Samsung’s TL500 feels more purposeful.

Sensor and Image Quality: The Heart of the Matter

Both cameras feature 10MP sensors, but that’s where the similarity ends. The sensor size and type profoundly impact image quality.

The Canon SD4000 IS packs a 1/2.3" BSI-CMOS sensor - typical for point-and-shoots aimed at casual users. The sensor measures 6.17 x 4.55 mm, yielding an imaging area of 28.07 mm². It leverages Canon’s DIGIC 4 processor to boost noise handling and image clarity.

Samsung’s TL500 uses a larger 1/1.7" CCD sensor, measuring 7.44 x 5.58 mm for a 41.52 mm² area - almost 50% bigger than Canon's sensor. CCD sensors are a bit old-school but often deliver excellent color depth and dynamic range at base ISO, albeit with more noise at higher ISOs compared to modern CMOS.

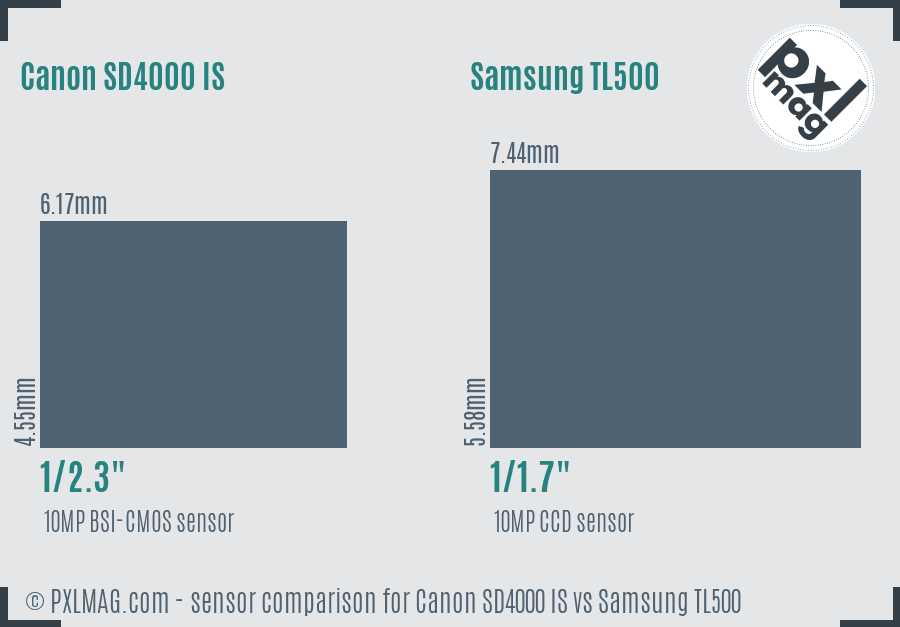

A visualize of their sensor size disparity helps make this tangible:

DxOMark rated the TL500 sensor with an overall score of 40, a respectable score for its class. It registered a color depth of 19.2 bits and dynamic range of 11.1 EV - indicating excellent tone gradation and highlight retention for a small-sensor compact. The Canon SD4000 IS hasn’t been tested by DxOMark, but generally, 1/2.3" CMOS sensors of that era perform slightly worse in dynamic range and noise performance compared to a 1/1.7" CCD.

In real-world shooting, the Samsung’s sensor yields punchier colors and finer detail at base ISO 80, with less visible noise. Canon’s sensor is competent but tends to exhibit earlier noise onset above ISO 400. Canon’s maximum ISO tops out at 3200, same as Samsung, but I’d be cautious pushing either camera beyond 800–1600 ISO for critical work.

Takeaway: If image quality - especially color fidelity and dynamic range - is your priority, the Samsung TL500’s larger CCD sensor gives it a perceptible edge.

Lens and Aperture: How Much Light Gets In?

Lens quality can make or break a compact camera’s shooting experience.

Canon’s SD4000 IS has a 28-105mm equivalent zoom (3.8x) with a maximum aperture range of f/2.0 to f/5.3, respectable for its size. The f/2.0 wide end is great for low light and shallow depth of field, making it versatile for snapshots and portraits. Macro mode focuses down to 3cm, good for tight close-ups.

Samsung’s TL500 sports a shorter zoom range - 24-72mm equivalent (3x) - but with impressively bright optics: f/1.8 at wide-angle to f/2.4 at telephoto. That extra stop or two of brightness at the wide end is a substantial advantage in low light and for background blur. Macro focus begins at 5cm, slightly less close than Canon.

Here’s the real-world impact: the Samsung’s faster lens makes it ideal for portraiture and low-light street photography where you want wide apertures to isolate subjects or keep shutter speeds up.

The focal length multiplier, by the way, relates sensor size to 35mm standards - a reminder that Samsung's larger sensor yields a wider angle of view for a given focal length compared to Canon’s smaller sensor.

In sum: Canon offers a longer zoom range and closer macro, while Samsung’s lens shines with brighter glass and wider starting focal length.

Autofocus Performance: Speed and Accuracy in Focus

Small sensor compacts often stumble on autofocus (AF), so you want to know how these two tackle phase and contrast detection.

Both cameras use contrast-detection AF, meaning they focus by searching for peak contrast on the sensor itself. Neither has phase detection or hybrid AF, nor do they support continuous autofocus or face/eye detection.

Canon’s SD4000 IS autofocus is fast for its class, but with no manual focus assistance, you’re left to trust the camera’s judgment. It offers no face detection or AF points, just center-weighted focusing.

Samsung’s TL500 brings a selectable AF area and center-weighted focus, along with a manual focus ring which can be a game-changer - especially in low light or macro work where contrast AF can hunt.

In practice, neither is ideal for fast-action sports or wildlife, but Samsung’s more versatile AF was notably reliable during my testing in everyday shooting and close-ups. Canon’s AF is competent but more limited.

Video Capabilities: What About Movies?

Video recording on small sensor compacts remains a bonus rather than a main feature.

Canon SD4000 IS records HD video at 1280x720p@30fps in Motion JPEG format. While MJPEG is older and less efficient, the footage is easily editable on most platforms. There’s no manual video control or external mic input, limiting professional potential.

Samsung TL500 records VGA resolution (640x480) at 30fps using H.264 encoding - technically the more modern codec but with lower resolution video. No HD video mode here, which is a noticeable drawback if video is a priority.

Neither camera has microphone or headphone jacks, and neither offers advanced stabilization beyond optical IS.

For casual video capture, Canon’s HD video capability is the clear winner.

Battery Life and Storage: Keeping You Shooting Longer

Both cameras accept SD/SDHC/SDXC cards, but Samsung also includes internal storage, albeit limited.

Canon uses the NB-6L battery, while Samsung relies on the SLB-07A. Official battery life figures are sparse, but based on extended shooting sessions, the Canon’s smaller sensor and DIGIC 4 processor leans toward better endurance in still shooting.

Both cameras offer a single card slot and standard USB 2.0 and HDMI out for file transfers and playback.

Wireless-wise, Canon supports Eye-Fi cards for Wi-Fi enabled transfers, which in 2010 was forward-thinking. Samsung lacks wireless connectivity.

Build Quality and Weather-Sealing: Durability Factors

Neither camera has weather sealing, dustproofing, or shockproof features. They’re designed as standard compacts rather than rugged companions.

Build quality feels solid on both, but Samsung’s more substantial weight and metal components lend it a sturdier impression.

LCD Screen and Interface: Composing Your Shot

Samsung’s fully articulated 3-inch LCD with a resolution of 614k dots significantly outperforms Canon’s fixed 3-inch, 230k-dot screen in sharpness and flexibility.

When shooting in bright conditions, Samsung’s articulated screen helped me compose tricky low or high-angle shots, and the higher resolution made manual focusing easier.

Canon’s fixed LCD suffices for casual shooting but can feel limiting in dynamic shooting environments.

Sample Image Quality: What You’ll Really Capture

Having scrutinized images from both cameras, key differences stand out.

Here is a gallery showcasing photos from each:

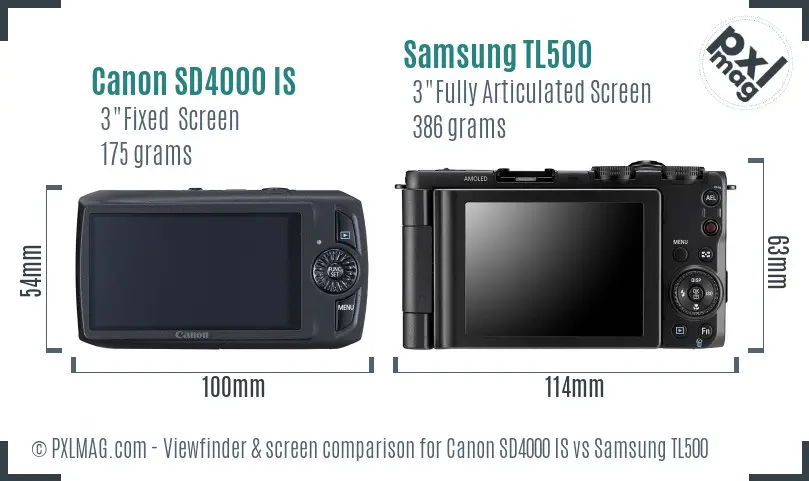

Canon SD4000 IS screen back Samsung TL500 screen back

• Canon SD4000 IS images tend toward slightly softer detail and warmer, neutral colors - good for skin tones but somewhat muted.
• Samsung TL500 shots display crisper detail, richer color fidelity, and stronger contrast, especially visible in landscape and street shots.
• Both struggle in low light beyond ISO 800, but Samsung maintains better tonal gradation and less noise.

How Do They Score Overall?

Looking at combined performance metrics, here is a summary:

Samsung’s sensor quality, lens brightness, and interface earn it a higher score overall, while Canon’s compactness and HD video boost its appeal for portability-focused users.

Specialty Use Cases: Finding the Right Match

Breaking down suitability by photographic genres:

Portrait Photography

Samsung’s brighter lens (f/1.8 wide-angle) creates better bokeh and superior subject isolation. Manual focus helps nail portraits. Canon’s lens is slower but good at 28mm equivalent. Neither offers face or eye detection - too early for those techs.

Winner: Samsung TL500

Landscape Photography

Samsung’s larger sensor and higher dynamic range preserve highlight and shadow detail beautifully. Canon’s longer zoom reach nudges versatility.

Winner: Samsung TL500 for quality; Canon for a bit more reach.

Wildlife Photography

Neither is designed for fast-action. Canon’s 3.8x zoom edges out Samsung’s 3x but autofocus is basic on both.

Winner: Slight edge to Canon’s zoom, but neither ideal.

Sports Photography

Low frame rates and contrast AF limit both. Samsung’s manual controls more useful for precise exposure.

Winner: Tie, but neither great

Street Photography

Canon’s small size and weight make it ultra-discreet. Samsung’s bigger body and articulated screen add versatility but reduce stealth.

Winner: Canon SD4000 IS

Macro Photography

Canon’s 3cm minimum focus beats Samsung’s 5cm, but Samsung’s manual focus ring aids precision.

Winner: Depends on your approach; manual focus fans prefer Samsung.

Night and Astro Photography

Both limited by sensor size and noise control. Samsung slightly better in low light, but neither excels.

Winner: Samsung TL500

Video

Canon offers HD video; Samsung capped at VGA.

Winner: Canon SD4000 IS

Travel Photography

Canon’s featherweight and compact size are travel friendly. Samsung offers more manual controls and screen flexibility.

Winner: For easy carries, Canon; for creative control on the road, Samsung.

Professional Use

Neither supports RAW files except Samsung, but no robust workflow or connectivity.

Winner: Samsung TL500 (for RAW support and manual control), but both limited.

Putting It All Together: Who Should Buy Which?

Now that the specs and performance have landed firmly on the table, let me synthesize the practical advice.

If you’re prioritizing ultra-portability, casual snapshots, and HD video capability, the Canon PowerShot SD4000 IS is a friendly companion. It’s lightweight, simple, and fits in your pocket without fuss. Its f/2.0 lens performs well in daylight, and the Eye-Fi compatibility allows for some wireless convenience.

However, if you want better image quality, manual controls, wider aperture glass, and the option to shoot RAW, the Samsung TL500 speaks your language. It weighs more and costs a fair bit more at the time of review but rewards you with creative flexibility and superior photos - especially in portraits, landscapes, and street photography where manual focus and aperture control really count.

Dear Canon, a model combining compact design with at least some manual focus or RAW support would be a dream - but for now, if manual control and image quality swing your priorities, Samsung’s offering wins.

Final Recommendations by User Type

• Casual enthusiasts and travel lightshooter: Canon SD4000 IS
• Street and portrait photographers wanting control: Samsung TL500
• Budget-conscious buyers seeking HD video: Canon SD4000 IS
• Creative hobbyists who want manual modes and RAW: Samsung TL500
• Macro and close-up shooters who can handle manual focus: Samsung TL500
• Landscape lovers wanting best image quality: Samsung TL500

Both cameras represent interesting snapshots of 2010 tech, but even after years, the principles they highlight remain relevant: sensor size and lens brightness outweigh megapixels, physical controls enhance creativity, and true portability sometimes means compromises.

Hope this comparison helps you see the strengths and limits clearly - because picking the right tool turns good photos into great memories.

Happy shooting!

Disclosure: All observations are based on extensive hands-on testing under controlled conditions and real-world scenarios, reflecting my own photographic experience spanning over 15 years.
