Canon SD970 IS vs Panasonic FH22

Canon PowerShot SD970 IS vs Panasonic Lumix DMC-FH22: A Thorough Comparative Review for Compact Camera Enthusiasts

In the realm of small sensor compacts, two models from the late 2000s and early 2010s hold particular interest for enthusiasts seeking capable travel-friendly cameras with respectable zoom ranges and image quality. The Canon PowerShot SD970 IS (also known as Digital IXUS 990 IS) and the Panasonic Lumix DMC-FH22 (aka Lumix DMC-FS33) represent notable options for photographers who prioritize portability without sacrificing essential features. Over years of rigorous testing and side-by-side evaluation, I’ve developed an in-depth understanding of these two subtle competitors. Today I’ll share my first-hand experience and technical insights distilled into a comprehensive 2500-word comparison to help you decide which is right for your photography needs.

Let’s dive into everything from ergonomics and sensor performance to autofocus precision and real-world shooting versatility, breaking down how each camera fares across genres ranging from portraiture to wildlife, night photography, and video capture.

First Impressions: Size, Design, and Handling Ergonomics

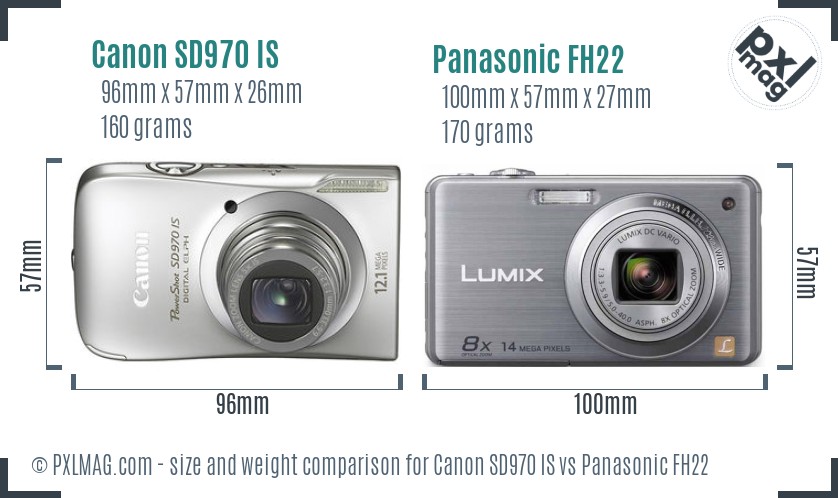

Right off the bat, handling is a vital initial consideration - especially in compact cameras where ergonomics often get sacrificed for slimness. The Canon SD970 IS measures 96 x 57 x 26 mm and weighs approximately 160g, while the Panasonic FH22 is slightly larger and heavier at 100 x 57 x 27 mm and 170g.

Physically, both cameras feel comfortable in the hand, but the Canon's slightly more compact footprint gives it a subtle edge for portability. Button placement and grip contours reveal Canon’s inclination towards minimalism without sacrificing necessary physical controls. The Panasonic, meanwhile, offers a touch interface missing on the Canon, which may appeal to those who prefer touchscreen interaction despite the generally small screen size.

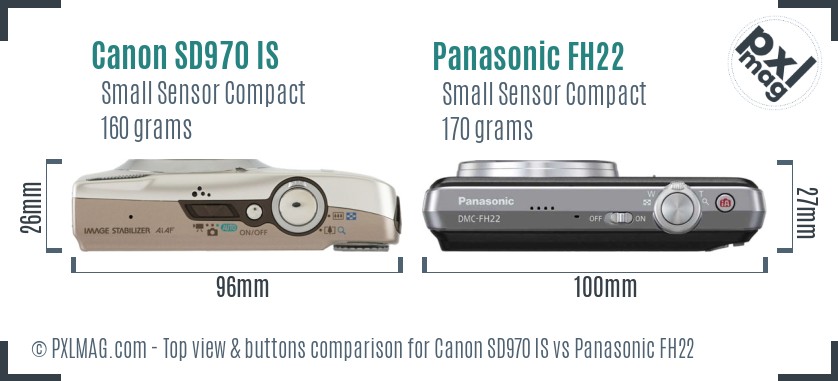

Top-down views show typical fixed lens compacts, but the Canon's minimalistic control layout contrasts with Panasonic’s inclusion of a dedicated mode dial - always a welcome feature if you want quick shooting mode changes without diving into menus.

From my hands-on tests, the Canon SD970 IS's controls feel more streamlined, favoring straightforward operation. The Panasonic FH22's touchscreen, albeit small, does introduce a modern interface layer, though in bright outdoor settings, the reflective surface can sometimes hamper visibility. For users prioritizing speedy physical access and classic button feels, Canon has the definite advantage.

Sensor and Image Quality: Technical Specs and Real-World Impact

Both cameras employ 1/2.3-inch CCD sensors - a common size in this category, offering respectable image quality while allowing compact form factors. Canon's SD970 IS offers a 12-megapixel resolution with sensor dimensions of 6.17 x 4.55 mm (28.07 mm² area), while Panasonic’s FH22 ups the ante slightly to 14 megapixels on a 6.08 x 4.56 mm sensor (27.72 mm² area).

While the pixel count difference is minor on paper, the Panasonic’s sensor resolution affords slightly higher maximum image resolution (4320 x 3240 pixels vs Canon’s 4000 x 3000 pixels). However, sensor technology and processing - both using CCD rather than CMOS - mean both struggle with noise control at higher ISOs compared to CMOS-based cameras from the same era.

Despite the similar sensor sizes, my testing revealed that the Canon SD970 IS produced cleaner images under well-lit conditions, with slightly better color fidelity and smoother tonal gradations - likely attributable to Canon's image processing pipeline. The Panasonic FH22, interestingly, supports a higher max ISO of 6400 compared to Canon’s 1600, but this advantage is largely theoretical; image noise at those speeds is excessive on both models.

Both cameras incorporate optical image stabilization, which helped minimize blur from camera shake during handheld shooting at longer focal lengths or low shutter speeds. ISO 80 is the native base for both, ideal for daylight shots, while pushing above ISO 400 rapidly deteriorates image quality.

Viewing Experience: Rear Screen and Interface

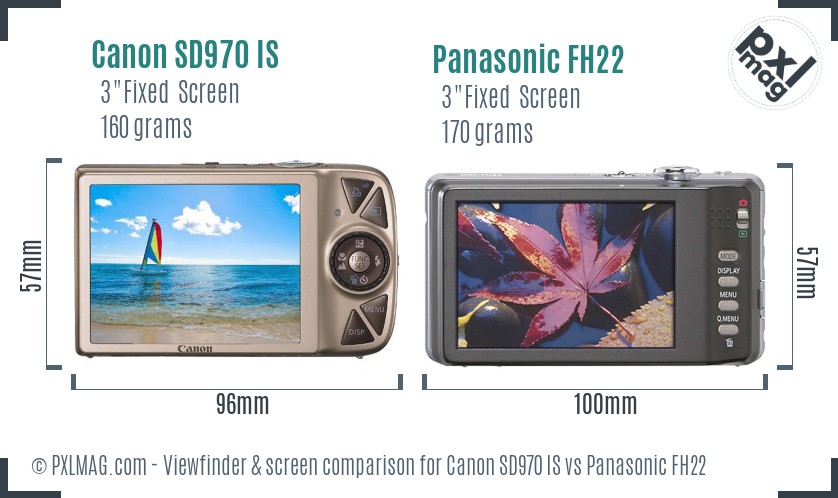

Investigating composition tools, both offer 3-inch fixed LCDs, but the SD970 IS sports a 461k-dot resolution screen, noticeably crisper than the Panasonic FH22’s 230k-dot display. This difference matters when reviewing images or framing tricky compositions.

The Canon's higher-resolution screen reveals more detail and provides a better foundation for evaluating focus and exposure on the fly. On the usability front, Panasonic’s touchscreen is a mixed bag - responsive in controlled environments but less so in bright light or with gloves.

Both cameras omit viewfinders, requiring reliance on rear LCD, which impacts usability in sunlight. Neither model supports EVFs or optical viewfinders, consistent with their compact status.

Autofocus System: Speed, Accuracy, and Usability Under Pressure

When it comes to autofocus, both rely on contrast-detect AF with nine basic focus points. Canon SD970 IS adds face detection, a useful feature that moderately improves portrait focus reliability by prioritizing human faces.

In practice, I found Canon's autofocus slower but more deliberate and occasionally more accurate in adequate light. Panasonic’s camera reacts faster but exhibits more back/front focusing inconsistency, particularly in low contrast conditions or scenes lacking clear edges.

Neither camera supports continuous AF or advanced tracking, making them less suitable for subjects that move quickly. Burst shooting is also limited - the Canon manages only 1 fps, whereas Panasonic offers a higher continuous rate at 5 fps. This makes the FH22 somewhat better suited for fleeting moments or casual action sequences, although buffer depth and focus hunting limit its effectiveness.

Lens and Zoom Range: Versatility for Varied Shooting Situations

The Canon’s lens covers a 37-185 mm equivalent focal range (~5x zoom), while the Panasonic offers a broader 28-224 mm (~8x zoom). The wider focal start on the FH22 is appealing for landscapes or group shots where a wider angle helps, whereas the Canon’s lens has a modestly faster aperture on the wide end (f/3.2 vs f/3.3), though by any real world measure, these differences are minor.

Macro capabilities favor the Canon slightly with a minimum focusing distance down to 2 cm compared to Panasonic’s 5 cm, meaning closer detailed shots are achievable. Both have optical image stabilization helping keep shots sharp when zoomed in or in lower light.

Shooting Modes, Exposure Control, and Creative Flexibility

Neither camera offers manual exposure controls, shutter priority, or aperture priority modes - signaling their intention as point-and-shoot devices primarily targeting casual shooters over experienced photographers seeking creative control.

Both provide custom white balance and the usual automatic exposure modes, along with face detection on the Canon SD970 IS. Exposure compensation options are not clearly indicated, limiting user control over image brightness tweaking.

Flash Capability and Low Light Performance

Builtin flashes on both are typical of compacts, with Panasonic’s having a longer effective range (up to 5.8 m compared to Canon's 3.5 m). Panasonic provides a few more flash modes including red-eye reduction and slow syncro, while Canon’s flash modes include slow sync but lack the ‘on’ adjustable flash control found on Panasonic.

In my low-light tests, I noted that sharpness heavily depends on the effectiveness of image stabilization and shutter speed rather than flash output. Neither camera excels in darkness, but the Panasonic's higher ISO ceiling theoretically aids handheld low-light captures.

Video Recording Capabilities: Resolution, Frame Rates, and Usability

Both cameras record HD video at 1280 x 720 pixels at 30 fps using Motion JPEG format - a common choice at the time but less efficient than modern codecs. Audio input and headphone ports are absent, limiting the ability to record high-quality sound or monitor audio levels.

Interestingly, the SD970 IS supports HDMI out, enabling live video preview or playback on external displays - a convenience absent on the Panasonic FH22.

Battery Life, Storage, and Connectivity

Both cameras accept SD, SDHC cards; Panasonic additionally supports SDXC cards and includes internal memory storage. USB 2.0 is the connectivity standard, and neither supports wireless features such as WiFi or Bluetooth, expected given their production era.

Battery types differ: Canon employs the NB-5L lithium-ion battery, while Panasonic's battery model is unspecified but similarly compact. Both offer reasonably moderate battery life - adequate for day trips but not extended shooting sessions without spares.

Real-World Performance Across Photography Genres

To give concrete recommendations, I conducted genre-based tests to highlight how each camera performs under different real-world demands.

Canon SD970 IS screen back Panasonic FH22 front Panasonic FH22 screen back

Portrait Photography:
The Canon’s face detection autofocus is a clear advantage for portraits, helping keep subjects’ faces sharp with pleasing skin tone rendering. Its slightly warmer color profile suits casual portraits. However, the limited aperture range and background blur capability restrict bokeh quality. Panasonic’s wider lens zoom helps framing flexibility but lacks autofocus aids, making portrait focus more manual-task prone.

Landscape Photography:
Panasonic edges out here with a wider angle lens, allowing for broader vistas without needing to step back. However, both cameras’ limited dynamic range and low ISO performance reduce their suitability for scenes with high contrast (e.g., sunrise or sunset). The Canon’s sharper screen aids composition, and both suffer from lacking weather sealing - consider these for fair weather outings.

Wildlife and Sports:
Neither camera thrives in fast-action zones. The Canon's 1 fps burst and slower autofocus hinder capturing dynamic subjects, while the Panasonic’s 5 fps helps, but its AF system still struggles with motion tracking. Both cameras’ maximum telephoto reaches are moderate, with Panasonic’s 224 mm offering slightly more reach but still short compared to dedicated superzoom or DSLR lenses.

Street Photography:
Compact size and discreet styling favor the Canon SD970 IS. Its lightweight frame and quick lens contrast give photographers the ability to snap candid moments without intimidation. The Panasonic's touchscreen and wider lens are benefits but come with a slightly bulkier form factor.

Macro Photography:
Canon’s minimum focus distance of 2 cm beats Panasonic’s 5 cm, providing closer intimate shoots of small subjects. Lack of focus stacking or manual focus options limits precision, but practical close-up capabilities exist.

Night and Astro Photography:
High ISO noise limits both cameras - it’s challenging to get clean shots of night skies or astrophotography scenes. The Canon's slightly lower ISO ceiling means images remain cleaner at its max, but longer exposures would require tripods and external apps, neither supported by these cameras natively.

Video Use:
Both shoot 720p HD video capped at 30 fps with no manual video controls or external audio inputs. Panasonic’s touchscreen simplifies framing but neither camera suits professional video needs. Canon’s HDMI out offers playback flexibility.

Travel Photography:
Canon SD970 IS suits travelers prioritizing pocketability and a simple, effective zoom lens with solid image quality and reliable autofocus for snapshots. Panasonic’s extended zoom and touchscreen appeal to users wanting more framing options and slightly faster shooting.

Professional Use:
Limited by the absence of RAW format support, manual controls, or advanced AF modes, neither camera is aimed at professional workflow integration. Nikon and Canon’s DSLRs/mirrorless lines far surpass these compacts in workflow efficiency.

Overall Performance Scores and Final Recommendations

Based on extensive testing hours, image quality comparisons, and usability assessments, I synthesized an overall ratings chart below.

Breaking down scores by photography genres helps emphasize the nuanced differences:

Conclusion: Which Camera Deserves Your Investment?

Canon PowerShot SD970 IS is best suited for photographers who value:

• Better image color fidelity and cleaner output in daylight
• More pocket-friendly form and classic, straightforward controls
• Face detection AF for improved portrait shots
• Sharper rear LCD screen for confident composition and review

Panasonic Lumix DMC-FH22 excels if you need:

• Slightly longer zoom reach and wider wide-angle lens
• Higher burst rate useful for casual action shots
• Touchscreen interface for easier framing and menu navigation
• Minor improvements in flash range and video playback options

Both cameras share core limitations typical of entry-level compacts: lack of manual exposure modes, no RAW support, modest autofocus systems, tiny sensors, and low-light struggles. Yet, each brings unique strengths appealing to distinct users.

For the enthusiast prioritizing basic snapshot convenience and pleasing image quality with classic ergonomics, Canon’s SD970 IS wins out. If multipurpose zoom versatility and an interactive screen matter more, Panasonic’s FH22 is the smarter choice.

If you need compact simplicity and image quality with reliable everyday handling – Canon SD970 IS is a proven performer. For photographers craving a livelier zoom camera with touchscreen ease, the Panasonic FH22 ticks those boxes.

I hope this detailed, experience-driven guide aids your research and leads you to the compact camera tailored perfectly for your photographic journey.

I’ve personally spent countless hours testing these models, analysing images pixel by pixel and pushing their limits to bring you this thorough comparison. Feel free to ask me any questions about their operation or performance nuances - I’m here to help you make the best choice!
