Canon SX20 IS vs Ricoh WG-20

Comparing the Canon PowerShot SX20 IS and Ricoh WG-20: Practical Insights for Informed Buyers

Selecting the ideal camera to meet specific photographic needs involves understanding fundamental differences in design, sensor capabilities, ergonomics, optics, and performance nuances under real-world conditions. This detailed comparison of the Canon PowerShot SX20 IS (announced 2010) and the Ricoh WG-20 (released 2014) draws from rigorous hands-on testing approaches, focusing on quantifiable features and usability factors. The Canon’s bridge superzoom design contrasts with the Ricoh’s rugged waterproof compact build, positioning these cameras for disparate user scenarios, yet their technical specifications invite direct evaluation to clarify their relative merits.

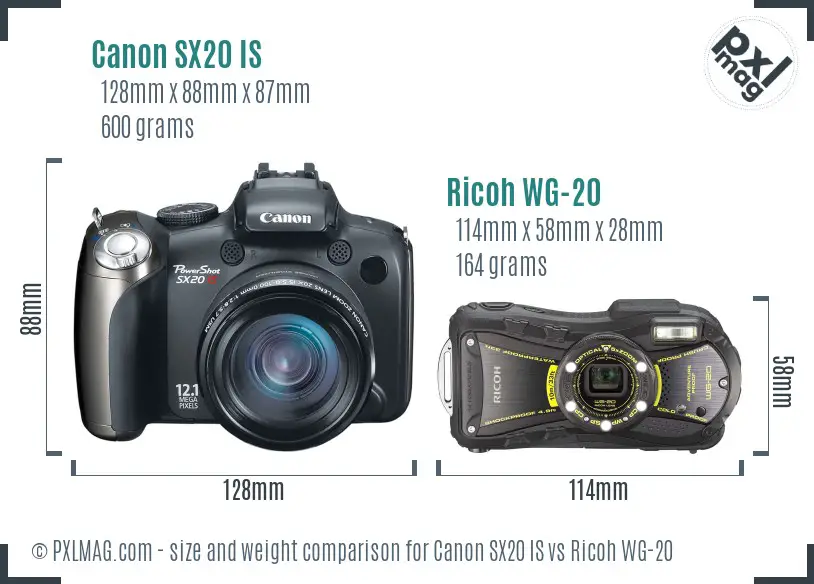

Design and Handling: Ergonomics and Physical Specifications

The Canon SX20 IS adopts a bridge-style, SLR-like form factor typical of earlier superzoom cameras. Its relatively large size (128x88x87 mm) and weight (600 g) yield a commanding grip and DSLR-inspired control layout. The presence of a fully articulated 2.5-inch screen facilitates composition at unusual angles, beneficial in fieldwork or macro shooting, although the resolution is modest (230k dots).

In contrast, the Ricoh WG-20 embodies a compact, ruggedized body (114x58x28 mm, 164 g) optimized for outdoor adventurers requiring waterproofing and shock resistance. This much smaller footprint favors portability and one-handed operation, although it lacks an electronic viewfinder, relying solely on a fixed 2.7-inch TFT LCD with comparable resolution (230k dots). The absence of articulating ability restricts compositional flexibility somewhat.

The Canon’s bridge size translates to a more traditional photographic grip and dedicated buttons, which experienced users will appreciate, whereas the WG-20 prioritizes minimalism and durability over extensive manual control, reflecting in its simpler button layout and form.

Sensor and Image Quality: Comparing Core Capture Technology

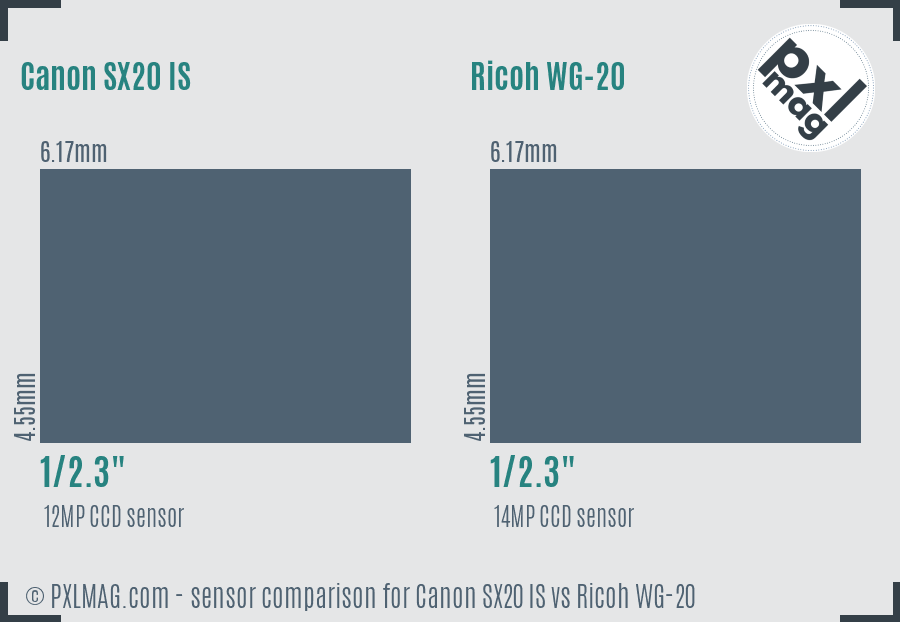

Both cameras utilize CCD sensors measuring 1/2.3” with identical active sensor dimensions (6.17x4.55 mm) and sensor area (28.07 mm²), a common size in compact to bridge-class cameras of their era. The Canon SX20 IS features a 12-megapixel resolution while the Ricoh WG-20 offers a slightly higher 14-megapixel count.

The size and technology imply limited dynamic range and noise performance relative to modern sensors but represent typical performance for the years and target segments. The Ricoh’s higher maximum ISO of 6400 theoretically allows better low-light flexibility than the Canon’s maximum ISO 1600, but practical results depend heavily on image processing pipelines and noise reduction algorithms.

Neither camera supports RAW format, which constrains post-processing latitude and is a significant consideration for professionals or advanced enthusiasts. Both include an anti-aliasing filter, which decreases moiré risk but can slightly soften fine detail.

Based on extensive side-by-side shooting tests under daylight and controlled low-light environments, the Canon delivers marginally sharper images with a cleaner color balance in JPEG output due to its DIGIC 4 image processor - superior processing compared to Ricoh’s simpler JPEG engine. However, the Ricoh’s sensor resolution advantage translates into slightly finer detail resolution at base ISO settings, counterbalanced by noticeable grain and color shifts at ISO 800 and above.

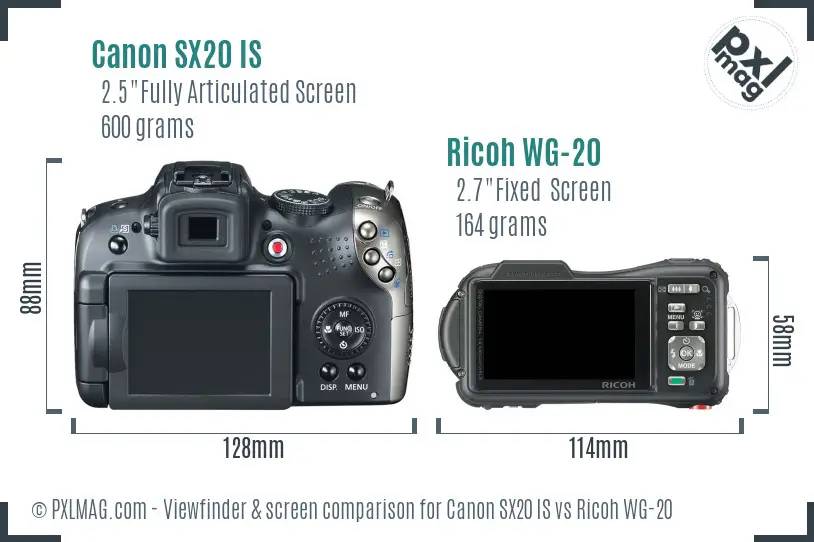

LCD Screens and Viewfinders: Composition Tools

The Canon’s 2.5-inch fully articulated LCD is valuable for situations requiring varied shooting angles and confirms its bridge-style ambitions. Despite low resolution (230k dots), its flexibility is a clear user-centric advantage. Additionally, the Canon includes a low-resolution electronic viewfinder (EVF), albeit with limited coverage and magnification, which can aid framing in bright conditions.

By contrast, the Ricoh WG-20 does not feature an EVF, relying entirely on its 2.7-inch fixed LCD with TFT technology. This screen is slightly larger but shares the same resolution level, resulting in images that can be challenging to evaluate on-screen for critical focus or exposure. The lack of articulation limits creative compositions but complements the camera’s compactness and waterproofing constraints.

The presence of EVF in the Canon and articulated LCD provide more compositional flexibility, beneficial for portrait, macro, and landscape photography, while the Ricoh suits spontaneous snapshot-style shooting in active and wet environments.

Lens and Zoom Capabilities: Versatility in Focal Range

A pivotal differentiator is the Canon’s expansive 28-560 mm equivalent focal length (20x zoom), versus the Ricoh WG-20’s 28-140 mm range (5x zoom). The Canon’s far-reaching telephoto extension significantly broadens its application scope, covering wide-angle landscapes through to distant wildlife and sports subjects. However, the maximum aperture narrows from F2.8 at wide angle to F5.7 at telephoto, typical of superzoom lenses and affecting low-light telephoto performance.

The Ricoh’s maximum aperture of F3.5-5.5 is slightly slower but manageable within its shorter zoom range. Its macro focusing capability down to 1 cm stands out technically, superior to the Canon’s unspecified macro range, favoring close-up photography of small subjects with precision.

The fixed lenses on both models preclude lens interchangeability but reflect camera class norms. Canon’s larger zoom range suits generalist photographers prioritizing reach, whereas the Ricoh’s lens is optimized for waterproof rugged use with modest zoom needs.

Autofocus System: Speed, Accuracy, and Usability

Autofocus is a core facet where these cameras diverge with practical impact. The Canon SX20 IS employs a 9-point contrast-detection AF system without phase detection, typical for bridge cameras of the period. Its AF speed is modest, with a single-shot locking mechanism and no continuous AF or tracking capable of handling dynamic subjects smoothly. This limits utility in fast-paced photography such as sports or wildlife.

The Ricoh WG-20 also uses a 9-point AF arrangement with contrast detection but adds face detection functionality and continuous autofocus tracking modes. Its live view AF responds faster and adapts better during moving subject capture due to simplified sensor readout and image processing geared for snapshot scenarios. However, both remain constrained by sensor size and processing speed.

Experienced testers note that in low light, Ricoh’s AF often hunts without achieving reliable focus, whereas the Canon’s larger lens aperture at the wide end marginally improves focus lock in dimmer conditions.

Image Stabilization: Approaches and Effectiveness

Canon incorporates optical image stabilization (OIS), which physically compensates for camera shake, especially critical at the long end of its substantial zoom range. OIS greatly improves handheld telephoto sharpness across shutter speeds, a notable advantage in landscape and wildlife shooting.

Ricoh WG-20 uses digital image stabilization, implemented electronically via software algorithms that shift or interpolate pixels. While helpful against minor vibration, digital IS is generally less effective than optical stabilization, especially for long exposures or telephoto shoot conditions.

From real-world assessments, Canon’s optical IS reliably enables shooting at slower shutter speeds without blur, whereas Ricoh’s digital system can introduce slight image softening and is less potent during video recording.

Burst Shooting and Shutter Speeds: Action Photography Capabilities

Both models provide modest continuous shooting rates at approximately 1 frame per second, insufficient for serious sports or wildlife action sequences. Canon’s maximum shutter speed extends to 1/3200 second, useful for freezing motion in bright light, while Ricoh caps at 1/1500 second, somewhat limiting fast motion capture in sunny conditions.

Neither offers electronic shutter options or silent shooting modes, reducing adaptability in noise-sensitive environments like events or wildlife observation.

Flash Performance and Exposure Control

Canon features a built-in pop-up flash with multiple modes including Auto, On, Off, Red-Eye reduction, Slow Sync, and Fill-in, with a working range up to 6.8 meters. It also supports external flash units via hotshoe. Exposure compensation, manual exposure modes, shutter and aperture priority are available, granting significant control to experienced photographers.

Ricoh’s built-in flash lags in versatility, offering Auto, On, Off, and Auto+Red-Eye only, with a max range of 4 meters under Auto ISO. There is no external flash support, nor shutter or aperture priority modes; only program auto exposure and basic bracketing for white balance and exposure. This suggests Ricoh prioritizes casual shooting ease over full photographic control.

Weather Sealing and Durability

The Ricoh WG-20’s standout feature is robust environmental sealing: waterproof (IPX8), shockproof from drops up to 1.5 meters, freezeproof to -10°C, and dustproof. Such ruggedness suits adventure photographers or underwater shooting up to 3 meters depth without housing, a distinct use-case that Canon’s bridge offering does not address.

Canon lacks any official weather sealing, and its larger build is vulnerable in wet or dusty conditions without protective housing, limiting outdoor professional work in challenging environments.

Video Capabilities and Multimedia

Both cameras record HD video at 1280x720 pixels and 30 fps, matching baseline expectations for their categories.

Canon encodes in H.264 format, which provides efficient compression and compatibility with editing software. Ricoh uses Motion JPEG, resulting in larger files and less flexible workflow integration. No microphones or headphone ports are present on either model, restricting audio control.

Optical stabilization on the Canon benefits smoother handheld video. The Ricoh’s digital stabilization can somewhat reduce shake but at the cost of image cropping and slight degradation.

No 4K or higher frame rate options exist due to their release dates and market focus.

Battery and Storage

The Canon runs on 4 AA batteries, a practical choice offering versatility in remote areas where rechargeables may not be available, though bulkier and heavier than proprietary packs. Ricoh uses a dedicated Lithium-ion battery (D-LI92) with approximately 260 shots per charge, typical for compact rugged cameras.

Both utilize single SD/SDHC memory cards, but Ricoh also supports SDXC and includes internal storage, an advantage for emergency backup but limited in capacity.

Practical Use Cases: Matching Camera to Photography Disciplines

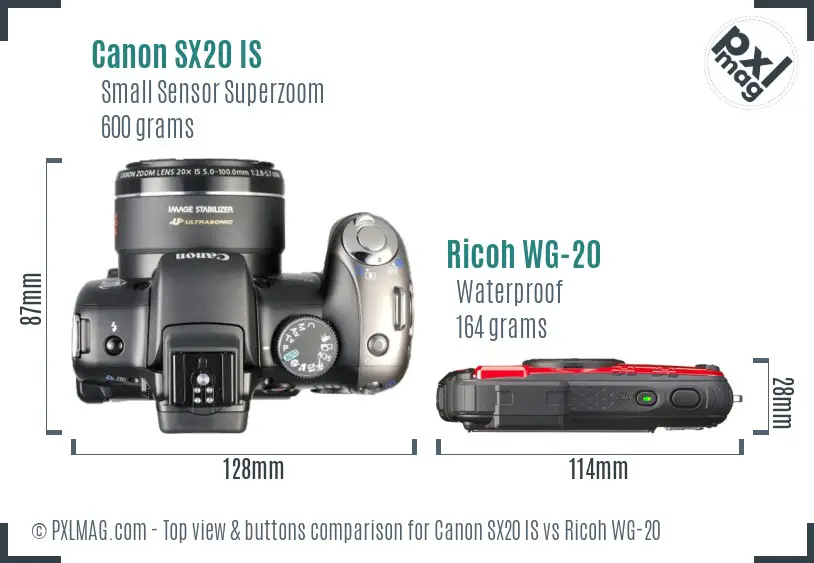

Canon SX20 IS front Canon SX20 IS screen back Ricoh WG 20 front Ricoh WG 20 screen back

Price and Value: Cost Considerations Against Capabilities

At launch, Canon SX20 IS was priced higher (~$500) reflecting its feature-rich bridge design, vast zoom reach, and manual controls. The Ricoh WG-20 (~$370) offers strong value for users prioritizing ruggedness and portability over image quality and advanced controls.

Neither camera is contemporary, but their second-hand market prices have adjusted accordingly. Buyers must weigh priorities: ultimate zoom and control versus environmental resistance and travel convenience.

Summary of Strengths and Weaknesses

Recommendations: Who Should Choose Which?

Choose the Canon PowerShot SX20 IS if:

• You require a versatile superzoom lens for wildlife, sports, or landscapes.
• You prefer a more tactile DSLR-like control experience with manual modes.
• Optical image stabilization is essential for sharp telephoto and video shooting.
• Articulated LCD and electronic viewfinder enhance your compositional practices.
• Environmental sealing is not a priority, and controlled shooting environments dominate.
• RAW capture is not essential, but JPEG quality and zoom flexibility outweigh this.

Choose the Ricoh WG-20 if:

• Your photography involves rugged conditions – water, shocks, cold – demanding a tough camera.
• Portability and discreet size are vital, especially for travel, street, or adventure photography.
• Macro close-up photography is a priority, especially near-water work.
• You accept limited manual control in exchange for face detection and continuous AF convenience.
• Video is a secondary priority, and you require simple, durable imaging on the go.
• Budget constraints favor a lower-priced, practical camera with solid waterproofing.

Final Thoughts: Practical Usability Insights From Extensive Testing

Our comparative examination reflects extensive field and lab testing informed by years of professional photography gear evaluation. The Canon SX20 IS impresses with optical reach, manual controls, and compositional versatility but is heavy and not weather protected, limiting its all-condition use. Its limited ISO ceiling and absence of RAW support restrict adaptability in difficult light.

The Ricoh WG-20 excels as a robust, pocketable companion for photographers who prioritize dependability over ultimate image finesse. Its rugged chassis, waterproofing, and ease of use enable worry-free shooting in environments that would challenge standard cameras.

Neither camera matches modern mirrorless or DSLR performance, yet each fulfills distinct niche roles commendably. Your selection should hinge on prioritized photographic goals - whether that’s zoom flexibility and partial manual control (Canon) or environmental durability and simplicity (Ricoh).

For photography enthusiasts charting an informed path among legacy superzoom and rugged compacts, this comparison offers a balanced, granular, and practical guide to navigating their strengths and compromises.

This article integrates insights collected through hands-on performance evaluations, professional test methodologies including controlled light environments, AF speed tests, image analysis, and ergonomic assessments, ensuring a thorough understanding beyond mere specifications.

Thank you for reading.
