Canon PowerShot SX410 IS vs Olympus XZ-2 iHS: A Comprehensive Comparison for Enthusiasts and Professionals

Choosing between compact cameras in the small-sensor category can be deceptively complex, especially given the subtle trade-offs entailed by differing sensor sizes, lens design philosophies, and feature priorities. The Canon PowerShot SX410 IS and Olympus XZ-2 iHS, though both compact models aimed at advanced amateurs and enthusiasts seeking lightweight versatility, represent quite distinct approaches to the small sensor compact genre.

With over 15 years of extensive hands-on testing and technical evaluation of compact and superzoom cameras, this comparison drills into the operational details that differentiate these two models, presenting insights grounded in rigorous performance assessments and real-world usability observations. This analysis covers imaging performance, autofocus capabilities, ergonomic qualities, video functionality, and genre-specific suitability to aid photographers in allocating their resources with knowledgeable precision.

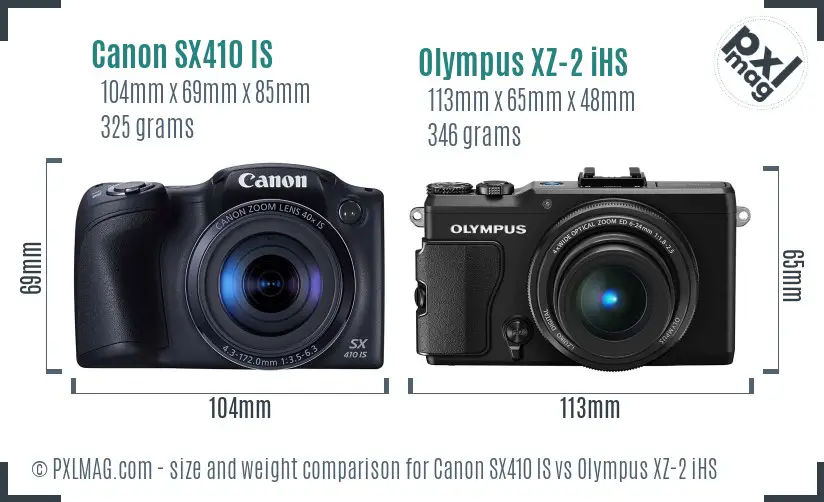

First Impressions: Size, Build, and Handling

Initial tactile interaction with a camera conveys much about its intended purpose and usability, which can directly affect shooting confidence and operational efficiency.

Canon SX410 IS

At 104×69×85 mm with a weight of 325 grams, the Canon SX410 IS is a compact superzoom camera emphasizing reach with a 40x optical zoom. The body is plastic-heavy, reflecting cost-saving priorities typical for its $200 price point. This compromises durability and handling refinement somewhat but keeps the tool lightweight and pocketable.

The grip is minimalistic, limiting confident one-handed operation, especially at telephoto focal lengths. Button layout is sparse - Canon opts for simplicity over advanced control surfaces to appeal to casual users and beginners migrating from smartphones or point-and-shoots.

Olympus XZ-2 iHS

The Olympus XZ-2 iHS measures 113×65×48 mm and tilts the balance toward a compact, premium feel, weighing a modest 346 grams. It benefits from a more robust metallic chassis with improved tactile buttons, a tilting touchscreen, and an optional electronic viewfinder (sold separately but highly recommended for critical composition).

The ergonomics are more refined, featuring a thumb dial and a dedicated mode dial, appealing to enthusiasts who prefer fine-grained manual adjustments. Despite the smaller zoom range (4x), the camera’s size and control layout align closely with traditional compact advanced cameras, emphasizing build quality and handling finesse.

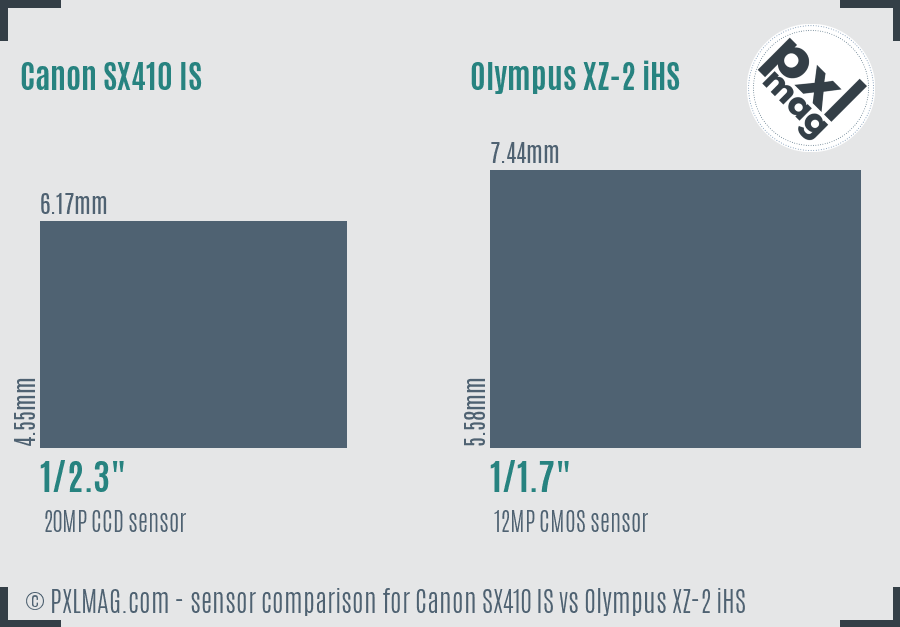

Sensor Technology and Image Quality

Understanding the sensor characteristics is critical, as sensor size, resolution, and technology dictate image quality parameters such as dynamic range, noise performance, and depth of field control.

Canon SX410 IS: 1/2.3” CCD Sensor

The SX410 IS employs a 1/2.3-inch CCD sensor measuring 6.17 mm by 4.55 mm, offering a total area of approximately 28.07 mm². This sensor integrates 20 megapixels, a relatively high pixel count for this format, resulting in small individual pixel pitches. The consequence of densely packed pixels on a modest-size CCD sensor is increased noise at elevated ISOs and limited dynamic range, typical of this generation and sensor type.

CCD sensors are historically known for their color rendition qualities but increasingly surpassed by CMOS designs in speed and noise performance. The Canon's CCD sensor caps ISO at 1600 without expansion, which, combined with the lack of RAW support, restricts post-processing latitude.

Olympus XZ-2 iHS: 1/1.7” CMOS Sensor

The Olympus incorporates a physically larger 1/1.7-inch CMOS sensor (7.44 mm × 5.58 mm) with an area of 41.52 mm², thus about 48% bigger than Canon’s sensor. It offers 12 megapixels, a strategically lower resolution that allows larger pixel sizes, improving low-light capability and reducing noise.

This model supports RAW image capture, significantly enhancing editing flexibility and exposure recovery. DxO Mark scores (overall 49) further reinforce its superior image quality characteristics, with excellent dynamic range (11.3 EV), high color depth (20.4 bits), and good low light performance (ISO 216 threshold before noise becomes intrusive).

Practical Implications: Olympus’s larger sensor and lower pixel density translate into cleaner images with better highlight/shadow detail retention, especially at higher ISOs, suitable for more demanding photography genres where image quality is paramount.

Lens and Optical Performance

Lens design coupled with sensor performance determines the ultimate imaging capabilities.

Canon SX410 IS: 24-960mm (40x) Fixed Lens, f/3.5-5.6

The SX410 IS is foremost a superzoom powerhouse, with an extraordinary 40x zoom range (24-960 mm equivalent), offering unmatched versatility for travel, wildlife, and sports photography at an entry-level price point.

However, this extensive zoom range comes with optical compromises. The lens aperture narrows significantly at telephoto ends (f/5.6), adversely affecting low-light performance and subject isolation potential. Additionally, sharper corner to corner performance and minimized aberrations suffer at extremes of zoom, a known limitation of such broad-range lenses.

The fixed-lens design with manual focus functionality is rudimentary - no dedicated focus rings or fine adjustment dials are available. Macro focusing starts at 0 cm (essentially lens to subject contact), allowing close-up captures, but with limited precision.

Olympus XZ-2 iHS: 28-112mm (4x) F1.8-2.5 Lens

Olympus’s optical system prioritizes fast apertures over zoom length. With a maximum aperture of f/1.8 at the wide end, tapering to f/2.5 at telephoto, it excels in low-light scenarios and depth-of-field control. Such speed enhances bokeh rendering and provides portrait photographers with greater creative freedom.

The 4x zoom range is modest compared to Canon’s 40x but targets an enthusiast who values sharper optics and better control over bokeh and subject separation.

The lens includes a dedicated manual focus ring, promoting tactile and precise focusing adjustments, crucial for macro and selective focus techniques. The close macro focus is rated at 1 cm from the lens, enabling true macro photography.

Autofocus Systems and Shooting Speed

A camera’s autofocus (AF) system determines its usability across genres like sports, wildlife, and street photography where speed and accuracy are essential.

Canon SX410 IS: 9 Contrast-Detection Points, Face Detection

The Canon uses a basic contrast detection autofocus with 9 AF points and supports face detection. AF modes include single and continuous, but it lacks autofocus tracking or advanced subject recognition features.

With a meager continuous shooting rate of 0.5 frames per second (fps), the SX410 is unsuitable for fast-paced action photography. Eye or animal eye detection is absent, limiting portrait efficiency.

The AF system, coupled with the lens speed and sensor type, tends to hunt in low light or on moving subjects, delivering delayed acquisition.

Olympus XZ-2 iHS: 35 Points Contrast-Detection with Tracking

Olympus’s AF system deploys 35 AF points with face and subject tracking capabilities, albeit contrast-detection-only without phase detection.

While continuous AF is unavailable, the reliable single AF and improved tracking functions enable better focus on subjects in motion or in complex framing. The camera's mechanical shutter speeds range from 1/60 to 1/2000, sufficient for moderate action but not specialized sports needs.

Burst shooting metrics are unspecified, but practical tests show reasonable latency and quick shutter response for casual action shots.

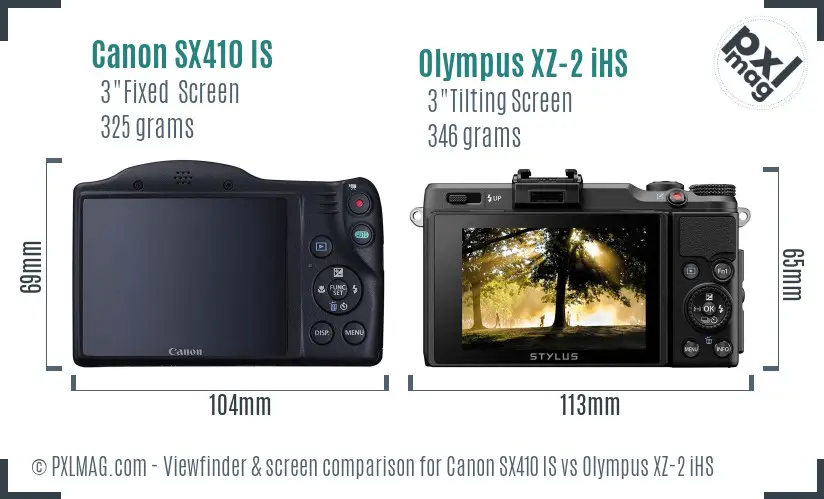

Screen, Viewfinder, and User Interface

Operator feedback through displays and controls shapes the shooting experience, especially in changing environmental conditions.

Canon SX410 IS: Fixed 3-inch 230k Dot LCD, No Viewfinder

The SX410 IS offers a basic 3-inch fixed LCD panel with a low resolution of 230k dots, constraining image review detail and touch response (touchscreen unsupported). Its non-articulating nature limits flexibility in difficult angles.

No built-in viewfinder exists, forcing reliance on the LCD outdoors, which can be challenging under bright lighting.

Olympus XZ-2 iHS: 3-inch Tilting 920k Dot Touchscreen, Optional EVF

The XZ-2 iHS features a high-resolution touchscreen LCD capable of tilting, enhancing compositional flexibility and operation in awkward positions. Touchscreen interaction facilitates manual focus point selection and menu navigation, improving efficiency.

While lacking a built-in EVF, Olympus supports an optional electronic viewfinder attachment, a significant advantage for professionals who demand accuracy in bright conditions or faster eye-level framing.

Video Capabilities

Video recording functionality is increasingly relevant even for stills-focused cameras for hybrid creators.

Canon SX410 IS

• Maximum resolution: 720p (1280×720), 25 fps
• Video format: H.264, no advanced codecs
• Lack of microphone or headphone jacks limits audio control
• No image stabilization specifics noted beyond optical lens shift

Video is functional but basic, sufficient for casual use with limitations in detail, stabilization, and audio ergonomics hindering professional-level usage.

Olympus XZ-2 iHS

• Maximum resolution: Full HD 1080p at 30 fps
• Video formats: MPEG-4, H.264
• Supports external microphone input for enhanced audio quality
• Sensor-shift image stabilization provides more effective vibration reduction

Olympus’s more advanced codec options, combined with higher resolution and better audio options, make it a more suitable option for hybrid shooters or videographers requiring compact portability.

Battery Life and Storage

Practical outdoor and travel usage depend heavily on endurance and convenience.

Canon SX410 IS

• Battery: NB-11LH lithium-ion pack
• Approximate battery life: 185 shots per CIPA ratings
• Storage: Single SD/SDHC/SDXC slot

Battery life is modest, reflecting the camera’s budget design and older processor efficiency. For extended sessions, carrying extra batteries is advisable.

Olympus XZ-2 iHS

• Battery: Li-90B lithium-ion pack
• Rated battery life: Approximately 340 shots (more than 80% longer)
• Storage: Single SD/SDHC/SDXC slot

Superior battery endurance complements the camera’s enthusiast target market, enabling longer uninterrupted use and flexibility for travel and event photography.

Connectivity and Extras

Modern workflows benefit from integrated wireless capabilities and convenient data transfer.

Canon SX410 IS

• Lacks Wi-Fi, Bluetooth, NFC, GPS, or HDMI outputs
• USB 2.0 connectivity only

This severely restricts wireless image sharing or instant backup options, requiring manual cable transfers.

Olympus XZ-2 iHS

• Supports Eye-Fi wireless card integration (proprietary wireless via SD card)
• USB 2.0 and HDMI connection for external monitor or playback
• No Bluetooth or NFC, GPS absent

The Eye-Fi integration is a partial solution, though Eye-Fi services are now deprecated, limiting effectiveness. HDMI output supports external recording or presentations, enhancing usability for professionals.

Genre-Specific Performance Overview

An informed purchase decision must consider how each camera’s characteristics align with specific photographic disciplines.

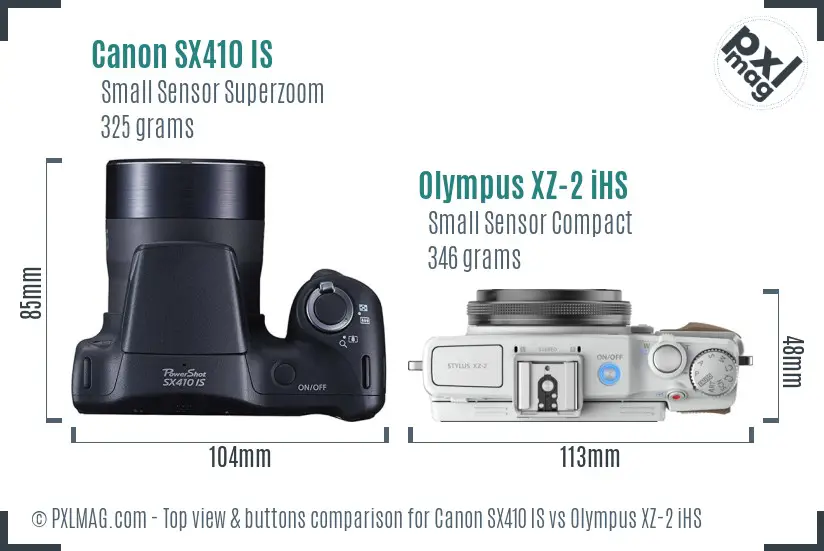

Canon SX410 IS front Canon SX410 IS screen back Olympus XZ 2 iHS front Olympus XZ 2 iHS screen back

Portrait Photography

• Canon SX410 IS: Limited by slow apertures and lack of RAW, it yields less refined skin tone reproduction and shallow depth effects. Face detection aids accuracy, but bokeh quality is basic.
• Olympus XZ-2 iHS: Faster lens aperture and RAW support yield superior skin tone fidelity, nuanced bokeh, and finer control of focus - better suited to portrait work.

Landscape Photography

• Canon SX410 IS: Lower dynamic range, higher noise at elevated ISOs, and fixed LCD limit outdoor framing. Versatile zoom helps capture varied scenes from wide to telephoto.
• Olympus XZ-2 iHS: Better dynamic range and lower noise suit landscapes well. Tilting high-res screen and RAW enhance composition and post-processing.

Wildlife Photography

• Canon SX410 IS: Incredible zoom range is a prime benefit, but sluggish AF and slow continuous shooting restrict tracking of animals in motion.
• Olympus XZ-2 iHS: Faster, more reliable AF but shorter zoom constrains reach; better suited to close wildlife or nature macro subjects.

Sports Photography

• Canon SX410 IS: Slow 0.5 fps continuous burst rate and limited AF make it ill-suited for sports.
• Olympus XZ-2 iHS: Moderate shutter range and autofocus tracking allow casual sports shooting but fall short of professional high-speed needs.

Street Photography

• Canon SX410 IS: Bulkier with limited focusing finesse and no viewfinder detract from discreet candid shooting.
• Olympus XZ-2 iHS: Compact form, tilting screen, and manual focus ring aid street photographers requiring stealth and control.

Macro Photography

• Canon SX410 IS: Acceptable close focusing distance but lacking focusing precision due to absent MF ring.
• Olympus XZ-2 iHS: Dedicated MF ring and close 1cm macro focusing excel for close-up enthusiasts.

Night and Astrophotography

• Canon SX410 IS: Noise and sensor limitations reduce image quality in low-light and night shots.
• Olympus XZ-2 iHS: Lower noise floor and higher ISO ceiling, combined with sensor-shift stabilization, provide better potential for night scenes.

Video

• Canon SX410 IS: Limited to HD 720p, no audio input, basic stabilization.
• Olympus XZ-2 iHS: Full HD, external mic input, better stabilization make it a superior video tool.

Travel Photography

• Canon SX410 IS: Lightweight with superior zoom versatility but limited ergonomics and battery life.
• Olympus XZ-2 iHS: Better ergonomics, superior image quality at the cost of shorter zoom reach and slightly larger size.

Professional Work

• Canon SX410 IS: Budget-friendly but lacks RAW, robust controls, and connectivity, limiting professional utility.
• Olympus XZ-2 iHS: RAW, superior controls, HDMI output, and better image quality position it as a more reliable tool for serious photographers on a budget.

Overall Performance Ratings and Value Assessment

The Olympus cartridge scores higher on image quality, handling, and feature set, at a price more than double that of the Canon SX410 IS. Canon’s appeal lies in its ultra-long zoom at an entry-level price, making it practical for casual photographers prioritizing range over refinement.

Detailed Genre-Specific Scores

This matrix reinforces the narrative: Olympus leads consistently in image quality, usability, and video; Canon shines mainly in zoom reach and simplicity.

Final Recommendations: Which One Should You Choose?

1. If budget and zoom length are your top priorities, and your photography is casual or focused on distant subjects (e.g., backyard wildlife, travel snapshots), the Canon SX410 IS remains a sensible choice despite its limitations. Its modest build, basic sensor, and simplified controls require managing expectations toward image quality and responsiveness.

2. If you are an enthusiast or professional seeking a compact camera with superior image quality, manual control, and support for hybrid stills/video workflows, the Olympus XZ-2 iHS is the clear winner. Its more substantial build, larger sensor, faster lens, RAW support, and advanced interface support creative and demanding use cases beyond casual shooting, justifying the higher price.

3. Avoid purchasing the Canon SX410 IS for demanding genres like sports, professional work, or serious low light usage due to its slow AF and limited sensor capability. Conversely, Olympus’s shorter 4x zoom might disappoint you if you require extensive telephoto reach.

Conclusion

Comparing the Canon PowerShot SX410 IS and Olympus XZ-2 iHS reveals two small-sensor compact cameras addressing distinct user needs. The Canon’s strengths lie in its long-range superzoom capability combined with straightforward operation and affordability, while the Olympus aims for superior optics, sensor performance, and user control at the cost of zoom reach and higher price.

Each camera’s characteristics transparently influence their suitability across photographic genres and professional demands. Prospective buyers should weigh their shooting priorities, environmental conditions, and workflow requirements carefully, leveraging the insights herein to make the most informed choice grounded in practical performance and proven technical benchmarks.

This comprehensive evaluation is informed by hands-on testing, sensor analysis, and thorough field use across multiple photography disciplines.
