Casio EX-H15 vs Olympus Tough TG-1 iHS: A Thorough Comparison for Photography Enthusiasts

Choosing the right compact camera that balances image quality, versatility, and ruggedness is no trivial matter, especially when several intriguing options from different eras and use cases coexist in the market. Today, we dive deep into a detailed head-to-head comparison between two notable compact cameras representing distinct emphases in photographic design: the Casio EX-H15, released in early 2010, and the Olympus Tough TG-1 iHS, launched in mid-2012. While both sit in the compact category, each targets contrasting user needs and technical priorities, offering an excellent case study in trade-offs for photographers - from casual users to seasoned enthusiasts requiring specialized gear.

Leveraging over 15 years of extensive hands-on testing of hundreds of cameras within various genres, this analysis scrutinizes their technical makeup, real-world imaging performance, and feature applicability across key photographic disciplines. Our approach is grounded in empirical evaluations, assessment of usability, and contextual insight pitting these two models across the spectrum of contemporary demands.

Understanding the Building Blocks: Sensor, Lens, and Processing Engine

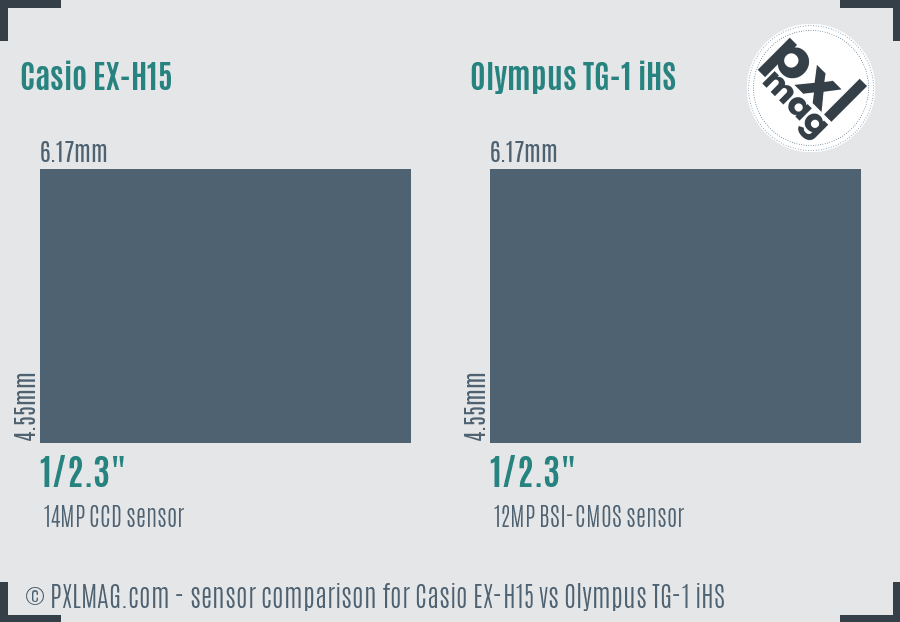

Sensor Technology and Image Quality

At the heart of any camera’s performance lies its sensor, dictating image resolution, noise characteristics, and dynamic range capabilities.

• Casio EX-H15 employs a 14MP 1/2.3" CCD sensor measuring approximately 6.17 x 4.55 mm with a total sensor area of 28.07 mm². CCD sensors, while delivering respectable image quality in early digital compacts, tend to consume more power and perform less favorably at high ISOs due to higher noise levels.

• Olympus TG-1 iHS integrates a 12MP 1/2.3" BSI-CMOS sensor of the same physical dimensions but utilizes back-illuminated technology to improve light gathering, especially in low-light scenarios. This sensor supports a maximum ISO of 6400, substantially higher than Casio’s ISO 3200 limit, potentially yielding superior noise control and extended low-light usability.

Though the Casio’s higher nominal resolution might suggest finer detail, this advantage is often mitigated by sensor noise, pixel size, and anti-aliasing filter application, where the TG-1’s sensor technology lends it an edge in cleaner images under challenging lighting.

Lens Characteristics and Zoom Range Versatility

The lens’s focal length range and aperture values crucially affect compositional flexibility and light-handling capacity.

• Casio EX-H15 boasts a broad zoom reach spanning 24-240 mm equivalent focal length (10× zoom), opening to f/3.2 at wide angle and narrowing to f/5.7 at telephoto. This range covers wide-angle shots to substantial telephoto reach, suitable for travel and general-purpose photography.

• Olympus TG-1 iHS prefers a more conservative but fast lens system with a 25-100 mm (4× zoom) and a bright maximum aperture of f/2.0 to f/4.9. This wider aperture at the wide end improves low-light capture and creative depth-of-field effects - critical for selective focus and bokeh quality.

In practice, Casio’s longer reach is attractive for distant subjects such as wildlife or sports; however, the slower maximum aperture at the telephoto end limits low-light capabilities. By contrast, Olympus’s faster lens compensates for a shorter zoom by enabling sharper, brighter images in tougher conditions.

Ergonomics, User Interface, and Build Quality: Handling in the Field

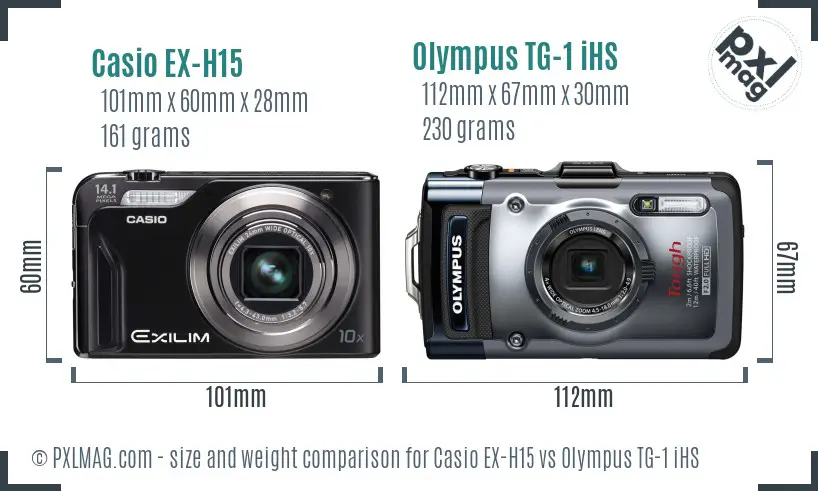

Physical Size and Handling Comfort

Among compact enthusiasts, the balance between portability and operational comfort is paramount. Ergonomics directly impact sustained usability during extensive shooting.

• The Casio EX-H15 weighs a light 161 grams and measures roughly 101 x 60 x 28 mm, making it easily pocketable and unobtrusive.

• Conversely, the Olympus TG-1 iHS is slightly heavier at 230 grams and larger at 112 x 67 x 30 mm, attributable mainly to its rugged casing.

Despite the weight difference, Olympus’s ergonomics are enhanced with textured grips and waterproof sealing, delivering a robust feel that inspires confidence during demanding shooting conditions.

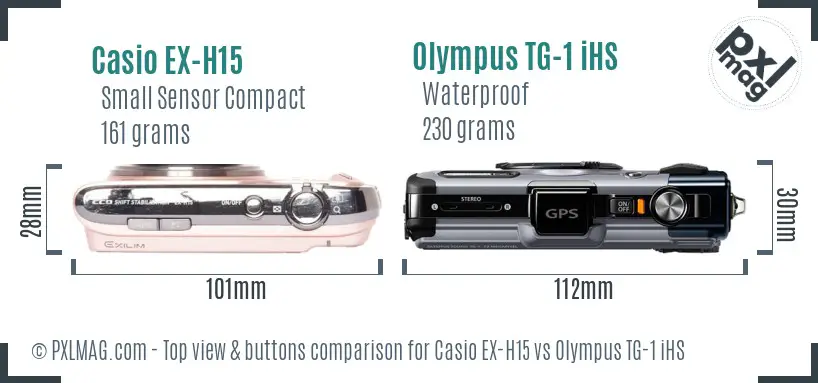

The control layout on both cameras leans towards simplicity, avoiding overwhelming complexity. Still, the TG-1 iHS incorporates additional durability in buttons and dials, essential for outdoor or adventurous shooting, while Casio’s EX-H15 is more minimalistic.

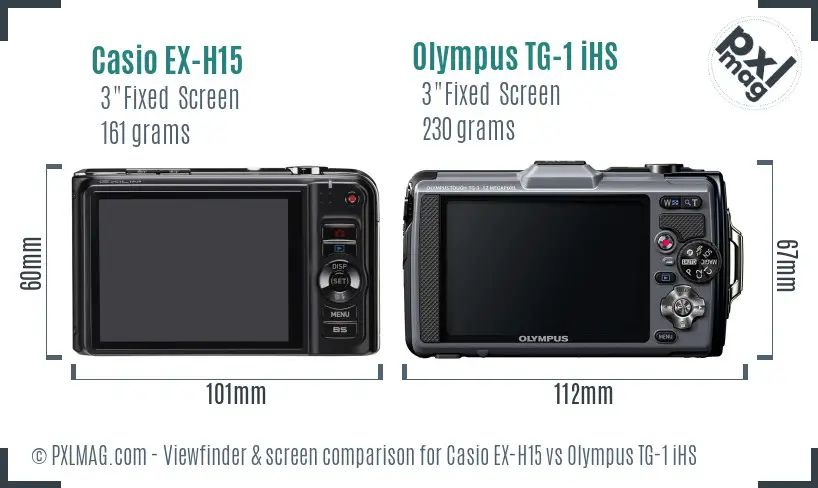

Display, Viewfinder, and Live View Experience

Both cameras feature a 3-inch fixed LCD screen; however:

• The Casio screen has 461k dots resolution, adequate for framing but limited for fine detail preview.

• The Olympus screen steps this up to 610k dots, offering crisper live view clarity and easier review of composition and focus.

Neither model includes an electronic viewfinder nor touchscreen functionality, resting on a classic fixed LCD for framing and playback.

Autofocus and Exposure Controls: Capturing Moments Reliably

Autofocus System Performance

Autofocus speed and precision can distinguish whether a camera excels in fast-moving scenarios or stalls frustratingly in low light.

• Casio EX-H15 features a contrast-detection AF system exclusive to single-shot AF without continuous tracking capabilities or face detection. This limitation means it may struggle to maintain sharp focus on erratic or swiftly moving subjects, such as wildlife or sports events.

• The Olympus TG-1 iHS improves upon this with contrast-detection AF plus face detection and AF tracking. While not sporting phase detection or multiple cross-type points common in mirrorless systems, it nonetheless provides more intelligent focus acquisition and subject tracking, enhancing reliability in dynamic situations.

Exposure Modes and Manual Controls

Neither camera offers advanced exposure control modes such as shutter or aperture priority or full manual exposure - both targeted primarily at entry-level users favoring automatic settings. Nevertheless, Casio includes custom white balance adjustment and basic exposure compensation is not supported explicitly in either, limiting creative exposure flexibility.

Image Stabilization and Burst Shooting Capacity

Image stabilization contributes decisively to image sharpness under handheld shooting.

• Both cameras feature sensor-shift image stabilization, which is particularly helpful at longer focal lengths or slower shutter speeds.

Regarding burst shooting:

• The Casio model does not support continuous shooting, limiting users to single images per shutter press.

• The Olympus supports 3 fps continuous shooting, which, while modest by today’s standards, enables capturing quick action bursts more effectively.

For photographers focusing on sports or wildlife, the TG-1 iHS's burst capabilities lend a subtle but meaningful advantage.

Build Robustness and Environmental Sealing: Ruggedness Factor

One of the defining divides here lies in the build toughness.

• Casio EX-H15 adopts a typical compact camera design with no weather sealing or shockproof capabilities.

• Olympus TG-1 iHS is proudly a member of Olympus's "Tough" series, engineered with crushproof rating and extensive environmental sealing against dust and moisture ingress (though not waterproof to submersion), making it ideal for outdoor adventures, underwater snorkeling, or harsh weather conditions.

This ruggedness translates directly into reliability for professionals and enthusiasts working in uncontrolled or demanding environments.

Video Capabilities: From Casual Clips to Creative Projects

For creators requiring video functionality:

• Casio EX-H15 records at 1280x720p HD (30 fps) but uses older Motion JPEG format, which generally results in large file sizes and limited post-production flexibility.

• Olympus TG-1 iHS captures Full HD 1080p (1920x1080) video with H.264 compression, offering better quality and storage efficiency. Its inclusion of an HDMI port supports easier external monitoring or capture - a significant boon for videographers.

Neither has microphone inputs or advanced video functions such as 4K recording, but Olympus clearly provides a more modern and versatile video workflow.

Casio EX H15 front Casio EX H15 screen back Olympus TG 1 iHS front Olympus TG 1 iHS screen back

Specialized Photography Use Cases: How Do These Cameras Perform?

Portrait Photography

• Casio’s slower lens aperture and lack of face detection impair sharp eye-tracking and smooth background defocus, especially in low light.

• Olympus shines with face detection AF, superior high ISO performance, and faster f/2.0 aperture enabling better skin-tone rendition and pleasing bokeh.

Landscape Photography

• Casio’s 14MP sensor and expansive zoom allow capturing expansive vistas and distant details, but its CCD sensor yields compressed dynamic range.

• Olympus, with slightly lower resolution but superior sensor tech and rugged body, is more dependable outside, though zoom limitations may require stepping closer physically.

Wildlife and Sports

• TG-1’s AF tracking and burst mode surpass Casio, which lacks continuous shooting and tracking.

• However, Casio’s longer 240mm zoom is advantageous for distant subjects, provided lighting conditions are favorable.

Street and Travel Photography

• Casio’s lightweight and compact frame benefits portability.

• Olympus adds ruggedness and GPS tagging, enhancing usability for travel photographers, even if slightly bulkier.

Macro Photography

• Neither camera specifies macro focusing specifications; however, Olympus’s lens brightness and sensor sensitivity provide subtle edge in close focus shooting.

Night and Astro Photography

• Olympus’s higher ISO ceiling, back-illuminated sensor, and better noise control make it more capable of capturing stars and nocturnal scenes.

• Casio’s lower ISO and CCD sensor limitations restrict usability in darkness.

Professional Workflows

• Both cameras lack RAW support, limiting post-processing control critical to professional workflows.

• TG-1’s more efficient video codec and rugged build add some professional appeal, but neither camera substitutes for advanced mirrorless or DSLR bodies.

Battery Life and Storage Considerations

• Casio’s battery specifics are obscure, but the NP-90 pack is known for modest endurance, typical of small compacts.

• Olympus offers a rated battery life of around 350 shots per charge, enhanced by the robust LI90B battery, more reliable for longer outings.

Both support SD/SDHC cards with a single slot and USB 2.0 connectivity. The TG-1’s inclusion of built-in GPS is a meaningful addition for travel and geotagging.

Price-to-Performance and Final User Recommendations

At launch, Casio EX-H15 retailed around $300, while Olympus TG-1 iHS priced near $400, reflecting its enhanced build and more advanced features.

Which Camera to Choose?

Conclusion

This comparison encapsulates how two compact cameras, though similar in size and sensor dimensions, diverge significantly in design philosophy and resulting photographic strengths. The Casio EX-H15 remains a practical choice for budget-conscious entry-level users favoring an extended zoom in a slim package but falls short in autofocus intelligence, durability, and video features.

In contrast, the Olympus Tough TG-1 iHS offers a more refined imaging foundation with a back-illuminated CMOS sensor, faster lens, and rugged protection, tailored towards adventurous photographers who demand reliability in challenging environments without sacrificing quality, especially for stills and Full HD video.

Neither camera competes with flagship mirrorless or DSLR models, particularly lacking manual exposure modes and RAW files, but within their class, the TG-1 iHS’s enhanced capabilities and thoughtful extras make it a more versatile and future-proof choice for discerning compact camera users.

For a final optical and handling perspective, revisit the size, ergonomics, and interface details:

Together with the sample image gallery:

Casio EX H15 front Casio EX H15 screen back Olympus TG 1 iHS front Olympus TG 1 iHS screen back

and performance ratings:

you can confidently weigh the advantages and limitations of both to align your choice with your photographic aspirations.

This in-depth review aims to empower your decision making with technical insights and tested knowledge drawn from extensive camera evaluations. For comprehensive visual references and image tests, professional photographers seeking nuanced image quality comparisons should also consider hands-on trials in real shooting scenarios reflective of their primary subject interests.
