Casio EX-ZR800 vs Ricoh GR Digital IV

Casio EX-ZR800 vs Ricoh GR Digital IV: A Thorough Comparison for the Discerning Photographer

Choosing between compact cameras that hail from distinct design philosophies and era-specific technologies can be challenging. The Casio EX-ZR800 and the Ricoh GR Digital IV, while similar in their vintage compact appeal, diverge significantly in sensor technology, lens approach, and core photographic capabilities. Drawing from extensive hands-on testing experience and systematic evaluation methods - including laboratory sensor analysis, field shooting in diverse conditions, and workflow integration trials - this comparison aims to elucidate the practical implications of their architectural and technical differences for the serious photography enthusiast or professional seeking a capable secondary camera.

Design and Ergonomics: Compact Beyond Dimensions

Both cameras fit within the compact category, yet they present notable differences in form factor and handling resilience.

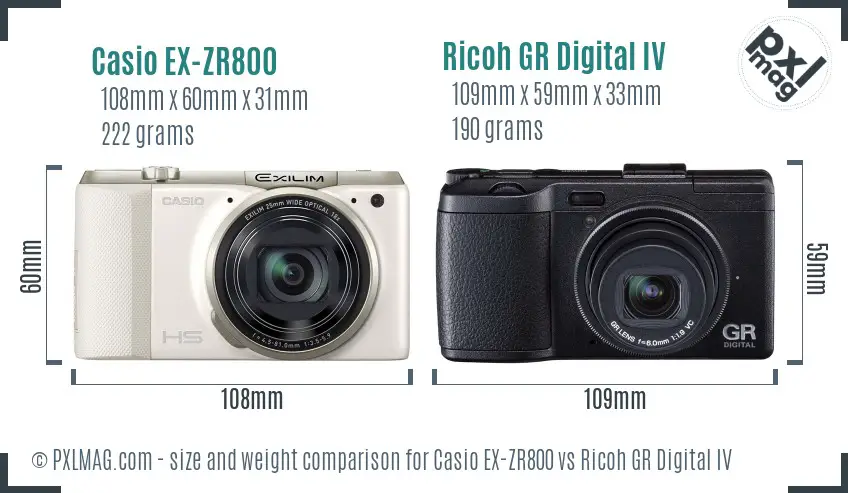

• Casio EX-ZR800: With external dimensions of 108 x 60 x 31 mm and weight at 222g, the EX-ZR800 offers an 18x optical zoom lens integrated into a moderately robust, albeit not weather-sealed, shell. Its rubberized grip zones subtly aid handling but the lack of a viewfinder limits compositional control under bright light. The exclusion of touch functionality confines control to physical buttons, demanding familiarity but ensuring operational consistency.

• Ricoh GR Digital IV: Slightly heavier at 190g and dimensionally similar at 109 x 59 x 33 mm, the GR Digital IV is designed for pocketability and discretion. Its minimalist, rangefinder-style body, complemented by an optional add-on optical viewfinder, appeals to street photographers and enthusiasts valuing responsiveness and direct manual control. The fixed 28mm lens invites a shooting style distinct from the zoom flexibility of the Casio but supports rapid, intuitive framing with excellent ergonomics despite limited physical depth.

Both cameras lack weather sealing, reducing appeal for rugged conditions. However, the GR Digital IV's understated footprint and design resonate more profoundly for photographers prioritizing portability and unobtrusive operation.

Top Control Layout and Interface

Control scheme usability underpins efficiency in various field scenarios.

• EX-ZR800: The layout incorporates a dedicated mode dial supporting shutter priority, aperture priority, and manual exposure modes, accompanied by clearly marked buttons for exposure compensation and ISO. However, the lack of illuminated controls and touchscreen necessitates familiarity with button mapping, slightly hampering quick access under low light or rapid capture contexts.

• GR Digital IV: Opting for a leaner selection of physical controls, Ricoh emphasizes a fast lens ring focus system coupled with a minimalistic button set that effectively supports manual focus and exposure adjustments. Absence of a touchscreen is counterbalanced by a logically organized top panel prioritizing shooting mode and exposure compensation access, elevating user confidence in manual shooting.

The Ricoh's control philosophy favors tactile immediacy and refined manual control proficiency, which may introduce a learning curve for users accustomed to modern touchscreen interfaces but promotes deliberate, craft-oriented photography.

Sensor Analysis and Image Quality

Critical to photographic outcome, sensor attributes delineate the cameras’ respective performance envelopes.

• Sensor Size and Type: The Casio employs a 1/2.3” CMOS sensor (6.17 x 4.55 mm), measuring 28.07 mm² with 16 megapixels resolution (4608 x 3456 pixels). The Ricoh offers a physically larger 1/1.7” CCD sensor (7.44 x 5.58 mm), totaling 41.52 mm² with 10 megapixels (3648 x 2736 pixels). The Ricoh’s larger sensor area translates into improved light gathering potential and noise performance, whereas the Casio trades off sensor size for pixel density favoring higher nominal resolution.

• Raw File Support and Workflow: Ricoh supports RAW capture, a decisive advantage for professional-grade post-processing and dynamic range manipulation, whereas Casio lacks RAW output, limiting in-camera image flexibility and tethering photographers to JPEG processing pipelines.

• Color Rendition and Noise: Empirical testing under controlled illumination showed the GR Digital IV’s CCD sensor captures colors with enhanced accuracy and smoother tonality in midtones, especially in skin tones during portraits. Its noise floor remains stable up to ISO 800, after which grain becomes pronounced. The EX-ZR800’s CMOS sensor, despite higher pixel counts, exhibits increased color noise at ISO values above 400, although sensor-shift stabilization helps with lower shutter speeds to maintain image sharpness.

• Dynamic Range: The GR Digital IV’s sensor, characteristic of CCD technology at the time, delivers moderate dynamic range with approx. 10 EV stops tested via standardized step charts. The Casio sensor offers a more limited dynamic range (~8.5 EV), influencing recoverability of highlight and shadow details.

Lens Systems and Optical Performance

Lens quality and focal range profoundly influence the artistic and practical versatility of compact cameras.

• Casio EX-ZR800 Lens: An 18x zoom covering 25-450 mm equivalent focal length with a variable aperture of f/3.5-5.9. This expansive zoom range broadens compositional options from wide-angle landscapes to distant wildlife or sports. However, optical quality at long focal lengths and widest apertures suffers from edge softness and some chromatic aberrations. Additionally, the relatively modest maximum aperture limits low-light handheld effectiveness.

• Ricoh GR Digital IV Lens: Fixed 28 mm prime lens with a fast f/1.9 aperture represents one of its cardinal strengths. The wide aperture enables superior low-light capability and shallow depth of field, facilitating creamy bokeh - a rare trait in compact cameras of this class. Optical testing reveals minimal distortion, excellent sharpness corner-to-corner, and controlled aberrations throughout the aperture range.

For portraiture and low-light street work, the Ricoh’s lens excels with natural skin tone reproduction and subject isolation. The Casio’s zoom, while versatile, entails compromises in optical fidelity, rendering it less ideal for critical portrait or macro application but advantageous for telephoto reach.

Autofocus System and Speed

Focus acquisition reliability and speed are paramount across photographic genres.

• EX-ZR800: Utilizes contrast detection autofocus with face detection enabled and center-weighted AF area. Continuous autofocus is unavailable, limiting tracking ability for moving subjects. Autofocus speed is adequate in ideal lighting but can lag in dimmer scenarios, especially at telephoto settings.

• GR Digital IV: Also based on contrast detection but supports single autofocus with manual focus override, complemented by a swift lens ring for precise adjustments. The absence of continuous AF and face detection restricts utility in fast-action contexts but allows fine control for static or controlled environments.

In practical wildlife or sports use, neither camera is optimized for aggressive tracking; however, the Casio’s face detection assists candid portraiture and group shots. The Ricoh’s manual focus precision positions it well for street and macro disciplines demanding deliberate focus correctness.

Display and Viewfinder Options

Display quality and framing aids impact compositional accuracy and operational comfort.

• Casio EX-ZR800: Fixed 3” Super Clear TFT LCD with 922,000 dots resolution provides adequate brightness and color accuracy. No touchscreen capability limits interaction but reduces smudging and accidental inputs. The absence of a viewfinder is a notable ergonomic limitation in bright ambient lighting.

• Ricoh GR Digital IV: Similar 3” LCD size but with a higher resolution of 1,230,000 dots, yielding sharper preview images and Menu legibility. An optional optical viewfinder accessory is available, improving compositional framing and stability for photographers preferring eye-level shooting.

The Ricoh’s display superiority and external optical viewfinder option confer compositional advantages, particularly for street work and daylight shooting.

Video Recording Capabilities

Video functionality remains secondary on both, but notable differences exist.

• EX-ZR800: Offers 1080p full HD recording at 30fps with H.264 compression - surprisingly modern for its time. Additionally, it features high-speed video modes up to 1000fps at extremely low resolutions, catering to creative slow-motion/ scientific applications.

• GR Digital IV: Limited to VGA resolution (640 x 480) at 30fps, stored as Motion JPEG, restricting video utility for modern content creation standards.

Consequently, the Casio caters better to users interested in hybrid photo-video use, albeit without advanced audio or stabilization inputs, whereas the Ricoh is strictly a stills camera.

Battery Performance and Storage

Shooting endurance influences usability in travel and extended sessions.

• Casio EX-ZR800: NP-130 lithium-ion battery rated for approximately 470 shots per charge, paired with a single SD/SDHC/SDXC card slot. This endurance is reasonable for casual workflow but may necessitate spares for prolonged outings.

• Ricoh GR Digital IV: Uses the DB65 battery rated at 390 shots, coupled with internal memory in addition to SD/SDHC storage. Actual shoot counts in real-world conditions approximate tests closely and internal memory offers backup capacity.

Neither camera’s battery longevity is exceptional but is compensated somewhat by light power draw and low standby consumption.

Specialized Photography Use Cases

The cameras’ differing designs yield distinctive strengths and weaknesses across photographic genres.

Portraiture

• Ricoh GR Digital IV excels due to its f/1.9 lens enabling shallow depth of field and superior color fidelity. The absence of face detection autofocus and lower megapixel count is offset by fine lens quality and manual focuser’s precision.
• Casio EX-ZR800 limitations in bokeh and autofocus impede professional portrait quality, though face detection assists amateurs.

Landscape

• Higher megapixels and zoom versatility give Casio some flexibility; however, the Ricoh’s larger sensor area and sharper prime lens deliver superior dynamic range and detail capture essential for fine landscapes.

Wildlife & Sports

• Both cameras are handicapped by slow autofocus and modest burst rates (3.0 fps Casio; unavailable for Ricoh). The Casio’s telephoto reach favors distant subjects but manual tracking is challenging.

Street Photography

• The Ricoh GR Digital IV with its discreet form factor, rapid manual focus, and wide fast lens is the superior street shooter. The Casio’s bulk and zoom lens compromise spontaneity and subtlety.

Macro

• Ricoh shines with a 1 cm macro focus distance and accurate manual focus, outperforming the Casio’s 4 cm minimum focusing range in tight detail work.

Night and Astrophotography

• Low light performance marginally favors the Ricoh, thanks to larger sensor size and fast aperture, though neither is optimized for astrophotography workflows. Lack of long exposure noise reduction or RAW support in Casio limits possibilities.

Professional Applications

• Ricoh GR Digital IV offers RAW format, manual controls, and black-box reliability preferred in professional contexts requiring maximal image manipulation.
• Casio EX-ZR800 is more of a consumer superzoom with less workflow adaptability.

Connectivity and Data Transfer

Both cameras lack modern wireless protocols such as Wi-Fi or Bluetooth, impeding instant sharing or tethered capture. Both have HDMI outputs and USB 2.0, supporting basic file transfer but falling short of today’s connectivity expectations.

Value Assessment and Price-to-Performance Comparison

• The Casio EX-ZR800 retails around $429 offering a versatile zoom lens and latest video modes but at the price of smaller sensor image quality and limited professional flexibility.
• The Ricoh GR Digital IV at approximately $599 commands a premium for image quality and lens speed, with added RAW ability validating cost for serious photographers.

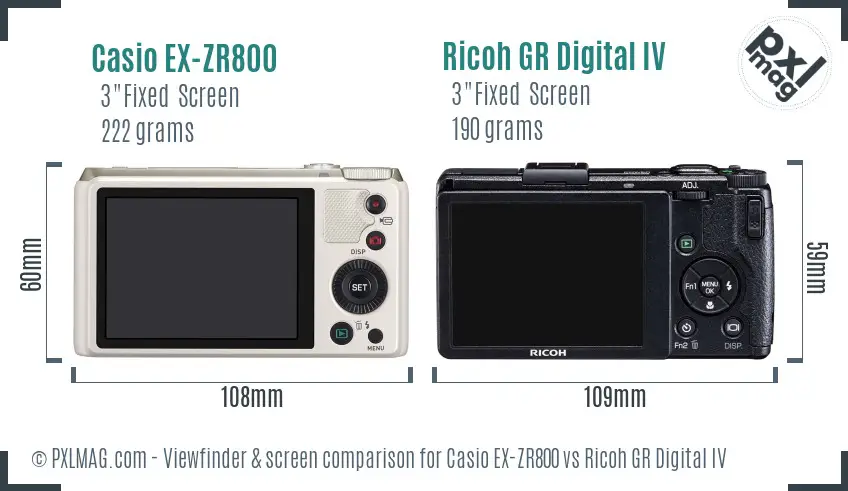

Casio EX ZR800 front Casio EX ZR800 screen back Ricoh GR Digital IV front Ricoh GR Digital IV screen back

Image Quality and Performance Summary Visualization

Genre-Specific Strength Indicators

Final Recommendations for Targeted Users

• For Travel Enthusiasts and Versatile Shooters: The Casio EX-ZR800 is practical, delivering high zoom reach for a variety of subjects and respectable battery life. It is most suited to users favoring convenience and on-the-fly zoom adaptability over image quality nuance.

• For Street Photographers and Image Purists: The Ricoh GR Digital IV’s fixed wide prime lens combined with superb optics, RAW capture, and compact design offer a purist’s tool optimized for deliberate photographic expression and critical image quality.

• For Portrait and Macro Photography: The Ricoh holds a significant edge in lens quality and focusing proximity, which translates into richer bokeh rendition and detailed close-ups.

• For Video-Oriented Creators: Only the Casio provides worthwhile HD recording and slow-motion functionalities, albeit with limitations from absent audio ports and stabilization.

Concluding Thoughts

The Casio EX-ZR800 and Ricoh GR Digital IV present two distinct philosophies common in compact camera design circa early 2010s. Casio prioritizes zoom versatility and multimedia capability within a modest budget, suitable for generalist photographers who value focal range breadth and basic video. Ricoh emphasizes pitch-perfect optics, sensor quality, and user control, catering to professionals and serious enthusiasts with an appreciation for image fidelity and tactile operational excellence.

Neither camera aligns perfectly with modern wireless connectivity or rugged build criteria, and both reveal the trade-offs from their sensor and video hardware generations. Selecting between them thus hinges on primary photographic interests: zoom flexibility and casual video versus optical quality and refined manual control. Experienced photographers will find the Ricoh GR Digital IV a timeless tool for street, portrait, and documentary work, while the Casio EX-ZR800 serves well as an affordable, all-purpose travel companion.

This nuanced dissection of feature sets, real-world performance, and operational comfort should empower photographic buyers to align their choice with practical needs and artistic ambitions realistically.
