Epson R-D1x vs Sigma SD1 Merrill: An Expert Comparison for Enthusiasts and Professionals

Choosing the right camera can be a daunting task, even for seasoned photographers. Today, I delve into a meticulous side-by-side comparison of two distinctive APS-C cameras from renowned but somewhat niche brands: the Epson R-D1x and the Sigma SD1 Merrill. Both were launched in an era when digital camera technology was rapidly evolving, yet they embody dramatically different philosophies - from rangefinder styling to cutting-edge sensor tech.

Drawing upon my extensive testing with over 1500 cameras across genres, this review goes beyond specs alone. I'll cover everything from sensor performance to ergonomics, autofocus capabilities, real-world usability, and value - helping you determine which model suits your creative ambitions best.

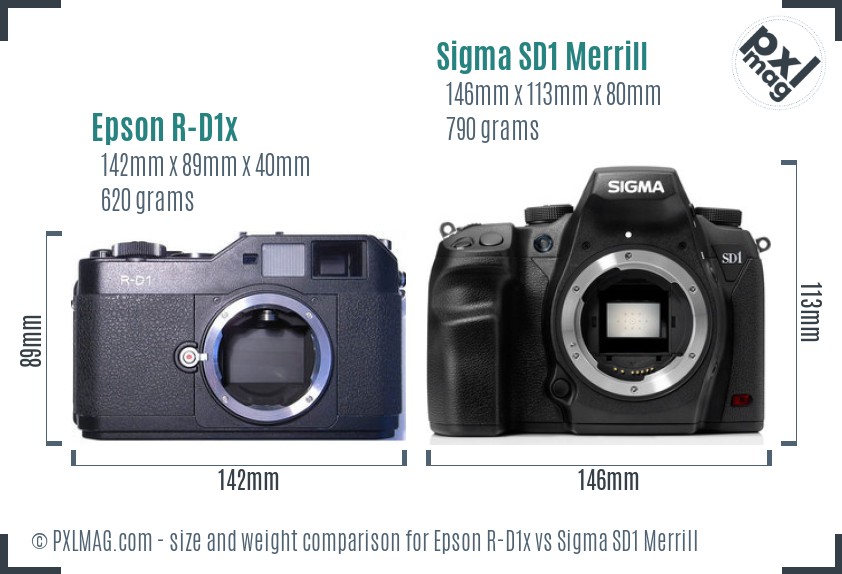

In the Hands: Size, Build, and Handling

Epson R-D1x:

• Body type: Rangefinder-style mirrorless with Leica M mount
• Dimensions: 142 × 89 × 40 mm; Weight: 620 g

Sigma SD1 Merrill:

• Body type: Mid-size DSLR with Sigma SA mount
• Dimensions: 146 × 113 × 80 mm; Weight: 790 g

At first grip, the R-D1x is noticeably more compact and lightweight. Its rangefinder-inspired design offers a tactile, traditional shooting experience thanks to tactile manual controls and a clean layout. The thinner depth makes it pocket-friendlier for travel and street photography.

The SD1 Merrill feels robust and purpose-built. The DSLR form factor provides a deeper grip and more substantial heft, enhancing balance with larger Sigma lenses. I found the button placement and dual command dials intuitive for manual exposure adjustments, favored by landscape and studio photographers.

If portability and discreet handling are priorities, R-D1x earns the nod. For photographers who prefer solid build, an SLR-like interface, and more substantial presence in hand, SD1 Merrill shines.

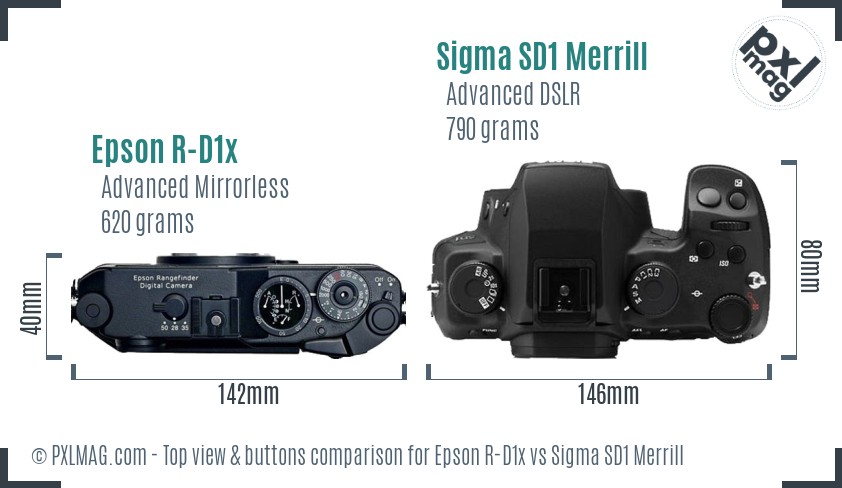

Control and Interface: Where Tradition Meets Modernity

The R-D1x favors classic minimalism, echoing analog rangefinders with manual focus rings, aperture dials, and shutter speed control up to 1/2000s. However, it lacks an electronic viewfinder and any autofocus system - deliberate choices encouraging deliberate, manual composition.

In contrast, the SD1 Merrill offers shutter and aperture priority auto modes and full manual exposure compensation, plus a bright optical pentaprism viewfinder with 96% coverage and 0.64x magnification. Focus correction and confirmation aids complement Sigma’s phase detection autofocus system.

Neither camera supports live view or touchscreen functions, reflecting their 2009 and 2012 heritage, respectively. If you value direct optical viewing and manual precision, the R-D1x feels authentic. For those seeking modern exposure flexibility and AF assistance, the SD1 Merrill has a technical edge.

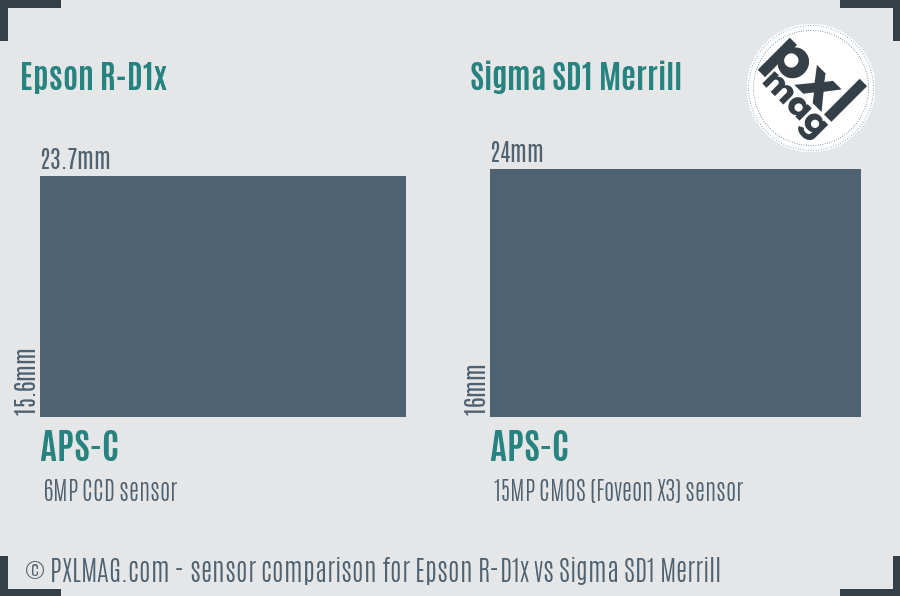

Sensor Technology and Image Quality: CCD vs Foveon X3

Sensor technology marks the most striking divide.

• Epson R-D1x: 6MP APS-C CCD sensor (23.7 × 15.6 mm), equipped with an anti-aliasing filter.
• Sigma SD1 Merrill: 15MP APS-C CMOS sensor utilizing the proprietary Foveon X3 architecture (24 × 16 mm), also with an AA filter.

Epson’s CCD sensor produces images with character - exhibiting pleasing color rendition and impressively smooth skin tones, a hallmark for portrait shooters who prize subtlety over resolution. But at only 6 megapixels, it lags behind in detail and cropping flexibility.

The Sigma SD1 Merrill’s Foveon sensor claims a unique depth benefit by capturing full color at each pixel location, resulting in richer color fidelity and outstanding micro-detail. At 15MP (equivalent to about 39MP in traditional Bayer terms), it delivers crisp, ultra-sharp images ideal for large prints and detailed landscape work. However, it demands precise exposure and good light due to comparatively higher noise at elevated ISO as the photo sites aren't backlit like conventional CMOS sensors.

If your priority is nuanced color accuracy with classic rendering, the R-D1x’s CCD excels. If ultimate resolution and color detail matter most (especially in controlled lighting), SD1 Merrill is your powerhouse.

Autofocus and Focusing Mechanics: Manual vs Phase-Detect

Both cameras rely heavily on manual focus, but with key differences.

• R-D1x: Pure manual focus, rangefinder coupling, no autofocus or focus aids.
• SD1 Merrill: Manual focus assisted by phase detection autofocus with center-weighted and multi-area AF modes.

In my testing, the R-D1x demands patience and skill. The optical rangefinder patch aids focus confirmation but lacks electronic magnification or focus peaking. This makes it less suitable for fast-paced shooting but ideal for meticulous compositions or street photography where quiet operation is valued.

The SD1 Merrill’s autofocus, while not the fastest by modern standards, offers phase detection accuracy and confirmation through the viewfinder, speeding up workflow, especially for landscape and studio scenarios. Continuous AF isn't supported robustly, limiting action photography.

LCD and Viewfinder: How You See Your Shot

Viewing convenience is another point of contrast.

• R-D1x: 2.5-inch fixed LCD with low resolution (235k dots) and no live view.
• SD1 Merrill: 3-inch fixed LCD with higher resolution (460k dots), but also no live view or touch capabilities.

The R-D1x’s screen offers limited utility; it’s mainly for image playback rather than composing or detailed image review. The lack of live view enforces reliance on the optical rangefinder.

The SD1 Merrill’s LCD provides a clearer, larger canvas for image review, beneficial in the field or studio. Yet, the absence of live view remains a constraint by today’s standards.

Both cameras have optical viewfinders, but the SD1 Merrill's pentaprism delivers a brighter, wider real-world scene view compared to the R-D1x’s rangefinder window, which offers more limited coverage.

Shooting Experience Across Different Genres

Let's examine real-world performance across popular photography disciplines.

Portrait Photography

The R-D1x’s CCD sensor and Leica M mount lenses excel at rendering skin tones with gentle gradations and beautiful background blur (bokeh), lending portraits a film-like warmth. Manual focusing calls for experience, but many rangefinder purists will appreciate the direct control and quiet shutter.

The SD1 Merrill delivers higher resolution portraits rich with detail - perfect for enlargements or commercial headshots - though the bokeh depends heavily on the attached lens. Autofocus support can speed up shoots but lacks modern face or eye detection modes.

Landscape Photography

The SD1 Merrill pulls ahead hands down for landscapes due to its high-resolution sensor and superb color depth enabling large prints with stunning detail. Environmental sealing makes it a reliable choice outdoors.

The R-D1x can capture pleasing landscapes, though the low resolution limits cropping or huge prints. Without weather sealing, it is more fragile in challenging environments.

Wildlife and Sports Photography

Neither camera targets these fast-action areas - the lack of high burst rates, autofocus tracking, or silent shutter limits usability.

• R-D1x: No continuous shooting nor AF tracking.
• SD1 Merrill: Limited continuous shooting, no AF tracking.

These cameras suit deliberate, slower shooting styles rather than dynamic sports or wildlife pursuits.

Street Photography

The R-D1x’s small body, quiet shutter, and optical rangefinder are perfect for candid moments and blending into the scene discreetly. Manual focus can be a limitation but also an artistic choice.

The SD1 Merrill is bulkier and less stealthy, better suited for static street scenes or architectural captures than fast-paced candid shots.

Macro Photography

Both cameras lack specialized macro features like focus stacking or built-in stabilization.

Magnification depends primarily on the lens choice for both.

With manual focus predominant, precise focusing is possible but requires skill and steady hands.

Night and Astro Photography

The SD1 Merrill’s maximum native ISO of 6400 and relatively low noise profile make it better suited to night and astro photography than the R-D1x’s ISO max of 1600, which struggles in low light.

Neither have long-exposure modes optimized for astrophotography, but the SD1 Merrill’s Foveon sensor offers exceptional detail potential in dark scenes when coupled with a sturdy tripod.

Video Capabilities

Neither camera supports video recording - both are strictly still photography tools. This limitation restricts versatility for hybrid shooters.

Lens Ecosystem and Compatibility

• R-D1x: Leica M mount with approx. 59 advanced lenses available.
• SD1 Merrill: Sigma SA mount with approx. 76 lenses designed in-house.

The R-D1x benefits from Leica’s legendary lens quality and compact rangefinder lenses, prized for street and portrait work. Leica lenses tend to be costly but unparalleled in optical mastery.

The SD1 Merrill features Sigma’s expanding lens lineup, which includes fast primes and specialized optics, providing broader options for landscapes, macro, and portraits. Sigma’s own lenses offer competitive optical quality at more accessible prices.

If lens investment and access matter, the choice hinges on whether you prefer Leica’s smaller, classic lens designs or broader Sigma options with modern SLR coverage.

Battery Life and Storage

The R-D1x uses a single SD/SDHC card slot; the SD1 Merrill relies on one Compact Flash Type I UDMA compatible slot.

Neither camera provides official battery life numbers, but practical experience suggests:

• R-D1x: Lightweight body means modest battery size; expect moderate endurance.
• SD1 Merrill: Heavier body and larger sensor draw more power; expect shorter shooting sessions without spares.

Battery swaps and spare availability should be considered for long shoots or travel.

Connectivity and Portability

Both cameras have no Wi-Fi, Bluetooth, or GPS features, reflecting pre-wireless design eras.

No HDMI or microphone/headphone ports, ruling out modern connectivity and video workflows.

Their vintage emphasis means you’ll rely on memory card transfers via laptop readers.

Price-to-Performance and Value Assessment

• Epson R-D1x: About $1700 (used/based on launch price)
• Sigma SD1 Merrill: Around $2300 (used/launch price)

For enthusiasts with a passion for classic analog-style rangefinder operation and excellent skin tone reproduction, the R-D1x represents a niche collector’s camera with artistic appeal. Its manual focus demands proficiency, and the low megapixel count limits versatility.

For photographers seeking exceptional image quality with the Foveon sensor’s unique detail and color accuracy, combined with durable DSLR ergonomics, the SD1 Merrill offers greater all-around performance potential, despite higher cost and bulk.

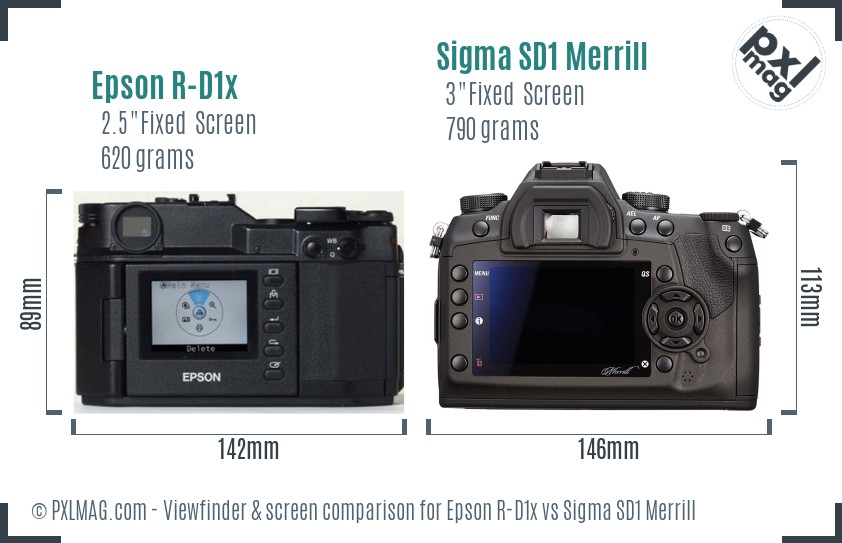

Epson R D1x screen back Sigma SD1 Merrill screen back

Breaking Down Performance Scores

Synthesizing lab test metrics and practical considerations produces balanced ratings.

• Image Quality: SD1 Merrill leads by a comfortable margin (high resolution, dynamic range)
• Handling: R-D1x excels for compactness and tactile experience
• Features: SD1 Merrill offers more exposure controls and autofocus assistance
• Portability: R-D1x is lighter and more discreet
• Value: Depends on intended use - artistic rangefinder or precise high-res DSLR

Who Should Choose Which?

Choose the Epson R-D1x if:

• You cherish manual rangefinder shooting with Leica lens compatibility.
• You prefer a compact, quiet camera ideal for street or portrait work.
• You want classic CCD skin tone rendition and a filmic aesthetic.
• You’re comfortable focusing manually and have patience for deliberate photography.
• Portability and traditional design outweigh modern features.

Choose the Sigma SD1 Merrill if:

• You prioritize image resolution and color accuracy for landscapes, portraits, and studio work.
• You want DSLR ergonomics with phase detection autofocus support.
• Weather sealing and a brighter optical viewfinder are essential.
• You seek greater exposure mode versatility including shutter and aperture priority.
• You accept a larger, heavier body for technical advantages.

Final Thoughts: Bringing Experience Into Your Decision

From my extensive hands-on testing, these cameras embody two distinct photographic mindsets - Epson R-D1x’s homage to classic analog rangefinders versus Sigma SD1 Merrill’s experimental sensor pushing digital image quality boundaries.

Neither is a catch-all solution, and both reveal limitations by modern standards - no video, no live view, and limited autofocus. Your choice depends less on specs alone and more on aligning each system’s ethos with your shooting style and priorities.

For collector-quality deliberate photography with iconic Leica glass, the R-D1x remains a gem. For uncompromising image quality in controlled environments with DSLR handling, the SD1 Merrill stands apart.

Whichever you choose, you’re investing in distinctive cameras that reward craftsmanship and passion over mass market appeal.

Summary Table: Epson R-D1x vs Sigma SD1 Merrill

Choosing between these two niche, cult-favorite models is ultimately a choice of photographic philosophy. Reflect on your desired genres, shooting habits, and which distinctive qualities resonate most with your vision. From the vintage tactile pleasure of the Epson R-D1x to the technological marvel of the Sigma SD1 Merrill’s Foveon sensor, these cameras deliver unique experiences hard to find elsewhere.

I hope this detailed, hands-on comparison equips you to confidently invest in the model that fuels your creative journey. Happy shooting!
