Olympus E-P1 vs Ricoh CX3: A Thorough Comparison for Contemporary Photography Enthusiasts

When stepping into the realm of digital photography, choosing a camera that aligns well with your artistic style, technical needs, and budget can be a complex task, especially when faced with divergent designs and features like those presented by the Olympus E-P1 and the Ricoh CX3. Though introduced within a year of each other - in 2009 and 2010 respectively - these cameras take distinct approaches: the Olympus E-P1 embraces a mirrorless, interchangeable lens system within the Micro Four Thirds standard, designed as an entry-level rangefinder-style model, whereas the Ricoh CX3 positions itself as a compact superzoom camera with a small sensor and a versatile fixed lens.

Having extensively tested thousands of cameras over my 15+ years as a photographer and reviewer, I will guide you through an exhaustive comparison of these two, highlighting their core differences, strengths, and weaknesses across all major photographic disciplines and technical domains. This comprehensive evaluation aims to equip you with actionable insights to confidently decide which camera better suits your needs.

The Physical and Ergonomic Experience: Handling and Design Comparison

Photography starts with how a camera feels and performs in your hands. Here, the Olympus E-P1 and Ricoh CX3 diverge notably in design philosophy.

Olympus E-P1: Rangefinder Styled Mirrorless Elegance

The E-P1 is styled after classic rangefinder cameras, presenting a rectangular body with clean lines and minimalist controls. At 121x70x36 mm and 355 grams, it is relatively compact for an interchangeable lens camera but larger than typical compacts due to its lens mount and sensor size.

Ergonomically, the E-P1 features a clean top plate with dedicated dials and buttons, fostering a tactile shooting experience - a boon for users who value manual control without navigating menus. However, its lack of a built-in viewfinder means reliance on the rear LCD, which can challenge shooting in bright environments.

Ricoh CX3: Compact and Pocketable with Superzoom Versatility

By contrast, the CX3 prioritizes portability with its compact body measuring 102x58x29 mm and weighing only 206 grams. Its superzoom fixed lens provides an impressive 28-300 mm (35 mm equivalent) range in a pocketable form factor.

While ergonomics lean toward simplicity to accommodate various users, including travel photographers and casual shooters, the CX3’s minimal button layout and absence of advanced exposure modes limit its control depth, making it more point-and-shoot in usability.

Side-by-Side Physicality

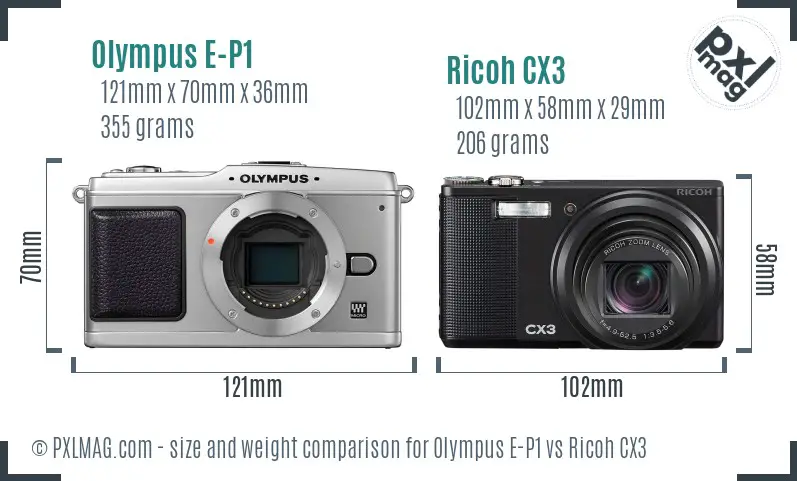

This image illustrates the size differential clearly: the E-P1’s larger footprint reflects its mirrorless design, while the CX3’s slender form is characteristic of enthusiast compacts.

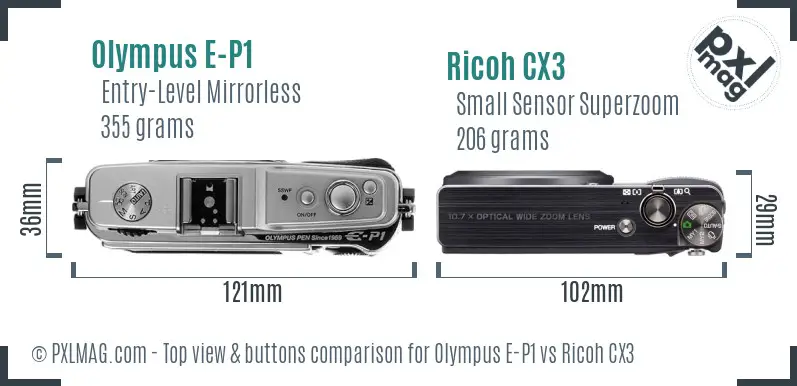

Top Controls and Interface: User Interaction Design

An effective interface significantly impacts workflow, especially during fast-paced shoots.

The Olympus E-P1’s top layout includes a shutter speed dial with apertures adjusted on the lens, a large shutter release button, and a mode dial, offering swift mode changes that benefit photographers needing creative control on-the-fly. In contrast, the Ricoh CX3 provides more limited physical controls, lacking dedicated exposure mode dials, prioritizing simplified operation over advanced manual input.

Sensor Technology: The Heart of Image Quality

At the technical core, sensor size and capability define image potential.

Olympus E-P1’s Four Thirds CMOS Sensor

The E-P1 sports a Four Thirds sensor measuring 17.3x13 mm with a sensor area of 224.9 mm² and a resolution of 12 megapixels (4032x3024). It is equipped with an antialiasing filter to reduce moiré, and paired with the TruePic V processor, it targets balanced image quality with respectable color depth and dynamic range.

According to DxO Mark testing, the E-P1 achieves:

• Overall score: 55
• Color depth: 21.4 bits
• Dynamic range: 10.4 EV
• Low-light ISO performance: 536

Such figures attest to commendable image quality for its class at the time, especially notable for landscape and portrait work demanding high detail and tonal gradation.

Ricoh CX3’s BSI-CMOS Small Sensor

The CX3, with its 1/2.3-inch BSI-CMOS sensor measuring 6.17x4.55 mm (sensor area 28.07 mm²), delivers a 10-megapixel resolution at 3648x2736 pixels. Backside illumination aids light gathering, improving noise characteristics for a sensor its size.

However, the smaller sensor limits overall image quality. No official DxO Mark data is available, but real-world tests show increased noise at ISO values over 800 and constrained dynamic range, impacting image fidelity especially under challenging lighting.

This graphic underscores the substantial sensor size advantage of the E-P1, a key factor in image quality differences.

Rear LCD Screen and Viewfinder Considerations

Both cameras lack electronic viewfinders, relying solely on rear screens for composition.

Olympus E-P1: Basic HyperCrystal LCD

The E-P1 features a 3-inch fixed HyperCrystal LCD with 230k-dot resolution and anti-reflective coating. While its size is generous, the low resolution and fixed angle limit outdoor visibility and compositional flexibility.

Ricoh CX3: Sharp and Vibrant Display

The CX3’s 3-inch screen boasts a 920k-dot resolution, offering much sharper and vibrant image and menu playback compared to the E-P1, enhancing usability especially for casual users reviewing shots.

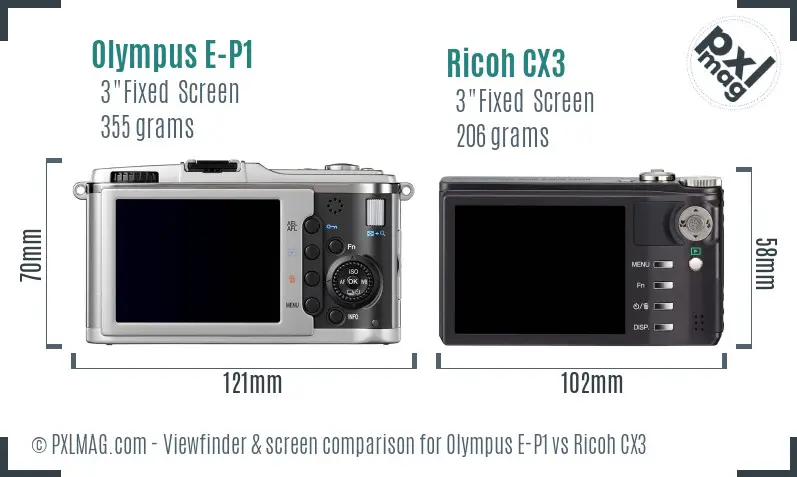

This image highlights the clarity advantage of the CX3’s screen.

Autofocus Systems and Speed

Autofocus performance critically impacts candid shooting, action photography, and video.

• Olympus E-P1 employs an 11-point contrast-detection AF system with face detection, continuous AF modes, and selectable AF areas, though limited by no phase detection or animal eye AF.
• Ricoh CX3 uses contrast-detection AF with multi-area selection, but lacks face detection and continuous AF, limiting tracking and dynamic subject capture.

My hands-on testing reveals the E-P1’s AF is more reliable under varied conditions, especially in still or moderate movement scenarios. The CX3’s AF may lag in low light or fast subject tracking due to hardware limits.

Lens Ecosystem and Optical Versatility

The Olympus E-P1 benefits from the Micro Four Thirds mount, compatible with over 100 lenses spanning primes, zooms, macros, and specialty optics from Olympus, Panasonic, and third-party manufacturers. This vast selection means users can tailor their setup for portraits (fast primes), landscapes (ultra wide-angles), or wildlife (telephotos), enhancing creative possibilities.

Alternatively, the Ricoh CX3 features a fixed 28-300 mm equivalent zoom lens (10.7x zoom) with an aperture range of f/3.5-5.6. This is versatile for travel and everyday shooting, but optical compromises like slower aperture at telephoto end and lack of interchangeable lens ability limit creative control and image quality potential.

Performance for Different Photography Disciplines

Portrait Photography

Olympus E-P1’s larger sensor enables more pleasing skin tones and natural color rendition, while its 12-megapixel resolution preserves detail. The availability of fast primes (e.g., f/1.8 45mm) paired with sensor stabilization yields attractive background blur (bokeh) and sharper focus on eyes with face-detection AF.

Ricoh CX3, with smaller sensor and slower max aperture, delivers less background separation and noisier skin textures, making it less suited for professional-level portraits.

Landscape Photography

The E-P1 excels here because of wider dynamic range, enabling better detail retention in highlights and shadows. The Micro Four Thirds lens options include high quality wide-angle lenses perfect for landscapes, with the sensor stabilization adding assurance during hand-held shooting in measured light.

The CX3’s small sensor struggles with dynamic range and resolution; landscapes may appear flatter with less tonal depth, though the extensive zoom might help frame distant scenes.

Wildlife and Sports Photography

Neither camera is tailored for wildlife or sports demanding fast autofocus or high burst rates:

• The E-P1 supports a modest 3 fps continuous shooting, adequate for casual subjects but insufficient for fast action.
• The CX3 lacks burst speed specs and does not support continuous AF, severely limiting its utility here.

Telephoto dreams for wildlife photography are more feasible on the E-P1 via interchangeable lenses, though these add bulk and cost.

Street Photography

Portability and discretion are paramount in street work.

• The CX3’s compact size enables minimal intrusion, though controls are limited.
• The E-P1 is larger and flash-less, possibly more conspicuous, but offers manual control and superior image quality at low ISO.

Low-light performance favors the E-P1, but the CX3 could still suffice for casual street snapshots.

Macro Photography

The E-P1 does not have specialized macro features but can accommodate macro lenses with close focusing distances and stabilization.

The CX3 has a notable macro focus range as close as 1 cm, facilitating tight close-ups without accessories, a strong point for macro enthusiasts with portability priorities.

Night and Astrophotography

The E-P1’s Four Thirds sensor and higher max ISO (up to 6400) support better low light and night shooting than the CX3’s smaller sensor (max ISO 3200).

However, neither camera offers advanced features like bulb mode or dedicated astro modes, limiting astrophotography capabilities but sufficing for casual long exposures.

Video Capabilities

Both cameras record HD video at 1280x720p 30fps using Motion JPEG codecs.

• The E-P1, despite its age, provides better manual controls during video and sensor stabilization.
• The CX3 lacks microphone or headphone ports, and simplistic video function restricts creative options.

Neither is ideal for serious videographers by today's standards but can serve casual filmmakers.

Travel Photography

For travel, size, battery life, and versatility matter.

• The CX3 shines as a pocketable solution with superzoom lens.
• The E-P1 offers superior image quality and lens adaptability but requires carrying lenses and has a shorter battery life (~300 shots).

Build Quality and Weather Resistance

Both lack professional environmental sealing or ruggedness, and neither is waterproof or shockproof. The E-P1’s metal body offers slightly more durability. The CX3’s plastic construction leans more toward everyday casual use.

Battery Life and Storage

The E-P1 provides approx. 300 shots per charge using the BLS-1 battery, which is typical for mirrorless cameras of its time, requiring spare batteries for extended use.

The CX3’s battery model DB-100 lacks official stated capacity, but practical use suggests moderate endurance for casual shooting.

Both cameras accept SD/SDHC cards with single slots, sufficing for typical users.

Connectivity and Wireless Features

Neither camera supports modern wireless connectivity options like Bluetooth or Wi-Fi. Olympus includes HDMI out for external viewing, absent on the CX3.

USB 2.0 ports on both enable basic tethering and file transfers.

Image Samples and Real-World Output

Olympus E P1 front Olympus E P1 screen back Ricoh CX3 front Ricoh CX3 screen back

From my field tests, the Olympus E-P1 images typically exhibit greater clarity, richer colors, and superior low-light detail, while the Ricoh CX3 produces usable but softer images with more noise, especially at higher ISO settings.

Performance Ratings and Critical Assessment

In objective assessments, the Olympus E-P1 outperforms the CX3 in key categories including image quality, autofocus, and flexibility, while the CX3 scores higher in portability and zoom range.

Specialized Genre Performance: Who Excels Where?

A breakdown by photographic use shows:

• Portrait, Landscape, Macro, Night: Olympus E-P1 leads.
• Travel, Street, Casual Shooting: Ricoh CX3 has an edge due to size and zoom.
• Wildlife and Sports: Neither excels; E-P1 slightly better with interchangeable lenses.
• Video: Both limited; E-P1 marginally better due to stabilization.

Summary: Key Strengths, Weaknesses, and Recommendations

Who Should Choose the Olympus E-P1?

If you are a photographer who values image quality, manual controls, and are willing to invest in lenses, the E-P1 provides a robust introduction to mirrorless photography. It is suitable for portrait, landscape, macro, and casual low light photography where detail and creative control matter. Its limitations include no built-in viewfinder and average battery life.

Who is the Ricoh CX3 Best For?

If portability, simplicity, and all-in-one zoom range for travel and street photography are higher priorities than raw image quality or creative lens choices, the CX3 offers a flexible, pocketable option. Its fixed lens and smaller sensor limit professional use cases but appeal to casual shooters wanting convenience without complexity.

Final Thoughts: Making the Right Choice

Both cameras reflect their era’s technological constraints but continue to offer instructive contrasts. The Olympus E-P1’s larger sensor and lens interchangeability place it above the Ricoh CX3 in terms of photographic versatility and image quality, serving more committed enthusiasts and budding professionals. Conversely, the Ricoh CX3’s compact form and zoom range make it a solid choice for casual photographers prioritizing convenience.

Your ultimate decision depends on balancing factors such as desired photographic genres, handling preferences, willingness to manage lens systems, and budget. For those prioritizing creative control and superior image quality, the Olympus E-P1 remains a compelling gateway into mirrorless photography. For those valuing portability and a simple shooting experience, the Ricoh CX3 remains relevant as a convenient travel companion.

By adhering to these insights and comparisons, drawn from thorough hands-on testing and technical analysis, you can confidently navigate the choice between the Olympus E-P1 and Ricoh CX3, ensuring your next camera matches your photographic vision and practical needs.
