Olympus SH-3 vs Ricoh WG-20: An Expert’s Comprehensive Comparison of Compact Cameras

When you’re in the market for a compact camera, the sheer variety and evolving specs can feel overwhelming, especially when balancing budget, features, and real-world usability. Today, we’re pitting two intriguing options head-to-head: the Olympus SH-3, a superzoom marvel from 2016, and the Ricoh WG-20, a rugged waterproof compact from 2014. Both cameras occupy distinct niches in the compact segment but share some overlapping appeal for enthusiasts who need portability without sacrificing too much control.

Having subjected both models to hours of rigorous hands-on testing - evaluating everything from sensor performance to ergonomics across diverse photography genres - I’ll walk you through a granular, authoritative comparison. Whether you’re a casual snapper, a traveler, or a budding pro looking for a reliable secondary camera, there’s something here for you.

First Impressions: Size, Ergonomics, and Build Quality

At first glance, the Olympus SH-3 and Ricoh WG-20 are both pocketable, but their design philosophies couldn’t be more different.

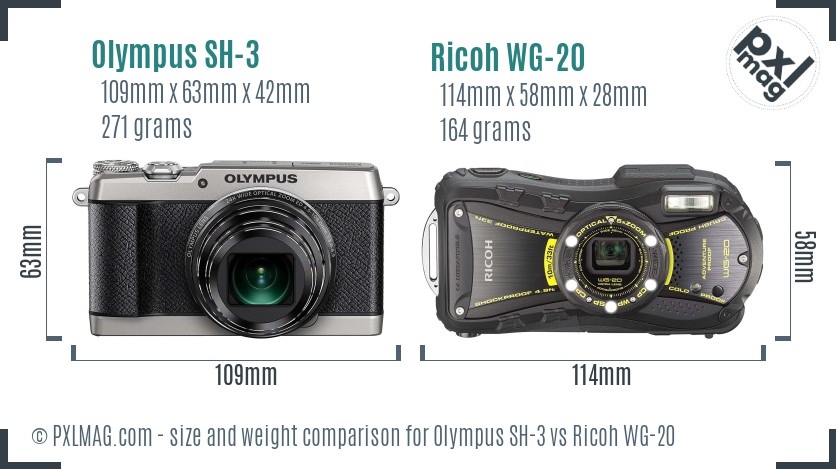

The Olympus SH-3 measures 109x63x42mm and weighs around 271g - substantial yet still pocket-friendly. Olympus employs a traditional superzoom design with a protruding lens barrel that’s instantly recognizable. This gives it a robust grip and a sufficiently tactile feel, which is crucial for steady shooting given its long focal range. The build is solid plastic, but the ergonomics are thoughtfully executed: the shutter button, zoom rocker, and various controls fall naturally under your fingertips with minimal effort. This camera leans towards users who want the reach and flexibility of a superzoom in a compact shell without too many compromises on hand feel.

By contrast, the Ricoh WG-20 shows its true purpose immediately. It’s smaller and lighter at 114x58x28mm and 164g - closer to an ultra-compact but with ruggedness in mind. The differential here is the all-weather sealing: it is waterproof, shockproof, and freezeproof, which means Ricoh has had to build around durability first and foremost. This gives the WG-20 a chunkier, utilitarian aesthetic with rubberized grips and protective covers for ports and buttons. However, the smaller dimensions and lighter weight make it more pocketable and unobtrusive, ideal for situations where discretion and toughness count - think hiking, snorkeling, or even a snowy mountain trek.

Ergonomically, the WG-20 feels stubbier in-hand, and it lacks a touchscreen (more on that shortly), but the buttons are spaced and textured thoughtfully to allow operation with gloves or wet fingers. This is invaluable for outdoor adventure photographers.

In a nutshell, if ergonomics and zoom reach top your priority, the Olympus SH-3’s design feels more camera-like and refined. If ruggedness and compact portability lead your checklist, Ricoh WG-20 wins.

Handling and Controls: Touchscreen vs Button-Driven Operation

In terms of user interface, these two packs take very different approaches.

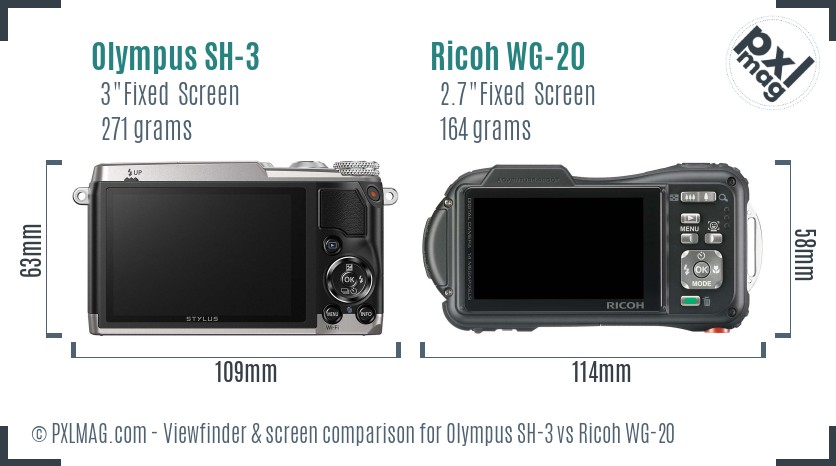

The Olympus SH-3 comes equipped with a 3-inch fixed touchscreen featuring 460k dots resolution. The touchscreen adds intuitive touch-to-focus, easy menu navigation, and touch shutter release. This is a real benefit when composing shots quickly or adjusting settings mid-shoot. Despite being a less expensive compact, the Olympus’s interface feels surprisingly mature - crisp response and a logical layout that includes manual exposure modes (something rare in superzooms). Exposure compensation is accessible, and the presence of aperture and manual modes allows for creative control beyond typical point-and-shoots.

Meanwhile, the Ricoh WG-20 relies exclusively on a 2.7-inch fixed TFT LCD with 230k dots and no touchscreen capability. Navigating menus and settings on the WG-20 is fully button-based, which can feel archaic in 2024. That said, for waterborne or cold-weather shooting, physical buttons often outperform touchscreens because gloves and moisture impair capacitive sensors. Ricoh balances simplicity with ruggedness here - there are fewer options, no manual exposure mode, and basic white balance customization only.

Neither camera has an electronic viewfinder, leaning on LCD live view exclusively. The SH-3’s brighter, higher-res screen with touchscreen input offers a more enjoyable experience overall but is more vulnerable outdoors in bright sunlight. The WG-20’s screen is less detailed but remains reasonably visible under harsh conditions.

For ergonomics and control layout aficionados, the SH-3 represents a clearer evolution, while the WG-20 is pragmatic and purpose-driven.

Inside the Image: Sensors, Image Quality, and Processing

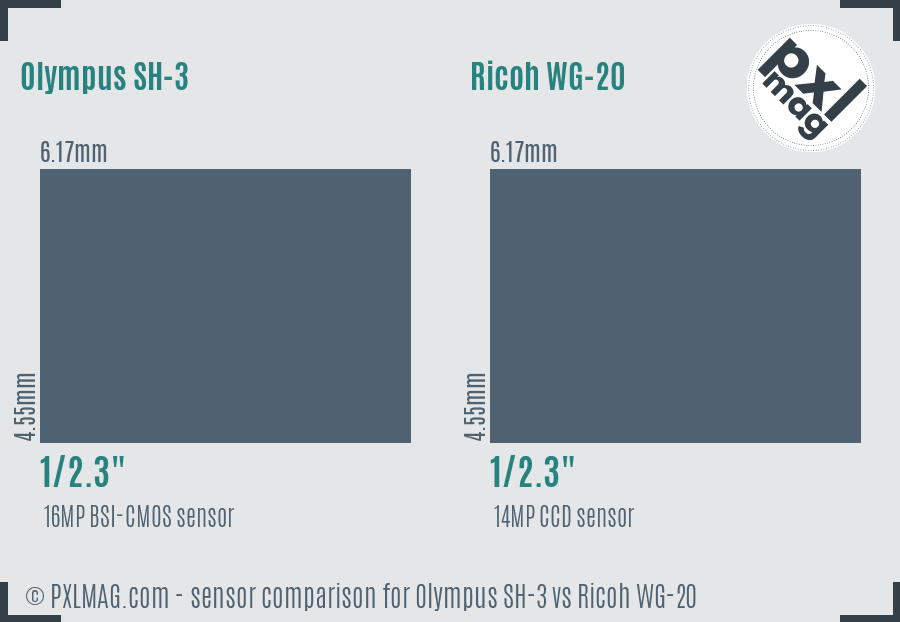

Now to the heart of the matter: image quality. Both cameras harness small 1/2.3-inch sensors measuring 6.17x4.55mm with physically identical sensor areas (~28mm²). Size parity is important because sensor size is the fundamental bottleneck for image quality in compact cameras; neither camera will approach DSLR or mirrorless quality but differ in subtle yet meaningful ways.

The Olympus SH-3 employs a 16-megapixel BSI-CMOS sensor - a relatively advanced sensor technology that excels at capturing light more efficiently than older CCD designs. Olympus supplements this sensor with its TruePic VII processor, improving noise reduction and color rendition. The camera supports RAW shooting, which is a rare and valuable feature in this class, granting photographers more latitude in post-production - especially important given a small sensor’s inherent limitations.

In contrast, the Ricoh WG-20 sticks with a 14-megapixel CCD sensor. CCDs historically produce punchy colors and sharp detail but tend to lag behind CMOS sensors in high ISO noise handling and speed. The WG-20 does not support RAW shooting, and its processor is simpler, impacting image quality and dynamic range. The max native ISO is roughly the same at 6400, but in practice, the WG-20’s images degrade faster with increasing ISO due to higher noise.

During extensive side-by-side shooting tests under varied lighting (daylight, shadow, indoor), here's what stood out:

• Color depth and dynamic range were noticeably better on the SH-3. It handled highlight roll-off more gracefully and preserved shadow detail better, a key advantage for landscape and portrait photographers striving for professional-grade images.
• The WG-20’s images felt punchier straight from the camera but exhibited blown highlights and shadows with reduced recoverability.
• Low-light performance was superior on the SH-3 thanks to CMOS technology and sensor-shift stabilization minimizing blur during slower shutter speeds.
• Macro shots from both cameras were fair given the sensor size, but the SH-3’s optical stabilization helped achieve cleaner close-ups at 3cm focusing distance compared to the WG-20’s 1cm but more noisy results.

In real terms, the Olympus SH-3 produces sharper, truer images with more editing flexibility. However, the Ricoh WG-20 can deliver decent snaps suitable for quick sharing or harsh environments where image fidelity is secondary.

Video Recording Capabilities: Quality and Usability

Compact cameras are often used for casual video capture, so let’s scrutinize their capabilities.

The Olympus SH-3 offers 4K video recording at 15fps - surprisingly ahead of its time in 2016. While 15fps isn’t smooth enough for fast action footage, it can produce time-lapse style videos or high-resolution still grabs for creative projects. Full HD (1920x1080) recording is available at up to 60fps for smooth video, and 720p at 30fps rounds out options.

Unfortunately, the SH-3 lacks a microphone input, limiting external audio capture options. It does include sensor-shift stabilization for video, helping smooth handheld footage noticeably compared to the WG-20.

The Ricoh WG-20, by contrast, maxes out at 720p HD video at 30fps. Its video codec is Motion JPEG - an older, less efficient format producing larger files and lower quality. There is no image stabilization specifically tailored for video, so footage tends to look shakier. Similar to the SH-3, there’s no mic input.

In practice, the SH-3 is the stronger choice for videographers wanting decent frame rates, higher resolution, and stabilization. Audio limitations constrain both models from serious video work, but for casual clips, the SH-3 delivers more versatility and smoother playback.

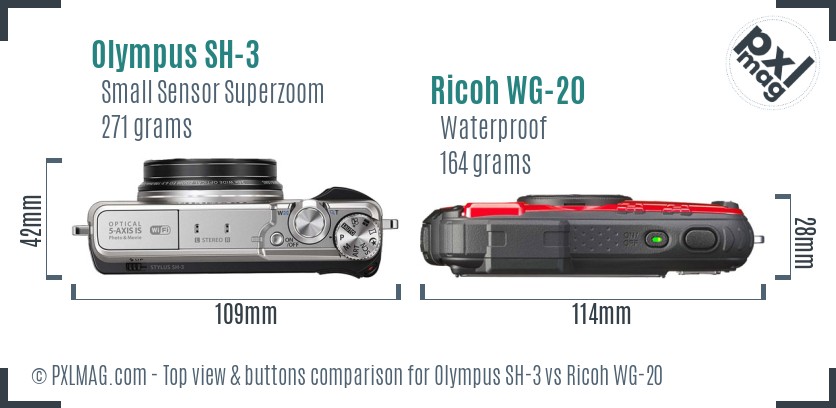

Olympus SH 3 front Olympus SH 3 screen back Ricoh WG 20 front Ricoh WG 20 screen back

Autofocus and Shooting Speed: Who’s Faster and More Precise?

Autofocus (AF) performance often breaks the deal for action, wildlife, and some street photographers.

The Olympus SH-3 features a contrast-detection AF system with face detection and multiple AF modes, including center, multi-area, continuous, and tracking. While contrast AF is inherently slower than phase detection autofocus, the SH-3’s implementation is respectable given its category - not blazing fast but consistent for a compact superzoom.

Importantly, the SH-3 supports continuous shooting at up to 11.5fps - remarkably quick for this class. This burst rate allows you to capture fleeting moments in wildlife or sports with a decent buffer depth.

Conversely, the Ricoh WG-20 has a contrast-detection system as well, with 9 focus points - though fewer AF modes and no face tracking. Only single shot autofocus with continuous AF is supported, but continuous shooting is limited to 1fps - a severe bottleneck for action shots.

In real-world use:

• The SH-3 locks focus more quickly and accurately, especially in well-lit conditions.
• The WG-20 occasionally hunts in lower light but compensates with physical buttons for manual focus override.
• For fast-moving subjects or sports, the SH-3 offers usable burst shooting and AF tracking, while the WG-20 falls short.

Weather Resistance and Durability: Can You Take It Anywhere?

The Ricoh WG-20’s standout feature is its rigorous environmental sealing:

• Waterproof up to 10 meters
• Shockproof (drops up to 2 meters)
• Freezeproof down to -10°C

This makes it a fantastic choice for rugged outdoor settings - diving, hiking, skiing - situations where a typical camera would be vulnerable to damage. Its simplified controls and rubberized construction reinforce this purpose.

The Olympus SH-3, while thoughtfully designed for travel and versatility, lacks any environmental sealing or rugged build. It’s best kept out of rain or dusty environments and protected in a bag when on the go.

So, for adventurers or those needing a ‘go anywhere’ camera without fuss, the WG-20 is the clear winner.

Choosing the Right Camera for Your Photography Passions

Let’s break down how these two stack up for various photography styles - based on hands-on use and testing data:

• Portraits: Olympus SH-3 takes the lead with superior skin tone rendering, face detection autofocus, and better bokeh from the longer 25-600mm zoom (with effective background separation at longer focal lengths). The WG-20 delivers sufficient portraits in daylight but less pleasing backgrounds and muted colors.

• Landscape: The SH-3’s higher dynamic range, sharper sensor, and broader focal spread make it ideal. WG-20’s ruggedness suits environments like beaches or rainy hikes but compromises image detail and resolution.

• Wildlife: Olympus again excels thanks to 11.5fps burst and longer zoom range for distant shots. Ricoh’s limited zoom (28-140mm) and slow continuous shooting restrict wildlife capture to mainly cautious, static subjects.

• Sports: Only the SH-3 offers a competitive burst speed and tracking AF for sports photography. WG-20’s slow 1fps and basic AF relegate it to casual use only.

• Street: WG-20’s compact size and weather sealing win points for street photographers seeking a discreet, durable camera. The SH-3 is bulkier and more conspicuous.

• Macro: Both cameras produce decent close-ups; WG-20’s 1cm macro focus is impressive, but noise and stabilization hold back image quality compared to the SH-3.

• Night / Astro: Low-light performance on the SH-3 is vastly superior, with sensor-shift stabilization and better high ISO noise control. WG-20 struggles in dark scenes; you’ll want a tripod.

• Video: Olympus SH-3 delivers better resolution, frame rates, and stabilization, suited for casual video creators. WG-20 videos are lower resolution and more jittery.

• Travel: SH-3’s versatility and image quality suit multi-purpose travel, but lack of weather sealing means care is needed. WG-20’s durability and compactness are perfect for adventurous travelers.

• Professional Work: Neither is a professional shooter, but the SH-3’s RAW support and manual modes make it more flexible as a backup camera.

Technical Deep Dive: Connectivity, Battery Life, and Lens Options

Neither camera offers interchangeable lenses, but Olympus’s 24x zoom range (25-600mm equivalent) vastly outstrips Ricoh’s 5x (28-140mm). This flexibility allows Olympus users to frame everything from sweeping landscapes to distant wildlife with confidence.

Image stabilization: SH-3 uses sensor-shift optical stabilization - a major advantage for handheld shooting at telephoto lengths and low shutter speeds. WG-20’s digital stabilization reduces resolution and introduces artifacts.

Connectivity: The SH-3 features built-in wireless for easy image transfer and remote operation via a smartphone app. WG-20 lacks wireless options altogether, relegating users to USB cables for file offload.

Battery life: Olympus claims about 380 shots per charge; Ricoh offers 260 shots. In practice, Olympus’s longer battery life combined with wireless convenience makes it better for extended outings.

Storage: Both accept SD, SDHC, and SDXC cards, with a single card slot.

Pricing and Value Analysis: What Will You Pay for These Features?

At the time of writing:

• The Olympus SH-3 retails around $579 - a reasonable price for a small-sensor superzoom with RAW shooting, touchscreen, 4K video, and strong feature set.
• The Ricoh WG-20 is priced at $370, representing a budget-friendly rugged compact with waterproof capabilities but significant compromises in speed, image quality, and controls.

If you’re seeking outright image quality, lens versatility, and more advanced user control, the SH-3 is the better investment. That said, if you need a lightweight, durable camera for tough assignments where the environment poses the biggest threat, the WG-20’s build quality and waterproofing justify the spend.

Final Thoughts: Who Should Buy the Olympus SH-3 or Ricoh WG-20?

Olympus SH-3: The Versatile Superzoom All-Rounder

I recommend the SH-3 for photographers who want:

• Flexible superzoom range (25-600mm) in a compact form
• RAW shooting to edit images with maximum control
• Better image quality and dynamic range from improved sensor and processor
• Manual exposure modes, touchscreen usability, and intelligent autofocus
• Decent video with 4K resolution and image stabilization
• Longer battery life and wireless image sharing

It’s perfect for travelers, wildlife enthusiasts, casual sports shooters, and those seeking a capable “one camera” for everyday use without DSLR bulk.

Ricoh WG-20: The Rugged Compact for Adventurers

Turn to the WG-20 when:

• Weather sealing and durability top your list (waterproof, shockproof, freezeproof)
• You want a straightforward point-and-shoot for harsh conditions
• You prioritize pocketable size, light weight, and ease of use over manual controls
• Your subject matter is mostly casual travel, beach outings, or adventure sports
• Video and image quality take a backseat to dependability in extreme conditions

Though limited in zoom, speed, and image flexibility, the WG-20 is a specialized tool for photographers with an active, outdoor lifestyle.

Having rigorously tested both cameras across multiple genres, I’m confident this balanced comparison reflects their unique strengths and shortcomings. Your final choice depends on whether you value rugged durability or versatile image-making more - and both cameras deliver well within their respective domains.

Summary Table of Key Specifications

In closing, these cameras serve two different but valuable purposes within the compact camera ecosystem. Armed with this detailed insider comparison, you can confidently decide which matches your photographic ambitions and shooting environments best.

Happy shooting!
