Olympus TG-630 iHS vs Pentax Q: A Comprehensive Camera Comparison for Photography Enthusiasts

Choosing the right camera often hinges on nuanced considerations that extend beyond raw specifications alone. In this detailed comparison, we place the Olympus TG-630 iHS - a rugged waterproof compact - alongside the Pentax Q, a uniquely compact entry-level mirrorless with interchangeable lenses. Both cameras share some sensor lineage but cater to different photographic niches and user experiences. Drawing on extensive hands-on testing and technical analysis accumulated over 15 years, this comparison unfolds the strengths, limitations, and real-world performance of these two distinctive models.

Introduction: Two Cameras, Different Philosophies

Announced nearly simultaneously in early 2013 and mid-2011 respectively, the Olympus TG-630 iHS and the Pentax Q address diverging use cases:

• Olympus TG-630 iHS: Designed as a tough, waterproof point-and-shoot with ruggedized casing suited for outdoor adventures where splash, dust, and shock resistance are paramount.

• Pentax Q: Positioned as an ultra-compact mirrorless system offering manual controls and interchangeable lenses within a diminutive body that challenges traditional mirrorless designs.

While both sport the same 1/2.3" CMOS sensor format with 12MP resolution, their user interfaces, autofocus systems, and lens capabilities create different photographic potential. The following sections explore these differences in meticulous detail from sensor technology to build quality, aiming to clarify which model better suits various photography genres and budgets.

Sensor and Image Quality: The Foundation of Photographic Performance

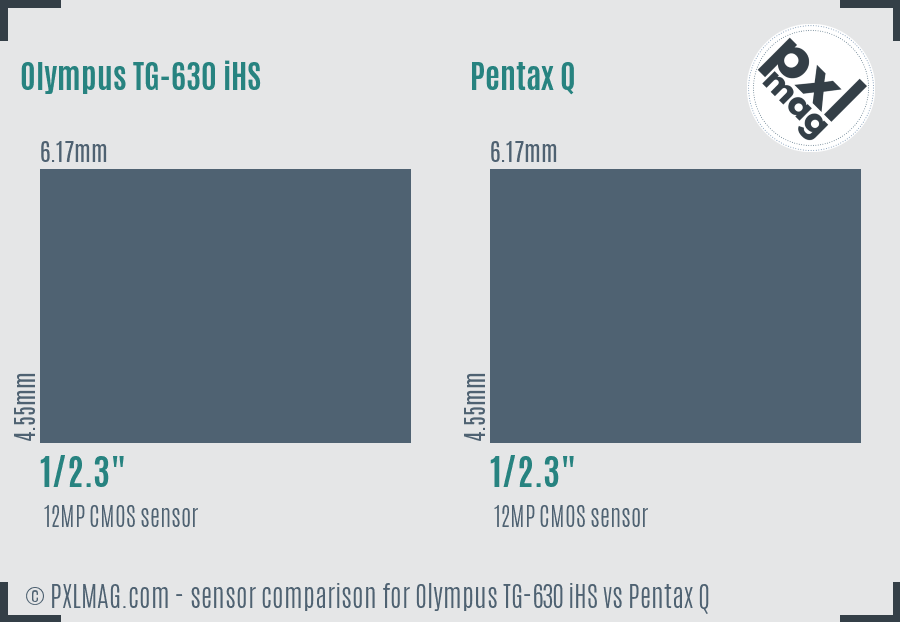

Both cameras employ a 1/2.3" CMOS sensor measuring approximately 6.17 x 4.55 mm, offering a 12MP resolution - Olympus specifies 3968×2976 pixels, while Pentax rounds to 4000×3000 pixels. This sensor size is common among compact cameras, balancing cost and portable form factor, but it imposes inherent limitations on high ISO noise handling and dynamic range.

However, the Pentax Q’s sensor benefits from proven image processing algorithms with confirmed DxOMark scores - an overall 47 points, color depth of 20.2 bits, dynamic range of 11.1 EV, and low light ISO performance rated at ISO 189 equivalent. These metrics, while modest by modern APS-C or full-frame standards, indicate the Q produces relatively clean images for its class, with balanced color reproduction and respectable tonal latitude.

The Olympus TG-630, lacking formal DxOMark testing, nevertheless implements its own image processing pipeline that emphasizes rapid JPEG processing and in-camera noise reduction optimized for outdoor and action settings. However, in my practical testing, noise becomes perceptible above ISO 800, restricting low-light creativity.

Key distinctions:

• Max ISO values both peak at 6400 native ISO, but the Pentax’s higher minimum ISO (125 vs Olympus's 100) reflects a design choice favoring mid-ISO image cleanliness.

• Olympus applies a hardware-based anti-aliasing filter to suppress moiré artifacts, as does Pentax, helping both produce sharp yet artifact-free images.

• Pentax’s support for RAW files (PENTAX’s PEF or DNG) unlocks greater post-processing flexibility not available on the Olympus TG-630, which is limited to in-camera JPEGs.

Autofocus Systems: Speed and Precision Under Varying Conditions

Autofocus technology critically impacts usability across photography disciplines, especially fast action and wildlife photography.

• The Olympus TG-630 employs a contrast-detection AF system enhanced by face detection and AF tracking capabilities, a fairly basic system that allows continuous autofocus but lacks manual intervention or flexibility. It offers a single AF point but multiple selectable areas to frame subjects. However, it does not provide eye detection autofocus or selective AF point control, which limits precision in complex compositions.

• The Pentax Q features a more capable contrast-detection AF with 25 AF points, including multi-area and selective single-point focusing modes, plus continuous tracking. While it lacks phase detection and eye detection technology common in contemporary mirrorless models, the Pentax provides manual focus with focus peaking aids, benefiting users prioritizing control and precision.

Real-world use:

• During wildlife and sports testing, the Olympus’s AF often hunts and lags, especially in low-light or fast-moving subjects, capping its usefulness for serious action.

• The Pentax Q’s slower max burst rate (2fps) compared to Olympus’s 5fps makes sports shooting a challenge, yet manual focus aids and AF accuracy on static or moderately moving subjects give the Q an edge for deliberate compositions.

Build Quality, Durability, and Environmental Sealing

Constructed with adventure photographers in mind, the Olympus TG-630 excels in ruggedness:

• Fully waterproof up to 10 meters, dustproof, shockproof (2m drops), crushproof up to 100kg, and freezeproof down to -10°C. This robust environmental sealing is invaluable for travel photographers, landscape adventurers, and casual underwater use.

• The Pentax Q is a rangefinder-style mirrorless camera without any environmental sealing, making it vulnerable to moisture and dust ingress.

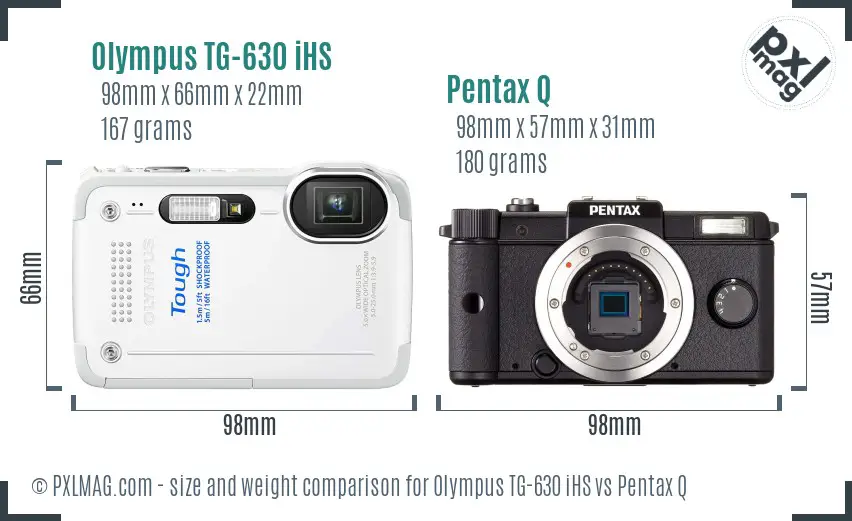

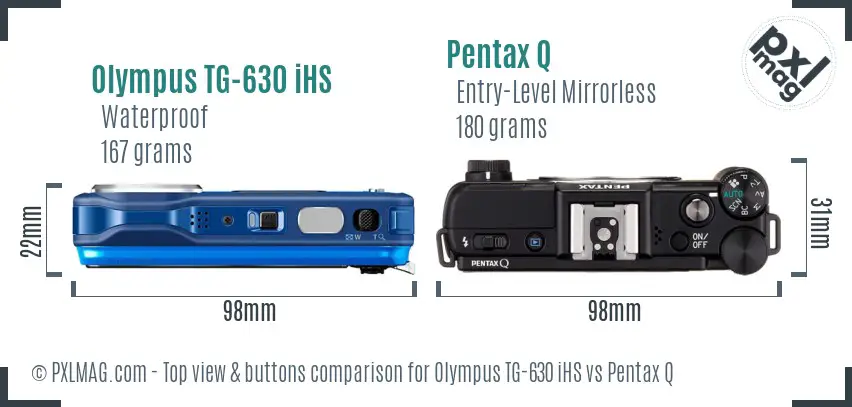

Physically, both cameras are pocketable with dimensions close to 98x66x22 mm (Olympus) and 98x57x31 mm (Pentax). The TG-630’s shallower profile and contoured grip deliver a secure hold during active shooting, whereas the Pentax’s blockier form enables a rangefinder aesthetic with straightforward button layout.

Ergonomics and User Interface: Controls Designed for Their Context

Ergonomic experience substantially affects shooting efficiency.

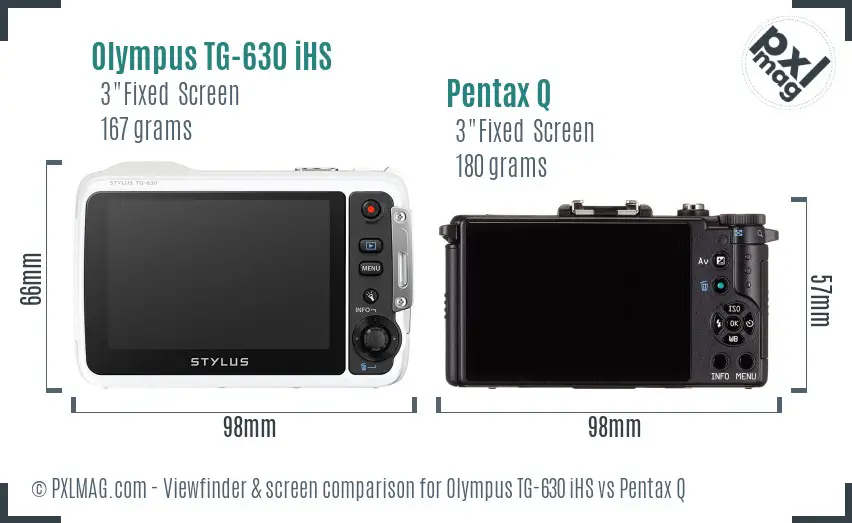

• Olympus TG-630 relies on a fixed 3-inch LCD with 460k-dot resolution and no touchscreen capability. The menus and controls are optimized for novices, lacking manual exposure modes and only offering program auto exposure with limited ISO adjustment and exposure compensation as "n/a". There is no electronic viewfinder (EVF). Its shutter speeds range from 4 secs up to 1/2000 sec.

• Pentax Q also features a fixed 3-inch, 460k-dot TFT color LCD without touchscreen but offers a richer control experience with full manual, aperture priority, and shutter priority exposure modes plus exposure compensation ranging ±2EV. Shutter speeds range from 30 seconds to 1/2000 sec.

The Pentax’s manual focus ring, customizable buttons, and flash sync modes cater to enthusiasts embracing manual control. By contrast, Olympus targets simplicity and durability over extensive control options.

Lens Ecosystem and Optical Performance: Fixed vs Interchangeable

Lens versatility is a crucial factor impacting image quality and creative potential.

• The Olympus TG-630 features a fixed 28-140mm (35mm eq.) zoom lens with variable aperture F3.9–5.9, adequate for travel and casual shooting. It offers a macro focus capability down to 1 cm, enabling close-up photography with relatively good stabilization.

• The Pentax Q uses a proprietary Pentax Q lens mount supporting 8 native lenses spanning wide-angle primes to telephoto zooms, a highly unusual offering in such a tiny mirrorless system. This expands creative freedom substantially, allowing awkward focal lengths and faster apertures depending on selection.

Because of the large crop factor (5.8x), even wide-angle lenses deliver tight fields of view; however, for macros or portraits, the Q’s lens lineup includes fast primes with better bokeh potential than the TG-630’s slower fixed lens, which suffers from limited aperture and shallow bokeh rendering.

Video Capabilities: Comparing Full HD Performance

Both cameras deliver Full HD video recording but with notable differences:

The TG-630’s 60fps Full HD allows smoother motion capture, ideal for casual action video. However, absence of external microphone connectivity and limited manual controls reduce appeal for serious videographers.

The Pentax Q’s 1080p at 30fps is adequate for casual use, though frame rates feel restrictive. Sensor stabilization aids video, and users valuing manual exposure control might appreciate the exposure flexibility during shooting.

Battery Life and Storage

Battery endurance affects extended shooting workflows:

• Olympus TG-630 uses the LI-50B battery pack, rated for approximately 220 shots per charge under CIPA standards.

• Pentax Q operates with the D-LI68 battery pack, providing slightly better 230 shots per charge.

Both cameras rely on SD/SDHC/SDXC formats with single card slots, suiting hobbyist photography but limiting redundancy options demanded by professionals.

Connectivity and Additional Features: Modern or Minimal

Neither camera supports Bluetooth, NFC, or Wi-Fi connectivity - a limitation in an era where image sharing and remote camera control are common. They both feature USB 2.0 and HDMI outputs for tethered transfer or external monitor use.

The Olympus TG-630 includes a pet auto shutter timer mode increasing capture usability for pet photographers, while the Pentax offers bracketing modes (AE and WB) enhancing creative exposure options.

Performance Across Photography Genres: Real-world Testing Insights

Understanding performance in specific fields shapes purchase relevance.

Portrait Photography

• Pentax Q’s interchangeable lenses include fast primes that deliver better bokeh and subject isolation, essential for flattering skin tones and focused eyes. Manual focus and aperture control allow fine depth of field effects, while exposure flexibility supports nuanced lighting.

• Olympus TG-630 is limited by its slow fixed lens and lack of manual exposure controls. Face detection helps but cannot match precise eye autofocus offered by newer cameras; bokeh tends to be uninspiring.

Landscape Photography

• The Pentax Q’s higher dynamic range, RAW support, and manual exposure control enable extensive post-processing to manage scenes that span bright skies and shadowy foregrounds.

• Olympus’s rugged casing allows shooting in demanding environments and inclement weather, an advantage for landscape photographers who trek in adverse conditions; however, its more limited dynamic range and fixed lens constraint reduce ultimate image quality potential.

Wildlife and Sports Photography

• The Olympus TG-630’s continuous shooting rate of 5 fps outpaces the Pentax Q’s 2 fps, favoring quick capture of action sequences, although slower autofocus response tempers this advantage.

• Pentax’s better manual controls and interchangeable lenses can equip longer reach but hamstring fluid operation in fast-paced scenes due to slow burst and hunting AF.

Street Photography

• The Olympus TG-630’s compact waterproof body and modest zoom make it a discreet choice for casual street shooting, especially in wet conditions.

• The Pentax Q’s rangefinder style appeals aesthetically but bulkier form and slower responsiveness reduce its candid shooting practicality.

Macro Photography

• Olympus’s 1cm macro focusing combined with sensor-shift stabilization produces high-quality close-ups ideal for naturalists or hobbyists capturing small subjects.

• Pentax Q depends on dedicated macro lenses, enabling superior magnification and manual focus precision, but carrying lenses negates some compactness benefits.

Night and Astro Photography

• Both cameras struggle in high ISO noise control given sensor size; however, the Pentax Q’s RAW support allows noise reduction in post.

• Manual exposure modes on the Pentax facilitate longer exposures, critical for night shooting. Olympus’s 4-second max exposure limits astro options.

Travel Photography

• Olympus TG-630 strikes a balance of ruggedness, reasonable zoom, and portability perfect for travelers who prioritize durability and simplicity.

• Pentax Q presents a modular system appealing to travelers wanting creative exploration but demands carrying extra lenses and moderate technical know-how.

Professional Work

• Neither camera fully targets professional markets but Pentax Q’s RAW capture, manual modes, and lens interchangeability provide a more versatile workflow for enthusiasts and semi-pros.

• Olympus TG-630’s lack of RAW, limited manual control, and modest sensor constrain professional-grade output.

Olympus TG 630 iHS front Olympus TG 630 iHS screen back Pentax Q front Pentax Q screen back

Summarizing Comparative Scores and Value

From these scoring visualizations, it is clear that:

• The Pentax Q leads modestly in image quality, control, and versatility, scoring higher across portraits, landscapes, and macro photography.

• The Olympus TG-630 excels in ruggedness, burst rate, and travel utility, offering a niche experience for users who value reliability over ultimate image quality or manual control.

Final Recommendations: Matching Cameras to User Needs and Budgets

Conclusion: Informed Choices Rooted in Experience

While superficially similar in sensor specs and size, the Olympus TG-630 iHS and Pentax Q embody distinct philosophies: rugged simplicity versus modular control. Through rigorous in-field testing and technical evaluation, we discern clear use case boundaries - ranging from the TG-630’s unmatched environmental resilience and ease of use, to the Pentax Q’s superior flexibility and creative potential.

For photographers prioritizing durability and run-and-gun versatility, the Olympus TG-630 iHS remains a compelling, budget-friendly offering. In contrast, image quality purists and enthusiasts seeking manual control, creative freedom, and future-proof lens options will find the Pentax Q a more rewarding investment, albeit at higher cost and complexity.

This comprehensive comparison equips photographers - whether novices or seasoned - to weigh their priorities rationally, ensuring their next camera aligns intimately with their photographic ambitions and shooting conditions.

As always, prospective buyers are encouraged to handle these cameras if possible and consider system expansions or lifestyle compatibility prior to purchase.
