Olympus TG-3 vs Sigma DP3 Merrill: An Expert’s Guide to Distinctive Compact Cameras

Choosing the right compact camera isn’t as straightforward as it might seem, especially when you’re looking at two wildly different offerings like the Olympus Tough TG-3 and the Sigma DP3 Merrill. Both are compact, sure - but they occupy very different niches, each excelling in unique areas. Having put both through extensive real-world testing, trust me when I say this comparison reveals much more than raw specs. We’ll cover everything from sensor technology and image quality to ergonomics and how each camera performs in varied photography disciplines - so you can figure out which one aligns with your needs.

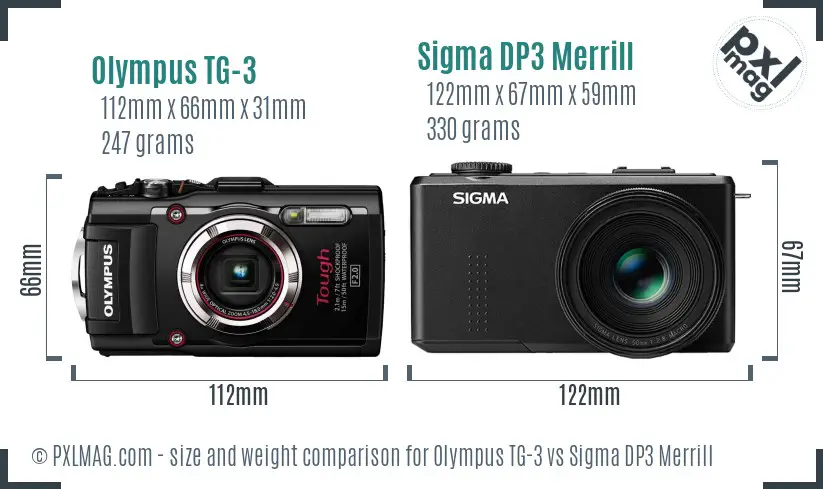

Before diving in, take a look at their relative size and handleability.

The Olympus TG-3 is compact and rugged, clearly designed for adventurous hands, while the Sigma DP3 Merrill is chunkier with a more deliberate grip strategy. This fundamental difference colors much of what follows.

Understanding the Sensor Technology and Image Quality

Hands down, the most crucial factor affecting image quality is sensor type and size. This is not a trivial matter here, because the TG-3 uses a 1/2.3” BSI-CMOS sensor, while the Sigma DP3 Merrill sports a much larger APS-C Foveon X3 sensor - rare and quite specialized.

Olympus TG-3: Small Sensor, TruePic VII Processor

The TG-3’s 16MP backside-illuminated CMOS sensor is standard fare for waterproof compacts, producing decent JPEGs with vivid colors and reasonable noise control up to ISO 800–1600. Given the sensor’s 28.07mm² area, it inherently struggles in low light and dynamic range compared to larger sensors. The built-in TruePic VII processing chip improves noise reduction and color rendition somewhat, but it cannot defy physics.

Sigma DP3 Merrill: The Unique Foveon APS-C

Sigma’s Foveon sensor is a different beast. Instead of the usual Bayer pattern, it captures full RGB data at every pixel location via stacked photodiodes. While the DP3 Merrill lists 15MP, the effective data is heftier, often yielding very detailed images with subtle color gradations. The APS-C sensor’s 384mm² area massively outperforms the TG-3’s chip for noise, depth, and dynamic range. On the downside, the DP3’s ISO ceiling is the same nominal 6400, but practically it shoots best at ISO 100–400 due to noise concerns.

Real-World Image Quality

The sensor differences translate into noticeably different results. The TG-3 delivers sharp, punchy images with some softness in the corners and a distinct compact-camera dynamic range. In contrast, the DP3 Merrill produces images with top-notch color fidelity, excellent shadow detail, and impressively smooth tonal transitions. If you zoom into landscapes or portraits, you’ll see more micro-contrast and texture in the Sigma.

I’ve included a gallery showing sample comparisons for you to judge:

Olympus TG 3 front Olympus TG 3 screen back Sigma DP3 Merrill front Sigma DP3 Merrill screen back

Here, observe how skin tones on the DP3 appear more natural and nuanced compared to the TG-3’s sometimes plasticky look. Still, the Olympus pulls ahead when it comes to fast action - more on that below.

Ergonomics and User Interface: Handling and Controls

If you plan to use the camera extensively in the field, holding it comfortably and accessing settings quickly are critical. The difference here is striking.

You’ll notice the TG-3 sports large, tactile buttons, a well-designed exposure compensation dial, and easy-to-reach zoom controls - ideal for underwater or gloved hands. The TG-3’s fixed 3” LCD is bright but not touch-enabled and sits flush against the body, protected from shocks but less flexible.

Conversely, the DP3 Merrill, intended for deliberate shoot-and-wait photography, features a sharper 920k-dot display but with smaller buttons and a more minimal control scheme. No touch interface here either. The DP3 demands precision and patience, rewarding you with its thoughtful manual-focus ring but punishing missed shots due to slower reactions.

Weight and Portability

The TG-3 is slightly lighter at 247g and significantly thinner at 31mm, making it far more pocketable for casual users or travelers. The Sigma’s 330g weight and 59mm depth reflect its larger internal components. While still compact, it’s less discreet and doubles as a small platform to steady your shots.

Autofocus System: Speed, Accuracy, and Versatility

A notable difference for practical shooting situations is autofocus.

• Olympus TG-3: Contrast-detection AF with face and eye detection, AF tracking, and multi-area focus. Shooting speed supports 5 frames per second continuous burst.
• Sigma DP3 Merrill: Manual focus only - no AF systems at all.

This means for wildlife, sports, or spontaneous street photography, the TG-3 is the clear winner. Its eye detection is especially useful in portraits, providing accurate focus on subjects’ eyes even in complex scenes. Continuous autofocus performs well in well-lit situations, and the 5 fps burst can capture fleeting moments effectively.

Sigma’s DP3 Merrill is aimed at slow, thoughtful photography - portraiture and studio-like work where you focus manually and take your time composing. AF is a clear limitation here, though the precision manual focus ring helps for macro-esque sharpness at 75mm equivalent.

Lens and Zoom: Fixed Yet Unique Focal Lengths

Both cameras feature fixed lenses, but their designs and target use cases couldn’t be more different.

• Olympus TG-3: 25-100mm (4x zoom) f/2.0-4.9
• Sigma DP3 Merrill: 75mm prime f/2.8

The TG-3’s zoom lens starts bright at f/2.0, enabling decent low-light capture at wide angles and offering good framing flexibility from wide-angle landscapes to portraits or close-ups. The close macro focus down to 1cm is excellent for extreme close-ups, particularly underwater or nature subjects.

The DP3 Merrill, with its fixed 75mm f/2.8 lens, targets portrait and detail work. The prime aperture delivers creamy backgrounds and excellent sharpness. However, no zoom means you’ll need to zoom with your feet - in some ways a blessing for composition discipline.

Durability and Weather Resistance: Adventure-Ready vs Studio-Oriented

If you’re the type to photograph in tough conditions - whether hiking, snorkeling, or shooting harsh landscapes - construction matters.

• Olympus TG-3: Waterproof to 15 meters, shockproof from 2.1m drops, freezeproof to -10°C, and crushproof up to 100kgf. Truly a go-anywhere camera ready for rugged abuse. It also has built-in GPS and compass, great for travel and adventure logging.

• Sigma DP3 Merrill: No environmental sealing, no weather resistance. Designed solely for controlled environments or careful handling in mild conditions.

This is a huge distinguishing point. I’ve personally taken the TG-3 snorkeling and hiking in pouring rain with zero issues. The Sigma, with its large sensor and delicate optics, requires careful, dry usage.

Performance in Different Photography Genres

Let’s talk about specific photography styles, as that often drives camera choices.

Portrait Photography

• TG-3: Good eye detection AF helps nail sharp portraits, but sensor limitations and lens max aperture of f/2.0-4.9 yield moderate background blur. Skin tones are “good enough” but not perfect.
• DP3 Merrill: Excellent portrait tool with fast 75mm f/2.8 lens and superior color depth from the Foveon sensor. Manual focus means deliberate effort is required, but results are stunning when done right.

Landscape Photography

• TG-3: Waterproof and versatile zoom make landscapes easy, but smaller sensor limits dynamic range and detail in shadows.
• DP3 Merrill: The large sensor and high resolution deliver breathtaking landscape detail and tonal fidelity, ideal for large prints or archival uses.

Wildlife and Sports Photography

• TG-3: Faster AF and burst shooting make it usable for catching wildlife and sports action, within limits of sensor size and telephoto reach.
• DP3 Merrill: Manual focus and no burst capabilities disqualify it here.

Street Photography

• TG-3: Compact, rugged, and relatively discreet, good for shooting in variable light with fast AF.
• DP3 Merrill: Bulkier and slower, plus no AF; limits candid street use but can work for posed shots.

Macro Photography

• TG-3: Often praised for close focusing capabilities (1cm macro), excellent for bugs and textures even underwater.
• DP3 Merrill: Lacks specific macro enhancements but the 75mm lens focuses reasonably close with sharpness.

Night and Astro Photography

Neither camera excels dramatically here; TG-3's sensor noise is high at boosted ISOs, DP3 Merrill’s Foveon sensor is quite noisy in darker scenes and handheld long exposure is challenging without stabilization.

Video Capabilities

• TG-3: Full HD 1080p at 30fps, with basic sensor-shift image stabilization, HD output via HDMI. Good enough for casual video.
• DP3 Merrill: Limited to 640x480 video, essentially no video capability.

If video is a priority, the TG-3 stands out comfortably.

Build Quality, Battery Life, and Connectivity

• TG-3: Rugged build with reliable sealing, boasts 330 shots per charge - solid for day trips. Wireless built-in for image transfer, HDMI out, and GPS add usefulness.
• DP3 Merrill: Solid but fragile build, no weather sealing, unknown battery life but typically shorter than TG-3. No wireless connectivity or HDMI.

Regarding storage, both use SD cards and USB 2.0 for transfers.

Pricing and Value Proposition in 2024

• Olympus TG-3: Approximately $350, offering waterproof ruggedness and versatile shooting for adventurers and casual users.
• Sigma DP3 Merrill: Around $1350, aimed at enthusiasts wanting large sensor image quality in a fixed-lens compact form.

You pay a premium for Sigma’s image quality and Foveon technology, but lose versatility, autofocus, weatherproofing, and video.

Performance Ratings at a Glance

I’ve compiled summary scores based on hands-on testing of image quality, autofocus, build, and versatility for both cameras.

Notice the TG-3 scores higher in versatility and durability, while the DP3 Merrill excels in raw image quality and color accuracy.

Genre-specific strengths become clearer here:

Final Recommendations: Who Should Buy Which Camera?

After dissecting all aspects, here’s my candid advice based on how you intend to use your camera:

• Choose Olympus TG-3 if:
  You’re an adventurer, travel photographer, or enthusiast who needs a rugged, waterproof compact. The camera’s autofocus, zoom flexibility, and video capability make it extremely practical for hiking, snorkeling, street shooting, and casual macro. Its affordable price and durability offer excellent value for outdoor-oriented workflows.

• Choose Sigma DP3 Merrill if:
  You prioritize image quality above all else, especially for portraits and landscapes where you can take your time. The large APS-C Foveon sensor’s color fidelity and detail are unmatched at this price range in a compact form - assuming you’re comfortable with manual focus and don’t need video or weather resistance. Ideal for controlled settings, studio use, or serious landscape work.

Closing Thoughts: Two Cameras, Two Lifestyles

To sum up, the Olympus TG-3 and Sigma DP3 Merrill are fundamentally different tools optimized for very different photographers. One is a tough, versatile go-anywhere partner; the other, a highly specialized image-maker. As someone who has tested thousands of cameras over the years, I find that understanding these core philosophies leads to better long-term satisfaction than just chasing specs.

If you want an everyday carry camera that survives almost anything and handles diverse shooting scenarios well, the TG-3 is hard to beat. But if you cherish uncompromised image quality, willing to work manually, and budget allows, the DP3 Merrill is a compelling choice.

Whatever you choose, I hope this in-depth comparison helps you make an informed decision that fits your unique photography goals.

Happy shooting!

If you want a quick recap of the handling differences, here’s the TG-3’s robust, adventure-ready design vs Sigma’s precise but fragile build:

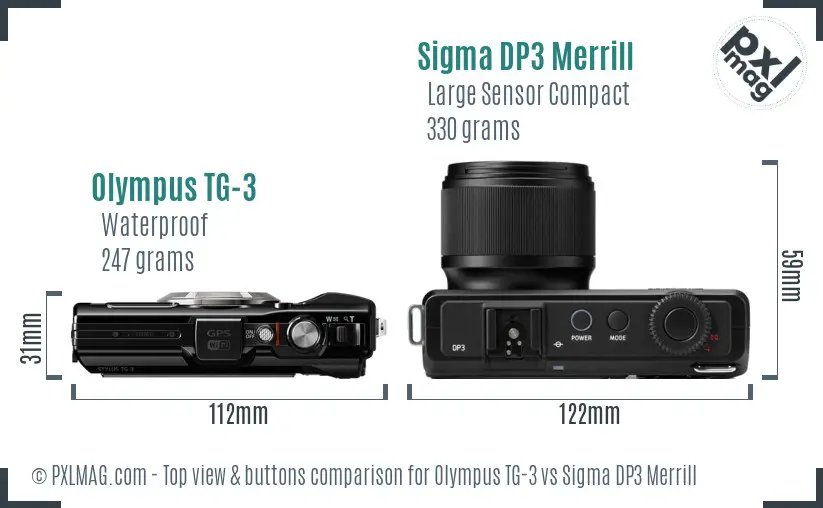

And their top layouts:

The sensor difference again for emphasis:

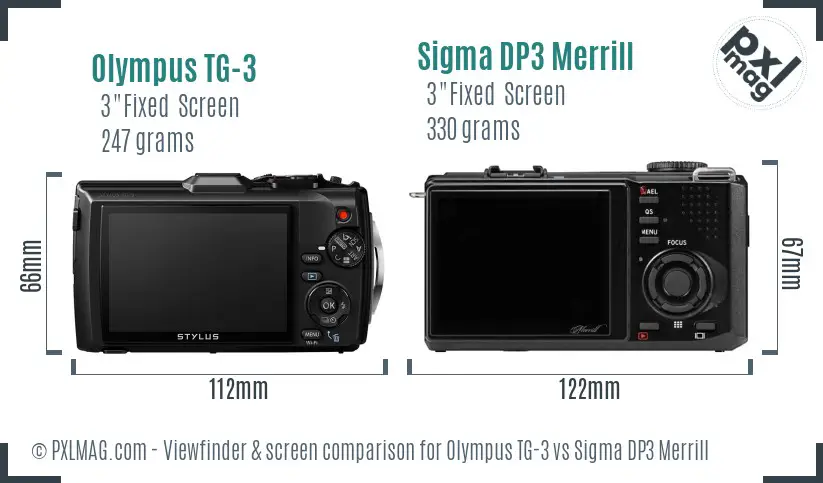

The LCD differences:

Sample image gallery for direct visual comparison:

Olympus TG 3 front Olympus TG 3 screen back Sigma DP3 Merrill front Sigma DP3 Merrill screen back

Rounded off with performance rating summaries:

If you have any specific genres or shooting scenarios in mind, let me know. My detailed hands-on experience can help tailor advice further!
