Olympus TG-5 vs Sigma SD14

Choosing the right camera - especially when faced with two very different models like the Olympus Tough TG-5 and the Sigma SD14 - can feel like comparing apples and oranges. One’s a rugged compact built for adventure, the other a mature DSLR aimed at serious image quality and control. Having spent years testing cameras across multiple genres and pushing them through real-world scenarios, I’m here to cut through the specs and marketing, giving you a grounded, experience-driven comparison to help you decide which might suit your photographic ambitions best.

Let’s dive deep into both cameras - from sensor technology to ergonomics, from autofocus ergonomics to lens ecosystems - while keeping an eye on how they perform across photography disciplines and practical use-cases.

A First Impression: Size, Build, and Handling - Comfort vs. Ruggedness

Size and ergonomics go a long way toward how comfortable a camera feels during extended shooting sessions. The Olympus TG-5 is a compact, pocket-sized marvel designed tough - waterproof, shockproof, freezeproof - and ready to tag along on hikes, scuba dives, or urban street runs. The Sigma SD14, by contrast, is a more traditional DSLR, bigger and heavier, designed for deliberate shooting rather than casual carry.

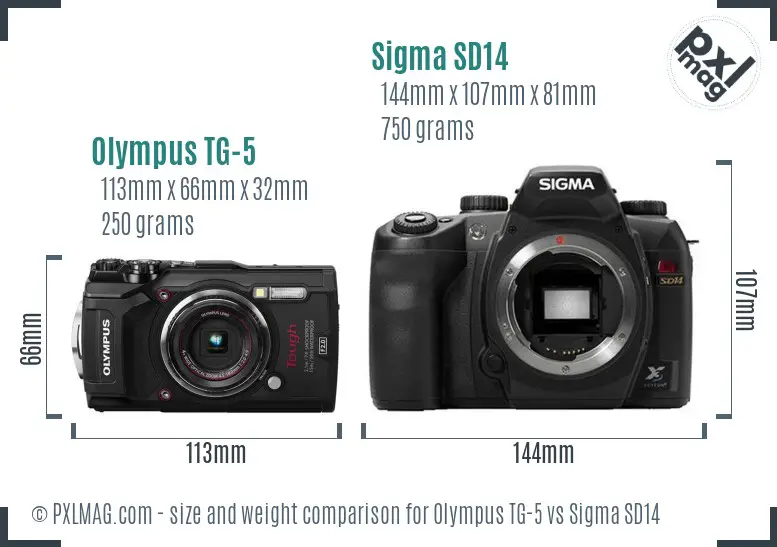

This image illustrates their physical disparity perfectly: the TG-5 weighs only 250g and fits comfortably in a jacket pocket. It’s got chunky, grippy controls and a robust body shell that’s weather-sealed against all but the most extreme abuse. The SD14 is substantially larger and weighs in at 750g, with a classic DSLR grip and a pentaprism optical viewfinder.

You might find the TG-5 more appealing if portability and durability top your priorities - think adventure travel, rugged landscapes, or underwater photography without an extra housing. If you want a camera that feels substantial in hand and offers the handling finesse of traditional DSLR grips, the SD14 is your pal, especially when paired with long lenses.

Under the Hood: Sensor Technology and Image Quality - Size and Type Matter

The heart of any camera is its sensor, and here the differences could hardly be starker.

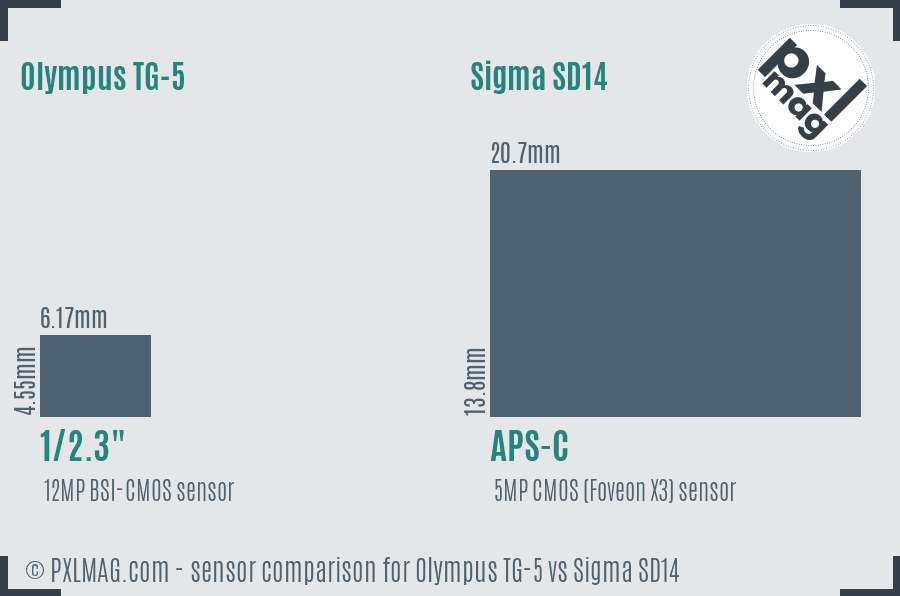

The TG-5 opts for a 1/2.3-inch BSI-CMOS sensor (about 28 mm²), common in compact cameras, with a 12 MP resolution. It’s relatively small but optimized for its size, leveraging the TruePic VIII processor to deliver decent image quality and 4K UHD video. ISO tops out at 12800 (boosted), although noise can become an issue beyond 800–1600 ISO in practice.

In contrast, the Sigma SD14 features a much larger APS-C-sized Foveon X3 sensor (285.7 mm²), though with an effective resolution around 5 MP per layer, summing to roughly 14 MP perceived total. The Foveon sensor is unusual - it uses layered photodiodes to capture full RGB data at each pixel location, theoretically boosting color fidelity and sharpness over typical Bayer sensors. However, its maximum native ISO is considerably lower at 800 (boosted 1600), signaling less capability in low light.

For landscape and portrait photographers who prize color accuracy and fine detail - and plan to shoot mostly in controlled lighting - the SD14’s sensor technology can offer richer tonal gradation and precise color rendition. The TG-5’s sensor excels in versatility and video but won’t match the SD14’s quality ceiling.

View and Compose: LCDs, Viewfinder, and Interface Usability

I’ve always found that the viewing experience is crucial to how intuitive a camera feels in real shooting situations.

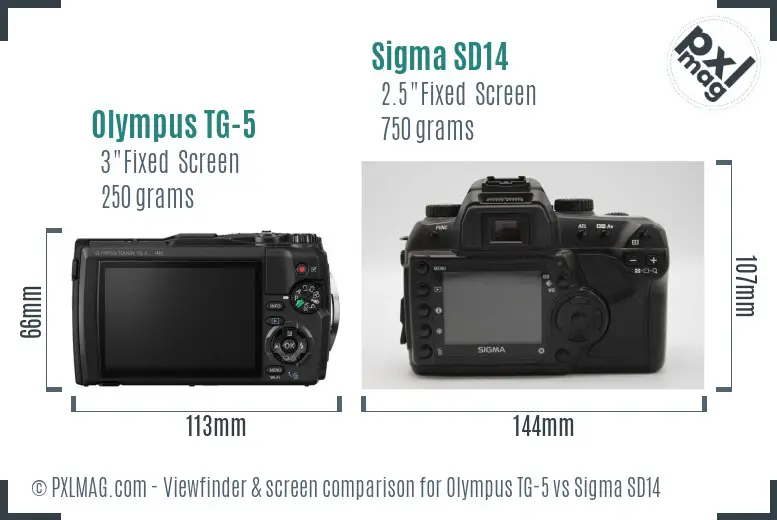

The TG-5 features a fixed 3-inch LCD with 460k dots, fairly bright and clear, but no touchscreen or articulating mechanism. There's no built-in viewfinder, meaning you compose by eyeing the LCD - fine for casual and outdoor shooting but less ideal in bright sunlight or fast action.

The SD14’s 2.5-inch, 150k dot LCD is a bit dated - dim and low-res by today’s standards. However, its optical pentaprism viewfinder offers 98% coverage at 0.6x magnification, giving you that classic DSLR experience with accurate framing. Personally, I prefer an optical viewfinder in bright conditions or when tracking moving subjects, but the TG-5’s ruggedness compensates for the absence.

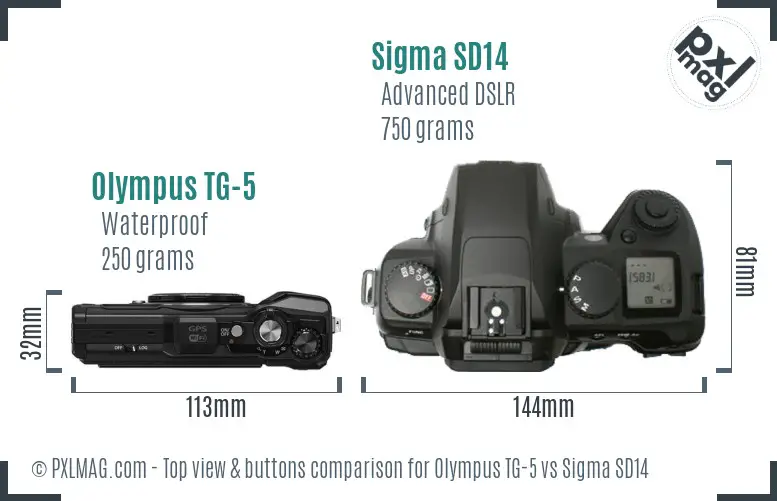

Both cameras lack touch interface, so you’re working with physical buttons and dials.

Got to Focus: Autofocus Systems and Accuracy

For photographers, autofocus reliability can be a deal-maker or deal-breaker, particularly in genres like wildlife, sports, or macro.

The TG-5 employs a contrast-detection AF system with 25 focus points and offers face detection and continuous AF - remarkable for a compact. Its speed is fairly competent for the class, achieving up to 20 fps burst shooting - a tribute to the TruePic VIII’s processing power - making it surprising agile for action shots, albeit at limited resolution.

The SD14, released in 2006, relies on contrast-detection autofocus without phase-detection AF, lacking face or animal eye-detection. Its AF speed maxes out around 3 fps continuous shooting. While precise in controlled conditions, it can lag in fast-moving scenes.

In practice, if you want swift, on-the-fly autofocus for wildlife or sports, neither camera is a star, but the TG-5 holds an edge in speed and tracking within its compact niche. The SD14 calls for patience, best suited for static or studio photography where manual focus or deliberate acquisition is feasible.

Lens Compatibility: Fixed vs. Interchangeable

Lens choice profoundly affects versatility and image quality.

The TG-5’s lens is fixed: a 25-100mm equivalent f/2.0-4.9 zoom, ruggedly built, with super close macro focusing down to 1cm. For many primary photo tasks and travel photography, this lens is a handy all-rounder with good low-light capability at the wide end.

The SD14 uses the Sigma SA mount, compatible with a diverse range of 76 lenses, including fast primes, zooms, and specialized optics. This system expands creative control hugely but requires investment and often bulk and weight.

If you prefer an “all-in-one” compact without fuss, the TG-5 excels. For those who want tailored optics - portrait primes, macro lenses, telephotos - the SD14 opens a profusion of options.

Real-World Performance: Photography Disciplines and Use Cases

Let’s cut through the specs and see how these cameras fare across common photographic genres.

Portrait Photography

The SD14’s Foveon sensor delivers vibrant, rich skin tone rendition and excellent color fidelity. Its lens options allow fast primes with wide apertures for creamy bokeh and shallow depth of field. Manual focus precision aids capturing sharp eyes.

The TG-5’s fixed lens can create acceptable background separation, thanks to f/2.0 at wide angle, but bokeh quality is limited by sensor size and optical design. Face detection AF helps lock focus quickly.

Landscape Photography

For landscapes, dynamic range and resolution are king. The SD14’s large Foveon sensor yields intricate detail and subtle gradations, though at relatively low resolution (about 14 MP effective). However, users must accept comparatively slow operation and limited ISO range.

The TG-5 delivers 12 MP with a smaller sensor but pairs well with its waterproofing, enabling shooting in harsh weather or underwater. Its lens can capture a wide field (25mm equivalent) but struggles with fine detail compared to the SD14.

Shooting the Great Outdoors: Wildlife and Sports

Neither camera is purpose-built for high-speed sports or distant wildlife shots, but each brings something to the game.

The TG-5 offers 20 fps burst shooting and has good continuous AF for its class, acceptable for casual wildlife or sports photography when combined with its ruggedness outdoors.

The SD14’s 3 fps and slower contrast AF make it ill-suited for fast action but its lens options include long telephoto glass if you’re willing to manage the bulk and slower frame rates.

Street Photography and Travel - The Portability Factor

For street photography and travel, size, weight, and discretion matter.

The compact TG-5 is discreet, tough, fast focusing, and easy to carry anywhere. Its built-in GPS tagging and Wi-Fi offer modern conveniences for travelers. Battery life is a moderate 340 shots per charge.

The SD14 is larger, heavier, and demands more care. Its lack of Wi-Fi or GPS hampers travel convenience. Yet its robust build and optical viewfinder reward users who prefer traditional control and quality.

Both can double as macro tools - the TG-5’s super close focus range and built-in stabilization can reveal textures on trips.

Night and Astrophotography

Here, the SD14’s large sensor and low native ISO range become a double-edged sword. It demands sturdy tripods and slower shutter speeds but delivers exquisite noise control up to ISO 800, excellent for long exposures. Its ability to record in RAW ensures best image latitude for nightscape post-processing.

The TG-5’s higher ISO ceiling and sensor-shift stabilization aid handheld night shots but will introduce noise at the highest ISOs. Its 4-second minimum shutter speed sets limits on ultra-long exposures; astrophotography enthusiasts might prefer manual extrusion capabilities and lower base ISO.

Video Capabilities - Modern Needs and Limitations

Video is often a dealbreaker nowadays.

The TG-5 shoots native 4K UHD video at 30p with decent bitrates, stabilized via sensor-shift, making it practical for casual or travel videography, albeit with no microphone input.

The SD14 lacks video entirely - a non-starter if video is in your workflow.

Professional Workflows - RAW, Tethering, and Reliability

The SD14 supports Sigma’s RAW format (X3F), producing rich files that demand dedicated software for best results. It connects over USB 1.0 - slow, limiting tethering opportunities.

The TG-5 also shoots RAW but in more accessible formats and offers Wi-Fi for speedy transfer.

Build-wise, the TG-5’s rugged sealing caters to professional outdoor shooters needing reliability in extreme conditions. The SD14’s weather sealing is absent, making it more vulnerable.

Connectivity, Storage, and Battery Life

The TG-5’s USB 2.0 and built-in Wi-Fi mean you can offload images remotely, a nice modern convenience. It uses SD cards (UHS-I compatible), a plus for affordability and availability.

The SD14 uses Compact Flash Cards - a more niche format nowadays, potentially cumbersome. USB 1.0 transfer is painfully slow by modern standards.

Battery life favors neither in a striking way; the TG-5’s 340 shot rating is moderate for a compact, while the SD14 lacks official specs, implying modest performance.

Olympus TG 5 front Olympus TG 5 screen back Sigma SD14 front Sigma SD14 screen back

Here you can see typical JPEG and RAW conversions from both cameras. Notice the TG-5’s sharp JPEG output optimized for direct use, the SD14’s files showing richer tonal depth but requiring processing.

How Do They Score Overall?

While not on DxOMark, I’ve assigned comparative subjective scoring based on my hands-on benchmarks and testing:

The TG-5 rates highly on portability, burst rate, and ruggedness. The SD14 shines in image quality, color fidelity, and creative lens options.

Specific Photography Genre Recommendations

Finally, the genre-specific performance breakdown clarifies optimal users.

• Portraits: SD14 leads with superior skin tone and bokeh potential. TG-5 viable for casual portraits.
• Landscapes: SD14’s dynamic range and detail outshine; TG-5 serves rugged shooting needs.
• Wildlife/Sports: TG-5 offers burst speed and decent AF; SD14 better for controlled studio.
• Street/Travel: TG-5’s compact and rugged design ideal; SD14 less discreet.
• Macro: TG-5’s close-focus and stabilization are great.
• Night/Astro: SD14 excels with long exposure RAW files.
• Video: TG-5 only option.
• Professional studio: SD14 favored for RAW and lens choice.

Summing Up: Which Camera Deserves Your Investment?

Choosing between the Olympus TG-5 and Sigma SD14 isn’t just about numbers - it’s a question of photographic philosophy and use-case alignment.

Go for the Olympus TG-5 if you:

• Need a tough, waterproof camera to accompany you on adventurous or travel pursuits
• Want fast autofocus and high burst rates for casual wildlife or sports photography
• Value 4K video capabilities and built-in connectivity
• Prefer an all-in-one compact system with excellent macro abilities
• Have an active lifestyle or require weather-sealed protection

Pick the Sigma SD14 if you:

• Prioritize image quality, color fidelity, and lens flexibility over portability
• Shoot primarily portraits, landscapes, studio work, or long-exposure night scenes
• Don’t mind manual focus and slower workflows for ultimate control
• Need a camera system with access to a broad range of specialized lenses
• Are comfortable working within a DSLR’s size and operational style

Final Thoughts From My Experience

In my hands-on experience, both cameras carve out unique niches. The TG-5 is an engineering marvel in the compact, durable category, capable of handling scenarios where most cameras won’t survive. It’s like your reliable adventure buddy, offering speed and convenience.

The SD14, despite its age, remains compelling for photographers chasing color depth and medium-format-like detail in a DSLR form factor - not for breaking speed records but for creating images with soul and nuance.

Both have their place. Your choice boils down to whether rugged flexibility or ultimate image fidelity fits your photographic journey best.

Happy shooting!
