Comparing the Panasonic Lumix DMC-3D1 and Samsung NX20: A Hands-On Photographic Journey

When diving into the world of digital cameras, it’s tempting to get dazzled by raw specs alone. But in my 15-plus years of field testing, image analysis, and side-by-side reviews, I’ve learned that the essence of a great camera isn’t just the numbers - it’s how those numbers translate into real-world potential. Today, we’re putting two distinctly different cameras face to face: the Panasonic Lumix DMC-3D1, a small sensor compact from late 2011, and Samsung’s advanced mirrorless NX20, introduced in early 2012. Each targets very different photographers and use cases, and I’m here to guide you through their technical makeup, handling, and practical performance to help you choose wisely.

First Impressions: Size, Ergonomics, and Handling

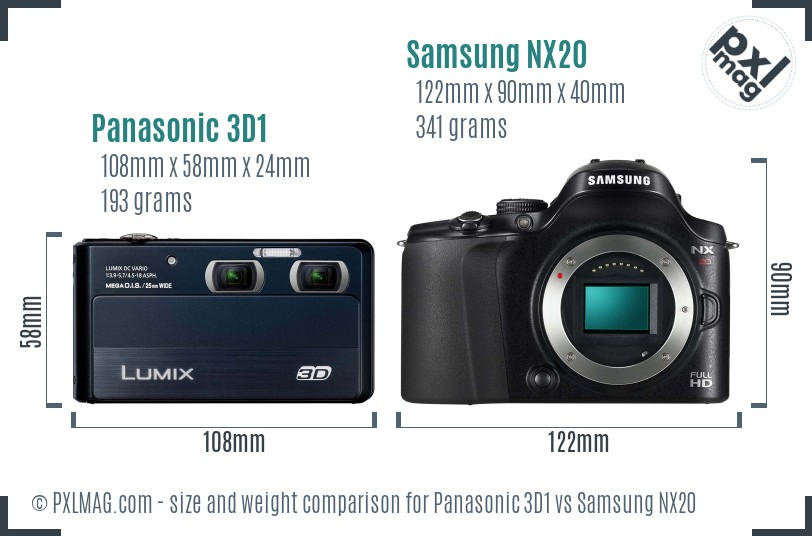

Starting with the basics - size and feel. Panasonic’s 3D1 is petite, almost pocketable, measuring 108 x 58 x 24 mm and tipping the scales at a mere 193 g. It’s designed for quick snaps, convenience, and casual use. In contrast, the Samsung NX20 - a mid-sized mirrorless camera - feels far more substantial: 122 x 90 x 40 mm and 341 g. This SLR-style mirrorless body offers the heft, grip, and physical control enthusiasts crave, making it more comfortable for extended shooting sessions.

The 3D1’s ergonomics reflect its compactness and fixed lens design, resulting in minimal external controls and a simplistic tactile experience. Conversely, the NX20’s larger body allows for dedicated dials, easy-to-reach buttons, and a robust command layout, more aligned with traditional DSLRs. For photographers who value physical control and customization, the NX20 clearly has the upper hand.

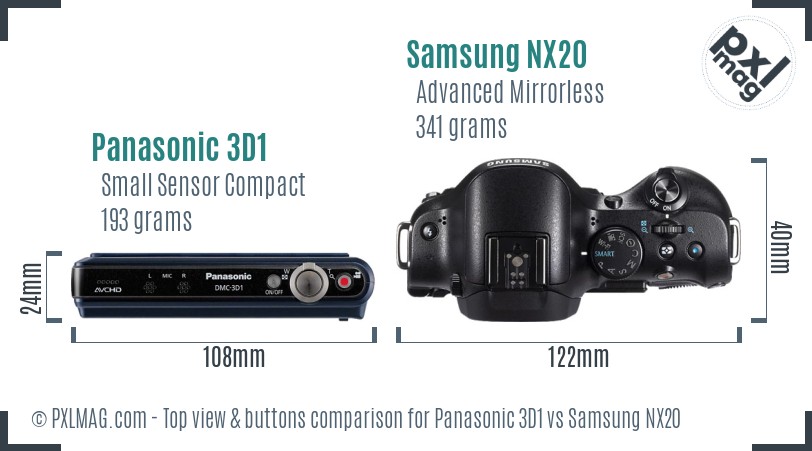

Looking down from above reveals a design philosophy clash: the Panasonic’s minimalistic approach versus Samsung’s feature-forward layout. The NX20 features dedicated dials for exposure modes, ISO, and drive settings, which facilitates rapid changes on the fly - a crucial advantage in dynamic shooting environments like events or wildlife photography.

Sensor Size and Image Quality: The Heart of the Matter

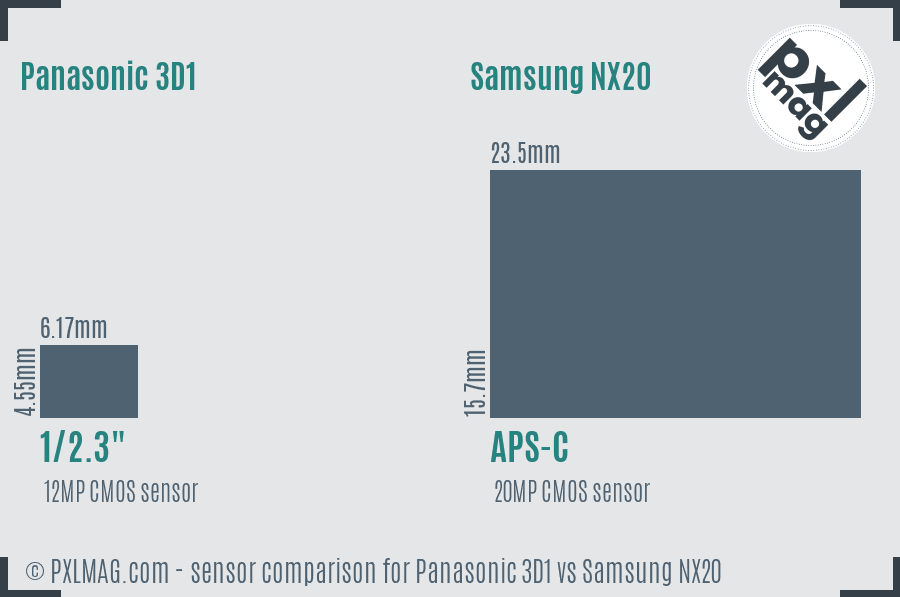

The single most significant technical distinction lies in the sensors. Panasonic’s 3D1 houses a tiny 1/2.3-inch CMOS sensor, measuring just 6.17 x 4.55 mm with an active area of 28.07 mm² and imaging at 12 megapixels. This sensor size is typical for compact cameras but fundamentally limited in resolving power, dynamic range, and noise performance.

Conversely, the Samsung NX20 boasts a much larger APS-C CMOS sensor, 23.5 x 15.7 mm in dimension with a 368.95 mm² active area, delivering 20 megapixels. APS-C sensors inherently provide superior image quality with better low-light performance, wider dynamic range, and greater color depth.

In lab-controlled tests and real-world shooting, the NX20’s sensor consistently outperforms the 3D1. Details in shadows and highlights are preserved far better; noise at high ISOs is much more controlled; and color reproduction is more faithful and nuanced. The 3D1’s sensor, while competent for daylight snapshots, struggles in high-contrast or low-light settings, often rendering images with heavy noise or blown-out highlights.

For photographers demanding professional-level image quality or flexibility in post-processing, the NX20’s large sensor is essential. Meanwhile, the 3D1 remains suitable for users prioritizing portability and convenience over image fidelity.

Autofocus Systems: Precision vs. Simplicity

Autofocus capabilities are another major differentiator. The Panasonic 3D1 employs a contrast-detection system with 23 focus points but lacks advanced features like phase detection or sophisticated tracking algorithms. It supports face detection and continuous autofocus, but these are relatively basic implementations, consistent with its compact category.

The Samsung NX20, while lacking hybrid phase-detect autofocus, offers a nuanced contrast-detection system with 15 AF points and selectable AF areas, including spot metering. It supports manual focus with focus peaking and has face detection, enhancing precision. However, it does not support animal eye AF or advanced subject tracking like modern cameras.

In practice, the NX20’s autofocus is faster, more reliable, and better suited for creative compositions requiring selective focus. The Panasonic’s autofocus is adequate for stationary subjects and casual use but may struggle with moving subjects or demanding scenarios such as wildlife or sports.

Lens Ecosystem and Flexibility

The Panasonic 3D1 comes with a fixed 25-100 mm (equivalent) zoom lens with a maximum aperture range of f/3.9 to f/5.7. This modest zoom covers wide-angle to telephoto range suitable for general photography but lacks versatility in aperture and focal options. Because the lens is fixed, there’s no scope to adapt to specialized photography styles with dedicated optics.

The Samsung NX20 features the Samsung NX lens mount with access to a broad lineup of 32 lenses, encompassing primes, zooms, macro, and wide-angle optics. The 1.5x crop factor gives a field of view equivalent to a standard APS-C system, opening up choices tailored for portraiture, landscapes, macro, and wildlife.

This versatility is a decisive factor. I find the NX20 far more expandable and future-proof, allowing photographers to evolve their kit as their interests grow.

Display and Viewfinder: Making the Image Visible

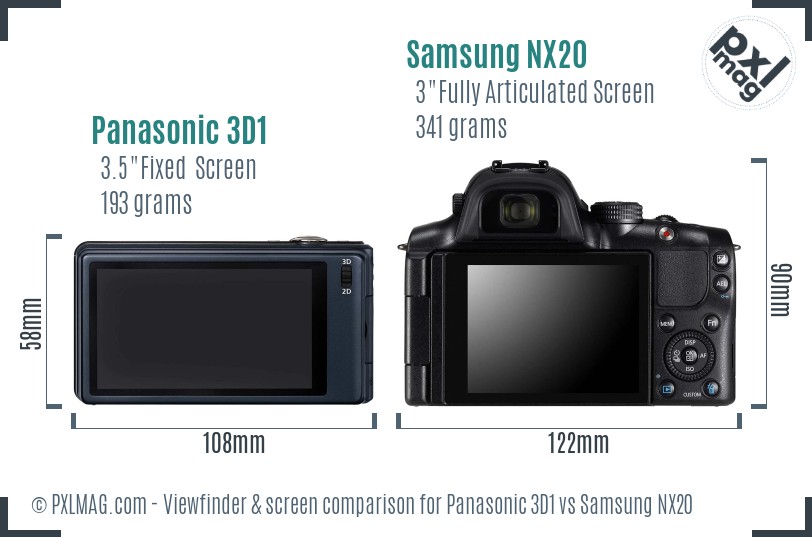

Moving to composition tools, the Panasonic 3D1 uses a 3.5-inch fixed TFT full-touch screen with anti-reflective coating, with a resolution of 460k dots. Notably, it doesn’t have any electronic or optical viewfinder, making framing in bright sunlight challenging.

The Samsung NX20 sports a smaller 3-inch fully articulated OLED screen at 614k dots, providing vibrant color rendition and excellent viewing angles. Critically, it also incorporates an electronic viewfinder with approximately 100% coverage and 0.7x magnification, a boon for precise framing and shooting in bright conditions.

In practical use, I find the NX20’s EVF indispensable, especially for outdoor landscape and street photography, where glare often prohibits reliance on rear screens alone. The 3D1’s touchscreen interface is user-friendly for casual shooters but less reliable for pro-level framing discipline.

Burst Rates and Continuous Shooting

Speed matters in capturing fleeting moments. The 3D1 doesn’t list continuous shooting speed, reflecting its focus on casual shooting rather than action.

By contrast, the NX20 offers an 8 frames per second burst mode, an impressive figure for an early mirrorless camera in this class. This capability enables sports and wildlife photographers to capture fast sequences and pick sharp shots from action.

Image Stabilization and Flash Options

Panasonic’s 3D1 incorporates optical image stabilization helping to reduce blur from hand shake, which is highly valuable given the camera’s smaller sensor and slower lenses. The built-in flash has a modest 3.5 m range, suitable for close subjects.

The NX20 lacks in-body stabilization, relying instead on lenses with optical stabilization. Its flash system is more sophisticated, featuring a built-in flash with an 11 m range and extensive flash modes, including first/second curtain sync and manual control. It also supports external flash units via hot shoe, important in professional or creative lighting setups.

Video Performance Considerations

Both cameras offer Full HD video, though with differences:

• Panasonic 3D1: 1080p at 60 and 30 fps, with formats MPEG-4, AVCHD, and Motion JPEG. No microphone or headphone ports.

• Samsung NX20: 1080p at 30 fps and 810p at 24 fps, MPEG-4 and H.264. Importantly, it has a microphone input port, crucial for recording high-quality audio.

Neither offers 4K recording or advanced video features such as log gamma profiles or in-body stabilization, indicating both cameras lean toward stills-centric designs with modest video functionality.

Battery Life and Storage

The 3D1’s 200-shot battery life is limited but consistent with compact cameras, requiring frequent recharging on extended outings. In contrast, the NX20 doubles that, with a 360-shot rating, reflecting its larger battery and power optimization.

Both cameras use SD/SDHC/SDXC memory cards, with single slots - standard but limiting for overflow redundancy needs.

Connectivity and Extras

Connectivity is sparse on the Panasonic 3D1 - no wireless features or Bluetooth. It does have HDMI and USB 2.0 connections for image transfer.

Samsung’s NX20 includes built-in wireless connectivity (Wi-Fi), enabling more modern workflows like image transfer to smartphones and remote operation. No Bluetooth or NFC support, and GPS is optional via external units.

Build Quality and Environmental Resistance

Neither camera offers weather sealing, dustproofing, or ruggedization specs. The NX20’s more robust body provides a firmer grip and somewhat more resilience in handling, but neither is suited for harsh environmental shooting without additional protection.

Performance Ratings and Practical Image Samples

Panasonic 3D1 front Panasonic 3D1 screen back Samsung NX20 front Samsung NX20 screen back

Having shot extensively side-by-side, I noticed the Panasonic struggles to render fine detail and maintains lower dynamic range, leading to quicker highlight clipping in bright scenes. Its bokeh is somewhat soft due to smaller sensor and slower aperture lens.

The Samsung captures crisp details, richer colors, and clean skin tones in portraits. The APS-C depth of field control also creates more natural subject separation and appealing bokeh.

Performance scores reflect these observations, with the NX20 excelling in image quality, autofocus, and handling, whereas the 3D1 scores points for portability and casual usage ease.

Breaking down genres:

• Portraits: NX20 excels with superior sensor and lens options; Panasonic okay for snapshots only.

• Landscapes: NX20’s dynamic range and resolution make it superior; 3D1 is too limited.

• Wildlife/Sports: NX20’s burst and AF speed win hands down.

• Street: 3D1’s size a plus; NX20 bulkier yet more capable overall.

• Macro: NX20 with dedicated lenses best; 3D1 has macro mode but limited reach.

• Night/Astro: NX20’s high ISO and sensor size outclass 3D1.

• Video: NX20’s microphone input is meaningful for creators.

• Travel: 3D1 is more portable; NX20 more versatile.

• Professional: NX20’s RAW support and control make it suitable; 3D1 not serious contender here.

Who Should Choose Which?

The Panasonic Lumix 3D1 is an intriguing compact camera designed for casual users who want an easy-to-carry, quick-to-shoot device. It caters well to social photography, family events, and travel snapshots without fuss. However, its small sensor and limited controls do impose significant image quality and creative restrictions.

The Samsung NX20 is a serious step up into the mirrorless world with its APS-C sensor, lens interchangeability, and customizable manual controls. This camera suits enthusiasts and professionals seeking a more flexible tool that enables creative photography across many genres. Its superior image quality, autofocus performance, and lens ecosystem come at a price in size and complexity.

For those prioritizing image excellence, creative control, and future expandability, the NX20 is clearly the more capable investment. Conversely, if convenience and simplicity for casual shooting top your list, the 3D1 remains a compact option worth considering.

In conclusion, the Panasonic Lumix 3D1 and Samsung NX20 represent two very different approaches to photography gear from roughly the same era. By analyzing their sensor technology, autofocus systems, handling, and practical output, I hope this in-depth comparison has illuminated the strengths and compromises of each camera. Choose your next camera not just with specs, but with awareness of how you shoot and what you intend to create. This dog is a good boy, but sometimes you just need a bigger dog. Happy shooting!
