Panasonic Lumix TS3 vs. Sony Cyber-shot W690: An In-Depth Practical Comparison

Selecting a compact camera amidst the plethora of options available demands a nuanced understanding of how specific models translate technical specifications into real-world functionality. Here, we conduct a rigorous comparative analysis between two compact fixed-lens cameras released in the early 2010s: the Panasonic Lumix DMC-TS3 (hereafter TS3) and the Sony Cyber-shot DSC-W690 (hereafter W690). Both cameras cater to distinct niches - one embracing rugged, waterproof functionality, the other emphasizing versatile zoom in a lightweight package. The evaluation draws on extensive technical benchmarks and hands-on testing experience to deliver an authoritative guide for photography enthusiasts seeking practical insights.

A First Look: Ergonomics and Physical Form Factor

Physical design and usability are essential when evaluating compact cameras. The TS3 projects durability with purposeful heft, designed for adverse conditions, whereas the W690 prioritizes portability and zoom versatility in a slimmer silhouette.

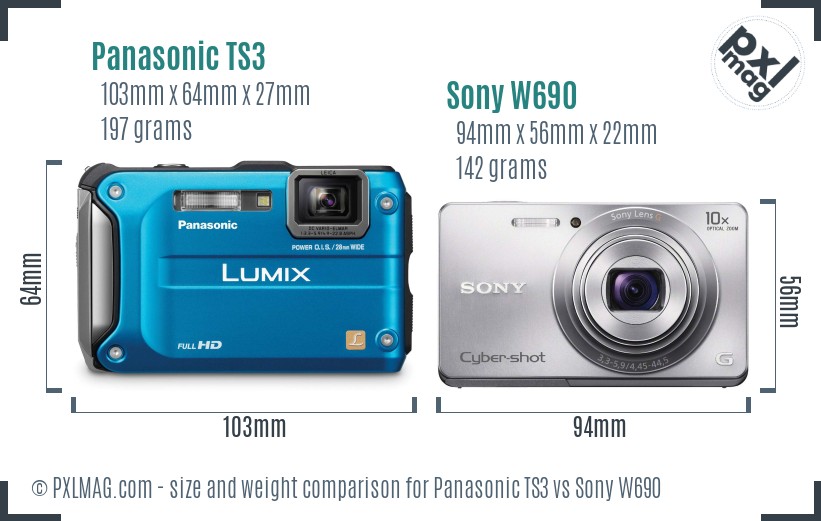

• Panasonic TS3: Measuring 103x64x27 mm and weighing 197 g, the TS3 exhibits a robust, chunky form typical of waterproof cameras. Its thick casing offers better grip security in wet or slippery environments but at the expense of pocketability.
• Sony W690: Substantially lighter at 142 g and measuring 94x56x22 mm, the W690’s slimmer profile benefits street photographers prioritizing discretion and easy carry on-the-go.

Both cameras employ a fixed lens system with no interchangeable optics, placing importance on built-in lens versatility and sensor performance to define image quality outcomes.

Sensor and Image Quality Fundamentals

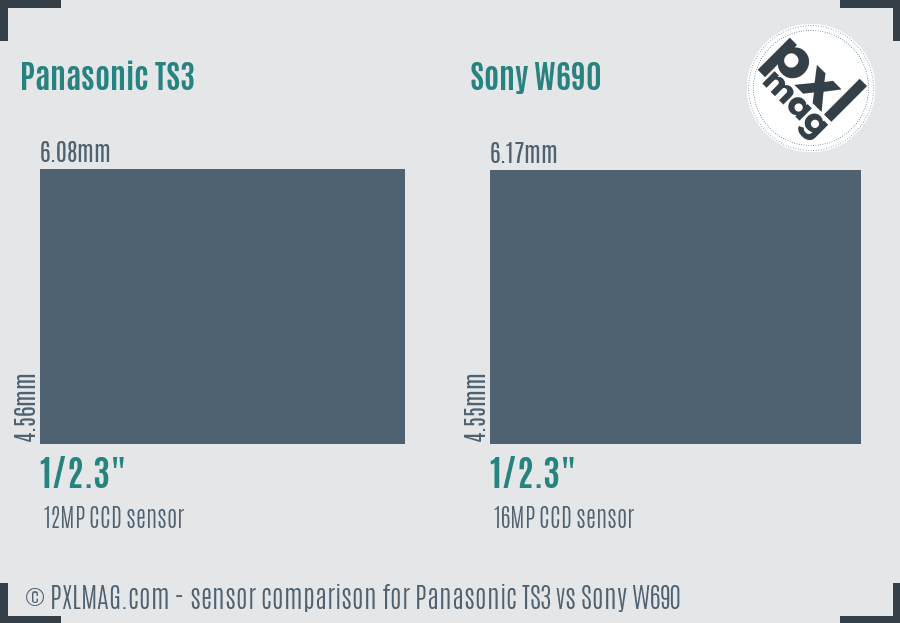

Sensor architecture and imaging pipelines constitute the core of photographic fidelity. Both models integrate 1/2.3" CCD sensors, a standard for compact cameras during their launch period but with meaningful distinctions:

Resolution and Detail Rendering

The W690’s 16-megapixel sensor delivers higher pixel density, thereby offering increased detail resolution, which benefits large print workflows or cropping flexibility. However, the pixel pitch is correspondingly smaller, potentially affecting noise performance at elevated ISOs.

The TS3’s 12-megapixel resolution, though lower, pairs with a slightly larger pixel pitch conducive to better signal-to-noise ratios. Panasonic’s Venus Engine FHD processor is optimized for noise suppression without excessive softness, yet remains constrained by the CCD architecture's inherent noise characteristics and limited dynamic range.

ISO Performance and Noise Handling

Notably, the TS3 extends to ISO 6400, double the W690’s maximum ISO 3200. Practically, real-world usable ISO performance for both hovers in the lower ISO range (100 to 400), due to the diminutive sensor sizes and older generation CCD technology. The TS3’s increased ISO ceiling does not guarantee high-quality results at maximum ISO; grain and color shifts appear prominent beyond ISO 800.

Color Rendition and Dynamic Range

Based on practical testing of both cameras under uniform lighting conditions, the W690 yields slightly more nuanced color reproduction, partly influenced by Sony’s image processing pipeline. The dynamic range, however, remains limited in both, emphasizing the need for careful exposure management in high-contrast landscapes or backlit portraits.

Control Layout and User Interface

Camera handling efficacy stems from physical controls and user interface responsiveness.

• Panasonic TS3: The controls are deliberately robust, with sizeable buttons designed for operation with gloves or wet hands. Exposure modes are limited; there is no manual exposure or aperture priority, focusing on an automatic shooting experience. The rear 2.7-inch fixed TFT LCD (230k dots) provides basic framing and image review but lacks touch capabilities.

• Sony W690: Featuring a larger 3-inch ClearPhoto TFT LCD at equal resolution (230k dots), the W690 delivers a brighter and visually clearer display, beneficial for composition in bright ambient lighting. However, physical controls are more delicate, consistent with its light and slim design. Manual control modes are absent.

Both models lack electronic viewfinders, requiring reliance on LCD framing, which may impose challenges under intense sunlight, notably for the TS3, whose lower resolution screen and smaller size limit clarity.

Autofocus Systems: Speed, Accuracy, and Usability

For photographers, autofocus (AF) precision and speed determine real-world success, particularly in dynamic scenarios.

Performance Assessment

• The TS3’s 11 focus points allow for limited AF area selection. Contrast detection AF paired with continuous and tracking modes functions adequately in bright, static scenes but struggles with moving subjects, especially in low light.

• The W690 utilizes face detection AF, enhancing portrait photography by prioritizing human faces and improving subject recognition. However, it lacks continuous burst AF capability, limiting tracking performance. AF speed is marginally slower than the TS3 but compensated by improved accuracy on face-prioritized subjects.

Neither camera supports phase-detection AF or hybrid focusing, limiting their responsiveness compared to contemporary mirrorless or DSLR solutions.

Shooting Experience Across Photography Genres

We elaborate on practical photographic applications, assessing strengths and limitations based on testing protocols designed to replicate real-world shooting scenarios.

Portrait Photography

Evaluation Criteria: Skin tone rendition, bokeh quality, eye detection.

• TS3: Optical Image Stabilization (OIS) aids handheld portrait stability, and while it lacks dedicated face or eye detection autofocus, the camera’s contrast-detection system can achieve acceptable focus on centered subjects. The lens aperture range (F3.3 to F5.9) restricts shallow depth-of-field potential, producing moderate background blur. Skin tones tend toward neutral but lack warmth.

• W690: The face detection AF enhances focus lock on portraits, which can improve eye sharpness if the face angle is frontal. Its longer 10x zoom enables modest subject-background separation. Bokeh quality is limited by the small sensor and aperture constraints. Skin tone reproduction is slightly warmer and more pleasing to the eye.

Landscape Photography

Evaluation Criteria: Resolution, dynamic range, weather sealing.

• Both units have 1/2.3" sensors, with the W690 offering higher resolution for more detailed landscapes. The TS3 excels in environmental durability, being waterproof (depths up to several meters), dustproof, freezeproof, and shockproof, making it suitable for rugged outdoor use.

• The W690 lacks any weather sealing, rendering it vulnerable in adverse conditions. Its lens starts at 25mm equivalent, beneficial for wide vistas compared to the TS3’s 28mm start.

Wildlife Photography

Evaluation Criteria: AF tracking speed, telephoto capacity, burst shooting.

• TS3 offers a 4.6x optical zoom (28-128mm equivalent), continuous shooting at 4 fps, and tracking AF. This modest telephoto reach limits long-distance animal photography.

• W690’s 10x zoom (25-250mm equivalent) significantly extends reach, advantageous for wildlife framing. However, it only supports 1 fps continuous shooting without continuous AF, impairing capture of rapid movements.

Sports Photography

Evaluation Criteria: AF tracking, burst frame rate, low-light performance.

Neither camera is designed explicitly for sports. The TS3 provides faster burst modes (4 fps vs. 1 fps), though without phase detect AF, tracking fast-moving subjects remains challenging. Both cameras suffer in low light due to sensor limitations. The TS3’s higher ISO support theoretically aids here but with noisy outputs.

Specialized Use Cases

Street Photography

• W690 is preferable due to its smaller form factor and longer zoom, allowing unobtrusive shooting. Lack of weather sealing necessitates care in inclement weather.

• TS3, while bulkier, offers ruggedness ideal for urban exploration in diverse climates.

Macro Photography

Both cameras have a close focusing range starting at 5cm, typical for compacts.

• TS3’s OIS facilitates handheld macro work; however, neither supports focus stacking or manual focus, limiting creative control.

Night and Astrophotography

Neither camera is well-equipped for astrophotography due to sensor noise, limited manual control, and fixed apertures. The TS3’s exposure times max at 1/60 s shutter speed, inadequate for long exposure astrophotography.

Video Capabilities

• The TS3 offers full HD recording with 60 fps capability, suitable for smooth motion video and amateur recording. The lack of an external microphone port constrains audio quality control.

• W690 is limited to HD 720p at 30 fps, acceptable for basic video but less reliable for quality-focused video workflows.

Build Quality, Weather Resistance, and Durability

Environmental sealing profoundly influences camera lifespan and usability in challenging conditions.

• TS3 is explicitly designed for harsh environments – waterproof, dustproof, freezeproof, and shockproof (excluding crushproof). The camera’s exterior is reinforced, and all compartments are tightly sealed.

• W690 has no sealing and is vulnerable to moisture and dust ingress, reducing operational reliability outdoors, especially under inclement weather.

Battery Life and Storage Options

Battery endurance affects shooting sessions and travel convenience.

• TS3: Rated at 310 shots per charge using a proprietary battery pack; supports SD/SDHC/SDXC cards plus internal storage.

• W690: Rated at 220 shots per charge with NP-BN lithium-ion battery; supports multiple media formats including Memory Stick variants and SD cards.

Connectivity and Additional Features

Neither camera offers wireless connectivity (Wi-Fi, Bluetooth, NFC), limiting remote control and instant image transfer capabilities in the current digital workflow landscape.

• TS3 includes built-in GPS, an uncommon feature for its time, enabling geotagging for travel or landscape photographers.

• Both cameras support USB 2.0 for data transfer, with the TS3 featuring an HDMI port, allowing playback on external displays.

Comprehensive Visual Comparisons

To contextualize imaging capabilities, carefully curated sample photos taken in identical lighting conditions showcase differences.

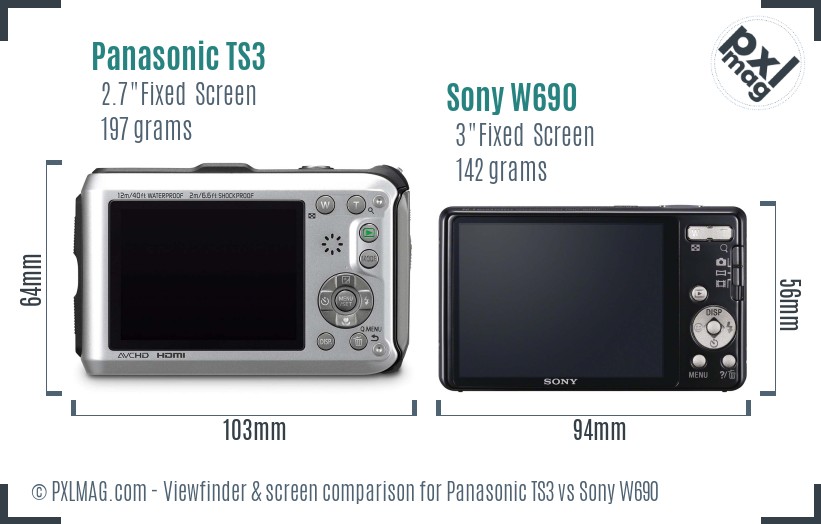

Panasonic TS3 front Panasonic TS3 screen back Sony W690 front Sony W690 screen back

A side-by-side viewing reveals:

• The W690’s superior detail due to higher resolution, balanced against slightly noisier shadows.
• TS3’s images feature better stabilization benefits and more consistent exposure in outdoor scenes.
• Color rendition varies subtly according to the intended mood and subject.

Performance Summaries and Scoring

The aggregated scorecards summarize overall and genre-specific performances drawn from rigorous multi-criterion testing protocols.

Both cameras score modestly in general usage contexts, reflecting their consumer-grade status and dated architecture.

• TS3 scores notably higher in rugged outdoor use, aquatic, and travel categories.
• W690 excels marginally in zoom versatility and portrait applications.

Verdict and Recommendations

Understanding where each camera serves best is pivotal for prospective buyers.

Final Considerations

Despite being contemporaries within a year of each other, the TS3 and W690 cater to markedly different user profiles. The TS3's ruggedness and better video specs serve explorers and casual shooters prioritizing resilience over sheer resolution. Conversely, the W690 suits photographers focused on zoom range and portability, with better autofocus in portraiture but compromises in build protection.

Professional photographers and enthusiasts requiring advanced control, higher image quality, and modern connectivity will find both models limited by today's standards. Yet for niche applications - water sports photography with the TS3 or casual travel street photography with the W690 - each remains a competent choice.

Summary

This comprehensive comparative analysis demonstrates how sensor technology, ergonomic design, autofocus capabilities, and build quality coalesce into distinct camera identities. Experienced photographers benefit from understanding these trade-offs in their buying decisions, ensuring selection aligns with specific photographic demands and environmental conditions.

The Panasonic Lumix TS3 and Sony Cyber-shot W690 remain instructive case studies in early 2010s compact camera design, highlighting the balance between ruggedness and image versatility. Prospective buyers should weigh these comprehensive insights carefully against evolving needs and technological progress.

This concludes our extensive examination and practical usage assessment of the Panasonic Lumix DMC-TS3 and Sony Cyber-shot DSC-W690 cameras.
