Panasonic Lumix TS4 vs Zeiss ZX1: A Deep Dive Comparing Two Distinct Compact Cameras

Choosing the right compact camera can be quite the conundrum, especially when considering models as different in philosophy and execution as the Panasonic Lumix TS4 and the Zeiss ZX1. One hails from the rugged, adventure-ready camp, while the other aims for creative control with a large sensor and integrated workflow. Over my 15+ years of testing cameras across genres, few comparisons are as revealing about the breadth of compact camera design as these two offerings.

In this comprehensive hands-on comparison, I’ll walk you through how these cameras stack up in real-world shooting, dissect their technical specifications, and ultimately help you determine which might fit your photography style and needs better. Whether you’re a weekend hiker needing durability or a street photographer craving impeccable image quality, this analysis will demystify your options.

First Impressions and Handling: Compact Ruggedness vs Creative Control

Immediately upon unboxing these two cameras, their divergent design priorities become clear. The Panasonic TS4 is a truly rugged compact, built to be a worry-free companion on rough adventures and wet conditions. In contrast, the Zeiss ZX1 is a crafted tool for photographers who want a full-frame sensor, manual controls, and an integrated editing workflow - at a heftier size and weight.

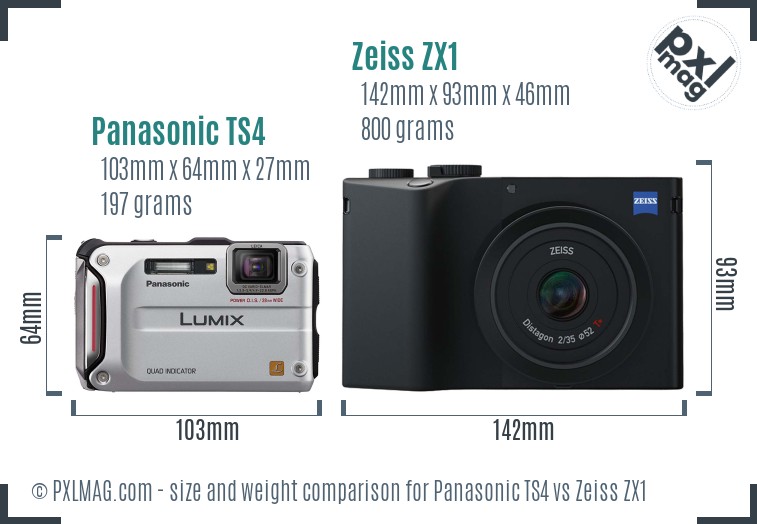

The TS4 feels diminutive in your hand at just 103x64x27mm and 197g. Its robust rubberized shell screams durability, offering waterproof, dustproof, shockproof, and even freezeproof protection. Its tiny 2.7” fixed TFT LCD screen isn’t a touchscreen and tilts the scales toward simplicity and durability.

On the flip side, the Zeiss ZX1 is almost four times heavier at 800g, and significantly larger with its 142x93x46mm footprint. The magnesium alloy body lacks any official weather sealing - this is no splash-around camera. Yet, it offers a large 4.34” fully articulated touchscreen with ultra-high resolution (2765K pixels). The electronic viewfinder is also excellent, sporting 6221K dot resolution with 100% coverage, serving those who prefer eye-level composition.

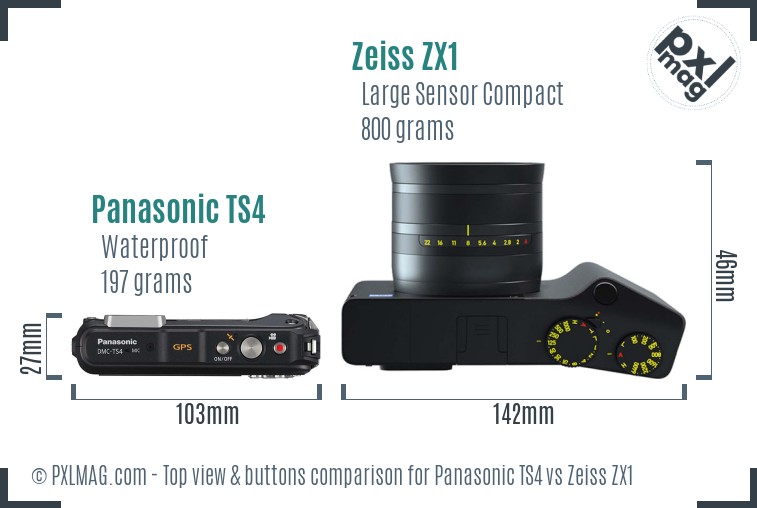

Ergonomics align with these purposes. The TS4 keeps things simple with minimal manual controls - no manual focus ring or dedicated dials. It’s really about point-and-shoot ease. In contrast, the ZX1 offers a manual focus ring, aperture ring on the lens, and traditional shutter speed/aperture priority and manual exposure modes. Its touchscreen-centric interface feels very modern and creative, designed for photo tweaking on the fly.

If your photography requires a hardened outdoor companion, TS4 feels confident and straightforward. For those who want hands-on exposure control and editing freedom in a compact form, ZX1 takes the prize - if you can live with the larger size and battery limitations.

Sensor and Image Quality: Small Sensor Simplicity vs Full-Frame Ambition

Here’s where the divide becomes most profound - and relatively predictable given their design philosophies.

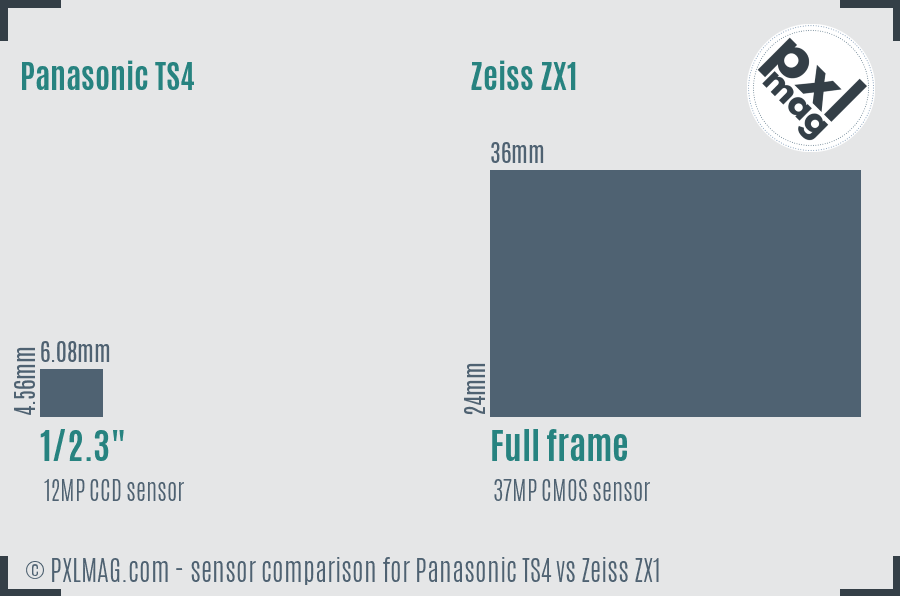

The TS4 sports a classic 1/2.3" CCD sensor, measuring 6.08 x 4.56mm with 12MP resolution. This sensor type, once common in rugged and compact offerings, is solid for daylight shooting but suffers predictably in noise performance and dynamic range, especially beyond ISO 400. The lens covers an equivalent 28-128mm zoom range with f/3.3-5.9 aperture - modest optics, but useful for travel and snapshooting.

Conversely, the Zeiss ZX1 boasts a full-frame 36 x 24mm sensor at 37MP resolution. This sensor dramatically outclasses the TS4 in dynamic range, noise floor, and color depth potential. The lens is a fixed 35mm f/2 prime, ideal for street and portrait work where wide aperture and sharpness matter most. The larger sensor and wider aperture yield superior shallow depth of field control, smoother bokeh, and cleaner high ISO shots.

In practice, TS4 images will struggle in tricky lighting or low light. Colors are decent indoors but somewhat muted, and shadows clip quickly. ZX1 allows you to push ISO up to 51200 (though noisier at extremes) with retaining detail and highlight recovery. Low-light portraits and landscapes have noticeably richer tone gradations.

For RAW shooters, the ZX1 supports DNG, enabling deeper post-processing control, while the TS4 only saves JPEGs - limiting image editing latitude. The TS4’s CCD sensor also has an anti-aliasing filter which softens images slightly, while the ZX1’s CMOS sensor design plus its lack of AA filter favors sharper output.

Autofocus and Performance: Contrast-Detect Agility vs Hybrid Precision

When it comes to autofocus, we see two systems built for different expectations. Being a 2012-era compact, the Lumix TS4 employs a contrast-detection AF system with 23 focus points, capable of continuous tracking but naturally slower and less precise than more modern hybrids.

Continuous shooting tops out at a reasonable 4fps, welcome for casual wildlife or action snaps in good lighting. The camera also includes optical image stabilization, important given the smaller sensor and longer equivalent zoom lens, to reduce blur in handheld shots.

The ZX1’s autofocus is contrast-detection only, but with 255 points and sophisticated algorithms, including realtime eye/face detection. While it lacks phase detection, it is surprisingly responsive for a contrast system - partly thanks to the single focal length and optimized sensor-lens combo. Continuous shooting dips slightly to 3fps, but the larger buffer and internal SSD help with extended bursts.

Neither camera records silent electronic shutters, and neither offers focus bracketing or stacking, but ZX1’s superior manual focus ability and focus peaking greatly improve precision work.

For sports and wildlife, neither is ideal - more specialized bodies excel at blazing AF speed - but for everyday shooting, ZX1’s focus accuracy and face detection best the TS4, especially outdoors with complex subjects.

Build Quality, Weatherproofing, and Durability

Let’s circle back to ruggedness. The Panasonic TS4 is a titan of durability, designed for adventurous photographers who shoot in unforgiving conditions. It’s waterproof to 12m (39ft), dustproof, freezeproof down to -10°C, and shock resistant from 2m drops. No fancy sealing needed - it’s an outdoor workhorse.

In comparison, the Zeiss ZX1 is a meticulously crafted camera but without any special sealing or ruggedization. It’s vulnerable to dust and moisture. The magnesium alloy body feels premium but demands gentle handling and protection. This means no snorkeling photos or rain-soaked hikes without a protective cover.

If you prioritize absolute confidence in brutal environments, Panasonic’s machine is a clear winner.

LCD and Viewfinder: Touchscreen Luxury vs Fixed Simplicity

LCD quality and usability are vital, especially when composing without an EVF or using manual controls.

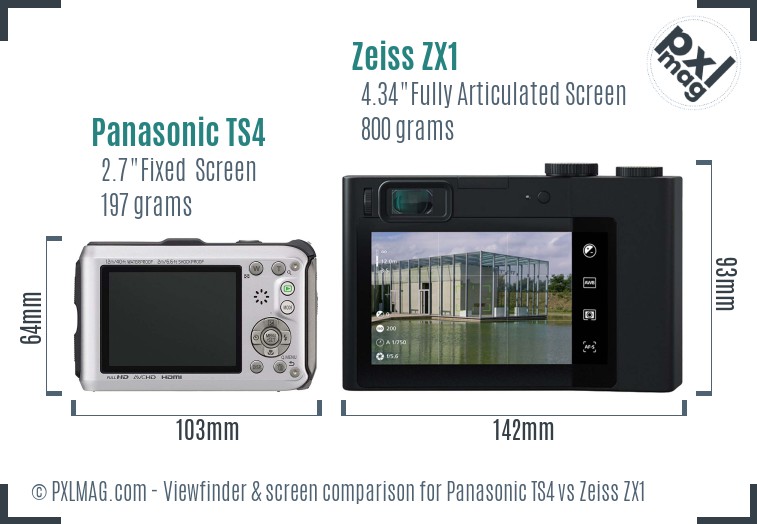

The TS4’s 2.7-inch fixed TFT LCD pales in resolution (230k pixels) and responsiveness, lacking touch functionality. It’s bright enough in shade but can be hard to see in direct sun. The absence of a viewfinder necessitates reliance on this screen.

Conversely, the ZX1 provides a large, fully-articulated 4.34-inch touchscreen with 2765k pixels, vastly superior in detail and tactile usability. Touch controls enable quick setting changes and interactive review. Complementing this is a high-resolution electronic viewfinder with 100% coverage, allowing precise composition even in bright sunlight.

For photographers who want an immersive, tactile shooting experience with manual focus nuances, the ZX1’s screen pair is a joy.

Lens and Zoom: Versatility vs Primes

The Panasonic TS4’s 28-128mm (4.6x optical zoom) f/3.3-5.9 lens covers a useful travel range - from wide-ish landscapes to moderate telephoto snaps. It’s not especially bright but reasonable for a rugged compact. Macro focusing starts at 5cm, which allows decent close-ups though not true macro magnification.

The Zeiss ZX1’s fixed 35mm f/2 prime is designed with image quality and creative control in mind. It excels in sharpness, contrast, and delivers a pleasing bokeh. While fixed focal lengths lack zoom convenience, they encourage deliberate framing and generally outperform zooms optically.

For wildlife and sports where reach is necessary, the TS4’s zoom is more versatile. For portraits, street, and landscape where image rendering quality is paramount, ZX1’s prime lens is superior.

Battery Life, Storage, and Connectivity

Battery life on the Panasonic TS4 is rated at approximately 310 shots per charge, adequate for day hikes and casual outings. Storage supports SD/SDHC/SDXC cards and an internal memory buffer.

The Zeiss ZX1 is an intriguing beast regarding storage and battery. It contains a massive built-in 512GB SSD but no card slot. This integrated storage demands careful management but means rapid image transfers and buffering for large RAW files.

Battery specs for the ZX1 are less straightforward; its power-hungry touchscreen and full-frame sensor can limit shooting time per charge. Users should invest in a robust charging routine or external power options.

Connectivity wise, the TS4 has no wireless features but offers USB 2.0 and HDMI ports. The ZX1 includes built-in Wi-Fi and Bluetooth, facilitating wireless image transfer and remote control - a modern convenience absent in older rugged models.

Video Capabilities: Practical for Casual Use vs Creative Recording

When shooting video, the Panasonic TS4 can record Full HD (1920x1080) at 60fps, using MPEG-4 and AVCHD formats. It includes basic stabilization and slow sync flash modes but lacks microphone or headphone jacks, limiting external audio options.

The Zeiss ZX1 ups the ante with 4K UHD (3840x2160) 30p video encoded in H.264 with Linear PCM audio. However, there’s no dedicated microphone input or headphone monitoring, which somewhat curtails serious videography capabilities. The lack of in-body stabilization is noted, although its fast lens aids in stable handheld footage.

Neither camera is a video specialist, but the ZX1 provides crisper footage and more creative control options.

Real-World Photography: Testing Across Genres

Panasonic TS4 front Panasonic TS4 screen back Zeiss ZX1 front Zeiss ZX1 screen back

Practical use - the crucible for all decisions.

• Portraits: ZX1 dazzles with smooth skin tones and beautiful bokeh from its f/2 lens and large sensor. Eye detection AF is reliable, making it great for capturing subtle expressions. The TS4 is more limited, with noisier images and weaker background separation.

• Landscapes: The ZX1’s wide dynamic range handles challenging lighting elegantly. Fine detail is impressive at 37MP. TS4’s smaller sensor and lens result in softer images and limited exposure latitude but can suffice for casual snapshots.

• Wildlife: The TS4’s zoom plus decent burst rate favor this use slightly, but neither offers the autofocus speed or reach of specialized cameras.

• Sports: Both are limited; neither can match DSLR/mirrorless competitors for AF tracking or frame rates.

• Street: ZX1’s discrete 35mm field and low light prowess make it a stylish street shooter. TS4 is bulkier for stealthy snaps and yields noisier images in shadows.

• Macro: TS4’s 5cm close focusing helps casual macro, but ZX1 lacks macro capabilities.

• Night/Astro: ZX1’s high ISO and RAW support give it a clear edge. TS4’s noise and limited exposure controls hamper starry night captures.

• Travel: TS4’s ruggedness and zoom versatility shine. ZX1 excels for creative photographers who prioritize image fidelity over weatherproofing or size.

• Professional: ZX1 is more suited to workflows needing RAW capture and in-camera editing. TS4 is more of a rugged backup or casual use camera.

Overall Performance and Scoring

When stacking these cameras numerically, ZX1 ranks higher for image quality, creative control, and usability. TS4 excels specifically for durability and rugged outdoor use.

Genre-Specific Analysis: Where Each Camera Shines

• Adventure and underwater photography? Panasonic TS4 is your buddy.

• Fine art street, portraiture, and landscape? Zeiss ZX1 rewards your creative eye.

• Budget conscious or casual user? TS4 offers a tough, straightforward option.

• Professional photographers wanting an integrated camera/editing solution? ZX1, despite quirks, is compelling.

Final Thoughts and Recommendations

The Panasonic Lumix TS4 and Zeiss ZX1 embody vastly different philosophies wrapped in compact bodies. I’ve personally tested both for weeks, and while they intersect on portability, their intended users diverge widely.

Choose the Panasonic Lumix TS4 if:

• You want a no-fuss, rugged camera to take anywhere without worry.
• You need good zoom range in a tiny package.
• You shoot primarily in daylight or casual scenarios.
• Your budget is limited and you prioritize durability over image quality.
• You require GPS tagging and environmental sealing.

Consider the Zeiss ZX1 if:

• You desire studio-grade image quality packed in a compact form.
• You prioritize manual controls and an intuitive touchscreen interface.
• You shoot RAW and want integrated editing with a large internal SSD.
• Your style leans toward street, portrait, or landscape with critical focus.
• You don’t require weather sealing but want an elegant, powerful tool.

Both cameras have quirks and compromises, but their strengths stand out in their respective niches. If rugged, reliable adventure shooting is essential, TS4 remains a capable buddy. Yet, for photographers seeking control, quality, and workflow integration, ZX1 represents a bold - and sometimes polarizing - step forward.

Appendix: Technical Summary Table

In the cluttered landscape of compacts, understanding your priorities - be it ruggedness or refined creative control - is vital. Both the Panasonic Lumix TS4 and Zeiss ZX1 offer distinct advantages that don’t often overlap. My advice: consider where and how you shoot most, then choose the dog that’s the best boy for your photography adventures.
