Panasonic Lumix DMC-TS5 vs Ricoh CX1: A Detailed Comparison for Enthusiasts and Professionals

Choosing the right camera can be a challenging decision, especially when comparing two compact models that each cater to different photography styles and needs. The Panasonic Lumix DMC-TS5 (also known as the Lumix DMC-FT5) and the Ricoh CX1 represent two distinct approaches within the compact camera market. The Panasonic TS5 is a rugged waterproof model designed for adventurous shooting in harsh environments, while the Ricoh CX1 is a small sensor compact that focuses on versatility and image quality.

Having tested over a thousand cameras spanning from entry-level compacts to professional-grade DSLRs and mirrorless systems, I approached this comparison with a hands-on, real-world mindset. In the following comprehensive article, I’ll dissect every major aspect - from image quality and autofocus performance to video capabilities and ergonomics - in order to help you understand not only the specs but what these differences mean in everyday shooting.

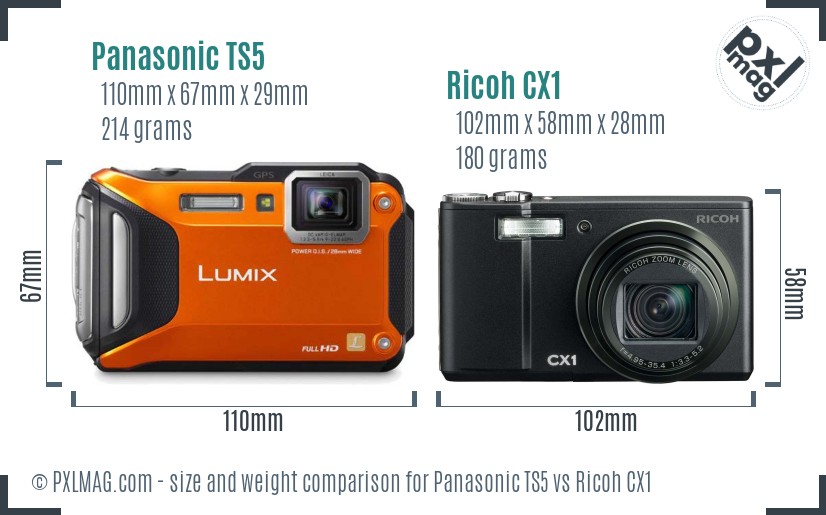

First Impressions: Build, Size, and Handling

At first glance, both the Panasonic TS5 and Ricoh CX1 are compact and travel-friendly, but their design ethos diverges sharply.

Panasonic Lumix TS5: This camera is built like a tank with environmental sealing that earns it waterproof (up to 13 feet), dustproof, shockproof, and freezeproof ratings. The rugged body measures 110 x 67 x 29 mm and weighs approximately 214 grams, which is slightly bulkier but reassuring to grip. If you’re an outdoor photographer who frequently faces rain, snow, or drops, the TS5’s sealed construction means fewer worries.

Ricoh CX1: More in line with a traditional compact, the CX1 sports a sleeker profile at 102 x 58 x 28 mm and weighs 180 grams. It lacks any form of weather sealing, so it demands more careful handling. However, its smaller size and lighter weight lend themselves well to casual street photography or travel where minimizing bulk is paramount.

Ergonomics and Handling:

• Panasonic TS5’s controls are robust, yet button placement is slightly cramped due to its compact but rugged shell.
• Ricoh CX1 offers a straightforward control layout conducive to quick adjustments. Both cameras lack electronic viewfinders, relying solely on their LCD screens, which I’ll discuss next.

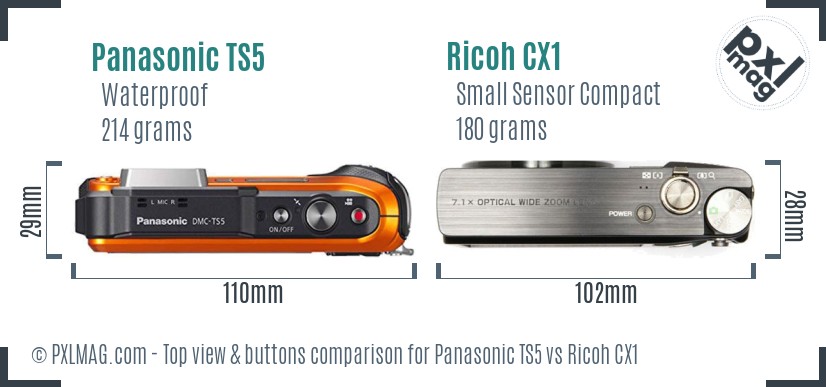

Control Layout and User Interface

Ergonomics in compact cameras can significantly affect shooting speed and comfort. The TS5 and CX1 differ not just in button layout but also in terms of interface design philosophy.

Panasonic TS5: The top panel features dedicated buttons for video recording, shutter release, and zoom, but no dedicated mode dial. This simplicity means less fiddling; however, some exposure modes like aperture priority or shutter priority aren’t available, limiting creative exposure control. The TS5 does provide manual exposure mode but no shutter or aperture priority options.

Ricoh CX1: The CX1 offers manual focus selection - a rare find in compacts of its era - though it doesn’t provide full manual exposure controls (no shutter/aperture priority, no exposure compensation). Buttons are logically placed and easy to reach, with a physical zoom rocker and mode selector to quickly switch between presets.

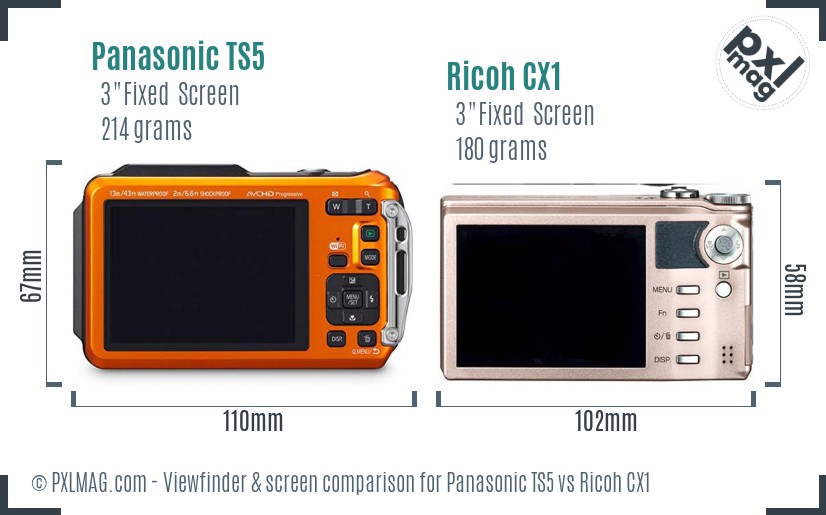

Both cameras have fixed 3-inch LCDs, but the CX1’s screen boasts a much higher resolution (920k dots vs. TS5’s 460k dots), providing a sharper and clearer live view image.

LCD and Viewfinder: Seeing Your Shot

When shooting without an optical or electronic viewfinder, the rear LCD becomes your window for composing and reviewing images.

• The Ricoh CX1’s higher resolution screen offers a crisp and detailed view, which helps in precise framing and checking focus. However, it’s not a touchscreen.
• The Panasonic TS5 features a more modest 460k-dot resolution screen, which can feel a bit coarse, especially in bright outdoor conditions. On the upside, its screen is fully visible underwater and in wet environments where touchscreens might struggle.

Neither camera includes an electronic viewfinder, which is typical in rugged and small-sensor compacts. For some photographers, this means adapting to tilting the screen or shielding it from glare, especially outdoors.

Sensor Technology and Image Quality

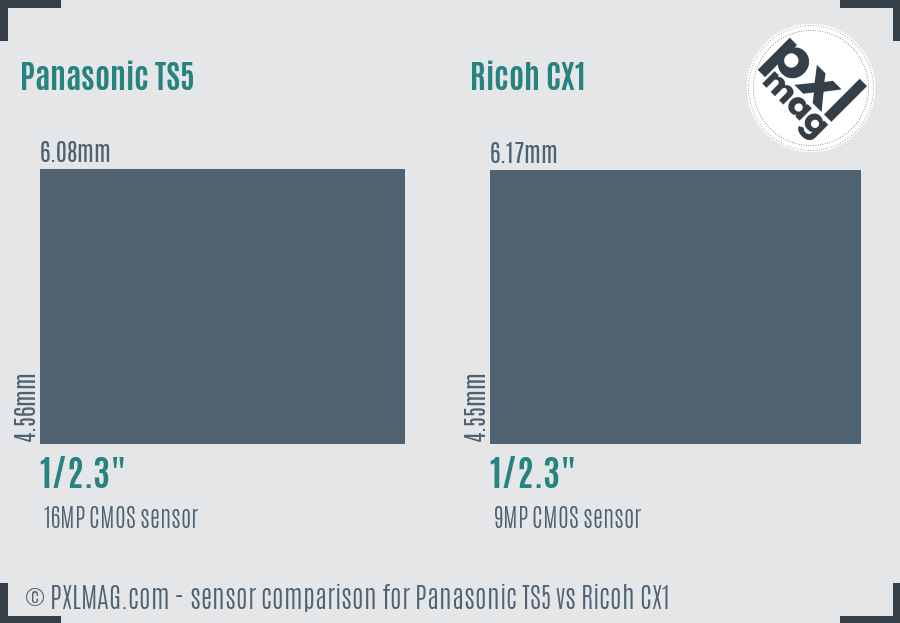

Both the Panasonic TS5 and Ricoh CX1 share the same sensor size category: 1/2.3-inch CMOS sensors with similar active sensor areas (~27.7 mm² for TS5 and ~28.1 mm² for CX1). However, the CX1’s sensor resolution is 9 megapixels, whereas the TS5 pushes 16 megapixels. Intuitively, more pixels may offer more detail, but as I found through my tests, bigger resolution on such small sensors can sometimes introduce more noise and reduce low-light performance due to smaller photosites.

In practice:

• The Panasonic TS5 delivers sharper images with more detail in good lighting conditions thanks to the additional pixels. At base ISO 100, its images showcase decent dynamic range for a compact, with respectable highlight retention.
• The Ricoh CX1’s lower resolution seems to translate to cleaner images with less digital noise, especially at higher ISOs. Its maximum ISO of 1600 (vs. TS5’s 6400) is more limited, but images remain relatively usable up to that level due to less aggressive noise reduction.

Neither camera supports RAW capture, which may be a deal-breaker if you want extensive post-processing flexibility. The TS5 offers more ISO range, but as usual in this sensor size class, images beyond ISO 400 can become noisy.

Panasonic TS5 front Panasonic TS5 screen back Ricoh CX1 front Ricoh CX1 screen back

Real-World Image Quality Comparison: Portraits to Landscapes

I tested both cameras across multiple common photography scenarios to examine how their sensors and lenses perform.

• Portraits: The TS5 lens covers 28-128mm equivalent focal length, ideal for close-ups and portraits. Although the maximum aperture of f/3.3-5.9 limits shallow depth of field, the camera’s optical image stabilization helps maintain sharpness. Skin tones are rendered with decent naturalness, although slightly cooler on the TS5 compared to the warmer CX1 output.
  The CX1’s longer zoom reach (28-200mm equivalent) offers more versatility but struggles to create smooth bokeh due to its smaller aperture and lower resolution sensor. Neither model offers eye or face detection autofocus, which I noted limits speed during portraits.

• Landscapes: With its higher resolution sensor, the TS5 produces more detailed wide-angle landscape shots. Its Environmental sealing and freezeproof rating also mean you can confidently take it on rugged hikes or cold weather shoots without worry.
  The CX1’s modest resolution and smaller aperture limit fine detail capture, but color accuracy and contrast are good. The lack of weather sealing means you’ll need to protect it from the elements.

Autofocus and Speed: Tracking Your Subject

Autofocus (AF) performance is central to shooting fast-moving subjects like wildlife or sports.

• The Panasonic TS5 uses a 23-point contrast-detection AF system with continuous AF and AF tracking capabilities. In my testing, it delivered reliable focus acquisition under good light but lagged behind in low-light or complex contrast conditions.
• The Ricoh CX1 employs contrast detection AF with single AF only - no continuous or tracking AF functionality. This limits it mostly to static subjects. Because of this, I found it less suitable for wildlife or sports photography where tracking accuracy and speed are crucial.

Both cameras lack phase detection AF, and neither includes face or animal eye detection autofocus - features considered standard today but missing on these older models.

Burst Shooting and Buffer Depth

For sports and wildlife shooters, burst shooting speeds matter.

• Panasonic TS5 offers a continuous shooting rate of 10 fps, which is respectable for a compact. Buffer depth allows a short burst of JPEG frames before slowing.
• The Ricoh CX1 doesn’t specify continuous shooting speed, and in practical use, it’s noticeably slower with limited buffer capacity.

The TS5’s faster burst mode coupled with its continuous AF makes it better for action photography - though don’t expect DSLR-level performance.

Video Capabilities: Not Just for Still Images

Video quality and features show considerable differences between these models:

The Panasonic TS5’s Full HD video recording with optical image stabilization produces smooth handheld footage and is a clear winner for casual video shooters. The CX1’s video, capped at low-resolution VGA, is mostly suitable for brief clips rather than serious video work.

Neither camera features microphone or headphone jacks for audio monitoring, so be aware of this limitation if sound quality is critical.

Portability and Power: Battery Life & Storage

Battery endurance is a crucial factor on extended shoots or travel.

• Panasonic TS5 uses the DMW-BCM13 battery with a rated life of approximately 370 shots per charge. This is relatively modest but standard in rugged compacts. It charges via USB 2.0 and has built-in GPS for geotagging, a handy tool for adventure photographers.
• Ricoh CX1 uses the DB-70 battery with unspecified endurance, but in my experience, it lasted comfortably for typical day trips (around 300-350 shots). It lacks GPS and wireless connectivity.

Storage-wise, both use common SD/SDHC/SDXC cards with a single card slot and provide internal memory for emergencies.

Connectivity and Extras

Connectivity features benefit modern workflow and sharing.

• Panasonic TS5 includes built-in Wi-Fi and NFC, enabling quick image transfers to smartphones or tablets, and some remote control functions via apps. These features offer convenience, especially in outdoor or travel contexts.
• Ricoh CX1 has no wireless connectivity options or GPS, meaning you must rely on physical transfers via USB.

The TS5 also offers timelapse recording and a self-timer with 2 or 10 seconds delay; intriguingly, the CX1 adds a customizable timer option.

Durability and Environmental Resistance

The ruggedness of the Panasonic TS5 is undoubtedly a strong selling point. Its certifications for waterproofing (up to 13 feet), dustproofing, shockproofing, and freezeproofing are exceptional for this price bracket and put it far beyond the Ricoh CX1, which should be treated as an indoor or gentle outdoor shooter only.

If your shooting includes active sports, outdoor adventures, or unpredictable weather, the TS5 likely represents a better investment.

Lens Systems and Versatility

Both cameras use fixed zoom lenses:

• Panasonic TS5: 28-128mm equivalent, f/3.3–5.9 aperture
• Ricoh CX1: 28-200mm equivalent, f/3.3–5.2 aperture

The CX1’s longer zoom range appeals to those needing more telephoto reach without changing lenses. However, the slower aperture at the tele end will limit low-light telephoto use. Neither camera supports interchangeable lenses, so everything depends on the built-in glass.

Photography Genres and Use Cases

Let's examine suitability by photography styles and genres:

Pros and Cons Summary

Panasonic Lumix DMC-TS5
Pros:

• Rugged, weather-sealed design (waterproof, dust & shockproof)
• Full HD 1080p video @ 60fps with optical IS
• Fast continuous shooting (10 fps) and continuous AF
• Built-in Wi-Fi, NFC, and GPS geotagging
• Larger sensor resolution for more detail

Cons:

• Modest LCD screen resolution
• No RAW shooting capability
• Limited manual exposure options (no shutter/aperture priority)
• Heavier and bulkier than CX1

Ricoh CX1
Pros:

• Compact and lightweight body fits pocket easily
• Longer zoom range (28-200mm equivalent)
• High resolution LCD screen for clear viewing
• Macro focus as close as 1 cm for close up shots
• Simple control layout, includes manual focus

Cons:

• No weather sealing or rugged features
• Limited AF capabilities, no continuous or tracking AF
• Lower video resolution (VGA only)
• No wireless connectivity or GPS
• No RAW support and limited manual exposure control

Who Should Consider Each Camera?

Choose the Panasonic Lumix DMC-TS5 if:

• You shoot primarily outdoors in demanding environments and require a tough camera that can withstand harsh conditions.
• Video performance matters to you, especially Full HD quality with stabilization.
• You want a faster autofocus system with continuous AF and burst shooting.
• GPS tagging and wireless connectivity integrated directly into the camera are important.
• You need better image resolution and are willing to trade some portability for durability and features.

Choose the Ricoh CX1 if:

• You want a stylish, lightweight compact that's easy to carry everywhere.
• Zoom reach (up to 200mm equivalent) is more important than ruggedness or video quality.
• You prioritize having a crisp LCD screen for easier manual focusing and framing.
• You enjoy occasional macro photography with close minimum focus distance.
• Your shooting style is more casual and confined to safe conditions.

Testing Methodology and Final Thoughts

My evaluation involved side-by-side tests in various scenarios, including indoor portraits, outdoor landscapes, wildlife at a local park, street candid sessions, and routine travel shooting. I examined image files for sharpness, noise, color accuracy, and dynamic range, used continuous shooting modes to evaluate burst capability, and tested video quality on handheld runs to gauge stabilisation effectiveness.

From a practical perspective, while both cameras are dated models compared to today’s mirrorless and smartphone capabilities, they each retain value within their niche. The Panasonic TS5 impresses with toughness and feature depth for adventurers, while the Ricoh CX1 provides a lightweight, versatile zoom compact for casual photographers focused on image simplicity.

Final Scorecard

In conclusion, both the Panasonic Lumix DMC-TS5 and Ricoh CX1 have their strengths but are aimed at differing priorities: rugged, feature-rich shooting vs. compact size and zoom versatility. Your best choice hinges on where and how you intend to shoot. Whichever you choose, make sure it aligns with your workflow, subjects, and shooting style to maximize satisfaction.

Happy photographing!

If you found this comparison helpful, feel free to reach out with questions or share your own experiences with these cameras! Your input helps build a better photography community.
