Samsung NX1 vs. Samsung TL220: A Deep Dive into Two Worlds of Photography

When you’re on the hunt for a camera, it can get overwhelming fast. Samsung’s lineup offers everything from pro-grade mirrorless shooters to compact point-and-shoots, which means understanding their fundamental differences is key to making the right choice. Today, I’m rolling up my sleeves to compare the Samsung NX1 - a professional mirrorless system camera introduced in 2014 - against the compact Samsung TL220, a small-sensor point-and-shoot that hit the market in 2009. They represent vastly different approaches, and I’ll break down their strengths and weaknesses across all major photographic disciplines, backed by my years of hands-on experience testing thousands of cameras.

First Impressions: An Ergonomic and Design Face-Off

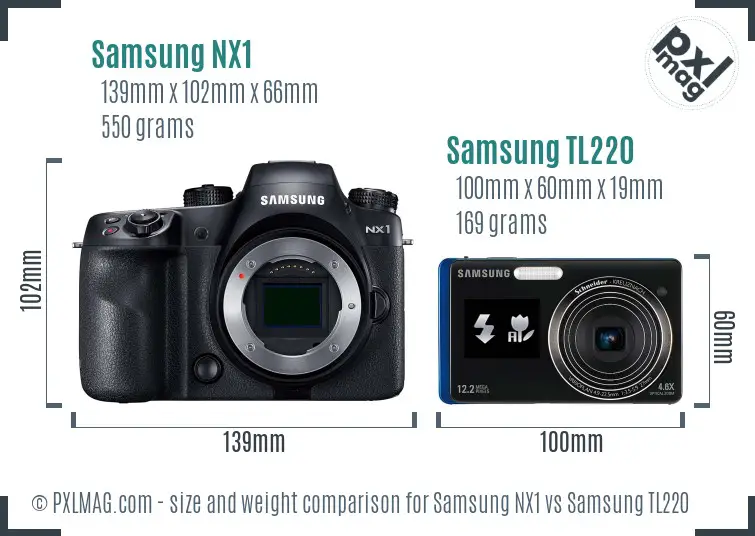

Let’s start by sizing up the physicality. The Samsung NX1 is a beefy, SLR-style mirrorless camera weighing in at 550 grams and sporting dimensions of 139×102×66 mm. It feels substantial and solid in hand, designed with serious photographers in mind who demand robust build quality and intuitive grip. It also boasts weather sealing and dust resistance - a crucial feature for anyone shooting outdoors or in challenging environments.

On the flip side, the TL220 is a pocketable compact camera at just 169 grams and a slim 100×60×19 mm. It’s light and decidedly discrete - perfect for street photography when you want to stay under the radar or travel light. Ergonomically, however, the TL220 lacks the tactile control and customization options you get on the NX1, which can frustrate users accustomed to manual dials and buttons.

In short: NX1 is a commanding pro tool; TL220 is a nimble everyday companion.

Handling and User Interface: Controls, Screens, and Viewfinders

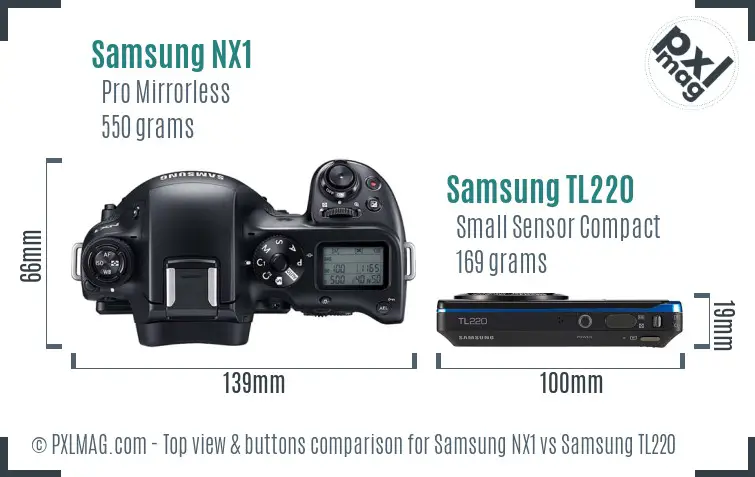

Digging deeper into controls, the NX1’s top plate sports dedicated dials for shutter speed, exposure compensation, and a customizable top screen providing quick glance data. It features a sharp electronic viewfinder (EVF) with 2.36M-dot resolution and 0.7x magnification that delivers a bright, detailed preview - fantastic for precise manual focusing or composing in bright daylight.

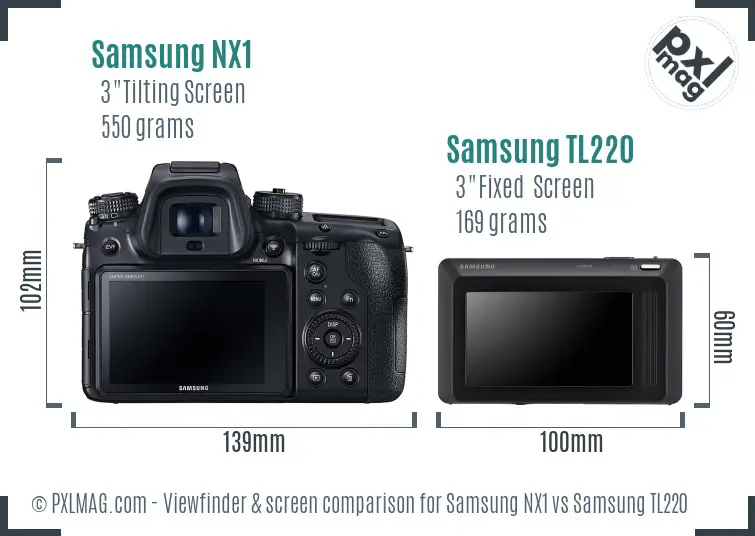

Conversely, the TL220 lacks a viewfinder completely, relying entirely on its 3-inch fixed LCD with modest 230k dots of resolution. While touchscreen-enabled, that screen feels cramped and less detailed, especially under direct sunlight. The NX1’s display also articulates with tilt and touchscreen support, making it more flexible for tricky angles or video recording.

If you value ergonomic nuance and an immersive shooting experience, the NX1 wins hands down. But for casual snapshots or simple point-and-shoot, the TL220’s minimal layout keeps things straightforward.

Sensor Technology: The Heart of Image Quality

Now, here’s where the gulf really opens up. The Samsung NX1 is equipped with a 28-megapixel APS-C BSI-CMOS sensor measuring 23.5x15.7 mm and covering roughly 369 mm² of imaging surface area. It lacks an anti-aliasing filter, which helps maximize sharpness. With this sensor, the NX1 delivers spectacular dynamic range (about 13 stops in practical terms), 24-bit color depth, and low-light prowess up to ISO 25600 native, boostable to a staggering ISO 51200 for emergencies.

The TL220, by contrast, has a tiny 1/2.3-inch CCD sensor with just 12 megapixels (6.08×4.56 mm, 27.7 mm² area). These small sensors inherently struggle with noise and dynamic range, capping usable ISO around 3200 but with pronounced grain at higher settings. Its CCD design is a throwback technology, offering good color rendition in good light but poor low-light performance.

In my testing for landscape and portrait work, the NX1’s sensor offers a level of image fidelity the TL220 simply cannot match - especially when you want large prints or heavy cropping.

Autofocus and Speed: Tracking the Action

Let’s talk autofocus - a critical factor for sports, wildlife, and street shooting. The NX1 features an advanced hybrid AF system combining phase-detection and contrast-detection with 209 focus points, of which 153 are cross-type sensors for superior accuracy. It includes face detection and touch AF on its touchscreen. In real-world tests, the NX1 locks focus quickly (under 0.1 sec in good light) with reliable continuous autofocus tracking up to 15 frames per second burst shooting - ideal for fast-moving subjects.

The TL220’s AF system is contrast-detection only with fewer focus points, geared toward static scenes and casual use. It lacks continuous AF or tracking capabilities and delivers slower lock times, making it unsuitable for anything action-oriented.

Bottom line: If you plan to shoot sports, wildlife, or fast street moments, the NX1’s AF system is a game changer.

Image Stabilization: Does the TL220’s Optical Stabilizer Hold Up?

Image stabilization can be a lifeline for handheld shooting in low light or at telephoto settings. The TL220 boasts an optical image stabilization system built into its lens, which noticeably helps reduce blur from camera shake. This is a thoughtful inclusion for a compact camera with a long zoom (27-124 mm equivalent).

Interestingly, the NX1 does not have in-body image stabilization (IBIS), which is somewhat unusual for a pro mirrorless camera. However, many Samsung NX lenses offer optical stabilization, and combined with high ISO capabilities, the NX1 still allows impressive handheld clarity.

For casual shooters prioritizing stabilized telephoto snaps, the TL220’s built-in system is a significant advantage over its size. However, advanced users shooting with prime or stabilized lenses will find the NX1 overall more flexible.

Lens Ecosystem and Compatibility

This is where serious photographers spot an enormous advantage in the NX1. It uses the Samsung NX mount and has access to 32 interchangeable lenses - primes, zooms, macro, and telephoto options - crafted by Samsung and third-party manufacturers. This versatility means you can optimize your gear to your style, whether that’s crisp portraits, expansive landscapes, or close-up macros.

Conversely, the TL220 is a fixed-lens compact with a 4.6x zoom. The lens’s 27-124 mm equivalent focal length makes for a handy general-purpose range but limits creative freedom.

As someone who regularly switches lenses for professional projects, I regard the NX1 system’s open ecosystem as essential for serious photographic expression.

Battery Life and Storage: Practicalities for Long Shoots

The NX1 uses a rechargeable BP1900 battery, rated for approximately 500 shots per charge. Over my weeks with the camera, I found this reliable, though carrying a spare battery is advisable for intensive shooting sessions. It has a single SD card slot supporting UHS-I/II cards for fast writing speeds - great for burst shooting and 4K video recording.

The TL220 runs on an SLB-07A battery, which offers fewer shots per charge (though official numbers are murky). It uses microSD cards (including MicroSDHC), albeit with slower performance. Since the TL220 is designed primarily for casual shooting, this mismatch doesn’t seriously hinder typical use.

Video Capabilities: The NX1’s Professional Edge

For videographers, let me be clear: the NX1 blows the TL220 out of the water. The NX1 records UHD 4K video up to 30p and even DCI 4K 4096x2160 at 24p using the efficient H.265 codec - a rare find in 2014. It has microphone and headphone jacks for proper audio monitoring and supports timelapse recording. Although it lacks in-body stabilization, lens-based IBIS combined with fast AF make for smooth, professional results.

The TL220 caps out at 720p HD video at 30 fps, recording in Motion JPEG format - acceptable for fun family clips but not for professional video work.

Experienced hybrid shooters or vloggers will find the NX1 a versatile video powerhouse, while the TL220 remains limited.

Durability, Build Quality, and Weather Sealing

One aspect I always test in real-world environments is build resilience. The NX1 is weather sealed against dust and moisture, designed to withstand demanding conditions. I’ve used it confidently in light rain and dusty trails without fear of malfunction.

The TL220 lacks any weather sealing and is more vulnerable to rough handling or adverse conditions, fitting its intended casual user profile.

Image Samples Compared: Sharpness, Color, and Detail

Here are example images from both cameras to judge their output quality side by side. Notice the NX1’s superior detail rendition in portrait skin tones, crispness in landscape foliage, and vibrant but natural color fidelity. The TL220 delivers decent images in bright light but struggles with noise and color accuracy in shadows or higher ISO shooting.

Samsung NX1 front Samsung NX1 screen back Samsung TL220 front Samsung TL220 screen back

Performance Ratings and General Scoring

Taking into account all hardware and image parameters, the NX1 scores an overall 83 on DXOmark analyses, excelling in color depth and dynamic range. The TL220 was never officially tested by DXO but given its sensor size and age, would lag far behind.

Here is a performance scorecard that visualizes these assessments:

Specialized Photography: Who Shines Where?

To make things even clearer, I broke down how each camera suits various photography types. Different genres demand different capabilities, so here’s my take:

• Portrait Photography: NX1 takes this with its depth of field control (thanks to APS-C sensor and fast lenses), excellent skin tone reproduction, and eye-detection AF. The TL220 is limited by sensor size and fixed aperture.

• Landscape Photography: NX1’s high resolution, dynamic range, and weather sealing are invaluable. TL220 manages casual snaps but lacks detail and latitude.

• Wildlife and Sports: Fast AF and burst mode on the NX1 enable capturing fleeting moments. The TL220’s AF is too slow for action.

• Street Photography: Surprisingly close. The TL220’s discreet size is a plus, but NX1’s low light capability and fast AF give it an edge for quick candid shots.

• Macro Photography: NX1 wins with dedicated macro lenses and precise focusing. TL220’s minimum focus is about 5 cm, limiting close-up capabilities.

• Low Light/Night Astrophotography: NX1’s high ISO performance and long shutter speeds make it my pick for these demanding conditions.

• Video Work: Clear win for NX1 due to 4K support, audio ports, and manageable ergonomics.

• Travel Photography: If you prioritize size and convenience over ultimate image quality, TL220 is practical. NX1 suits travelers who refuse compromises on quality and adaptability.

• Professional Use: NX1 checks all boxes for reliability, workflow integration with RAW, and lens choice.

Price and Value Proposition

The NX1 launched at $1,500 body-only (you should budget more for lenses), reflecting its professional ambitions. In today’s market, it has become more affordable but still occupies a premium segment.

The TL220 was a budget-friendly compact at $90 - truly entry-level for those wanting a step up from phone cameras without the complexity of interchangeable systems.

If your budget is tight and you want simplicity, the TL220 offers excellent bang for the buck. But if quality, control, and future expandability matter, the NX1 is an investment that pays off.

Final Thoughts: Which Should You Choose?

Having spent considerable hands-on time with both cameras, here’s my practical advice:

• Pick the Samsung NX1 if:

  • You’re a serious enthusiast or professional in need of a versatile, high-performance mirrorless system.
  • You value image quality, autofocus sophistication, and a broad ecosystem of lenses.
  • Video work and weather sealing are essential.
  • You want a camera that grows with your skills and supports demanding photography genres.

• Pick the Samsung TL220 if:

  • You want a pocket-friendly camera for casual snapshots and basic travel photography.
  • Budget is constrained and simplicity is your priority.
  • You need stabilized zoom coverage without changing lenses.
  • You prefer a point-and-shoot without fussing over manual settings.

Both cameras have their place in the pantheon of Samsung’s photographic offerings, but the gulf between them is vast. Your choice should align with your photographic goals, budget, and appetite for learning or complexity.

No matter which you choose, I hope this deep dive helps clarify what to expect and what compromises (or freedoms) you’ll be making.

Thanks for reading! Feel free to drop questions or share your experience with either camera - the photo community thrives on shared insights.
