Sigma SD9 vs Sony Cyber-shot W570: An In-Depth Hands-On Comparison for Photography Enthusiasts

Choosing the right camera can be a challenging journey, especially when faced with two radically different models like the Sigma SD9 and Sony Cyber-shot DSC-W570. Though these cameras come from very different eras and serve different user needs, comparing them offers valuable insights about photography technology evolution and what fits different creative aspirations.

As photographers and reviewers with years of hands-on experience testing hundreds of cameras, we’ll peel back the specs and real-world usability of each model. This comparison covers everything - sensor technology, image quality, autofocus, ergonomics, and more - aimed at helping you identify which camera is the right companion for your photography style and budget.

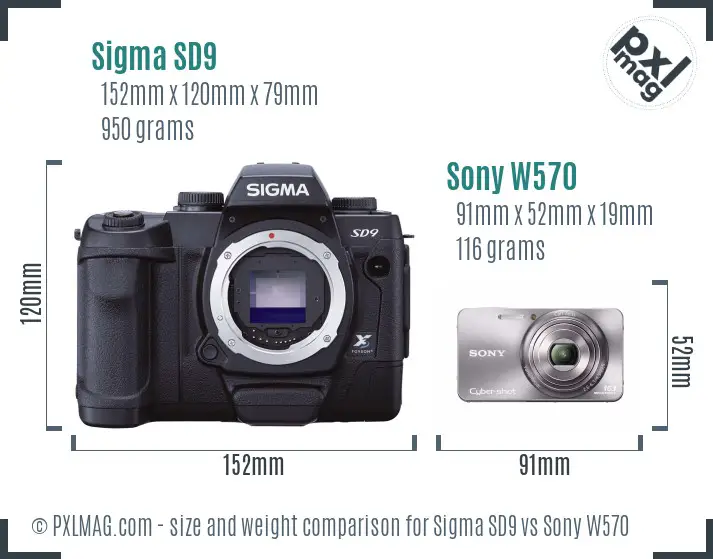

First Impressions and Physical Ergonomics: Size, Feel, and Control

One of the first things you notice when comparing these two cameras is their sheer physical difference.

• Sigma SD9: A mid-size DSLR from 2002, feels substantial and solid in the hand. Its body measures 152x120x79 mm, weighing about 950 grams. It features a traditional SLR shape with an optical pentaprism viewfinder and a fixed 1.8” LCD screen with basic resolution.
• Sony W570: An ultracompact point-and-shoot designed for portability, measuring a slim 91x52x19 mm and weighing just 116 grams. It eschews a viewfinder entirely, emphasizing the 2.7” Clear Photo LCD for composing shots.

Ergonomics and Handling:

• The SD9’s larger size naturally offers more intuitive manual control with dedicated dials and buttons, making it suitable for photographic genres demanding precision and flexibility.
• The W570’s pocket-friendly design prioritizes simplicity and portability, but this comes at the expense of tactile controls, limiting your manual input options.

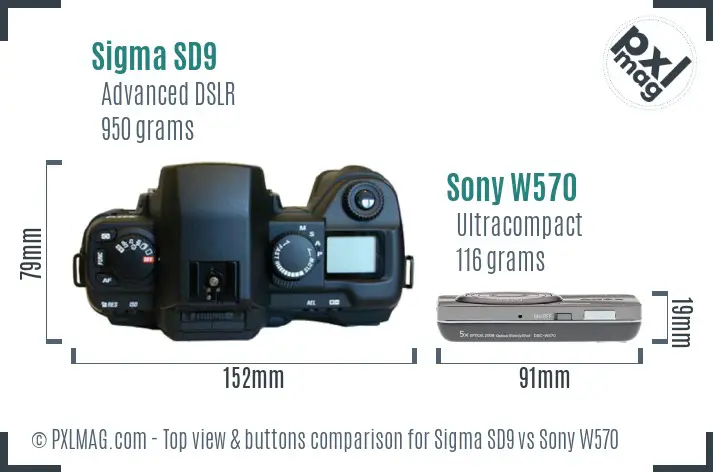

Control Layout:

The SD9 features a classic DSLR top layout with shutter speed and exposure compensation dials.

The W570’s compact body hosts minimalist buttons designed for quick point-and-shoot usage rather than manual adjustments.

Sensor Technology & Image Quality: The Heart of the Cameras

The biggest differentiator here lies in the sensor architecture and the image quality outcome.

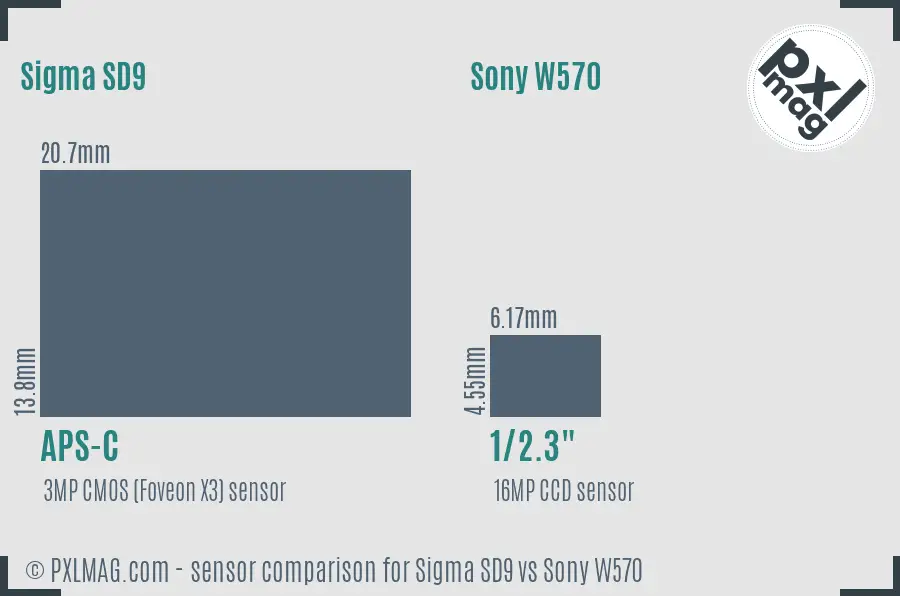

Understanding the Sensor Differences

• Sigma SD9 – The Unique Foveon X3 Sensor: The SD9 utilizes Sigma’s proprietary Foveon X3 sensor technology. Unlike conventional Bayer sensors, the Foveon captures red, green, and blue light at three different silicon layers stacked vertically, leading to potentially higher color fidelity and detail per pixel in certain lighting conditions.

  However, its effective output resolution is just 3 megapixels, which is low compared to today’s standards, and even the W570’s modest 16 MP. The SD9’s sensor size (APS-C) is significantly larger, translating to better noise performance and depth of field control despite the low resolution.

• Sony W570 – Compact CCD Sensor: The W570 sports a much smaller 1/2.3” CCD sensor but offers a higher resolution count (16 MP) for oversampled images. It excels in daylight conditions but struggles with high ISO performance and dynamic range compared to APS-C sensors like the SD9’s.

Real-World Image Quality Insights

• The SD9 produces exceptional color rendition and tonality. Skin tones, critical for portraitists, appear natural and nuanced thanks to Foveon’s pixel-level color capture.
• The W570 provides sharp, high-resolution images suitable for casual use and prints up to moderate sizes but with less color accuracy and more noise beyond ISO 400.

Viewing and Interface: Composing Your Shots

Both cameras lack an electronic viewfinder, though the SD9 includes a traditional optical pentaprism covering about 98% of the frame.

• SD9 Viewfinder: Bright, clear, and offers about 0.77x magnification, facilitating manual focus precision.
• W570: Completely reliant on its rear LCD for framing and reviewing images.

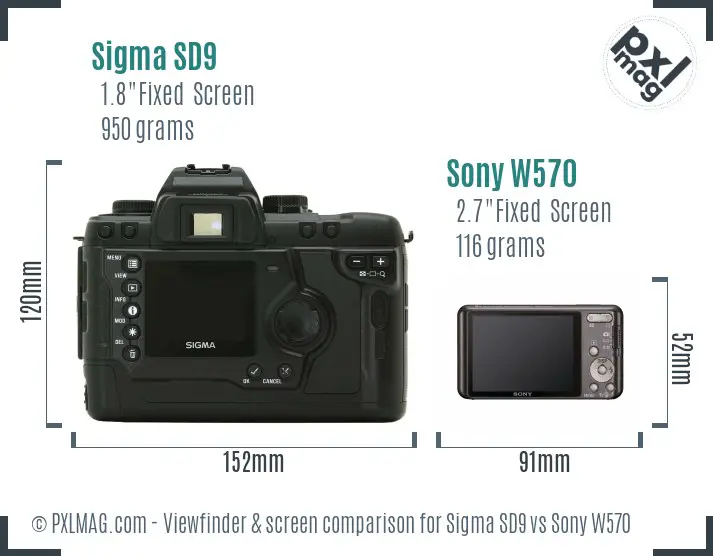

The SD9’s screen is small (1.8” diagonal), low resolution (130k pixels), and fixed, designed for image review rather than live view framing.

The W570 offers a larger (2.7”), higher resolution (230k pixels) Clear Photo LCD which supports live view, crucial for candid shooting.

Autofocus, Shutter, and Exposure Controls

Despite being over a decade apart, autofocus technology and exposure control remain defining features shaping usability.

• The SD9 relies entirely on manual focusing. While this may limit fast-paced genres like wildlife or sports, it allows for meticulous control vital in studio portrait or landscape photography.
• The W570 uses contrast-detection autofocus with 9 points, suitable for general point-and-shoot but struggles in low light or fast action scenarios.
• The SD9’s wider shutter speed range (up to 1/6000 sec) favors creative exposure control, while the W570 sticks to basic program modes without shutter or aperture priority.

Lens Ecosystem and Compatibility

• Sigma SD9 uses the proprietary Sigma SA mount. At launch, Sigma offered 76 lenses for this mount, ranging from wide-angle to telephoto, including macro and specialty optics.

• The Sony W570 has a fixed 25–125 mm equivalent zoom lens with an aperture from f/2.6 to f/6.3, covering day-to-day photography needs without lens changes.

If you want versatility and are willing to invest in lenses, the SD9 has a significant advantage. But if simplicity and pocketability are paramount, the W570’s integrated zoom covers common focal lengths without fuss.

Battery, Storage, and Connectivity

• Sigma SD9:

  • Storage: Compact Flash Type I or II cards, 1 slot
  • Connectivity: USB 1.0 (1.5 Mbps)
  • Battery life data not well documented; proprietary battery required.

• Sony W570:

  • Storage: Supports SD/SDHC/SDXC and Memory Stick Duo cards, 1 slot
  • Connectivity: USB 2.0 (480 Mbps), HDMI output
  • Wireless: Eye-Fi card compatible (Wi-Fi)
  • Battery: Uses NP-BN1 Lithium-ion battery

The W570’s compatibility with common SD cards and modern USB 2.0 transfers means easier workflow integration today. HDMI output supports video playback, which the SD9 lacks entirely.

Strengths and Weaknesses: Side-By-Side Analysis Table

Photography Disciplines: Which Camera Excels Where?

Portrait Photography

• Sigma SD9: The Foveon sensor’s color accuracy and the ability to use fast prime lenses make the SD9 excellent for portraits. The manual focus allows perfect eye sharpness and creative depth of field control. Bokeh quality benefits from the APS-C sensor’s larger size.

• Sony W570: Decent for quick portraits and snapshots but limited control over aperture (max f/2.6 wide, slower on telephoto end). Without raw files or manual focusing, fine-tuning skin tones and focus isn’t feasible.

Winner: SD9 for controlled, artistic portraits.

Landscape Photography

• Sigma SD9: APS-C sensor and RAW shooting offer wide dynamic range and post-processing latitude. The camera’s build, while not weather-sealed, is solid for outdoor use. With high-quality wide lenses, it yields sharp, detailed landscapes.

• Sony W570: Lightweight and portable for casual travel landscapes. Fixed lens suffices for moderate wide-angle shots but limited in resolution and dynamic range.

Winner: SD9 for serious landscape work; W570 for casual travel snaps.

Wildlife and Sports Photography

• The SD9’s manual focus and slower continuous capabilities undermine its suitability for action photography. The W570's slow 1 fps burst rate and contrast-detect AF are also insufficient for fast-moving subjects.

• Both cameras miss the mark here compared to modern DSLRs or mirrorless models.

Winner: Neither is ideal; consider specialized cameras.

Street Photography

• The W570’s compact size and silent operation make it more discreet and convenient for candid street photography.

• The SD9 is bulky, noisy (mirror slap), and slow to operate, limiting responsiveness.

Winner: W570 for portability and discretion.

Macro Photography

• SD9’s lens range includes macro capabilities, and manual focus aids in critical focus.

• W570 offers close focusing from 5 cm but fixed lens limits.

Winner: SD9 offers more flexibility.

Night and Astro Photography

• SD9 max ISO 400 limits handheld low-light exposure but the longer shutter options and RAW files favor night shooting on tripod.

• W570’s higher ISO options are noisier and limited by smaller sensor.

Winner: SD9 with tripod for night shots.

Video Capabilities

• SD9 offers none.

• W570 offers 720p HD video with limited manual controls, suitable for casual video capture.

Winner: W570.

Travel Photography

• For travel, W570’s compactness, light weight (116g), and versatile zoom lens make it the better portable option.

• SD9’s size, weight (950g), and slow workflow demand more commitment.

Winner: W570 for casual travel.

Professional Use

• SD9 outputs raw files, supports a mature lens ecosystem, and manual control, qualifying it as a professional creative tool despite dated tech.

• W570 is strictly consumer-oriented.

Winner: SD9.

Overall Performance and Ratings Summary

Sample Images: Color, Detail, and Real-World Output

Here is a gallery showing sample images from both cameras under similar lighting conditions to visualize the differences:

Sigma SD9 front Sigma SD9 screen back Sony W570 front Sony W570 screen back

• Notice the SD9’s nuanced color gradations and smooth tonal roll-off.
• The W570 images appear sharp and colorful but with less depth and more noise in shadows.

Who Should Choose the Sigma SD9?

• Enthusiasts interested in high-fidelity color reproduction for portraits and studio work.
• Photographers wanting a dedicated APS-C sensor camera with interchangeable lenses.
• Those willing to embrace manual focusing and slower workflow for image quality.

Who Should Pick the Sony Cyber-shot W570?

• Beginners or casual photographers seeking an affordable, easy-to-use camera.
• Travelers and street photographers wanting a portable, versatile tool.
• Video casual shooters needing basic 720p recording and immediate JPEG results.

The Final Verdict: Matching Cameras to Your Photography Journey

The Sigma SD9 and Sony W570 exist on opposite ends of the camera spectrum. The SD9 is a specialist’s tool with unique image characteristics that reward patience and skill. The W570 is a snapshot powerhouse, designed to capture moments with minimal setup.

We encourage you to consider your priorities carefully: If ultimate image color quality and lens versatility are top of mind, the SD9, despite its age, is compelling. Conversely, if simplicity, portability, and quick shooting matter more, the W570 remains a practical option, especially at budget-friendly prices.

Photography is an evolving journey - whichever you pick, start shooting, learning, and refining your creative voice.

Explore Further

Check out Sigma’s modern successors to the SD9 if you want Foveon technology in updated bodies. For compact cameras, Sony’s RX series offers advancements in sensor and lens technology.

Don’t hesitate to try hands-on - sometimes touching and shooting is the best way to know if a camera fits your style.

In-Depth Specs Recap Table

We hope this thorough comparison enables you to make confident, informed choices. Happy shooting!
