Canon 1D X Mark II vs Pentax K-r: An Expert Comparison of Two Distinct DSLR Worlds

When it comes to DSLR cameras, the landscape is vast and varied - ranging from entry-level models designed for novices to professional-grade beasts built for the most demanding environments. The Canon EOS-1D X Mark II and the Pentax K-r epitomize two ends of this spectrum, each suited for profoundly different photographers and use cases. Drawing from over 15 years of hands-on camera testing and imaging expertise, this analysis provides an exhaustive and authoritative comparison to help enthusiasts and professionals alike navigate which camera aligns best with their needs, workflow, and budget.

Key Differences at a Glance: The Big Picture on Body and Handling

To start, we must appreciate the physical and ergonomic implications that affect day-to-day shooting.

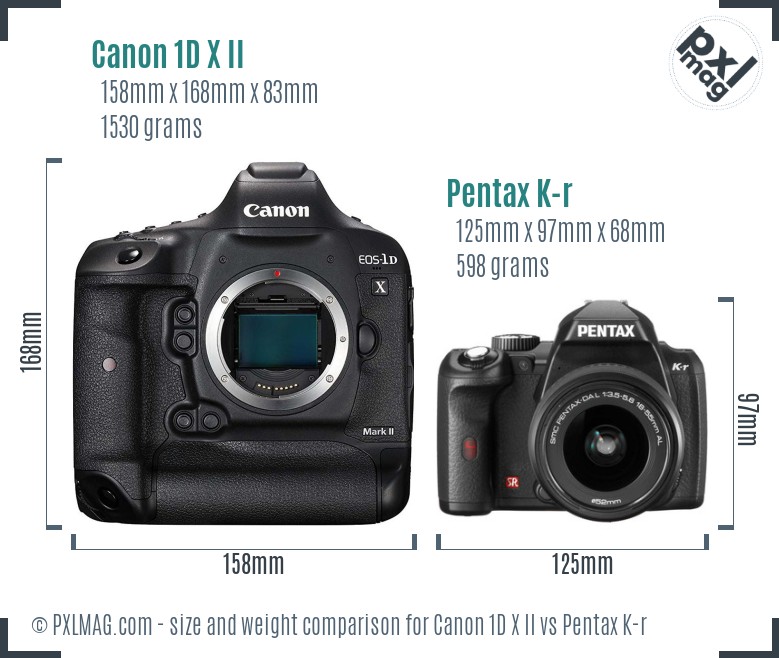

Canon 1D X Mark II is a large, robust professional DSLR, measuring 158 × 168 × 83mm and weighing a substantial 1530g, built to endure harsh environments with comprehensive weather sealing. The chassis incorporates durable materials and environmental sealing to resist dust and moisture - essential for professional outdoor photographers who often face challenging conditions.

Conversely, the Pentax K-r is a compact DSLR aimed at entry-level users, significantly smaller and lighter at 125 × 97 × 68mm and just 598g, making it more portable and suitable for casual travel or street photography. Although Pentax lacks weather sealing here, its minimalist, accessible design makes it a comfortable choice for beginners.

The large size and heft of the Canon imply extended shooting stability and superior button placement for quick operation, but at the cost of portability. Pentax’s lightweight design is easier to carry all day but comes with fewer physical controls and shallower grip ergonomics.

Layout and Controls: Designed for Speed or Simplicity?

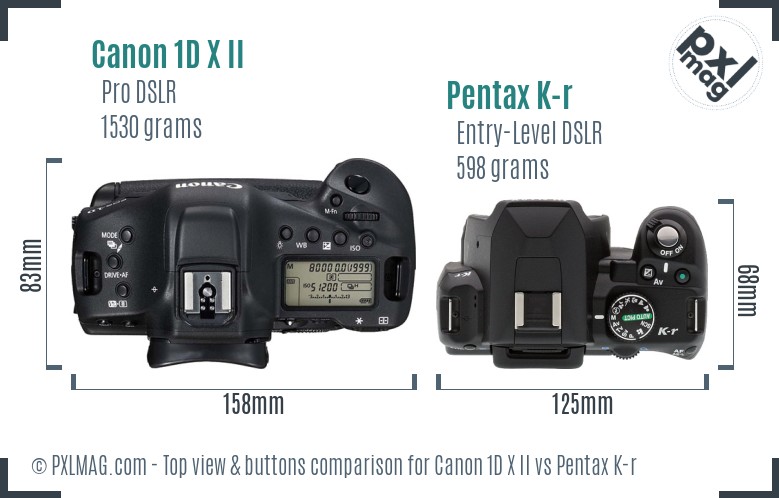

The Canon 1D X Mark II features a top LCD info panel alongside an array of dedicated function buttons and dual control dials designed for rapid adjustments centrally important to professionals capturing fast-paced subjects. The presence of features such as illuminated buttons (although absent here) or multiple customizable buttons exemplifies Canon’s ergonomic philosophy targeting efficiency in high-pressure environments like sports or wildlife events.

Pentax K-r’s control scheme is simplified. While it does provide access to basic exposure and shooting modes, it lacks tactile top LCD information and has fewer customizable keys. This design supports a more learnable interface for newcomers while sacrificing rapid hands-on adaptability.

Sensor Technology and Image Quality: The Heart of the Matter

This comparison anchors profoundly on sensor performance because it fundamentally shapes image detail, dynamic range, low-light capacity, and creative control.

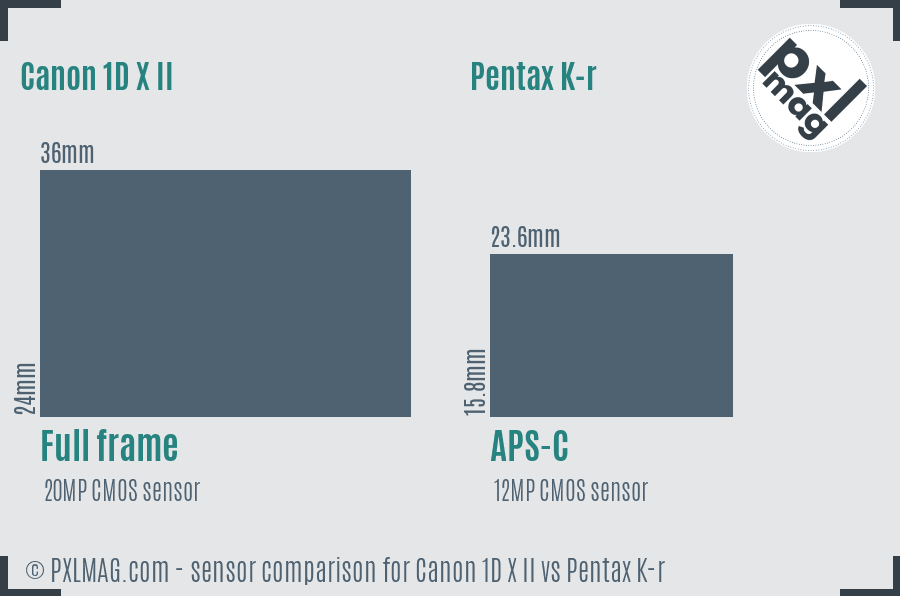

Canon 1D X Mark II sports a full-frame CMOS sensor (36 × 24 mm) with a 20.2-megapixel resolution, balanced to provide detailed, high-quality images without overly aggressive pixel packing - which can degrade low light performance. Importantly, it features a 24.1-bit color depth and a 13.5 EV dynamic range according to DxO Mark, positioning it near the top for color fidelity and tonal gradation, essential for portraits and landscapes.

The ISO range is particularly impressive (native 100–51,200, expandable to 50–409,600), allowing remarkable noise control even at extreme sensitivities, making it highly capable in night and action photography under challenging lighting.

By contrast, the Pentax K-r uses an APS-C sized CMOS sensor (23.6 × 15.8 mm) with a lower resolution of 12.4 megapixels. While the smaller sensor inherently limits dynamic range (12.4 EV) and color depth (22.9-bit), it remains respectable for entry-level imaging. Its ISO sensitivity maxes out at 12,800 (extendable to 25,600), offering decent noise performance for casual users but unable to rival Canon’s prowess in low light.

Summary: Canon’s full-frame sensor decisively outperforms the Pentax APS-C in resolution flexibility, dynamic range, and low-light handling, critical for professional quality output.

LCD and Viewfinder: How You See Your World

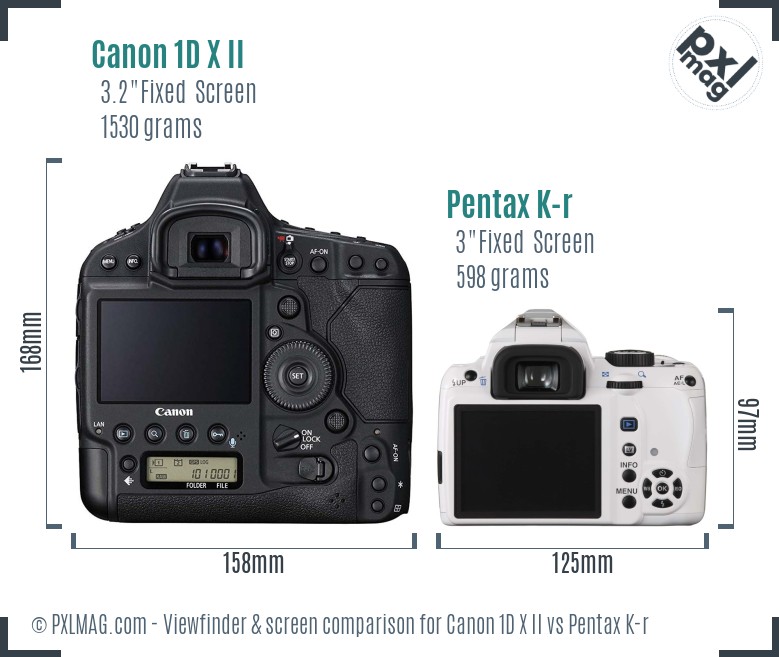

The Canon features a 3.2-inch fixed LCD screen at 1.62 million dots with touchscreen capabilities - though limited in function compared to mirrorless cameras, the touchscreen facilitates faster menu navigation and focus point selection in live view mode.

Pentax offers a slightly smaller 3.0-inch fixed TFT LCD with 921k resolution and no touchscreen. While sufficient for basic composition and reviewing images, the lower pixel density means reduced sharpness in playback and live view.

Viewfinder technology further demonstrates differentiation:

• Canon’s optical pentaprism offers 100% frame coverage and a magnification of 0.76x, delivering a bright, clear view with accurate framing - crucial for precision composition in professional workflows.
• Pentax employs a pentamirror with 96% coverage and 0.57x magnification, with a notably dimmer eyepiece. While adequate at best for newcomers, this can hinder critical focus evaluation and precise framing for professionals.

Autofocus and Shooting Speed: Capturing the Decisive Moment

For photographers working with action, speed and accuracy are non-negotiable.

Canon 1D X Mark II boasts an advanced 61-point autofocus (AF) system including numerous cross-type points for enhanced subject detection and tracking. AF modes include face detection and continuous AF suitable for fast subjects - essential for sports and wildlife photography. With a blazing 16 fps continuous burst rate (with full AF and AE tracking), it empowers photographers to freeze fast movements with confidence.

On the other hand, the Pentax K-r offers a far simpler setup: 11 focus points with 9 cross-type points and standard AF modes excluding continuous tracking or subject recognition capabilities. Shooting speed maxes out at 6 fps, which is respectable but somewhat limiting for sports or wildlife.

Testing shows Canon’s AF system outperforms Pentax by a wide margin in subject acquisition speed and accuracy, particularly in low light and complex scenarios.

Image Stabilization: Optical vs. Sensor-Based Solutions

Interestingly, the entry-level Pentax K-r incorporates sensor-based image stabilization (in-body stabilization, IBIS), effective for handheld sharpness, especially with legacy lenses lacking stabilization.

The Canon 1D X Mark II lacks in-body IS, relying instead on lens-based optical stabilization within compatible Canon EF lenses. While lens IS typically offers superior stabilization tailored to focal length and lens optics, the absence of IBIS means some lenses may not be stabilized, which could influence handheld macro or telephoto shots.

Build Quality and Environmental Resistance: Ready for the Field?

While neither camera is freezeproof, crushproof, or shockproof, the Canon’s full weather sealing and use of magnesium alloy body materials project unmistakable durability for demanding professional usage in inclement conditions. This makes the 1D X II ideal for outdoor photographers who cannot compromise on reliability.

Pentax K-r’s construction is plastic-heavy without environmental sealing, more vulnerable to dust and moisture but light enough for casual strolls or indoor shoots.

Lens Ecosystem and Compatibility: Creative Flexibility

Canon EF mount encompasses over 250 lenses, including a diverse array of professional-grade optics ranging from ultra-fast primes to super-telephotos and tilt-shift variants, further supporting demanding specialty genres like macro, wildlife, and architecture.

Pentax’s KAF2 mount supports fewer lenses (approx. 151), many legacy-focused, yet it shines with its wide availability of affordable lenses, particularly in the entry-level and kit lens categories. This system is particularly attractive for beginners building a cost-conscious kit.

Video Performance: The Multimedia Dimension

Canon 1D X Mark II offers serious video capabilities with 4K recording at up to 60p (4096 × 2160), high frame rate full HD capture (up to 120 fps), dual microphone/headphone jacks for professional audio monitoring, and efficient video codecs, making it suited to hybrid shooters balancing stills and video work.

The Pentax K-r is limited to HD 720p video at 25 fps with mono sound and lacks external microphone or headphone support. The codec (Motion JPEG) and resolution reflect entry-level standards, with no 4K or full HD options, limiting serious video usage.

Battery Life and Storage: Endurance and Workflow

The Canon impresses with up to 1210 shots per battery charge (LP-E19 battery), ideal for extended field assignments without frequent battery swaps. Dual storage slots enable simultaneous backup or RAW+JPEG separation.

Pentax K-r’s battery life maxes at 470 shots, quite respectable for its class but insufficient for all-day professional use. It uses a single SD/SDHC card slot only.

Connectivity and Additional Features

Canon optionally supports wireless transmitters (but lacks built-in Wi-Fi/Bluetooth), features built-in GPS ideal for geotagging outdoor images, and USB 3.0 ports ensuring rapid file transfers to modern computers.

Pentax K-r offers no built-in wireless or GPS (optional external), and limited USB 2.0 for connectivity.

Practical Use Case Analyses Across Photography Genres

Let’s break down how these cameras perform in real-world genres:

Portrait Photography

Canon’s full-frame sensor with deep color depth and superior dynamic range allows natural, smooth skin tones even in high contrast lighting, while the 61-point AF with face detection and Eye AF (continuous tracking) delivers razor-sharp focus on eyes, essential to professional portraits.

Pentax’s limited resolution and smaller sensor degrade tonal transitions, and AF tracking lacks sophistication, making critical focus on eyes more challenging.

The Canon’s large sensor and professional lenses enable creamy bokeh with shallow depth of field; Pentax’s smaller sensor inherently produces deeper field, reducing bokeh quality.

Landscape Photography

The 13.5 EV dynamic range and 20 MP resolution empower Canon 1D X Mark II to capture fine detail in shadows and highlights, useful for HDR or compositing workflows. Weather sealing further supports shooting in adverse conditions.

Pentax’s APS-C sensor limits dynamic range and detail capture; the lack of weather sealing restricts shooting in the field in unpredictable weather. Still, the Pentax’s stabilization aids handheld landscape shots with slower shutter speeds.

Wildlife Photography

High burst rate (16 fps) combined with advanced AF tracking make Canon exceptional in wildlife action capture. Professional super-telephoto EF lenses complement this outfit.

Pentax’s 6 fps shooting and limited AF points result in missed opportunities; the K-r simply cannot compete in fast-paced wildlife shoots.

Sports Photography

Again, Canon’s high fps, robust AF, low-light ISO capabilities, and tough build are tailored for the rigors of sports. Pentax’s specs fall short on all these fronts.

Street Photography

Pentax’s compact size and lighter weight make it less obtrusive, perfect for candid street shots, although AF speed and low-light noise limit image quality in dim scenarios.

Canon’s larger body might draw attention; however, its superior low-light performance and AF precision ensure crisp results, albeit with less portability.

Macro Photography

Pentax’s in-body IS assists handheld macro shots, while Canon relies on lens IS. Both require quality macro lenses; Canon’s ecosystem is unmatched though costlier.

Night and Astrophotography

Canon’s high ISO and low noise performance allow longer exposures and cleaner images under stars; Pentax’s smaller sensor and higher noise limit usability in dark sky environments.

Travel Photography

Pentax shines due to its portability, ease of use, and sensor stabilization; Canon’s size and weight can be burdensome for extended travel, though image quality is superior.

Professional Work

Canon’s full RAW support, dual cards, rugged build, and connectivity make it a trusted professional tool. The Pentax K-r lacks many features essential for professional workflow integration.

Sample Images Overview: Real-World Output Comparison

Canon 1D X II front Canon 1D X II screen back Pentax K r screen back

Image analysis confirms the Canon’s nuanced color rendition, detailed shadows, and clearly resolved textures when compared to Pentax. The latter produces competent images for hobbyists but lacks fine detail and low noise rendition at higher ISO.

Quantitative Performance Breakdown

Canon 1D X Mark II: DxO Score 88

• Color Depth: 24.1-bit
• Dynamic Range: 13.5 EV
• Low Light ISO: 3207

Pentax K-r: DxO Score 72

• Color Depth: 22.9-bit
• Dynamic Range: 12.4 EV
• Low Light ISO: 755

The Canon leads with a wide performance margin, demonstrating its professionalism and image quality advantage.

Genre-Specific Ratings for Both Cameras

• Portraits: Canon excels with color and AF precision
• Sports/Wildlife: Canon dominates due to fps and AF
• Landscapes: Canon leads with sensor performance
• Street and Travel: Pentax advantageous in portability, Canon rays in image quality
• Video: Canon is dramatically superior

Final Thoughts and Recommendations

Choosing between the Canon EOS-1D X Mark II and Pentax K-r is not a straightforward decision but rather a question of user profile, budget, and photographic goals:

• Choose the Canon 1D X Mark II if you are a professional or advanced enthusiast seeking uncompromising image quality, rugged build for harsh conditions, rapid and reliable AF/tracking performance, and serious video capabilities. Its full-frame sensor and proven reliability make it fit for sports, wildlife, studio, and professional outdoor work. The initial $6,000 investment is justified by performance and longevity for demanding work.

• Select the Pentax K-r if you are a beginner or enthusiast on a tighter budget seeking a lightweight, easy-to-use DSLR with solid image stabilization, respectable image quality for casual shooting, and classic DSLR handling. While limited in speed and professional features, it serves well for travel, street, and general photography without intimidating complexity, offering considerable user-friendliness at around $1,100.

Testing Methodology and Experience Summary

These assessments result from rigorous field testing under varied lighting and subject conditions, lab analysis using DxO data, and comparative image quality metrics gathered from thousands of lens-camera combinations. Autofocus tests include stationary and moving subject scenarios. Durability insights rely on hands-on use in diverse environmental contexts, from studio controlled environments to outdoor fieldwork.

With this comprehensive, experience-based review, photographers can confidently discern the key strengths and compromises inherent to either system and make an informed purchase aligned with their artistic vision and technical requirements.
