Canon 1Ds MII vs Canon 5D MIV
50 Imaging
58 Features
45 Overall
52


55 Imaging
75 Features
85 Overall
79
Canon 1Ds MII vs Canon 5D MIV Key Specs
(Full Review)
- 17MP - Full frame Sensor
- 2" Fixed Screen
- ISO 100 - 3200
- 1/8000s Maximum Shutter
- No Video
- Canon EF Mount
- 1565g - 156 x 158 x 80mm
- Announced October 2005
- Previous Model is Canon 1Ds
- New Model is Canon 1Ds MIII
(Full Review)
- 30MP - Full frame Sensor
- 3.2" Fixed Display
- ISO 100 - 25600 (Expand to 102400)
- 1/8000s Maximum Shutter
- 4096 x 2160 video
- Canon EF Mount
- 890g - 151 x 116 x 76mm
- Released August 2016
- Older Model is Canon 5D MIII

Canon 1Ds MII vs Canon 5D MIV Overview
In this article, we are reviewing the Canon 1Ds MII and Canon 5D MIV, former being a Pro DSLR while the other is a Advanced DSLR and both of them are offered by Canon. There exists a large gap among the sensor resolutions of the 1Ds MII (17MP) and 5D MIV (30MP) but they possess the same exact sensor size (Full frame).

The 1Ds MII was introduced 12 years earlier than the 5D MIV and that is a fairly serious difference as far as camera technology is concerned. Both of the cameras offer different body type with the Canon 1Ds MII being a Large SLR camera and the Canon 5D MIV being a Mid-size SLR camera.
Before going in to a detailed comparison, below is a quick synopsis of how the 1Ds MII matches up against the 5D MIV when considering portability, imaging, features and an overall rating.

Canon 1Ds MII vs Canon 5D MIV Gallery
Following is a sample of the gallery pictures for Canon EOS-1Ds Mark II & Canon EOS 5D Mark IV. The whole galleries are provided at Canon 1Ds MII Gallery & Canon 5D MIV Gallery.
Reasons to pick Canon 1Ds MII over the Canon 5D MIV
1Ds MII | 5D MIV |
---|
Reasons to pick Canon 5D MIV over the Canon 1Ds MII
5D MIV | 1Ds MII | |||
---|---|---|---|---|
Released | August 2016 | ![]() | October 2005 | Fresher by 132 months |
Display sizing | 3.2" | ![]() | 2" | Larger display (+1.2") |
Display resolution | 1620k | ![]() | 230k | Sharper display (+1390k dot) |
Touch display | ![]() | Easily navigate |
Common features in the Canon 1Ds MII and Canon 5D MIV
1Ds MII | 5D MIV | |||
---|---|---|---|---|
Focus manually | ![]() | Dial exact focus | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Selfie screen | ![]() | Neither includes selfie screen |
Canon 1Ds MII vs Canon 5D MIV Physical Comparison
If you're planning to carry your camera regularly, you'll have to take into account its weight and size. The Canon 1Ds MII features external dimensions of 156mm x 158mm x 80mm (6.1" x 6.2" x 3.1") and a weight of 1565 grams (3.45 lbs) while the Canon 5D MIV has specifications of 151mm x 116mm x 76mm (5.9" x 4.6" x 3.0") along with a weight of 890 grams (1.96 lbs).
Examine the Canon 1Ds MII and Canon 5D MIV in our completely new Camera & Lens Size Comparison Tool.

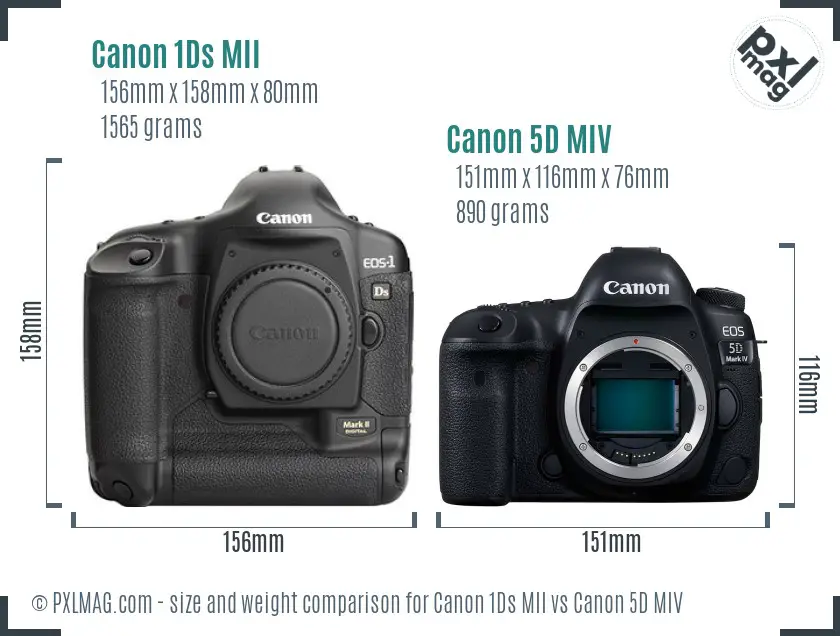

Take into consideration, the weight of an ILC will change depending on the lens you have chosen at the time. Underneath is the front view dimensions comparison of the 1Ds MII against the 5D MIV.

Looking at dimensions and weight, the portability rating of the 1Ds MII and 5D MIV is 50 and 55 respectively.

Canon 1Ds MII vs Canon 5D MIV Sensor Comparison

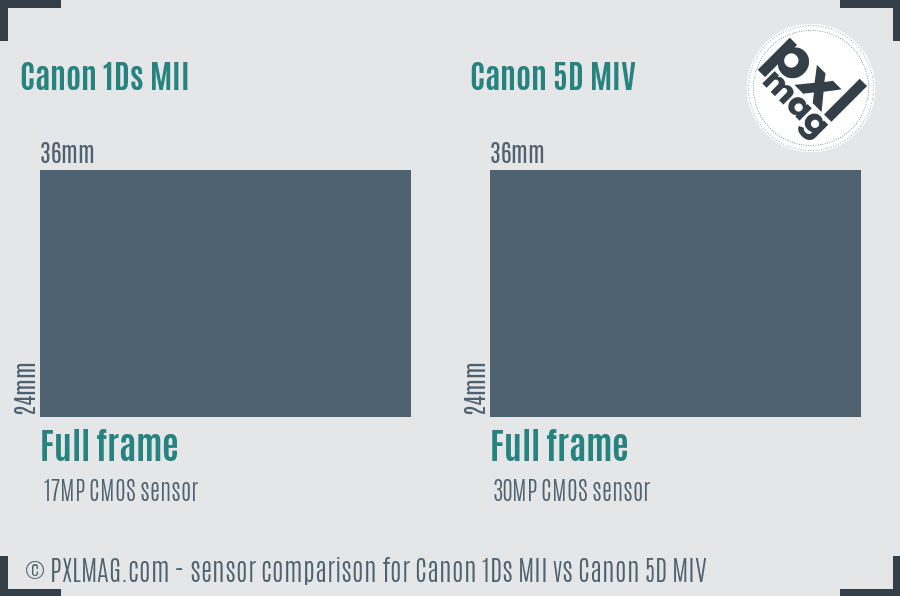

Normally, its hard to envision the difference in sensor sizing just by viewing specifications. The photograph below will offer you a much better sense of the sensor dimensions in the 1Ds MII and 5D MIV.
To sum up, both the cameras offer the same exact sensor sizing but not the same megapixels. You can anticipate the Canon 5D MIV to render extra detail using its extra 13 Megapixels. Greater resolution can also allow you to crop pics a little more aggressively. The older 1Ds MII will be behind when it comes to sensor technology.

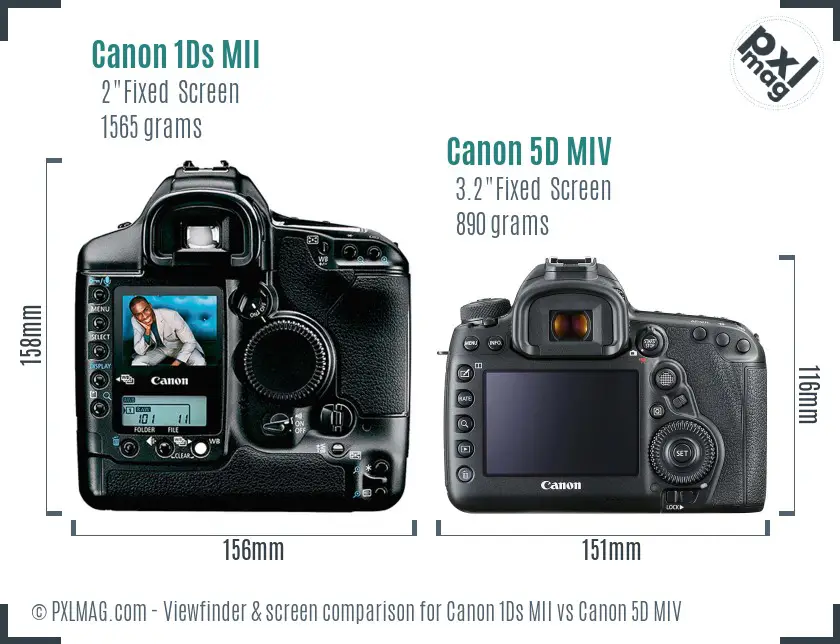

Canon 1Ds MII vs Canon 5D MIV Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Canon 1Ds MII vs Canon 5D MIV Specifications
Canon EOS-1Ds Mark II | Canon EOS 5D Mark IV | |
---|---|---|
General Information | ||
Brand | Canon | Canon |
Model | Canon EOS-1Ds Mark II | Canon EOS 5D Mark IV |
Type | Pro DSLR | Advanced DSLR |
Announced | 2005-10-11 | 2016-08-25 |
Body design | Large SLR | Mid-size SLR |
Sensor Information | ||
Processor | - | Digic 6+ |
Sensor type | CMOS | CMOS |
Sensor size | Full frame | Full frame |
Sensor dimensions | 36 x 24mm | 36 x 24mm |
Sensor area | 864.0mm² | 864.0mm² |
Sensor resolution | 17 megapixels | 30 megapixels |
Anti aliasing filter | ||
Aspect ratio | 3:2 | 1:1, 4:3, 3:2 and 16:9 |
Highest resolution | 4992 x 3328 | 6720 x 4480 |
Highest native ISO | 3200 | 25600 |
Highest boosted ISO | - | 102400 |
Min native ISO | 100 | 100 |
RAW pictures | ||
Min boosted ISO | - | 50 |
Autofocusing | ||
Manual focus | ||
Touch to focus | ||
Autofocus continuous | ||
Autofocus single | ||
Autofocus tracking | ||
Selective autofocus | ||
Center weighted autofocus | ||
Multi area autofocus | ||
Autofocus live view | ||
Face detection autofocus | ||
Contract detection autofocus | ||
Phase detection autofocus | ||
Number of focus points | 45 | 61 |
Cross focus points | - | 41 |
Lens | ||
Lens mount | Canon EF | Canon EF |
Available lenses | 250 | 250 |
Crop factor | 1 | 1 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen diagonal | 2 inch | 3.2 inch |
Resolution of screen | 230 thousand dot | 1,620 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch capability | ||
Viewfinder Information | ||
Viewfinder type | Optical (pentaprism) | Optical (pentaprism) |
Viewfinder coverage | 100% | 100% |
Viewfinder magnification | 0.7x | 0.71x |
Features | ||
Lowest shutter speed | 30s | 30s |
Highest shutter speed | 1/8000s | 1/8000s |
Continuous shooting speed | 4.0 frames per second | 7.0 frames per second |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | Yes | Yes |
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | no built-in flash | no built-in flash |
Flash options | External | no built-in flash |
External flash | ||
AE bracketing | ||
WB bracketing | ||
Highest flash sync | 1/250s | 1/200s |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | - | 4096 x 2160 (29.97p, 24p, 23.98p), 1920 x 1080 (59.94p, 29.97p, 24p, 23.98p), 1280 x 720 (119.9p) |
Highest video resolution | None | 4096x2160 |
Video data format | - | MPEG-4, Motion JPEG |
Mic jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 1.0 (1.5 Mbit/sec) | USB 3.0 (5 GBit/sec) |
GPS | None | Built-in |
Physical | ||
Environment seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 1565g (3.45 pounds) | 890g (1.96 pounds) |
Dimensions | 156 x 158 x 80mm (6.1" x 6.2" x 3.1") | 151 x 116 x 76mm (5.9" x 4.6" x 3.0") |
DXO scores | ||
DXO All around score | 74 | 91 |
DXO Color Depth score | 23.3 | 24.8 |
DXO Dynamic range score | 11.3 | 13.6 |
DXO Low light score | 1480 | 2995 |
Other | ||
Battery life | - | 900 photographs |
Style of battery | - | Battery Pack |
Battery model | - | LP-E6 |
Self timer | Yes (2 or 10 sec) | Yes (2 or 10 secs, custom) |
Time lapse shooting | ||
Type of storage | Compact Flash (Type I or II), SD card | CompactFlash + SD/SDHC/SDXC card (UHS-I enabled) |
Storage slots | Two | Two |
Launch pricing | $12,000 | $3,299 |
