Canon 760D vs Canon R5
66 Imaging
64 Features
77 Overall
69
59 Imaging
79 Features
90 Overall
83
Canon 760D vs Canon R5 Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3" Fully Articulated Screen
- ISO 100 - 12800 (Boost to 25600)
- 1920 x 1080 video
- Canon EF/EF-S Mount
- 565g - 132 x 101 x 78mm
- Launched February 2015
- Other Name is EOS 760D / EOS 8000D
- Succeeded the Canon 700D
(Full Review)
- 45MP - Full frame Sensor
- 3.2" Fully Articulated Display
- ISO 100 - 51200 (Increase to 102400)
- Sensor based 5-axis Image Stabilization
- 1/8000s Maximum Shutter
- 8192 x 4320 video
- Canon RF Mount
- 738g - 138 x 98 x 88mm
- Launched July 2020
Photobucket discusses licensing 13 billion images with AI firms Canon 760D vs Canon R5 Overview
Here is a in-depth overview of the Canon 760D versus Canon R5, former being a Entry-Level DSLR while the other is a Pro Mirrorless and they are both designed by Canon. There is a large difference between the resolutions of the 760D (24MP) and R5 (45MP) and the 760D (APS-C) and R5 (Full frame) have totally different sensor size.
President Biden pushes bill mandating TikTok sale or banThe 760D was unveiled 6 years prior to the R5 and that is quite a serious difference as far as tech is concerned. Both of the cameras have different body design with the Canon 760D being a Compact SLR camera and the Canon R5 being a SLR-style mirrorless camera.
Before diving straight to a thorough comparison, here is a brief synopsis of how the 760D scores vs the R5 in regards to portability, imaging, features and an overall rating.
Photography Glossary Canon 760D vs Canon R5 Gallery
Below is a sample of the gallery pics for Canon EOS 760D & Canon EOS R5. The full galleries are provided at Canon 760D Gallery & Canon R5 Gallery.
Reasons to pick Canon 760D over the Canon R5
| 760D | R5 |
|---|
Reasons to pick Canon R5 over the Canon 760D
| R5 | 760D | |||
|---|---|---|---|---|
| Launched | July 2020 |  | February 2015 | Fresher by 66 months |
| Display dimensions | 3.2" |  | 3" | Larger display (+0.2") |
| Display resolution | 2100k |  | 1040k | Crisper display (+1060k dot) |
Common features in the Canon 760D and Canon R5
| 760D | R5 | |||
|---|---|---|---|---|
| Manual focus |  | Very accurate focus | ||
| Display type | Fully Articulated |  | Fully Articulated | Fully Articulated display |
| Selfie screen |  | Both good for selfies | ||
| Touch friendly display |  | Easily navigate |
Canon 760D vs Canon R5 Physical Comparison
When you are intending to carry your camera, you'll have to factor in its weight and volume. The Canon 760D provides physical measurements of 132mm x 101mm x 78mm (5.2" x 4.0" x 3.1") and a weight of 565 grams (1.25 lbs) while the Canon R5 has sizing of 138mm x 98mm x 88mm (5.4" x 3.9" x 3.5") accompanied by a weight of 738 grams (1.63 lbs).
Compare the Canon 760D versus Canon R5 in our newest Camera plus Lens Size Comparison Tool.

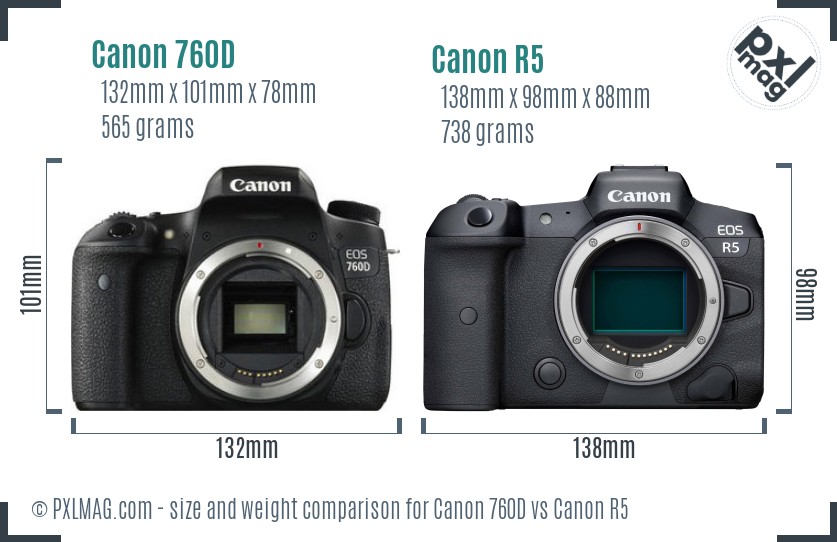

Take into consideration, the weight of an ILC will differ based on the lens you use during that time. Below is a front view overall size comparison of the 760D vs the R5.
Using size and weight, the portability score of the 760D and R5 is 66 and 59 respectively.
Canon 760D vs Canon R5 Sensor Comparison

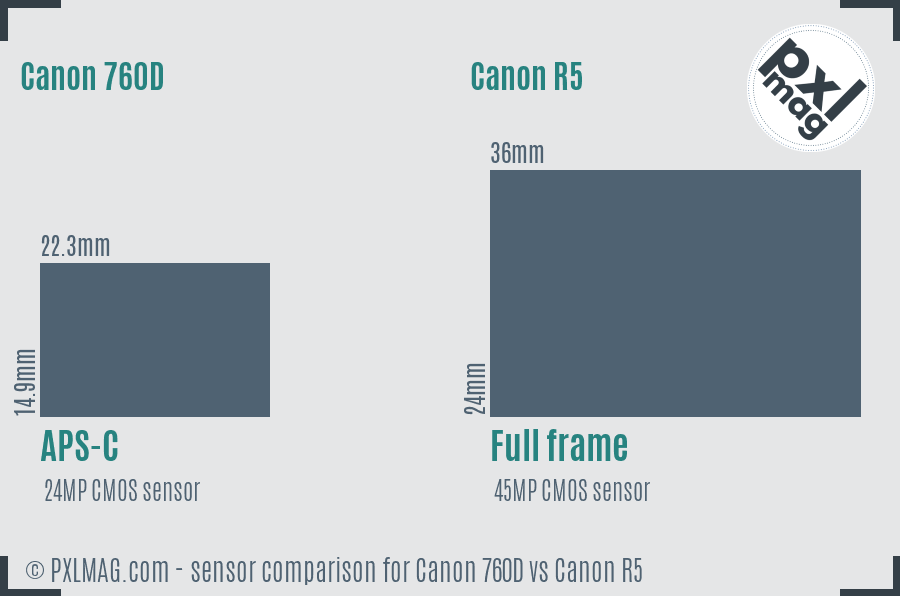

Usually, it can be difficult to envision the gap between sensor sizing just by reading specs. The graphic underneath might give you a better sense of the sensor sizing in the 760D and R5.
As you can plainly see, the two cameras provide different megapixel count and different sensor sizing. The 760D with its tinier sensor will make getting shallow DOF harder and the Canon R5 will offer extra detail having an extra 21 Megapixels. Greater resolution will also help you crop pics more aggressively. The older 760D is going to be disadvantaged in sensor tech.

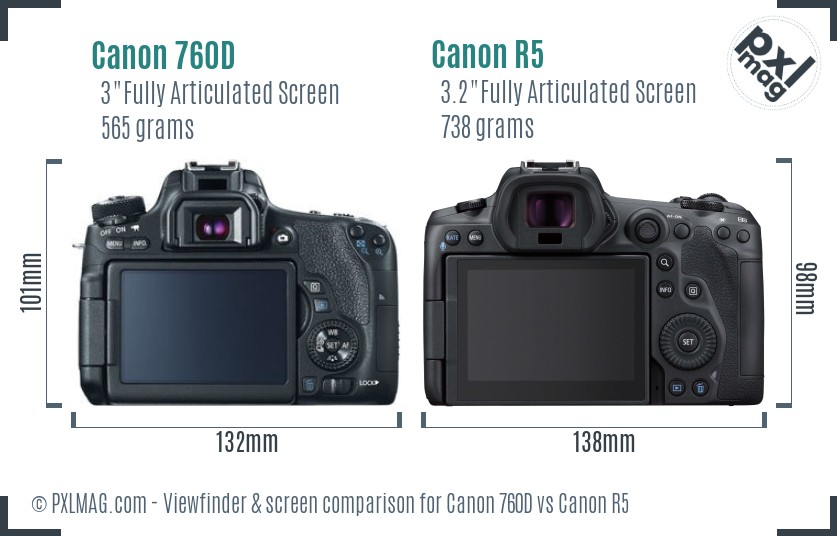

Canon 760D vs Canon R5 Screen and ViewFinder
Samsung Releases Faster Versions of EVO MicroSD Cards Photography Type Scores
Portrait Comparison
Snapchat Adds Watermarks to AI-Created ImagesStreet Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthSports Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideTravel Comparison
Mastering Nature Photography with a Digital Microscope CameraLandscape Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneVlogging Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes
Canon 760D vs Canon R5 Specifications
| Canon EOS 760D | Canon EOS R5 | |
|---|---|---|
| General Information | ||
| Brand | Canon | Canon |
| Model type | Canon EOS 760D | Canon EOS R5 |
| Otherwise known as | EOS 760D / EOS 8000D | - |
| Category | Entry-Level DSLR | Pro Mirrorless |
| Launched | 2015-02-06 | 2020-07-09 |
| Physical type | Compact SLR | SLR-style mirrorless |
| Sensor Information | ||
| Processor | DIGIC 6 | Digic X |
| Sensor type | CMOS | CMOS |
| Sensor size | APS-C | Full frame |
| Sensor measurements | 22.3 x 14.9mm | 36 x 24mm |
| Sensor surface area | 332.3mm² | 864.0mm² |
| Sensor resolution | 24 megapixel | 45 megapixel |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
| Highest Possible resolution | 6000 x 4000 | 8192 x 5464 |
| Maximum native ISO | 12800 | 51200 |
| Maximum enhanced ISO | 25600 | 102400 |
| Min native ISO | 100 | 100 |
| RAW support | ||
| Min enhanced ISO | - | 50 |
| Autofocusing | ||
| Manual focusing | ||
| Touch focus | ||
| Autofocus continuous | ||
| Autofocus single | ||
| Autofocus tracking | ||
| Autofocus selectice | ||
| Autofocus center weighted | ||
| Multi area autofocus | ||
| Live view autofocus | ||
| Face detection autofocus | ||
| Contract detection autofocus | ||
| Phase detection autofocus | ||
| Total focus points | 19 | 1053 |
| Cross type focus points | 19 | - |
| Lens | ||
| Lens mount type | Canon EF/EF-S | Canon RF |
| Available lenses | 326 | 17 |
| Crop factor | 1.6 | 1 |
| Screen | ||
| Type of screen | Fully Articulated | Fully Articulated |
| Screen size | 3" | 3.2" |
| Resolution of screen | 1,040 thousand dots | 2,100 thousand dots |
| Selfie friendly | ||
| Liveview | ||
| Touch function | ||
| Viewfinder Information | ||
| Viewfinder | Optical (pentamirror) | Electronic |
| Viewfinder resolution | - | 5,760 thousand dots |
| Viewfinder coverage | 95% | 100% |
| Viewfinder magnification | 0.51x | 0.76x |
| Features | ||
| Minimum shutter speed | 30 secs | 30 secs |
| Fastest shutter speed | 1/4000 secs | 1/8000 secs |
| Fastest silent shutter speed | - | 1/8000 secs |
| Continuous shutter rate | 5.0 frames per sec | 12.0 frames per sec |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | Yes |
| Set white balance | ||
| Image stabilization | ||
| Built-in flash | ||
| Flash distance | 12.00 m (at ISO 100) | no built-in flash |
| Flash options | - | no built-in flash |
| Hot shoe | ||
| AE bracketing | ||
| White balance bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Supported video resolutions | 1920 x 1080 (30p, 25p, 24p), 1280 x 720 (60p, 50p), 640 x 480 (30p, 25p) | 8192x4320 (30p/24/23.98p) 7680x4320 (30p/23.98p) |4096x2160 (120p/60p/30p/24p/23.98p) |3840x2160 (120p/60p/30p/23.98p) |1920x1080 (60p/30p/23.98p) |
| Maximum video resolution | 1920x1080 | 8192x4320 |
| Video format | MPEG-4, H.264 | MPEG-4, H.264, H.265 |
| Microphone support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Built-In | Built-In |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | Yes |
| GPS | Optional | None |
| Physical | ||
| Environment sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 565 grams (1.25 pounds) | 738 grams (1.63 pounds) |
| Physical dimensions | 132 x 101 x 78mm (5.2" x 4.0" x 3.1") | 138 x 98 x 88mm (5.4" x 3.9" x 3.5") |
| DXO scores | ||
| DXO Overall rating | 70 | not tested |
| DXO Color Depth rating | 22.6 | not tested |
| DXO Dynamic range rating | 12.0 | not tested |
| DXO Low light rating | 915 | not tested |
| Other | ||
| Battery life | 440 photos | 320 photos |
| Battery style | Battery Pack | Battery Pack |
| Battery ID | LP-E17 | LP-E6NH |
| Self timer | Yes (2 or 10 secs) | Yes |
| Time lapse feature | ||
| Storage type | SD/SDHC/SDXC (UHS-I compatible) | CFexpress and SD (UHS-II) slots |
| Card slots | Single | 2 |
| Price at release | $849 | $3,899 |
