Canon 77D vs Canon R5

In this article, we are reviewing the Canon 77D versus Canon R5, one is a Entry-Level DSLR and the other is a Pro Mirrorless and both are created by Canon. There exists a sizeable gap among the sensor resolutions of the 77D (24MP) and R5 (45MP) and the 77D (APS-C) and R5 (Full frame) come with different sensor sizing.

Apple Innovates by Creating Next-Level Optical Stabilization for iPhone

The 77D was released 4 years before the R5 which is a fairly large gap as far as camera technology is concerned. Both the cameras offer different body type with the Canon 77D being a Mid-size SLR camera and the Canon R5 being a SLR-style mirrorless camera.

Before diving through a detailed comparison, below is a quick summary of how the 77D scores vs the R5 with regard to portability, imaging, features and an overall score.

Below is a sample of the gallery pictures for Canon EOS 77D and Canon EOS R5. The complete galleries are provided at Canon 77D Gallery and Canon R5 Gallery.

When you are looking to carry around your camera frequently, you will want to factor in its weight and volume. The Canon 77D provides outside measurements of 131mm x 100mm x 76mm (5.2" x 3.9" x 3.0") accompanied by a weight of 540 grams (1.19 lbs) whilst the Canon R5 has sizing of 138mm x 98mm x 88mm (5.4" x 3.9" x 3.5") along with a weight of 738 grams (1.63 lbs).

Take a look at the Canon 77D versus Canon R5 in the all new Camera with Lens Size Comparison Tool.

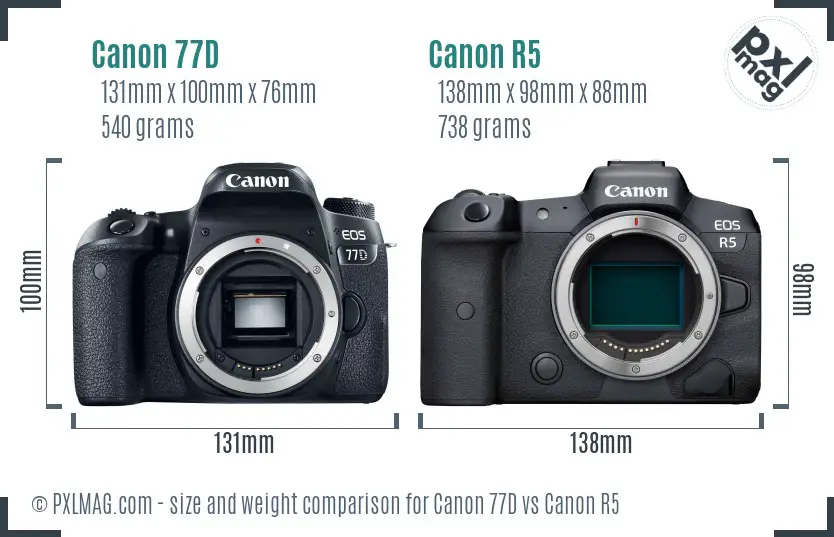

Always remember, the weight of an Interchangeable Lens Camera will change depending on the lens you are using at the time. Below is the front view measurements comparison of the 77D and the R5.

Considering dimensions and weight, the portability grade of the 77D and R5 is 66 and 59 respectively.

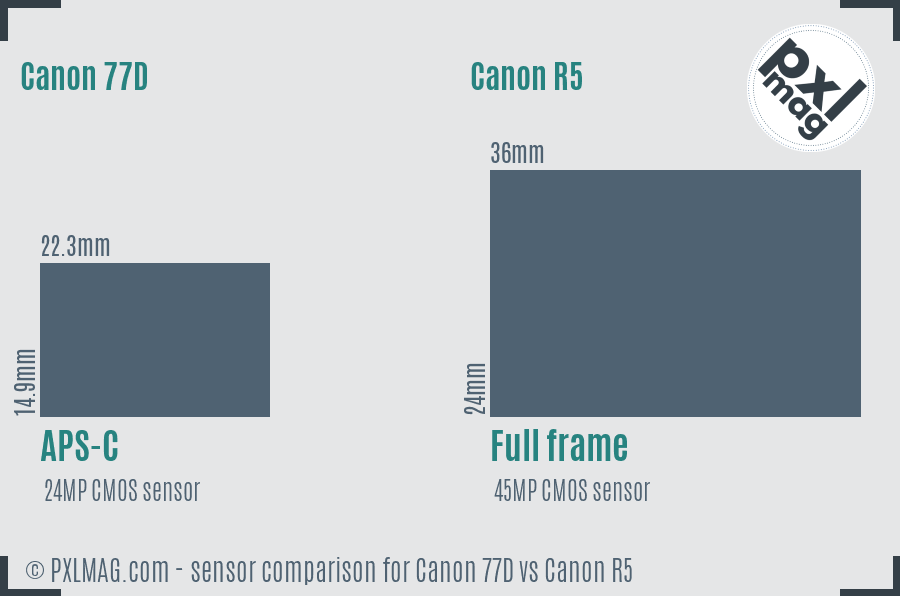

Typically, it is very difficult to imagine the difference in sensor sizes simply by viewing specs. The picture underneath should provide you a better sense of the sensor measurements in the 77D and R5.

As you can plainly see, each of these cameras offer different resolutions and different sensor sizes. The 77D due to its smaller sensor is going to make getting bokeh more challenging and the Canon R5 will provide you with extra detail as a result of its extra 21 Megapixels. Greater resolution will also help you crop pics a little more aggressively. The more aged 77D will be behind in sensor technology.
