Canon 77D vs Canon R6
66 Imaging
66 Features
85 Overall
73


61 Imaging
73 Features
90 Overall
79
Canon 77D vs Canon R6 Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3" Fully Articulated Screen
- ISO 100 - 25600 (Raise to 51200)
- 1920 x 1080 video
- Canon EF/EF-S Mount
- 540g - 131 x 100 x 76mm
- Introduced February 2017
- Alternate Name is EOS 9000D
- Succeeded the Canon T6s
(Full Review)
- 20MP - Full frame Sensor
- 3" Fully Articulated Display
- ISO 100 - 102400 (Boost to 204800)
- Sensor based 5-axis Image Stabilization
- No Anti-Alias Filter
- 1/8000s Max Shutter
- 3840 x 2160 video
- Canon RF Mount
- 680g - 138 x 98 x 88mm
- Revealed July 2020
- Newer Model is Canon R6 II

Canon 77D vs Canon R6 Overview
On this page, we are comparing the Canon 77D and Canon R6, one being a Entry-Level DSLR and the other is a Pro Mirrorless and they are both designed by Canon. The resolution of the 77D (24MP) and the R6 (20MP) is fairly close but the 77D (APS-C) and R6 (Full frame) boast totally different sensor sizing.

The 77D was announced 4 years earlier than the R6 and that is a fairly big gap as far as camera tech is concerned. Each of these cameras have different body design with the Canon 77D being a Mid-size SLR camera and the Canon R6 being a SLR-style mirrorless camera.
Before we go straight to a comprehensive comparison, here is a brief synopsis of how the 77D scores vs the R6 when considering portability, imaging, features and an overall grade.

Canon 77D vs Canon R6 Gallery
This is a sample of the gallery pictures for Canon EOS 77D and Canon EOS R6. The whole galleries are provided at Canon 77D Gallery and Canon R6 Gallery.
Reasons to pick Canon 77D over the Canon R6
77D | R6 |
---|
Reasons to pick Canon R6 over the Canon 77D
R6 | 77D | |||
---|---|---|---|---|
Revealed | July 2020 | ![]() | February 2017 | More recent by 41 months |
Display resolution | 1620k | ![]() | 1040k | Sharper display (+580k dot) |
Common features in the Canon 77D and Canon R6
77D | R6 | |||
---|---|---|---|---|
Focus manually | ![]() | More exact focus | ||
Display type | Fully Articulated | ![]() | Fully Articulated | Fully Articulated display |
Display dimensions | 3" | ![]() | 3" | Equal display measurement |
Selfie screen | ![]() | Both are selfie friendly | ||
Touch friendly display | ![]() | Easily navigate |
Canon 77D vs Canon R6 Physical Comparison
If you are intending to lug around your camera, you will have to take into account its weight and dimensions. The Canon 77D offers outside dimensions of 131mm x 100mm x 76mm (5.2" x 3.9" x 3.0") having a weight of 540 grams (1.19 lbs) while the Canon R6 has dimensions of 138mm x 98mm x 88mm (5.4" x 3.9" x 3.5") and a weight of 680 grams (1.50 lbs).
Analyze the Canon 77D and Canon R6 in the new Camera with Lens Size Comparison Tool.

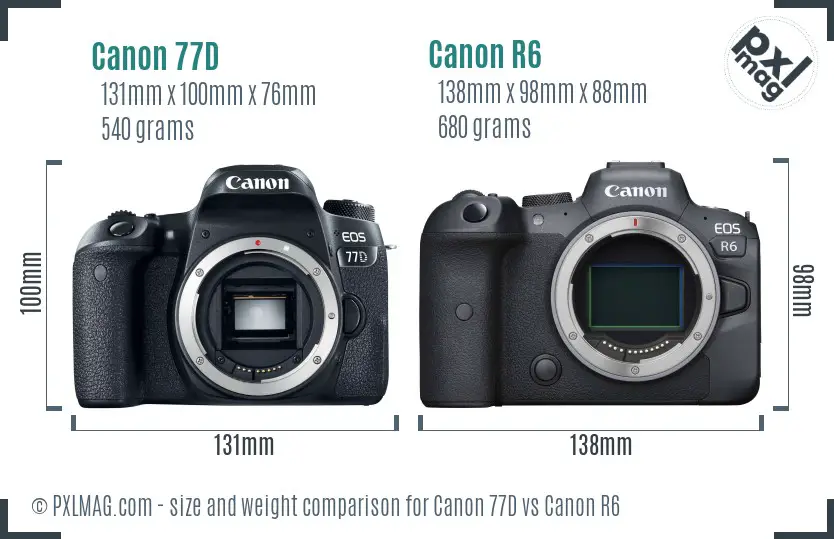

Keep in mind, the weight of an Interchangeable Lens Camera will differ dependant on the lens you have at that moment. Here is a front view proportions comparison of the 77D against the R6.

Factoring in size and weight, the portability grade of the 77D and R6 is 66 and 61 respectively.

Canon 77D vs Canon R6 Sensor Comparison

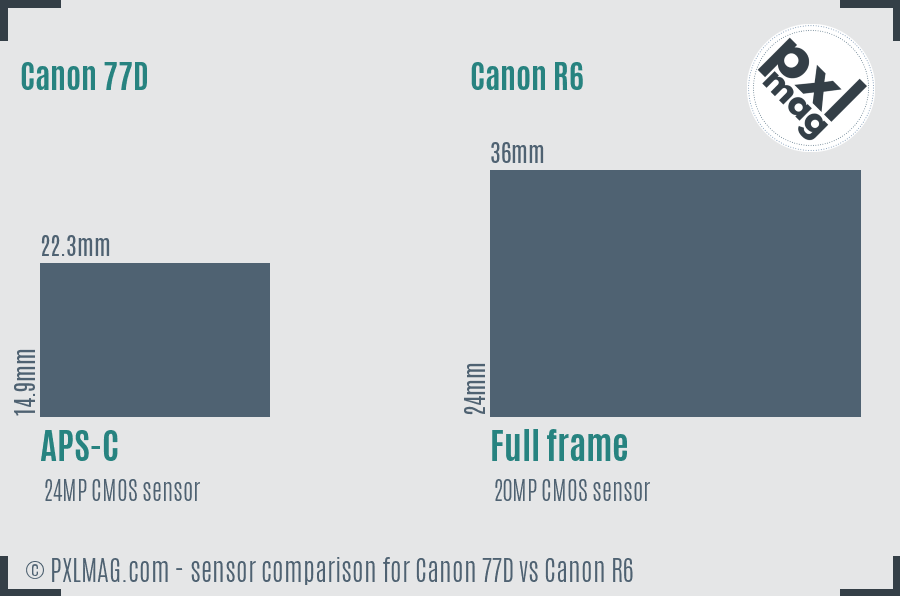

Often, its tough to visualise the contrast in sensor measurements purely by viewing specs. The visual underneath will offer you a greater sense of the sensor sizes in the 77D and R6.
As you can plainly see, both cameras provide different megapixels and different sensor measurements. The 77D using its smaller sensor will make shooting shallow DOF more challenging and the Canon 77D will result in extra detail with its extra 4MP. Greater resolution will also allow you to crop images more aggressively. The older 77D will be behind in sensor innovation.

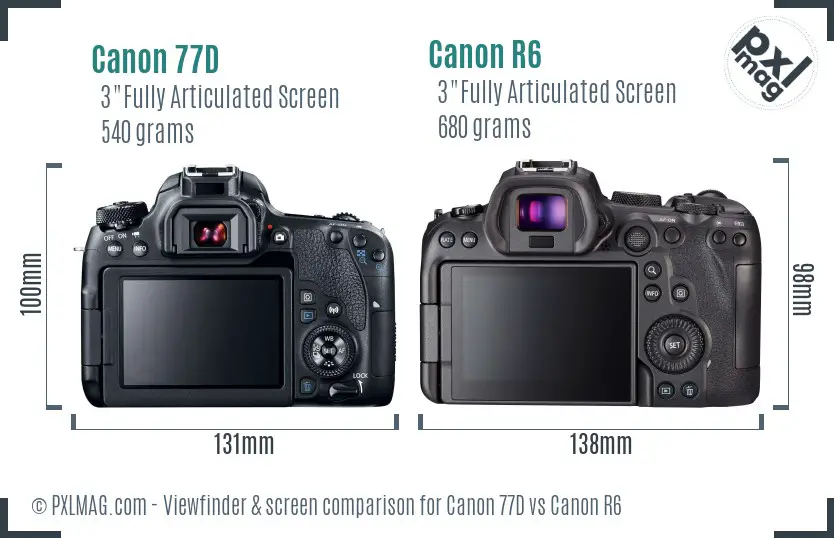

Canon 77D vs Canon R6 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Canon 77D vs Canon R6 Specifications
Canon EOS 77D | Canon EOS R6 | |
---|---|---|
General Information | ||
Brand Name | Canon | Canon |
Model | Canon EOS 77D | Canon EOS R6 |
Also called | EOS 9000D | - |
Type | Entry-Level DSLR | Pro Mirrorless |
Introduced | 2017-02-15 | 2020-07-09 |
Body design | Mid-size SLR | SLR-style mirrorless |
Sensor Information | ||
Powered by | DIGIC 7 | Digic X |
Sensor type | CMOS | CMOS |
Sensor size | APS-C | Full frame |
Sensor dimensions | 22.3 x 14.9mm | 36 x 24mm |
Sensor area | 332.3mm² | 864.0mm² |
Sensor resolution | 24MP | 20MP |
Anti aliasing filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
Highest resolution | 6000 x 4000 | 5472 x 3648 |
Highest native ISO | 25600 | 102400 |
Highest boosted ISO | 51200 | 204800 |
Min native ISO | 100 | 100 |
RAW data | ||
Min boosted ISO | - | 50 |
Autofocusing | ||
Manual focus | ||
Autofocus touch | ||
Autofocus continuous | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detection focus | ||
Contract detection focus | ||
Phase detection focus | ||
Number of focus points | 45 | 6072 |
Cross focus points | 45 | - |
Lens | ||
Lens mount | Canon EF/EF-S | Canon RF |
Number of lenses | 326 | 17 |
Crop factor | 1.6 | 1 |
Screen | ||
Range of screen | Fully Articulated | Fully Articulated |
Screen diagonal | 3 inch | 3 inch |
Screen resolution | 1,040k dot | 1,620k dot |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Viewfinder Information | ||
Viewfinder type | Optical (pentamirror) | Electronic |
Viewfinder resolution | - | 3,690k dot |
Viewfinder coverage | 95 percent | 100 percent |
Viewfinder magnification | 0.51x | 0.76x |
Features | ||
Lowest shutter speed | 30 seconds | 30 seconds |
Highest shutter speed | 1/4000 seconds | 1/8000 seconds |
Highest silent shutter speed | - | 1/8000 seconds |
Continuous shooting speed | 6.0 frames/s | 12.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | Yes | Yes |
Set white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash range | 12.00 m (at ISO 100) | no built-in flash |
Flash options | - | no built-in flash |
Hot shoe | ||
AEB | ||
White balance bracketing | ||
Highest flash sync | 1/200 seconds | - |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Supported video resolutions | 1920 x 1080 @ 60p / 60 Mbps, MOV, H.264, Linear PCM | 3840x2160 (60p/30p/23.98p) |1920x1080 (120p/60p/50p/30p/25p/24p/23.98p) |
Highest video resolution | 1920x1080 | 3840x2160 |
Video format | MPEG-4, H.264 | MPEG-4, H.264, H.265 |
Mic input | ||
Headphone input | ||
Connectivity | ||
Wireless | Built-In | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | Yes |
GPS | Optional | None |
Physical | ||
Environment seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 540g (1.19 lb) | 680g (1.50 lb) |
Physical dimensions | 131 x 100 x 76mm (5.2" x 3.9" x 3.0") | 138 x 98 x 88mm (5.4" x 3.9" x 3.5") |
DXO scores | ||
DXO All around score | 78 | not tested |
DXO Color Depth score | 23.6 | not tested |
DXO Dynamic range score | 13.3 | not tested |
DXO Low light score | 971 | not tested |
Other | ||
Battery life | 600 pictures | 360 pictures |
Style of battery | Battery Pack | Battery Pack |
Battery model | - | LP-E6NH |
Self timer | Yes (2 or 10 sec) | Yes |
Time lapse shooting | ||
Storage media | SD/SDHC/SDXC (UHS-I compatible) | Dual SD slots (UHS-II supported) |
Storage slots | 1 | Dual |
Price at launch | $549 | $2,499 |
